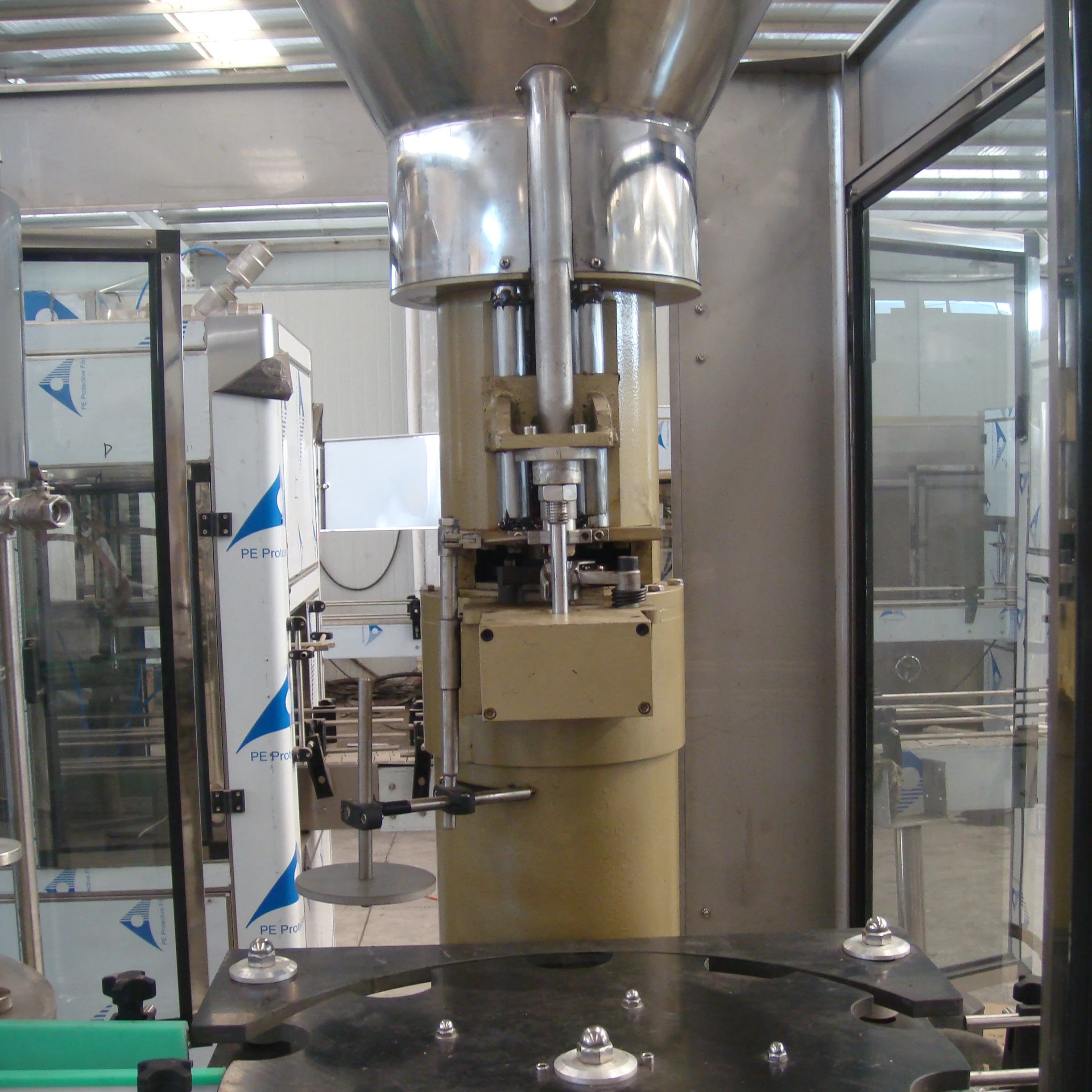

Automatic Wine Spirit Corking Capping Inserting Machine TOCP 40
- Category: Capping Machines >>>
- Supplier: Changzhou The One Packaging Machinery Co. Ltd.
Share on (60018442400):
Product Overview
Description
TOCP-40 Pressing Red Wine Cork Capping Machine
Introduction:
TOCP-40 is suitable for all kinds of corks pressing into the bottle, such as wine.
1. A novel structure, convenient operation, long equipment life, reliable operation.
2. wide stepless frequency control for bottle
3. the bottle feeding, tamponade process with overload protection, safety of man and machine.
4. using mechanical linkage, no the bottle no capping, saving corks.
Parameters:
Model | TOCP-40 |
Capping nozzle | 1 |
Speed | 2500(adjustable) |
Bottle type | a:bottle dia.:φ60~φ90mm(need change parts) |
b:bottle height:250~380mm(adjustable) | |
Dimension (mm) | 1270×1060×2450 |
Cork length(mm) | 35~44 |
Cork dia. (mm) | φ20.5~φ24 |
Weight | 800kg |
Working voltage (V) | 220/380 |
Power (KW) | 1.5kw |
