ZH-800g Factory price High Productivity lock bottom folder gluer
US $11500-$13000
ZH 1200BFT Bottom Lock Automatic Box Gluing Machine
- Category: Gluing Machines >>>
- Supplier: Wenzhou Hoson Printing Machinery Co. Ltd.
Share on (60021953787):
Product Overview
Description

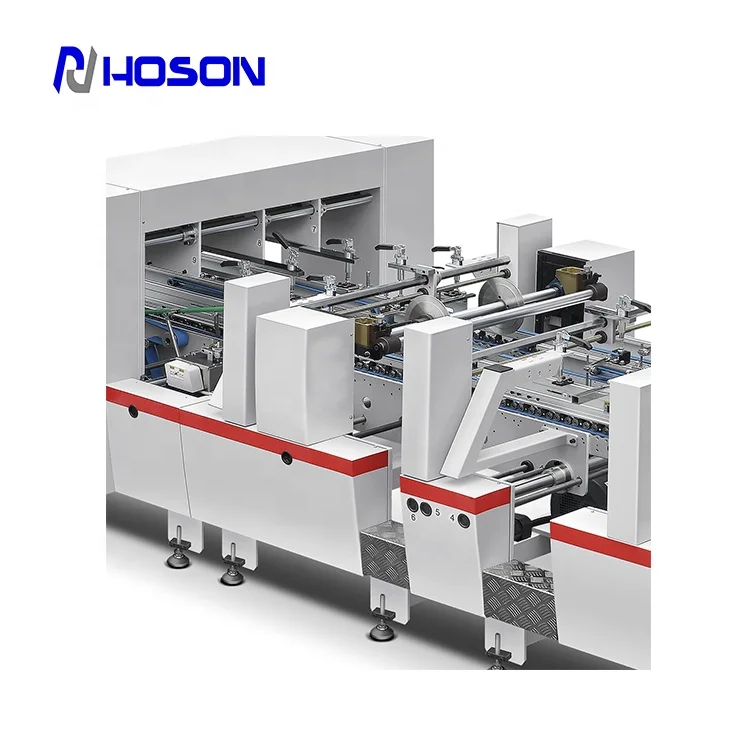

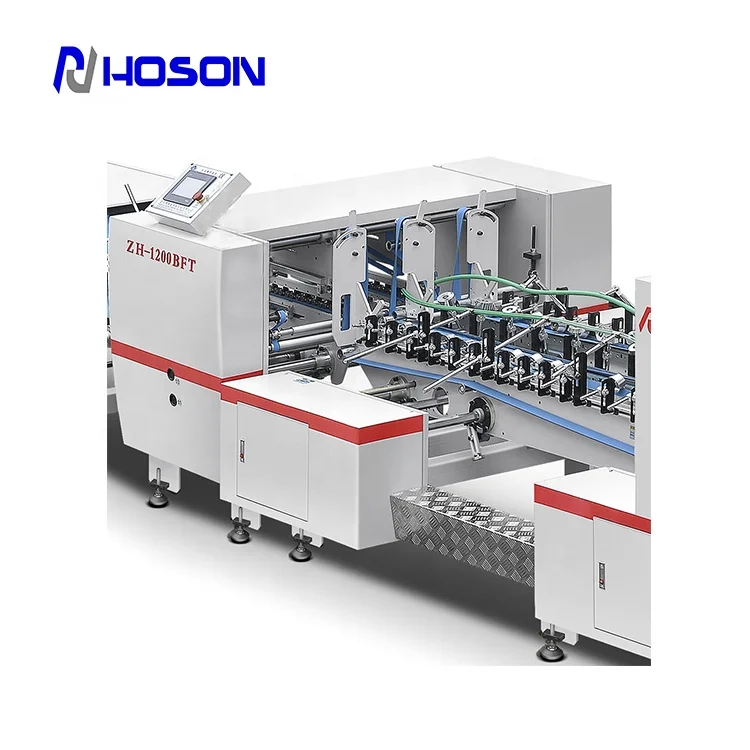

ZH-1200BFT Bottom Lock Automatic Box Gluing Machine
Product Description
Feature:
1. The machine is running steady with strengthened driving system, and it is also easy for maintenance.
2. The motor is controlled by transducers (inverter) which are available for automatic timing. It is power saved and it helps to work stably.

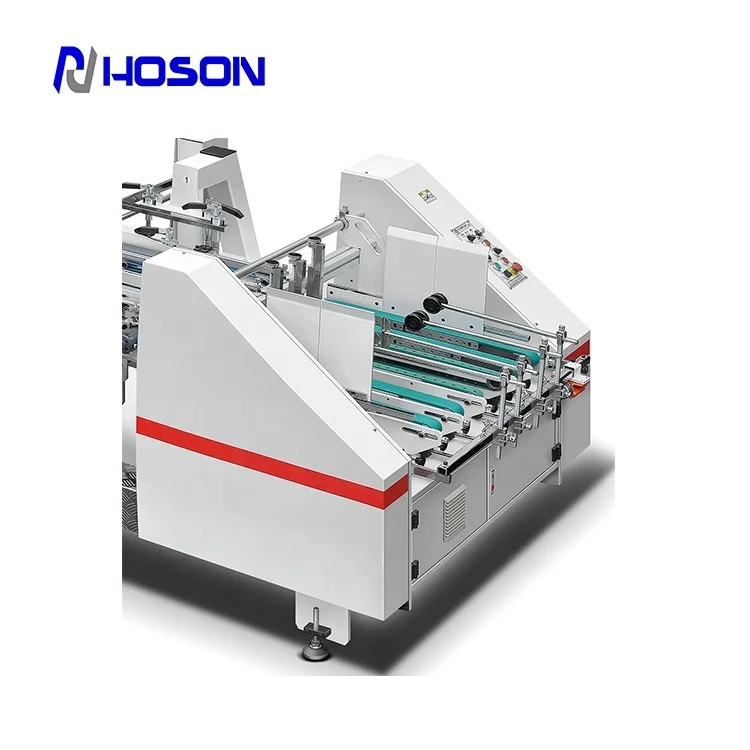

3. Paper is feed by several thick belts under the help of vibration motor. Feeding is continuous, exact and automatic with this system.
4. Grinders are provided in both sides of machine, to make gluing more stable and firm.
5. Two sets of gluing units: top unit for bottom glue and lower unit for side glue. All standard glue units apply line glue. Space adjustment is through the tooth rods.
6. PLC system and touch screen for easy operation. Out-put quantity/speed/counting etc., is able to set by this system. A photoelectric system for speed control in pressing unit (speed in pressing unit is corresponding automatically with the one in feeding unit). Counting through photo-electric sensor & electromagnet kicking.
7. Pressing unit with pneumatic design. And the upper belt is able to work separately. Pressing also by a sponge belt in this section to keep out-put in a perfect condition. A transverse paper collection table after the pressing unit helps to collect boxes quickly.
8. The machine is able to make 2-fold or 4-fold crash-lock bottom boxes. In the pre-folding part, the first fold at 180°, the third fold at 135°. The second fold and the fourth fold box at 180°.
Main Technical Parameters:
1 | Line speed | 0-200m/min , Continuous adjustment |
2 | Usage paper | 280-700 g/ms, paperboard, E flute |
3 | Box forming | Bottom-lock, straight line box, double walls box |
4 | Fold method | 1st 180° , 3rd folds 90°, 2nd & 4th folds 180° |
5 | Paper feeding | Automatic feeding, grinding unit |
6 | Electric Power | 9.0kw |
7 | Dimension | 12.8*1.7*1.6m |
8 | Weight | 4700kg |
9 | Condition | New |
FITTING PARTS OF 1200BFT BOTTOM LOCK TYPE
Parts Sourced Area / Brand | Item Name |
Taiwan | Main engine |
Taiwan | Second engine |
Schneider- France
| Air switch |
AC Contactor AC | |
Press button | |
Urgency | |
Italy-Taiwan(joint venture) | Belt |
Schneider -France | Transducer |
Schneider -France | PLC |
Taiwan | Power switch |
China | Bearings |
Remarks: Press unit with air pressure design | |
ZH-1200BFT is designed for Crash-lock Bottom/straight-line/double-wall boxes
Box Type | Picture | A Max | A Min | B Max | B Min | C Max | C Min | D Max | D Min |
Crash-lock Bottom Box | 850-300mm | 750-250mm | 150mm | 50mm | |||||
Straight Line box | 980-220mm | 750-200mm |
|
| |||||
Double Walls Box | 780mm | 100mm | 120mm | 100mm | |||||
Packaging & Shipping
Our Services
According to the customer's requirement, we will arrange one technician to help you to install the machine and train the worker, but all the expenses like round-trip air tickets, accommodation, meals and salary USD80/day, incurred therefrom shall be born by the buyer.
Company Information
We Wenzhou Hoson Printing Machinery Co., Ltd ( Hongye Factory) started in 1990s, who is the earliest manufacturer of folder and gluer machinery in Wenzhou,Zhejiang,China
Through about 15 years' efforts, a mode integrated with production-sale-service has been built and completed.
Our main series of folder gluers are 4/6 corner type, crash-lock bottom type, pre-folding type and two-fold type, etc. We have these advantages: special design, easy operation, quick adjustment and high automation.
Warranty
Warranty: one year. The manufacturer will send the buyer new parts ( no intentional damage). However, the courrier should be covered by the customer. Please note that the belts are excluding the one year's warranty.
Optional Equipment
Germany hhs Spray Gluing System Cold Glue Chinese Spray Gluing System Cold Glue
Chinese Plasma Surface Treatment System
One Gun Tow Guns Three Guns
