Products Description

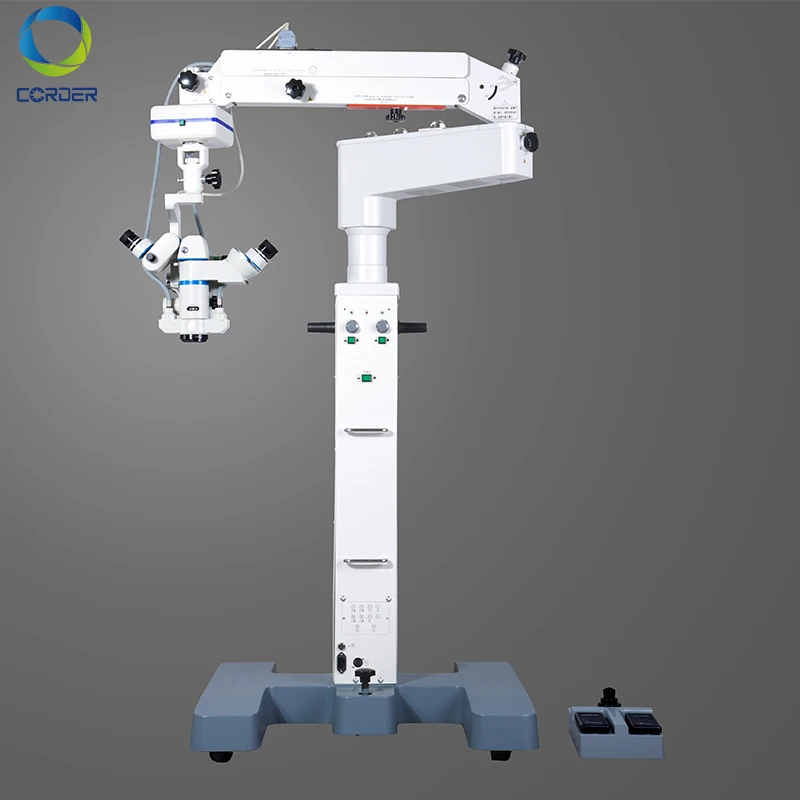

Corder Microscope has Fluid,Responsive and Accurate.

Fluid. Responsive. Accurate. These were a few of the principles guiding every phase in the design of the Corder Microscope. With the choicest mechanical machined components, the Corder Microscope has the grace and agility to adjust to every desired position on command. Well designed Apochromatic optics treated with Corder's Mcoatings produce true-to life sharp images with high depth,definition and contrast.









More comfortable operation
Tiltable binocular tubes available, which can incline more than 60° depending on the posture and physique of the operating surgeon.
Movable range: 30° to 90° (inclined)

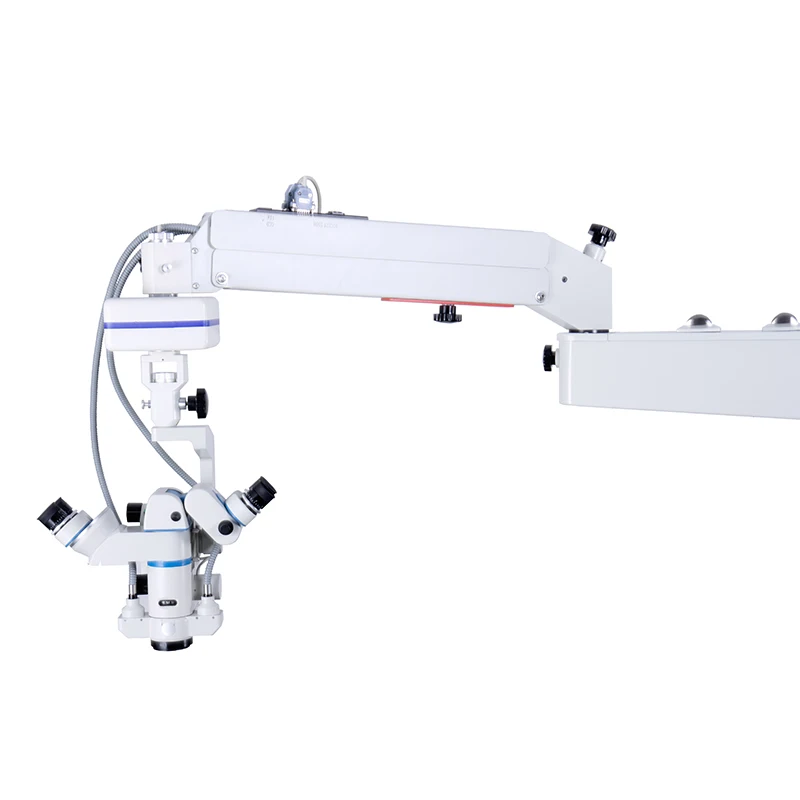

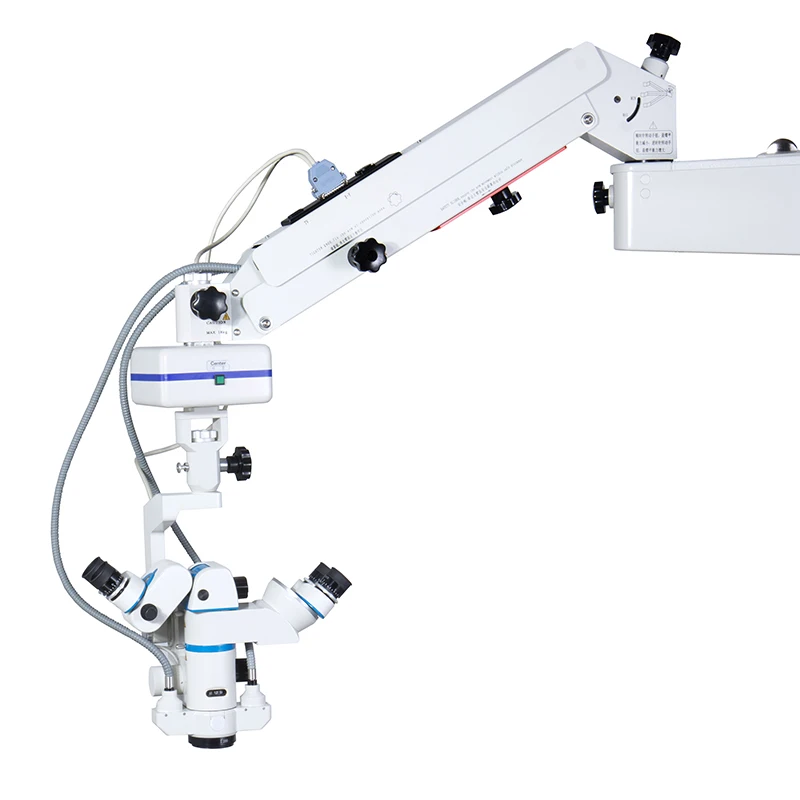

fully independent assistant’s microscope ,180° face-to-face observation with the main tube








Corder microscope configured with XYZ and ZOOM motorized movement operated through a comfortable foot control, a very effective co-axial illumination and 100W halogen light source makes it ideal for surgeries.


Doctor-patient communication is easier

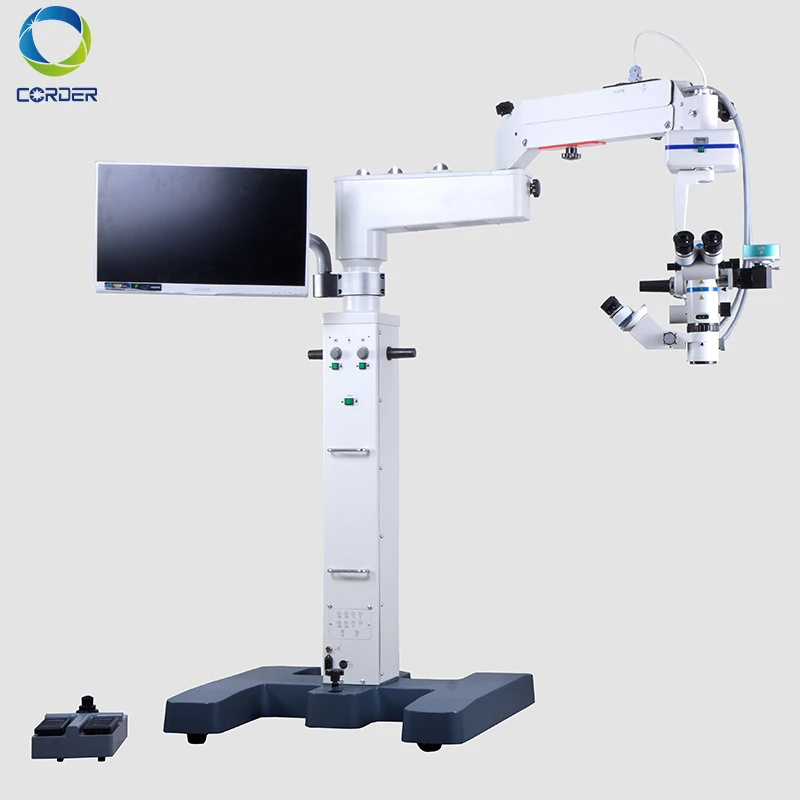

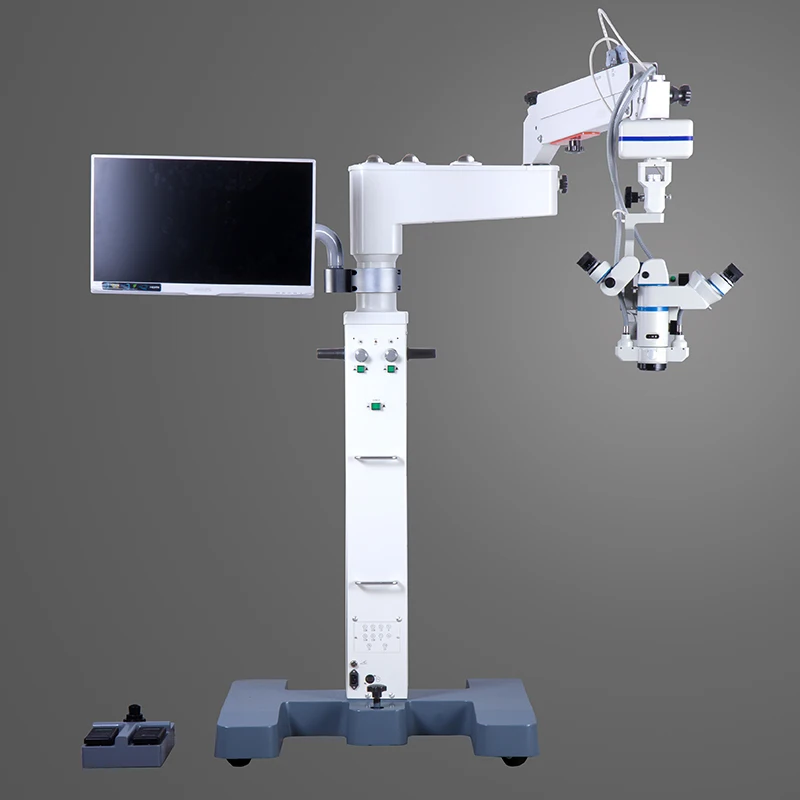

To address digital documentation needs, a host of digital SLR, video camera, and CCD adapters are made available with the ProLine in addition to Corder's proprietary iVu multi-functional imaging solution.




1080P full hd image quality, efficient image management during the operation. Integrate your digital workflow to facilitate case management and facilitate more intuitive patient communication.




Product Paramenters


Model
ASOM-4
Function
Orthopedics
Surgical microscope
Magnification
motorized zoom system, 1:6 zoom ratio, magnification 4x~24x
Focusing range
50mm
Binocular tube
30°~90° tiltable tube ,(0° ~200° optional)
Eyepiece
12.5x / 10x
Objective lens
F 200mm(175mm, 250mm, 300mm,350mm optional)
pupil distance
55mm~75mm
diopter adjustment
+6D ~ -6D
Feild of veiw
Φ74~Φ12mm
X-Y translator
Motorized by foot switch , ±30mm
Assistant tube
Integrated with independent steps changer and same depth of veiw as main tube
Reset functions
YES
Illumination
System
Coaxial illumination
Light source
Halogen lamp
Light intensity adjustment
Continuous brightness adjustment 0-100000lux
Fiber optic illumination
Dual fiber
Field of illumination
Φ50mm

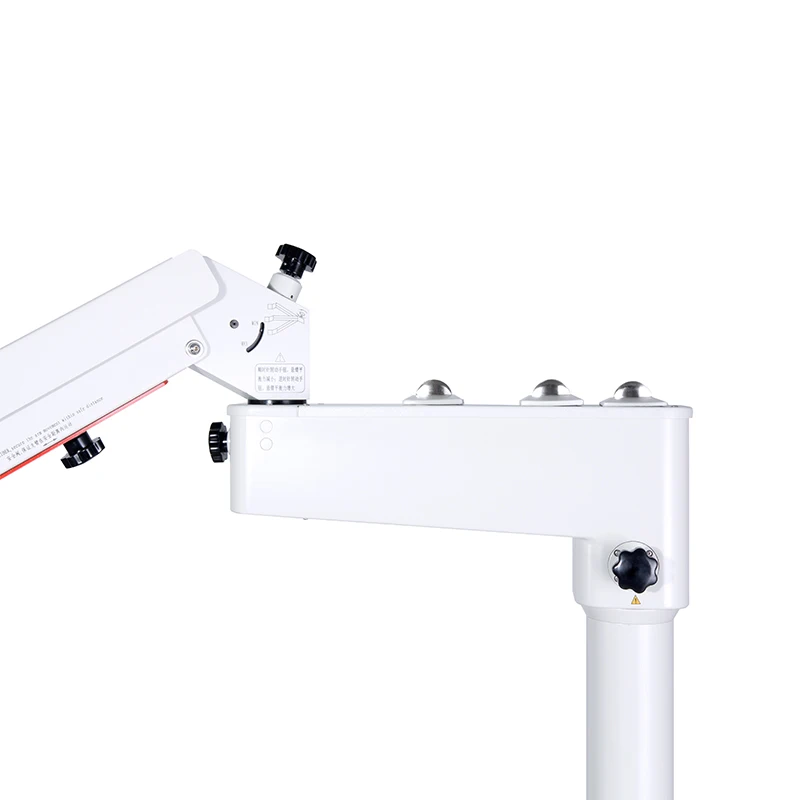

Arm & Base
Mount
Floor stand
Maximum arm
extension
1200mm
Height from objective to floor
800mm
Base size
800*800mm
Brake system
Four-wheel brake
Foot switch/Handle controller
Waterproof, 8 function steps
Others
Weight
169KG
Power socket
220v(+10%/-15%) 50HZ/110V(+10%/-15%) 60HZ
Power consumption
300VA
Safety class
class I
Accessories
CCD Camera system
Beam splitter, CCD adapter, CCD, Display
XENON LAMP
150000lux
Integrated Video Adapter
SONY / CANON Camera
Ambient conditions
Use
+10°C to +40°C
30% to 75% relative humidity
500 mbar to 1060 mbar atmospheric pressure
Storage
–30°C to +70°C
10% to 100% relative humidity
500 mbar to 1060 mbar atmospheric pressure
Limitations on use
The Corder ASOM-4 surgical microscope may be used in enclosed rooms and
on flat surfaces with max. 0.3° unevenness; or at stable walls or ceilings that fulfill
Leica Microsystems' specifications (see installation manual)
