1200*600*6mm Underfloor Insulation XPS Tile Backer Board
US $1.00-$30.00
wedi board quality fiberglass tile backer board
- Category: XPS Boards >>>
- Supplier: Zhejiang Shield Energy-Saving Insulation Materials Co. Ltd.
Share on (60029568614):
Product Overview
Description
Polystyrene xps tile backer board

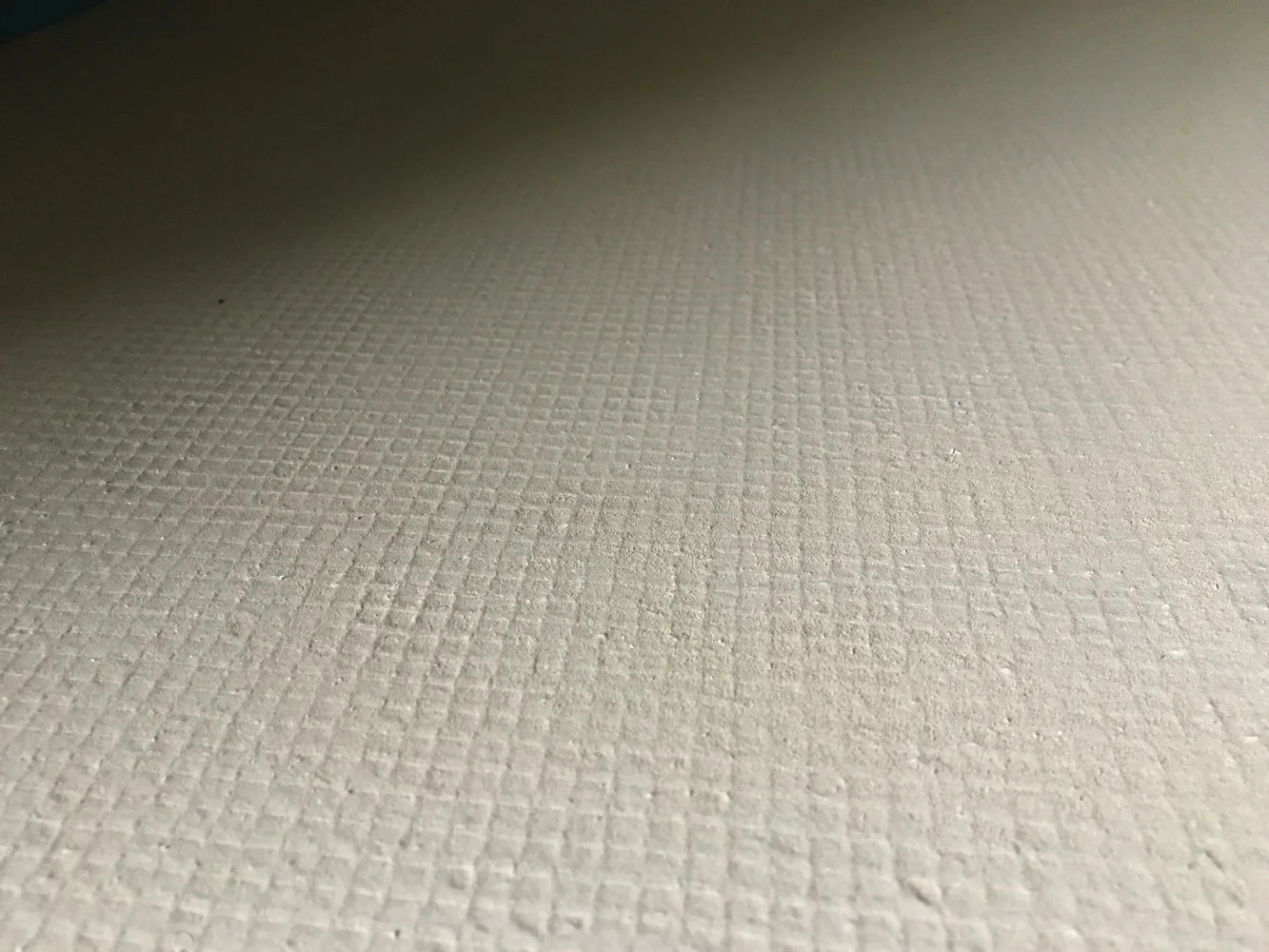

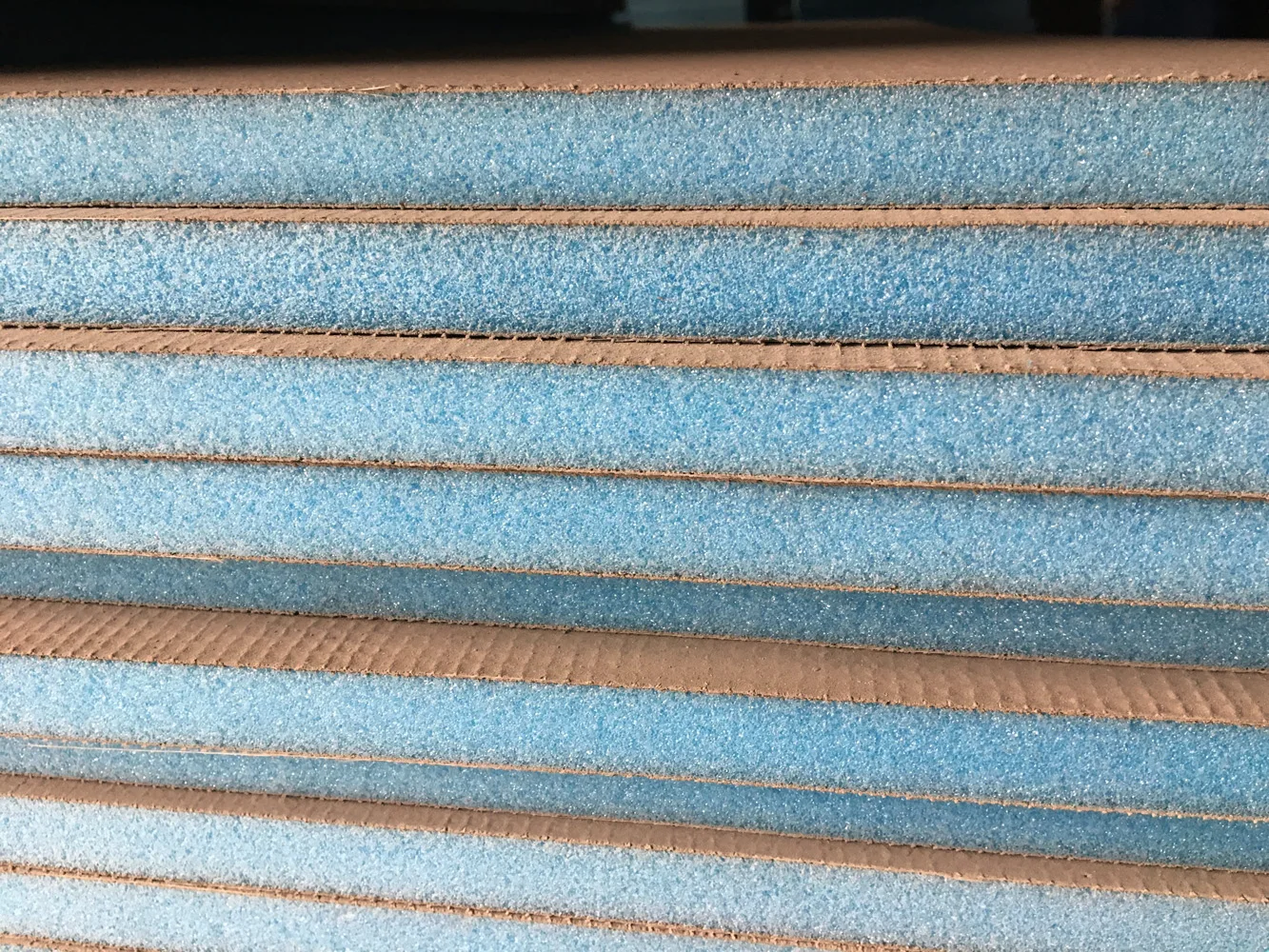

wedi board quality fiberglass tile backer board are made from rigid extruded polystyrene foam with a closed cellular structure,it has a 0.5mm coating on either side comprising a glass fibre mesh embedded in a polymer-cement mortar. It is ideal for wet-zone and damp zone in a bathroom, washroom and shower area.
Characteristics
- Waterproof and dimensionally stable
- Low weight, one board(1200*600*6mm) is around 1.8KG
- Easy to cut(by knife or Saw)
- Excellent for bath rooms,kitchen,floor heating
- Excellent sound insulation(12mm board, 20 db)
- Environment friendly(free of CFC and HCFC)
- Easy to be tiled
- Customized samples are accepted
Certificate
CE / ITS/SGS / ISO9001 / ISO14001
CE / ITS/SGS / ISO9001 / ISO14001
Available Size and detail package
Thickness | Width | Length | Weight(kg/m²) | Pcs/cartons |
4mm | 600mm | 1200/1220mm
| 2.45 | 20 |
6mm | 2.50 | 20 | ||
8mm | 2.55 | 20 | ||
10mm | 600mm | 2440/2500/2600mm | 2.60 | 10 |
12mm | 2.67 | 10 | ||
20mm | 600/1200mm | 2.92 | 10 | |
30mm | 3.06 | 5 | ||
40mm | 3.50 | 5 | ||
50mm | 3.94 | 5 | ||
60mm | 4.38 | 5 | ||
70mm | 4.82 | 5 | ||
80mm | 5.26 | 5 |
Other sizes could be produced according to the requirement also.
Technical Date
| Property | Assessedto | Rating | ||
| Thermal Conductivity (> 5yrs) | GB/T10294 (BS EN 13164) | 0.033 - 0.036 Watt/mK | ||
| Compressive Strength (10% deflection) | GB/T8813 (BSEN 826) | Minimum of 0.30N/mm2 | ||
| Bond Strength | N/A | 0.3N/mm2 | ||
| Maximum Tile Loading Weight | N/A | 62kg/m2 | ||
| Flexural Strength | ASTM C203 | 2.05 ± 0.02 Mpa | ||
| Water Vapour Permeability (Sd) | GB/T2411 (DIN EN 12086) | 3.2m | ||
| Resistance to body Impact | N/A | 3 x 120N/m | ||
| Bending Stiffness, EI (20mm / 30mm) | N/A | 601KNmm / 1285 kN/mm2 | ||
| Coefficient of linear expansion | N/A | 30 x 10-6 K-1 | ||
| Flammability | GB/T2406 (DIN 4102) | B1 | ||
| Impact Sound Reduction | N/A | dLw = 21 | ||
| Shear Bond Strength | N/A | 3.32kg/cm2 | ||
| Quality Management system | ISO9001 | PASS | ||
| Environment Management system | ISO14001 | PASS | ||
| Working temperature | N/A | -50°c to 75°c | ||
Application
Warehouse
Equipment and machinery
Shipping &Package
Payment: T/T, L/C, D/P
Shipping terms: FOB Shanghai/Ningbo, CIF, FCA, EXW
Delivery Time:
Samples delivery:
1-7 working days for XPS foam board.
XPS shower tray board: 10-15working days.
Order delivery:
7-10days for XPS foam board
25-30days for xps tile backer board, shower tray board, toilet tank backer board, shower curb, wall niche et.
Package for XPS tile backer board
6mm thickness: 10pcs/ctn
10mm thickness: 5pcs/ctn
12mm thickness: 5pcs/ctn
20mm thickness: 5pcs/ctn
30mm thickness: 5pcs/ctn
40mm thickness: 5pcs/ctn
50mm thickness: 5pcs/ctn
Package for XPS Shower tray board
1pcs/box, 5boxes/carton
Package for Toilet Tank Backer board
1pc/box, 10boxes/carton
or 10pcs/carton
Package for Shower Wall Niche without flange
10pcs/carton
Package for Shower Wall Niche with flange
2pcs/box, 5boxes/carton
Package for Shower curb
10 or 20pcs /carton
Package for Flexible Board
5pcs/carton
Package for XPS foam board for width 600mm and lenght less than 2500mm.
Thickness 20mm: 20pcs/plastic bag
Thickness 25mm: 18pcs/plastic bag
Thickness 30mm: 15pcs/plastic bag
Thickness 40mm: 11pcs/plastic bag
Thickness 50mm: 9pcs/plastic bag
Thickness 60mm: 7pcs/plastic bag
Thickness 70mm: 6pcs/plastic bag
Thickness 80mm: 5pcs/plastic bag
Thickness 90mm: 4pcs/plastic bag
Thickness 100mm: 4pcs/plastic bag
Fast Delivery
Samples delivery:
1-7 working days for XPS foam board.
XPS shower tray board: 10-15working days.
Order: 7-15days for XPS foam board
20-25 days for xps tile backer board
25-30days for xps shower tray board
