Main runner cross runner of USG Ceiling T Grid DX32

Product Overview

Description

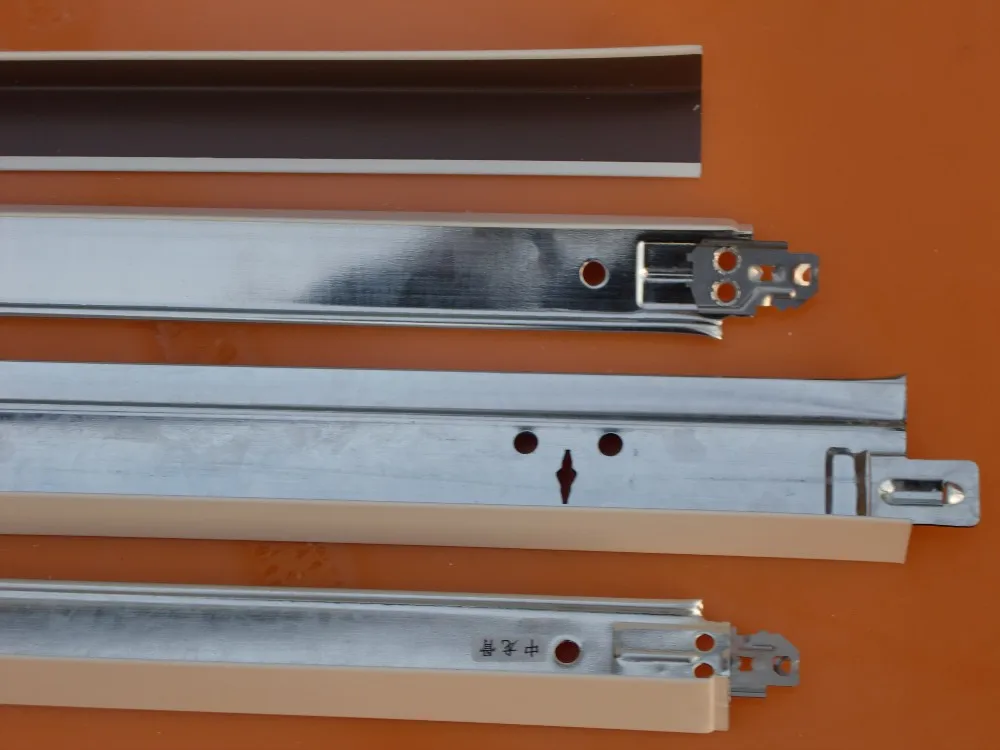

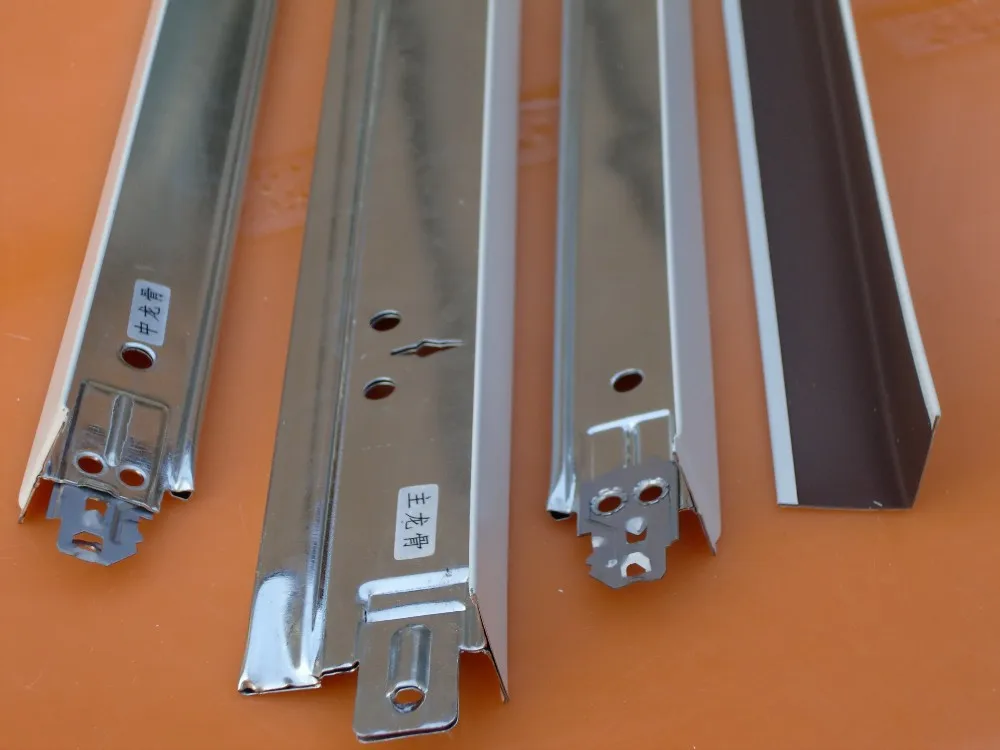

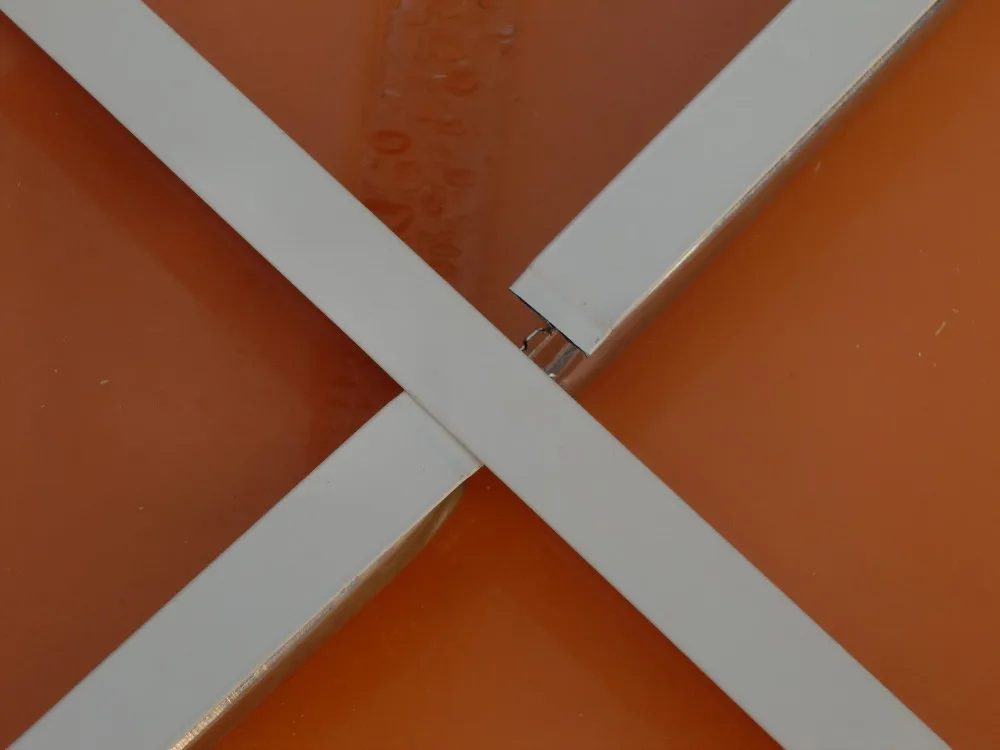

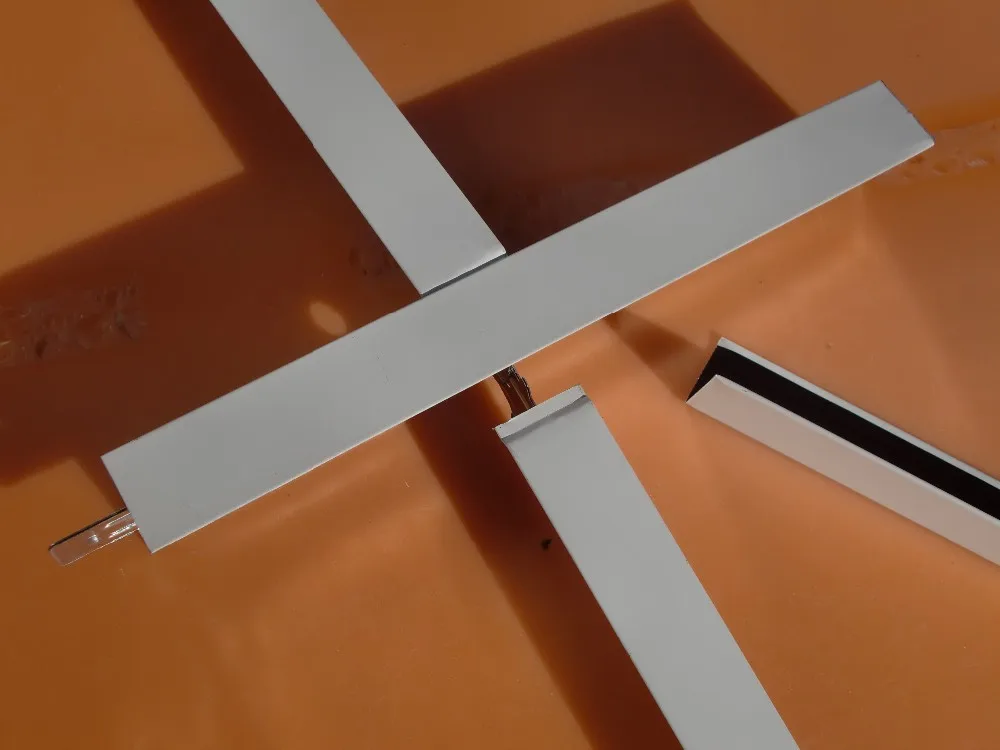

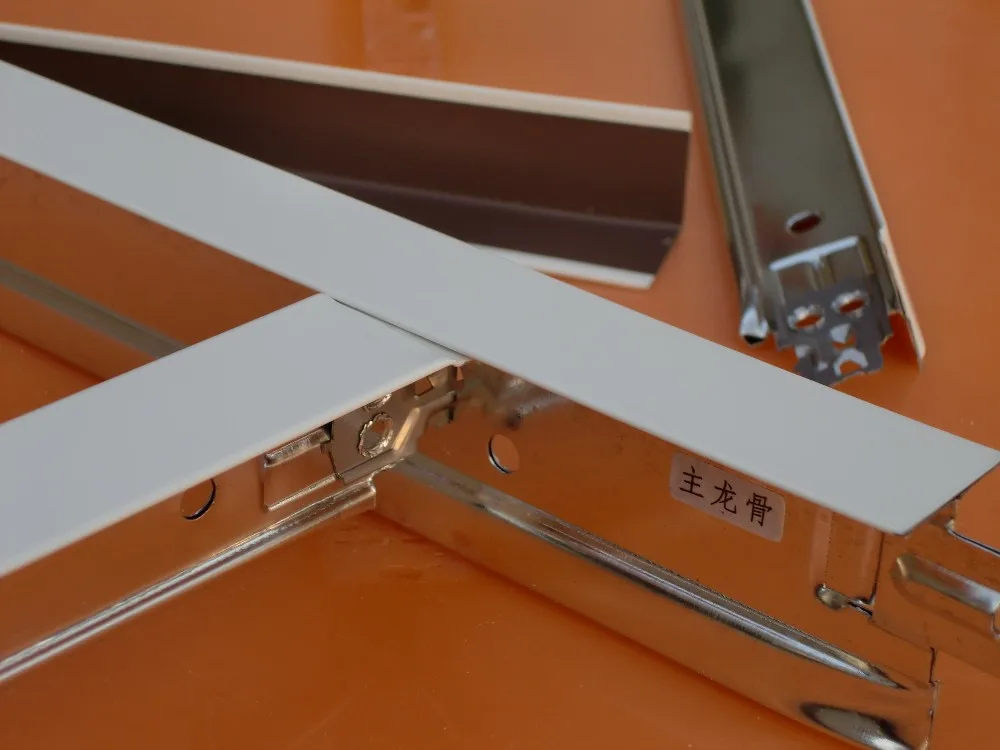

Main runner cross runner of USG Ceiling T Grid ZT32 system Ceiling Tee Bar



Key Selection Attributes

• Rotary-stitched during manufacture by a patented method for additional torsinal strength and extra stability during installation; maintains size and shape of reverl when cutting perimetre tees.
• Choice of black and white reveal.
• Peakform® patented profile increases strength and stability for improved performance during installation.
• XL staked-on end detail provides secure loked connection.
• The performance of the VisionBM Ceiling Tee Grid Suspension System is based on the specific combination of components and method of installation. Other manufacturer's components and installation methods were not tested and are not covered in this evaluation.
• To provide an unrestrained ceiling system that will accommodate the movement of the structure during a seismice event and the objective is to have a free-floating ceiling.



Specifications

Main runner Cross runner of Star-USG Ceiling T Grid, ZT32 system

1) Double web,hot-dipped galvanized steel in body;
2) Produced by Europe-imported machinery;
3) ISO9001:2000, CE.

4)Connector Type: Steel plug

FEATURES:

1. Item: Cross Tee.

2. Specification: 1.2m×24×28×0.30mm.

3. Color: Polishd White.

4. Override end design resists twisting in Cross Tee.

5. Both butt-end and over-lap are available.



LOADING CAPACITY:

Installation Set	Max Loading/m²
Main Runner                14X32h×0.3mm Cross Tee  4'(1.2m)   14X 32h×0.3mm Cross Tee  2'(0.6m)   14X 25h×0.3mm	5.75kg
Main Runner                14X32h×0.3mm Cross Tee  4'(1.2m)   14X32h×0.3mm Cross Tee  2'(0.6m)   14X 32h×0.3mm	9.10kg
Main Runner                 14X 32h×0.4mm Cross Tee  4'(1.2m)    14X32h×0.4mm Cross Tee  2'(0.6m)    14X32h×0.4mm	15.27kg



MORE SPECIFICATIONS:

Item	Specification	pcs/ctn	kgs/ctn
Cross Tee	1.2m×14×32×0.3mm      0.6m×14×25×0.3mm      1.2m×14×32×0.4mm      0.6m×14×32×0.4mm	50       75       50       75	13.00      9.70    14.30    11.17
