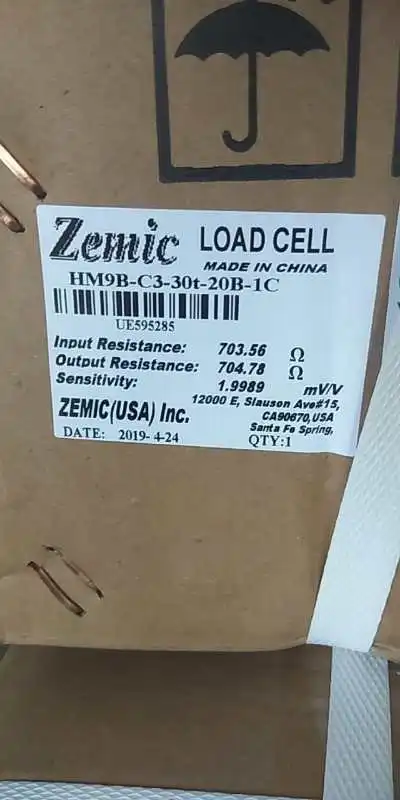

truck scale load cell zemic HM9B weighbridge load cell

HM9B load cell are available in the capacities 10t to 50t.
Alloy steel construction, nickel plated , hermetically welded,
oil-proof,waterproof and anti-corrosive gas and medium making
it suitable for all kinds of environments.
Dual shear beam, Suitable for electronic truck scales,railway
scales and other electronic weighing devices.
It is safety and anti-explosion product that can be used in
atrocious weather and hazardous areas.

Features

Capacity:10t to 50t.
High accuracy.
Alloy steel construction.
Easy installation, reliable
performance.
With OIML approval.

Capacity

t

10/20/25/30/40SE/40/50

Accuracy

C1

C2

C3

A5M

B10M

Approvals

OIML R60 C3

Maximum number of
verification intervals

n max

1000

2000

3000

5000

10000

Minimum load cell
verification interval

v min

Emax/3000

Emax/5000

Emax/7500

Emax
/15000

Emax
/10000

Combined error

(%FS)

≤±0.050

≤±0.030

≤±0.020

≤±0.026

≤±0.050

Creep

(%FS/30min)

≤±0.038

≤±0.024

≤±0.016

≤±0.017

≤±0.040

Temperature effect
on sensitivity

(%FS/10℃)

≤±0.028

≤±0.017

≤±0.011

≤±0.013

≤±0.040

Temperature effect
on zero

(%FS/10℃)

≤±0.047

≤±0.023

≤±0.015

≤±0.014

≤±0.020

Output sensitivity

(mv/v)

2.0±0.002

2.3±0.002

2.4±0.002

1.9±0.002

1.8±0.002

Input resistance

(Ω)

700 ±7

775 ±5

750 ±7

Output resistance

(Ω)

700 ±7

Insulation resistance

(MΩ)

≥ 5000(50VDC)

Zero balance

(%FS)

1.5

Temperature, compensated

(℃)

-10~+40

Temperature,allowed

(℃)

-35~+65

Excitation, Recommended

(V)

5~12(DC)

Excitation,Max

(V)

18(DC)

Safe overload

(%FS)

150

Ultimate overload

(%FS)

300
