Highway Acoustic Barriers Panel for Sale

Product Overview

Description

Acouctic Barriers Panel/Highway Acoustic Barriers





Noise Barriers (also known as Noise Walls,Acoustic Barriers, Noise Fences or Sound Barrier Walls) have been made of a number of different materials over the years.  Noise barriers are solid obstructions built between noise sources, be it highway noise or air conditioning equipment,that are designed to be “line of sight” interruptions between the noise source and the receiver.



Acoustic Barriers Panel Material:

1. Metal type: Galvanized metal sheet, aluminum sheet.

2. Transparent sheet: PC, PMMA



Type: Shutter or punching holes

Thickness: 1.0mm, 1.2mm, 1.5mm(panel th); PC sheet: 0.8,1.0mm, etc

Width: 1-4m
Colors: Clear, lake blue, green, blue, opal, brown, silvery gray, red(Other color can be ordered according to you request)



Acoustic Barriers Details :

Acoustic Barriers panel thickness: 80mm, 100mm,120mm

Acoustic Barriers size: 2500x500x80mm, 2500x500x100mm, etc.

Acoustic Barriers metal plate thickness: 0.5-1.2mm

Acoustic Barriers H-post: 100x100x6x8mm, 125x125x6.5x9mm, 150x150x7x10mm, 175x175x7.5x11mm.

Acoustic Barriers flange plate: 250x250x10, 300x300x10, 350x350x10, 400x400x10mm etc.

Acoustic Barriers panel type: shutter type, punching type.

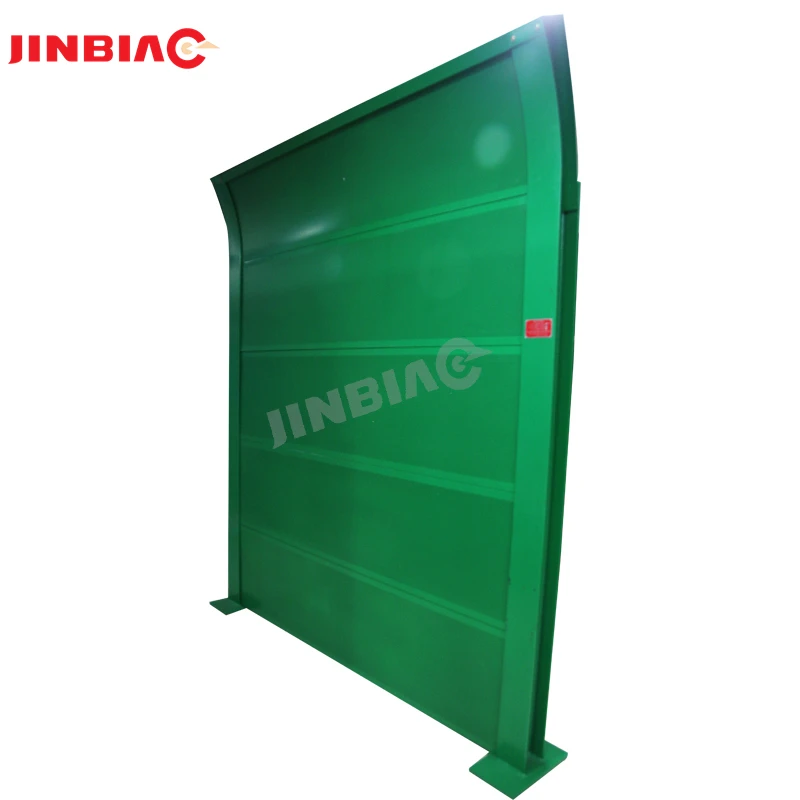

Acoustic Barriers Panel

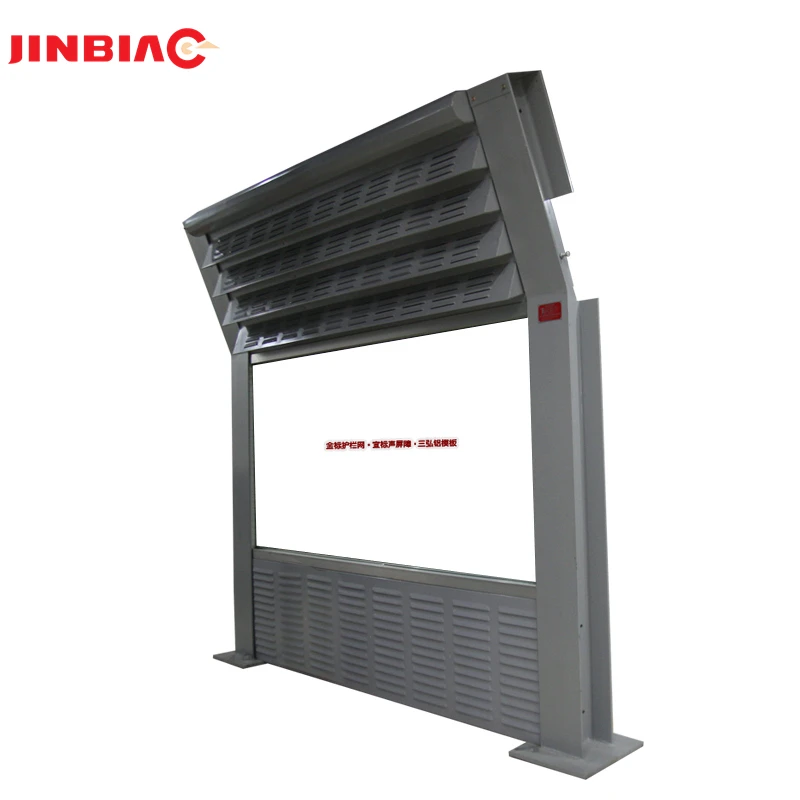

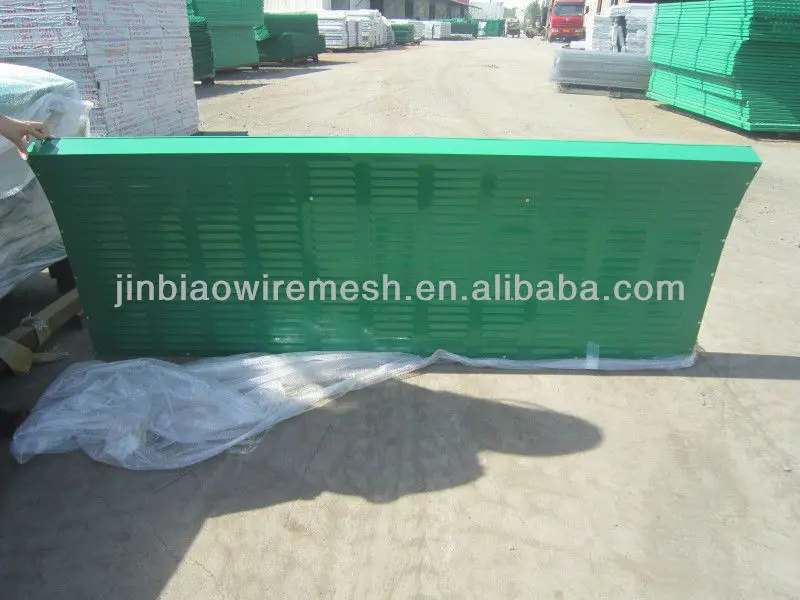

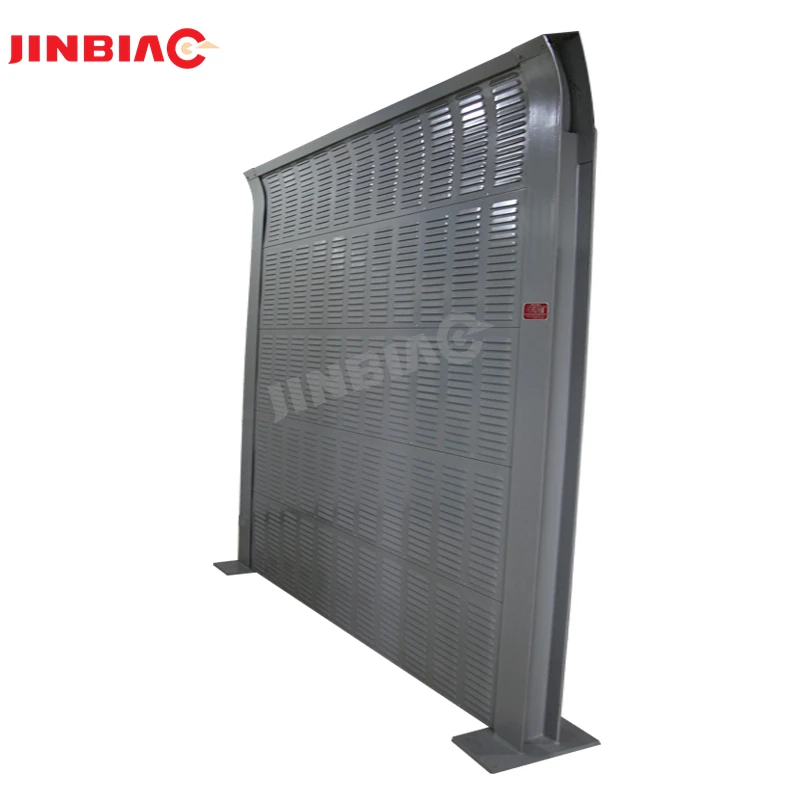

Shutter Acoustic Barrier Panel

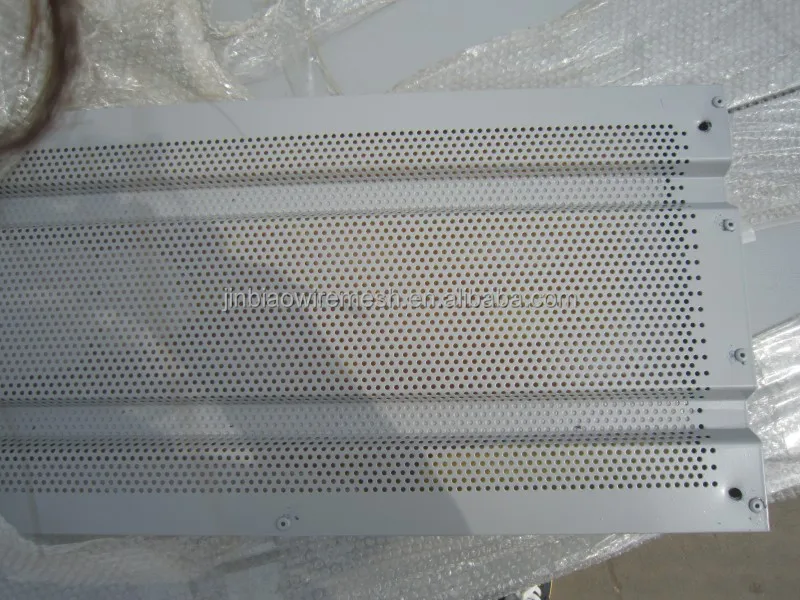

Punching Holes Acoustic Barrier



PC Sheet Acoustic Barrier Panel

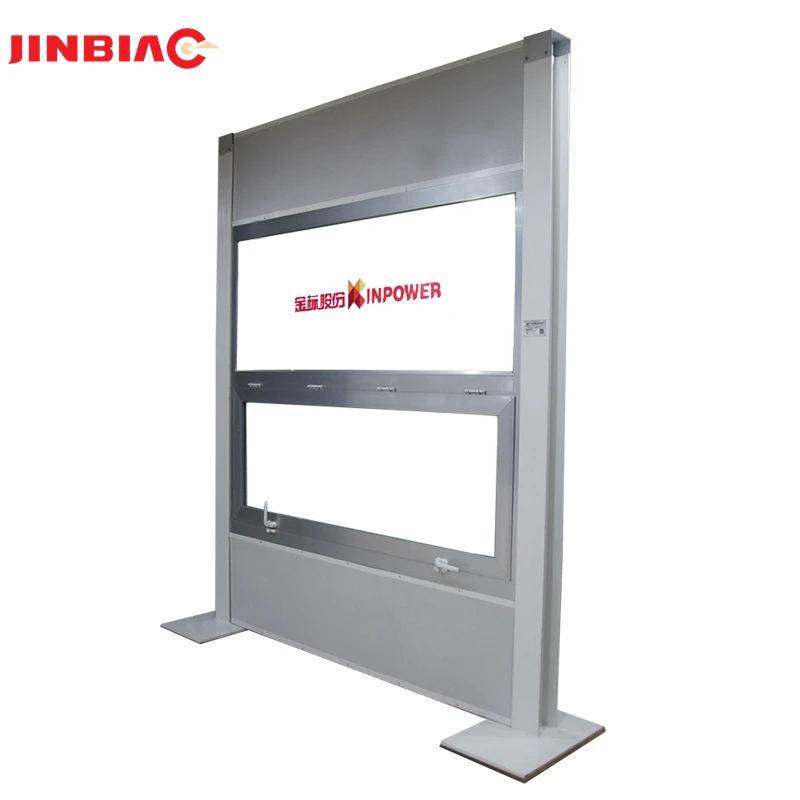

PC Sheet with Aluminum/Metal Panel





Acoustic Barriers H-Post





Noise  Barriers Panel Technical features:

Impact strength: 850J/m ,the impact strength of solid PC sheets is 250 times

that of glass, 20-30 times of PMMA sheet

Light transmission: 80%-90% for different thickness of clear color

UV resistance:with our 50μm thickness UV layer ,the sheet can filter 99% ultraviolet radiation in sunlight

Specific gravity: 1.2 g/cm

Coefficient of thermal expansion: 0.065 mm/moC

Temperature: -40oC to 120oC

Heat conductivity: 2.3-3.9 W/m2   oC

Tensile strength: >60N/mm2

Flexural strength: 100N/mm2

Modulus of elasticity: 2,400mPa

Tensile street at break: >65mPa

Elongation at break: >100%

Specific heat: 1.16J/kgk

Heat deflection temperature: 140oC

Soundproof index:6mm--29dB,8mm--31dB,10mm-32dB 12mm--34dB



Noise Barriers post bottom load design value:

Wind pressure vaiue   (kN/m2)	Height   (m)	Vertical force N (kN)	Horizontal force Sva (kN)	Bending moment M (kN*m)
w.≤0.45	2.0	1.70	9.1	9.4
	2.5	2.64	11.4	14.7
	3.0	3.30	13.7	21.1
	3.5	4.28	16.0	28.6
	4.0	4.92	18.3	37.3
0.45<w.≤0.75	2.0	1.85	15.2	15.8
	2.5	2.90	19.0	24.5
	3.0	3.62	22.8	35.1
	3.5	4.32	26.7	47.7
	4.0	5.40	3.0.5	62.1



Acoustic board performance

Item No.	Items	Performance index
1	noise reduction coefficient	≥0.5
2	sound reduction index	≥26dB
3	density	≤kg/m2
4	deflection	Maximum deflection under standard load≤L/600(L for sound absorption board length)
5	fireproofing	GB8624-2003 Rules of class B or above
6	weather ability	JG149-2003
7	durable years	≥15 years



Noise Barriers Application:

1) Roofing light sheet and sunshade for office building, department store, hotel, stadium, school, amusement center, hospital, etc.

2) Skylight, lighting for corridors, balcony, passages and subway entries, walkways.

3) Do-It-Yourself (DIY), awning, canopy.

4) Advertising lamp boxes, sign board.

6) Anti-riot shield, bullet resistant material, Bank ATMs.

7) Conservatories, agricultural greenhouses, zoos, botanical gardens.

8) Industrial Roofing and Glazing

9) Swimming Pools roofing/cover/sheet

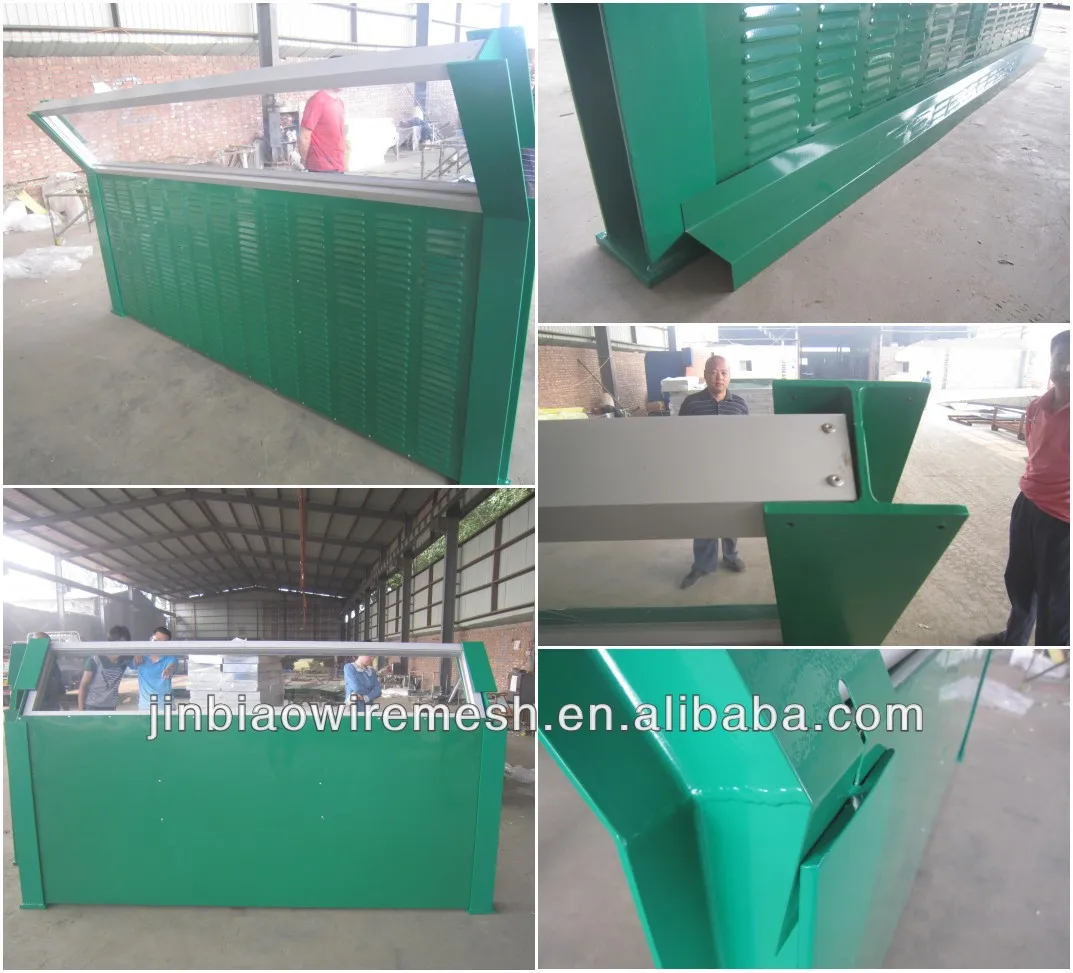

Acoustic  Barriers Workshop



Acoustic Barrier Panel Punch





Acoustic Barrier Panel Painted

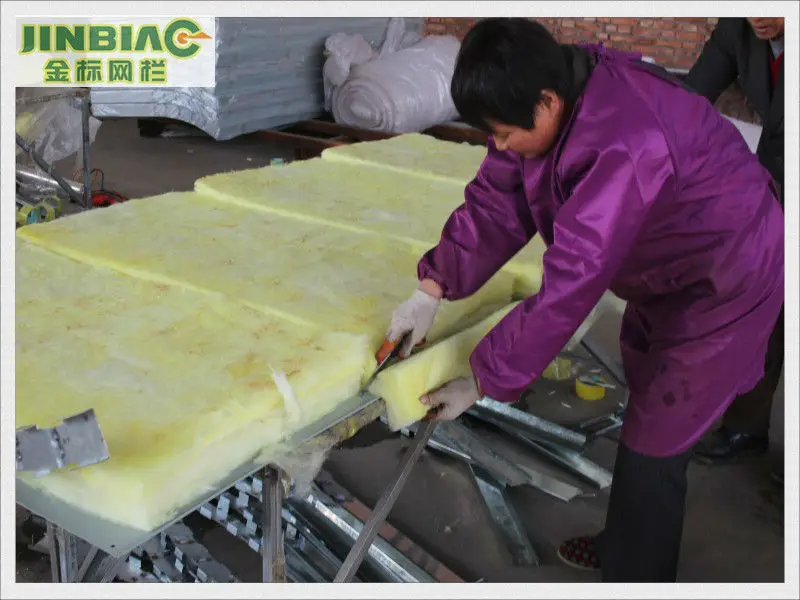

Acoustic Barrier Fiberglass

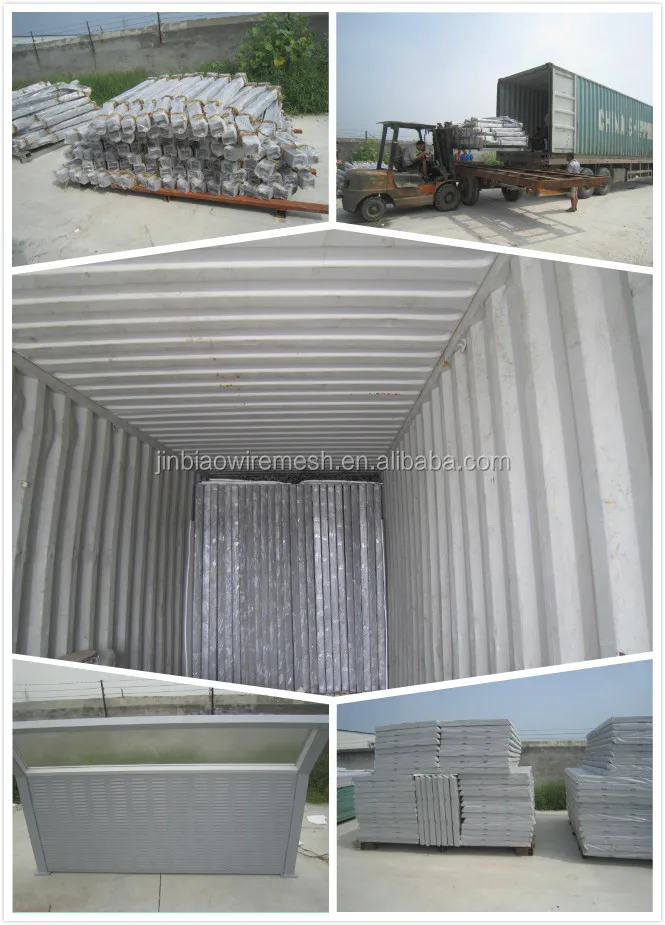

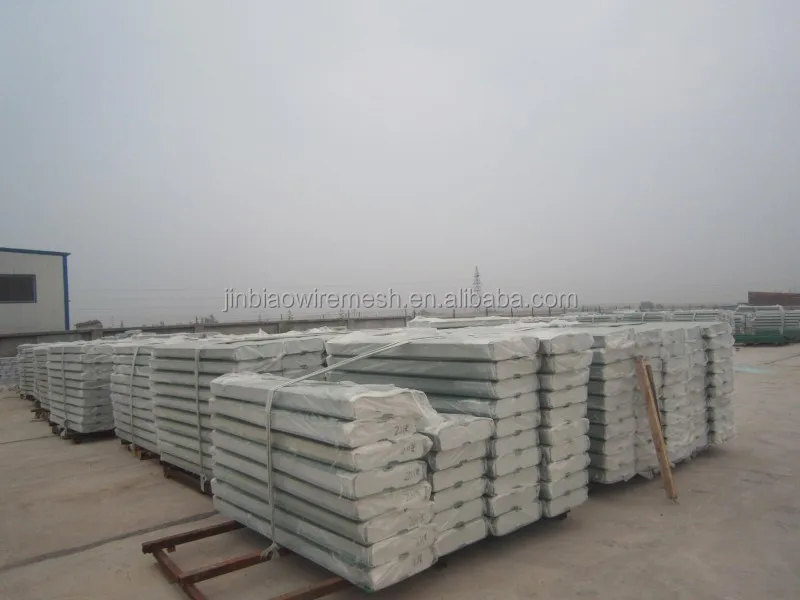

Acoustic Barrier Finished Product Area







Acoustic Barrier Application



Acoustic Barrier Panel Used for Railway

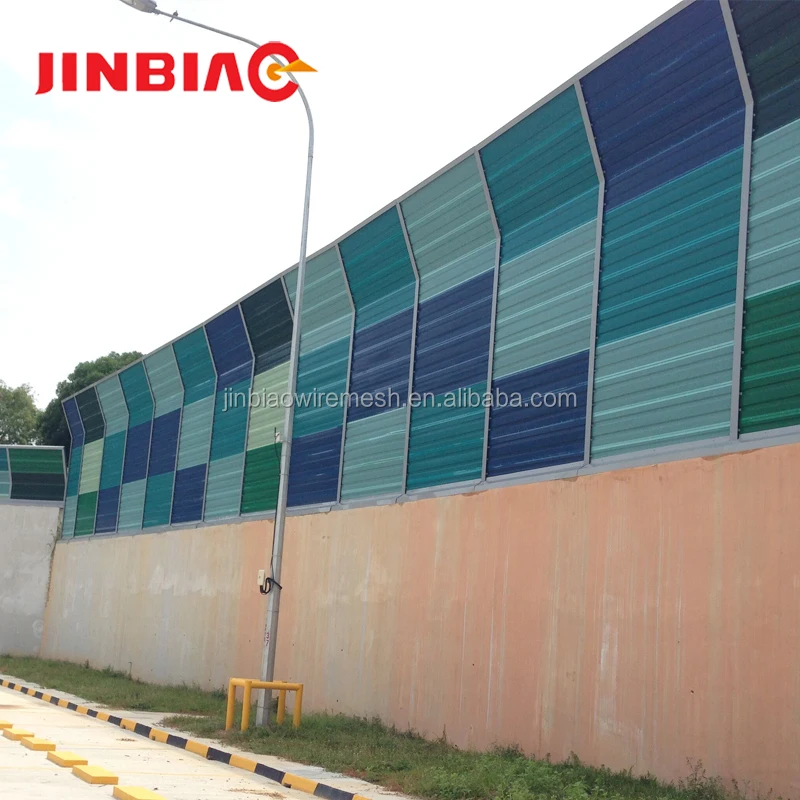

Acoustic Barrier Panel Used for Highway

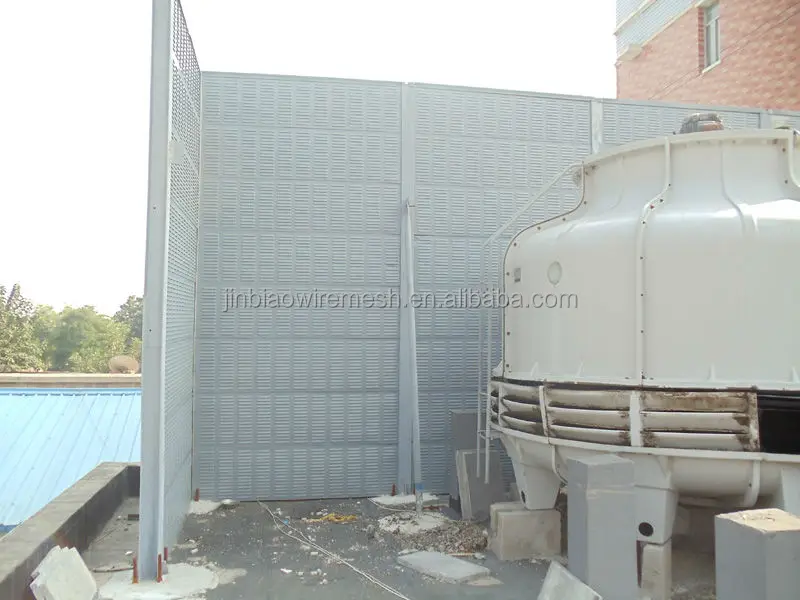

Acoustic Barrier Panel Used for Cooling Tower

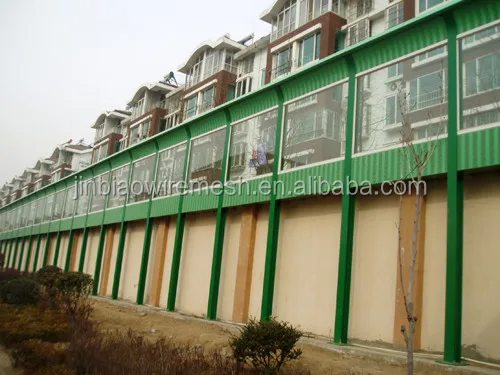

Acoustic Barrier Panel Used for Residential
