tunnel wash, full auto tunnel car wash system price

Product Overview

Description



 tunnel car wash system



DA-W900ST Tunnel car washing machine featured as fast speed of washing and strong cleaning ability,

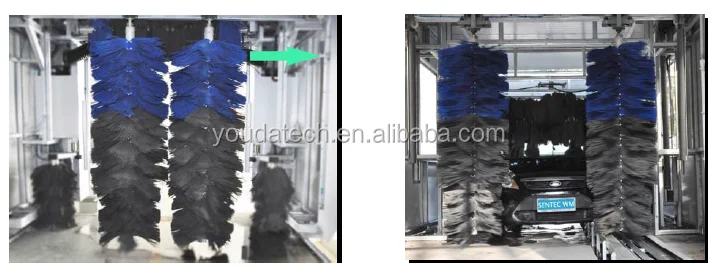

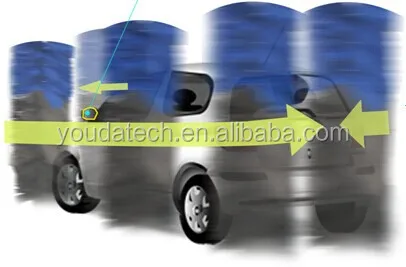

is equipped with second-generation cloth brush and foam brush; the perfect-angled side brush

technology improves the cleaning ability extremely; the profiling air-dry technology ensures the

efficient drying; the unique design is qualified to dodge the bumpers to improve the safety; the

hot-dip galvanized frame ensures a longer service time.



Main Futures:

1. Professional washes for cars, jeeps and all kinds of coaches below 9 seats;

2. Adopting advanced technology and full module design, this can be combined to more than ten different functions for different needs;

3. The main electrical components are imported from famous foreign factory, which can ensure safe and reliable;

4. Unique fault self-testing system;

5. Adopting the advanced high pressure system; Pre- swing high pressure water wash does not hurt the car;

6. Hot-dip galvanizing (Zinc layer>70um) frame;

7. Maintenance-free of polymer materials roller and TN lifting mechanism;

8. Japanese EVA brushes to prevent injury car;





Technical Data:



Item	Model	DA-W900ST-2	DA-W900ST-1
Size	Machine size	L8600xW3780XH2950	L10750xW3780XH2950
	Washable car size	W2000 x H2200 mm
Installation	Assembling range	L11800mmxW4200mm	L13500mmxW4200mm
	Air supply	Pressure 0.6-0.8Mpa
	Total electrical capacity	18KW
Cost consumption	Total power	15.915KW	16.315KW
	Maximum operating power	11.4KW	11.4KW
	Various components power	Top brush 0.3KWx1	Top Brush  0.3KWx1
		Side brush 0.3KWx4	Side brush 0.3KWx4
		Small brush 0.2KWx2	Small brush 0.2KWx4
		Conveyor Traveling 1.5KWx1	Conveyor Traveling 1.5KWx1
		Water Pump 2.2KWx1	Water Pump 2.2KWx1
		Dryer 5.5KWx2	Dryer 5.5KWx2
		High pressure pump 4KWx1	High pressure pump 4KWx1
		Swing motor 0.025KWx3	Swing motor 0.025KWx3
	Water consumption	125L	125L
Wash	Washable car	car, jeep, coach below 9 seats
	Liquid using	shampoo	shampoo
		wax	wax
	Washing time	50sets/hour	60sets/hour
