JIACHENG China Copper Wire/PVC Electrical Cable Wire Extruder Making Machine
- Category: Plastic Extruders >>>
- Supplier: Jiangsu Jiacheng Technology Co. Ltd.
Share on (60037436271):
Product Overview
Description
Equipment Composition
Technical Parameter
Type and Designation | JCJX-70 Extrusion | ||
Screw Parameters | Diameter | Φ 70 | |
L/D Ratio | 25:1 | ||
Rotating Speed | 15~110 r/min | ||
Extrusion Capacity(KG/H) | PVC | 130 | |
LDPE | 86 | ||
PP | 68 | ||
Power(kw) | Main motor power | 22~37 | |
Pay-off Device | Bobbin Size (mm): 500/630 Power: 3.7 | ||
Haul-off Unit | Type: Capastan Type Power: 3.7 | ||
Take-up Device | Take Up Bobbin Size (mm): 630/800 Power: 3.7 | ||
Total Power | 50 | ||
Finished Wire Dia . | 2mm~12mm | ||
Accumulater Length (m) | 220 | ||
Line speed | 10-350 m/min | ||
Complete Line Dimension (m) (L*W*H) | 25*2.5*2.1 | ||
Weight (T) | 8.5 | ||

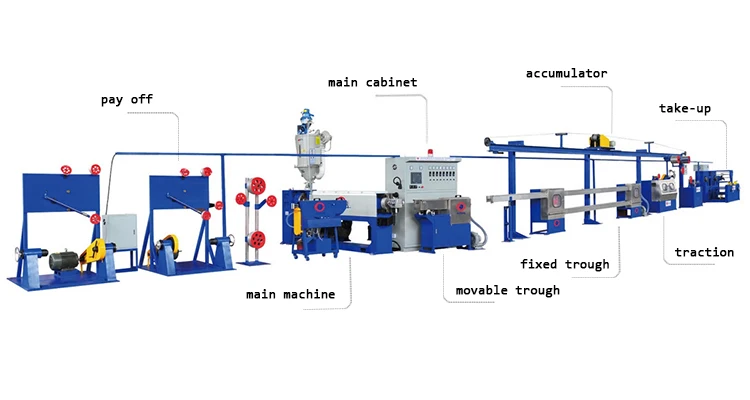

Product Details

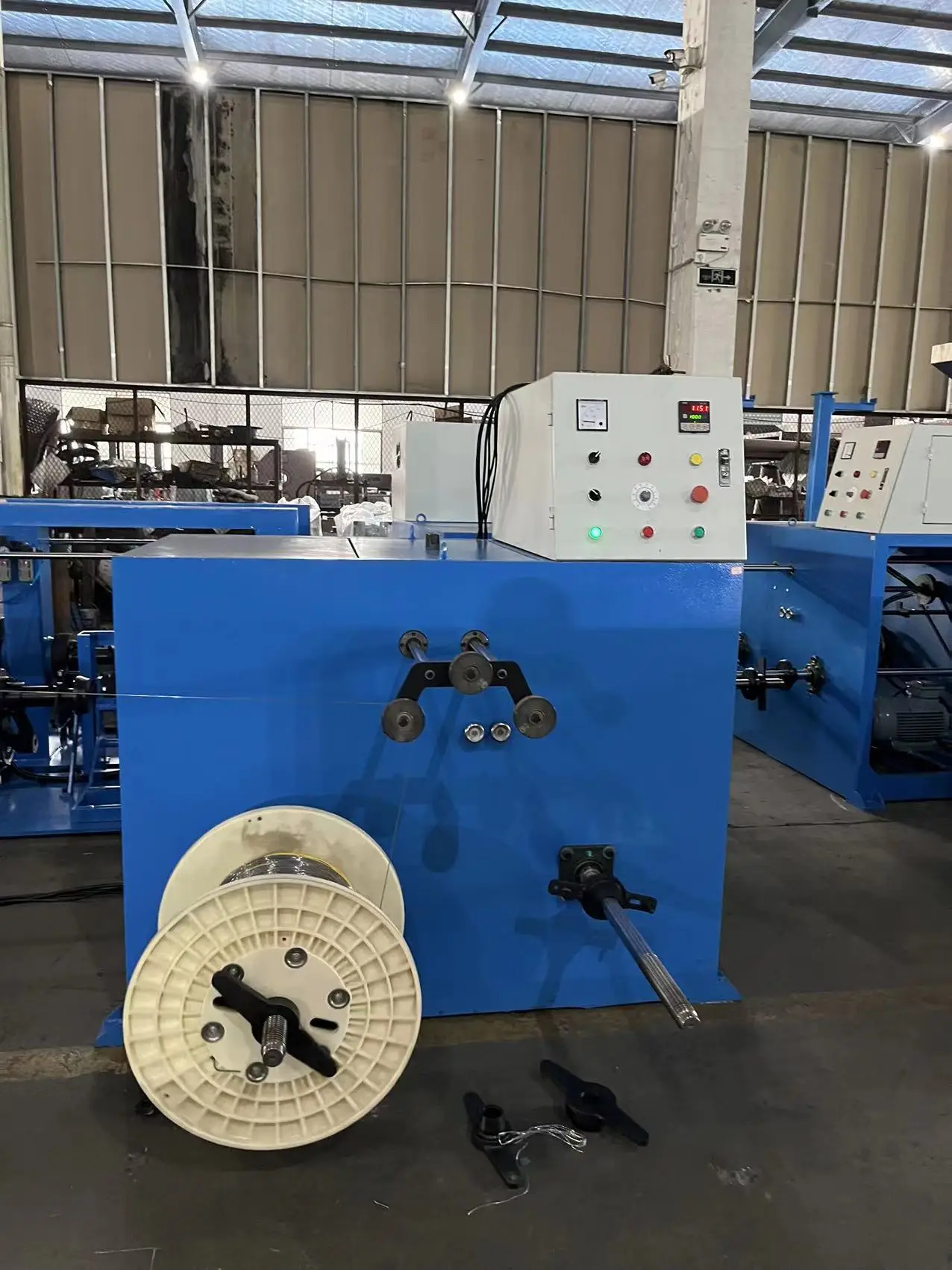

Pay off
Pay off

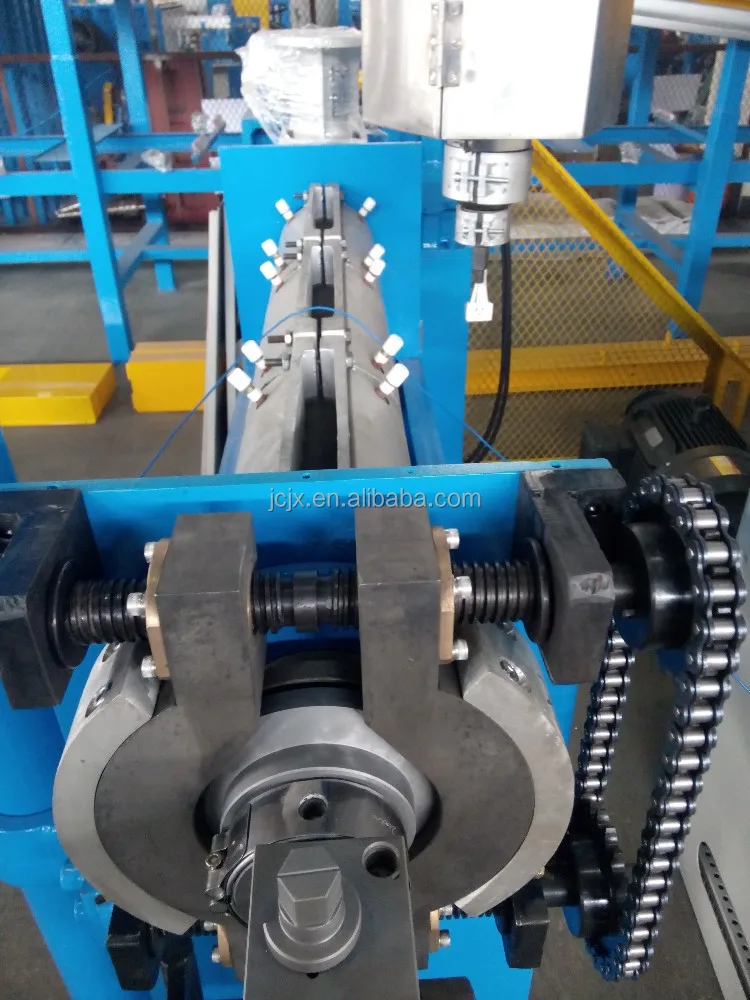

Main Machine
1. Precise design of the screw
2. Non-mucus
3. Not take off chrome
4. Change color quickly
5. With high capacity
6. High quality
7.The concentricity of wire is more than 90%
8. With high precision ±0.03
2. Non-mucus
3. Not take off chrome
4. Change color quickly
5. With high capacity
6. High quality
7.The concentricity of wire is more than 90%
8. With high precision ±0.03
Main Cabinet
1. With touch screen+ PLC control
2. Easy operation
3. More hommization
2. Easy operation
3. More hommization
Fixed Trough
Movable Trough
Accumulator
Traction
Take Up
2. Improve quality
3. Easy to operate
Main Usage
Finished Products
Our Company

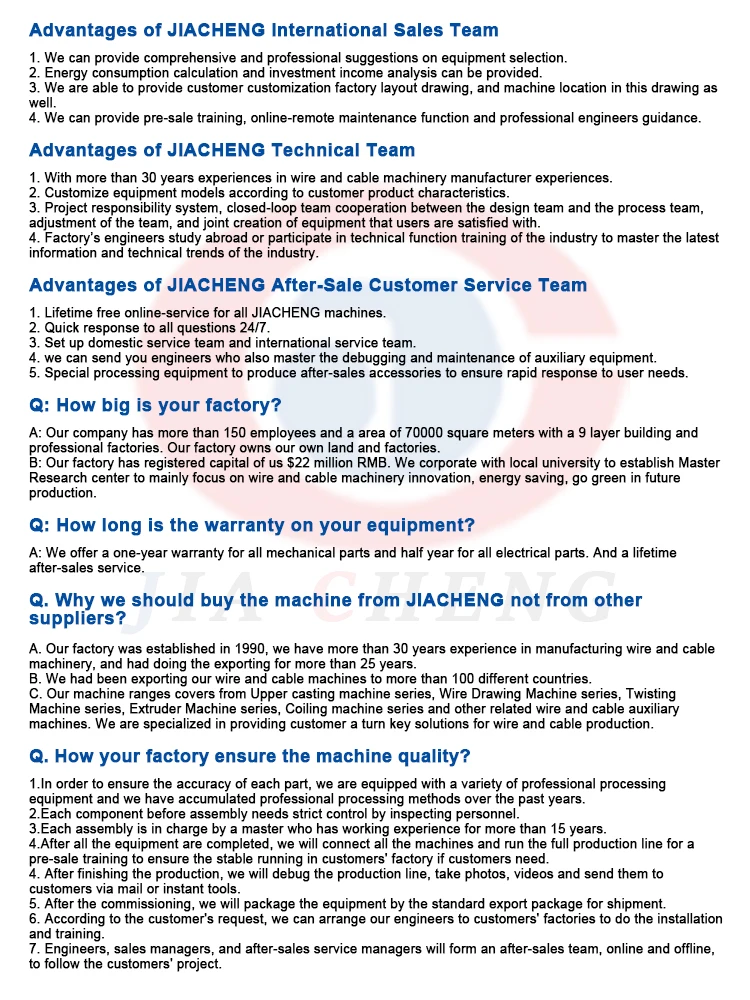

FAQ
