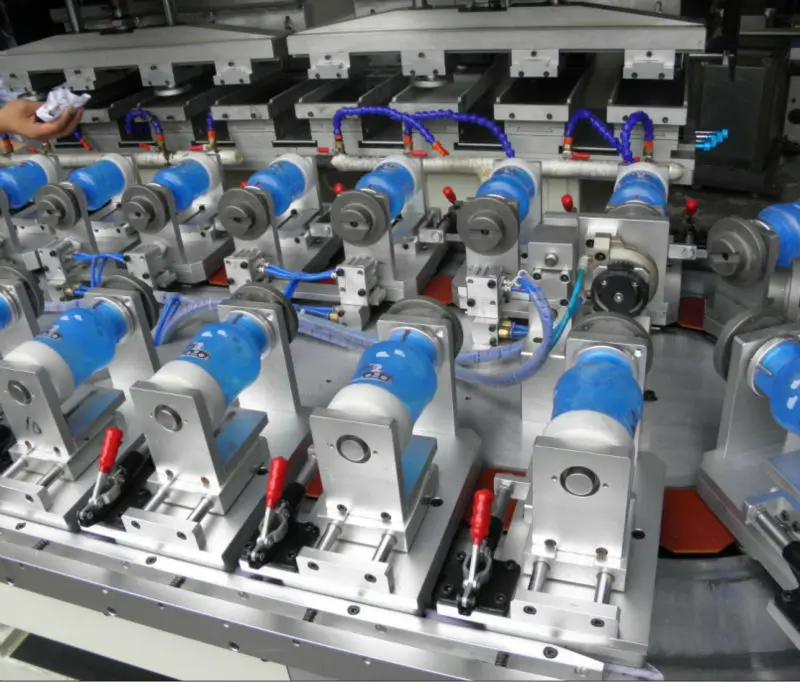

HJ-300HZ Guangdong hengjin conveyor baby bottle pad printing machine
Product Description
baby bottle pad printing machine applied range:
This item can comprehensive apply for necessities, toys,electrons, electrical equipment,plastics, leather, metal, glass, light industry and food packages ETC. Every material is available.
baby bottle pad printing machine Instruction:
1 The printing speed is very fast ,it can print 6 colors one time;
2 Accurate positioning, four printing position be fixed by pneumatic side pression positioning which is accurate and stable;
3 Oil ink roller assembly, disassembly and cleaning are easy;
4 Equipped with four digit auto counter;
5 All of the position has the delayed functions and the printing speed is adjustable to satisfy different requirements
6 According to customer needs ,pre-program two functions, a single cycle of printing and automatic printing;
7 The height of Doctor blade could adjust to meet different thickness of metal plate
8 The travel of pads is adjustable independent which is more convenient and felx
9 The pneumatic elements are imported from Germany FESTO, which power is smoother and strong durable;
10The body is Alloy Cast Aluminum, then it is light and durable, which is precise and more nice;
11 The operation panel is touch sensitive system, can be use the printing function directly ,which is react quickly and conveniently
baby bottle pad printing machine parameter
Item Number:
HJ-300HZ
Printing colors:
Eight
Printing Speed
600pcs/hrs
Distance of U tray
127mm
Max metal plate:
100x 300mm(4’’x 10’’)
Max printing Size:
75x 275mm
Station Size
100x 200mm
The max height
of the products
100mm
Station Quantity
22 pieces
Adjustable pads
size on the metallic plate
10-80 mm
Voltage of source
220 VAC/
1 Phase 750W
Air supply
6 Bar
Dimension:
1860x 1650x 1680mm
Net Weight
720KGS
Company Information
Hengjin has been a industry leading supplier of Pad printer, Screen printer,
Hot Stamping Machine and the relative Accessories supplies for 12 years
under the same ownership. We have become well respected by our customers
and others in the industry due to our knowledge of the pad printer process and
the personal attention we give to each and every customer. We offer a complete line
of machinery and supplies of top quality and performance.
Hengjin’s Printing machines which above mention have CE approval.
And our customer from American, United Kindom, Germany, South American Etc more then 50 countries.
Sure Hengjin is a satisfying supplier to you.
Dongguan Hengjin Printing Machinery Co. Ltd (HENGJIN) is located in Guangdong Province,
Dongguan City. From Guangzhou or ShenZhen about 1.5 hours. If your come to China,
welcome visit us.
Remarks for 8 color pad printing machine:
Warrantee: 1 year.
Payment: 30% deposit in advance. The balance against the machine is ready.
Training: Manual or CD or you can come to visit our factory for free of charge to training.
Mini order: 1 pieces
Delivery Time: 5 work days when receive your payment.
