Product Overview
Description
Product Description

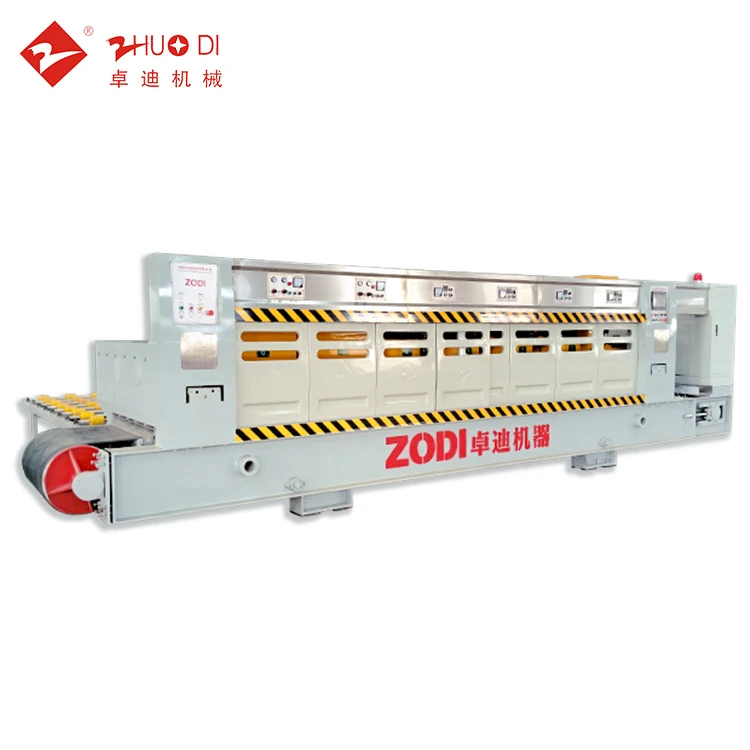

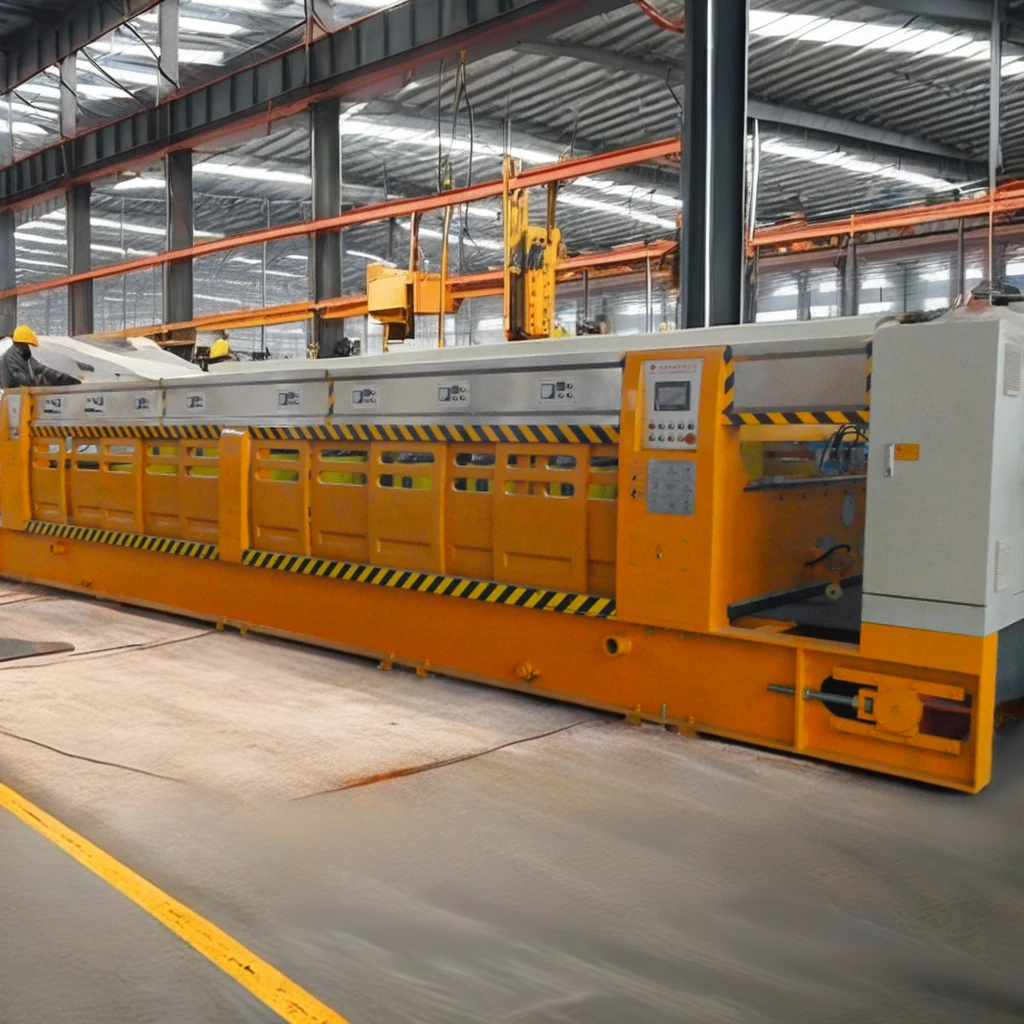

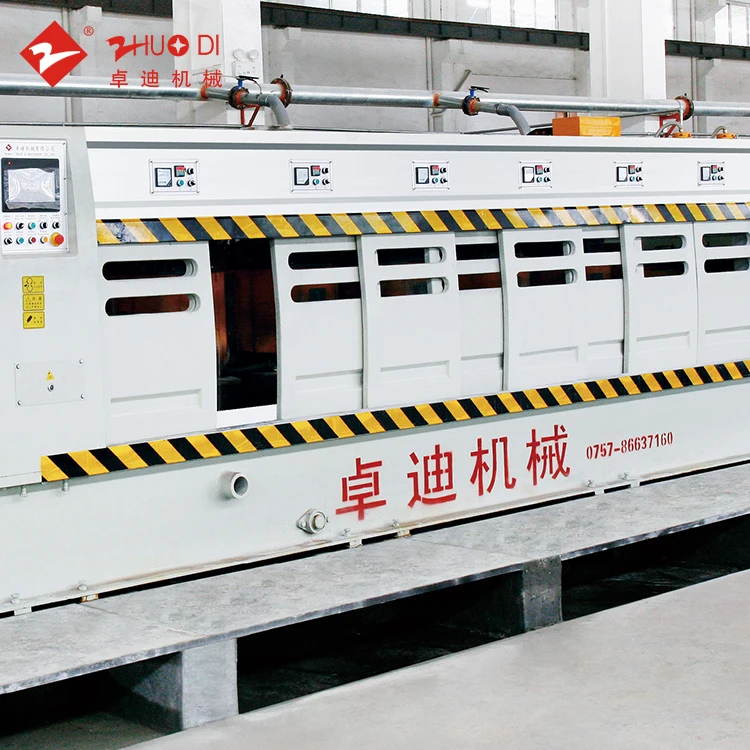

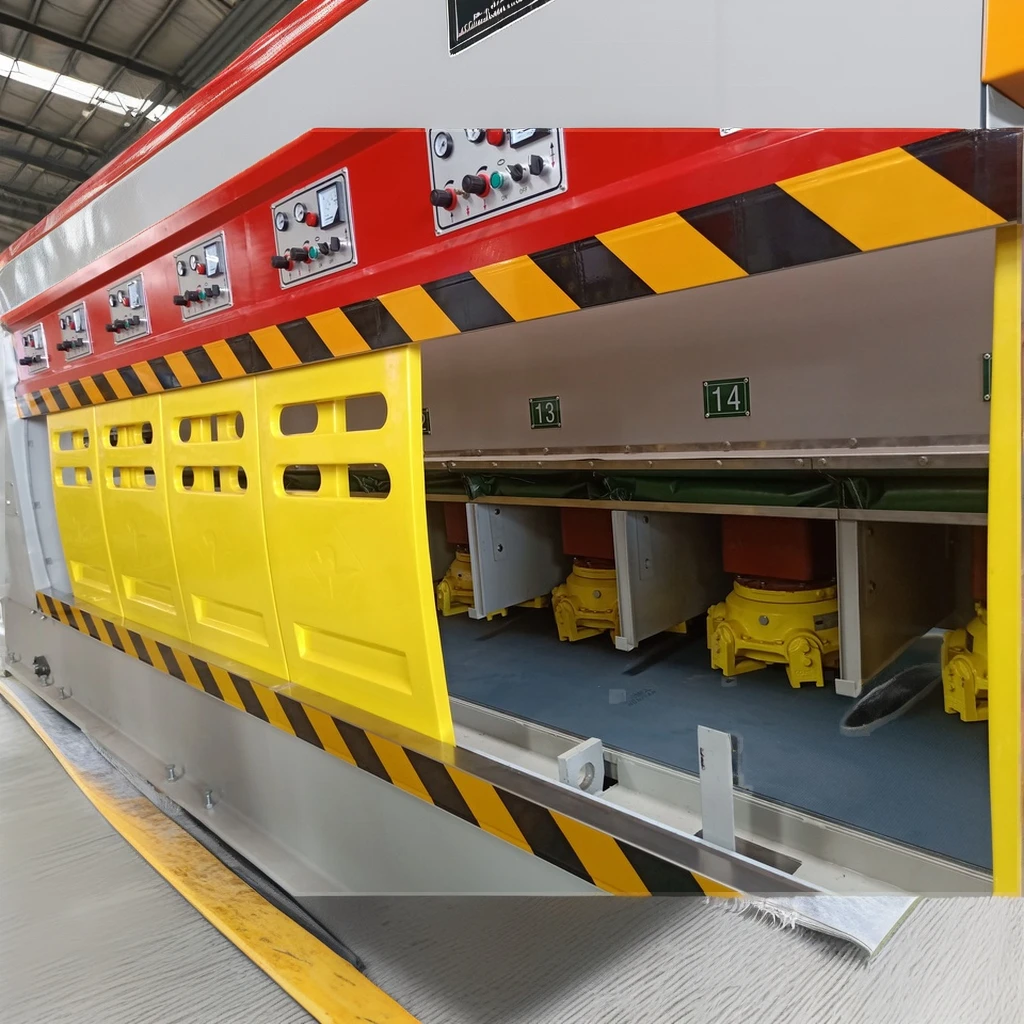

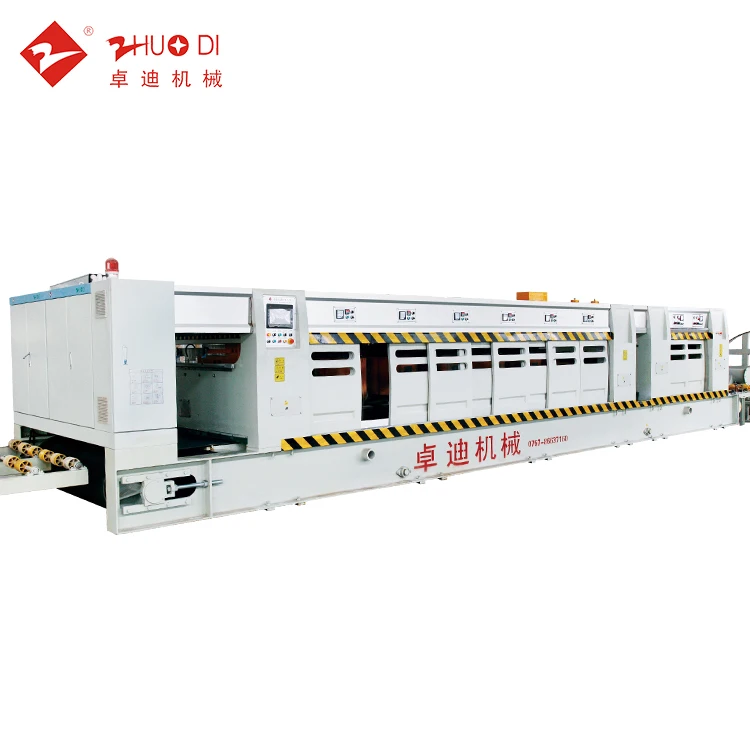

Oscillating Calibrating Machine This machine provides robust grinding power on processing the surface of slabs to achieve the desired thickness, throuah high speed rotating disc with diamond segments. Zhuodi calibrating machine ensures the slabs flat and homogeneous, thereby increasing the production capacity and quality of the polishing process, and lower the cost. |
| Tchinical Parameters | |||
| Item Code | ZYD800 | ZYD1650 | |
| Grinding Segments | 4-10 | 6-12 | |
| Work Width | 600-800mm | 600-1660mm | |
| Work Thickness | 10-40mm | 10-40mm | |
| Conveying Speed | 1-3m/.min | 0.8-1.5m/.min | |
| Conveyor Motor Power | 1.5-3kw | 2.2-5.5kw | |
| Swing Motor Power | 2*4kw | 2*4kw | |
| The Grinding Head Motor Power | 22kw | 22kw | |
| Water Consumption | 210L/min | 320L/min | |
| NOTICE:We support customized service, you tell us the specific parameters of the required equipment specifications,we will design and quote you as soon as possible. |
RELATED PRODUCT
ABOUT US
FAQ
1. Can you provide me with the product parameters
One polishing line two press lines semi-Auto distribution.
full production line dimension:117800*76840*14300mm(L*W*H)
Final slab dimension:760*2440mm;800*3100mm
thickness:10-30mm
daily capacity:360 slabs/day(20 hours)
annually capacity:260.000sqm/year
3. What is the size of the whole factory
one polish line can support 2 press lines
whole line dimension:136250*98280*10500mm(L*W*H)
Final slab dimension:1600*3200mm
thickness:10-40mm
daily capacity:480 slab/day(20hours)
annual capacity:720.000sqm/year
4. Do you have a perfect after-sales service system
with professional R&D team,providing pre-sales services,and timely solution.
12 year in engineered quarts stone production experiences,we can provide full training and technical support for our customers.we will
grow with our customers and develop new products with our customers.
with zhuodi machinery ,it's possible to produce any design of quartz.we also can customize and design the machine according to the actual demand,
ensure the easy operation during the production with the low cost,high production and high quality
