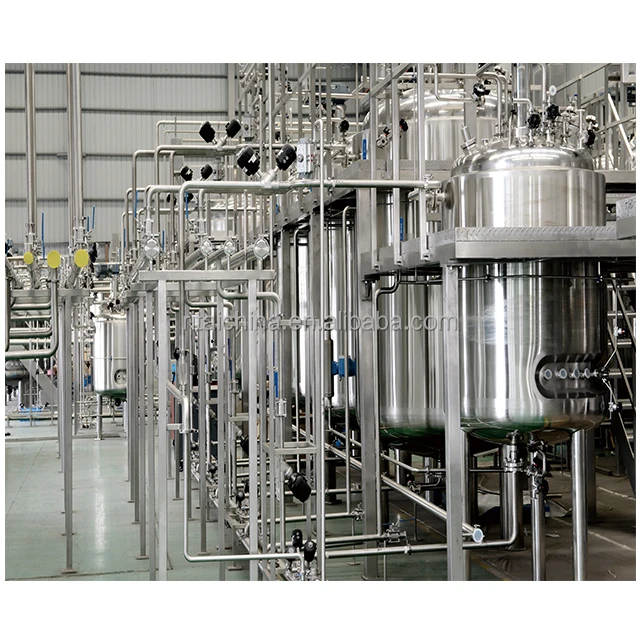

Liquid Pharmaceuticals Mixer/Mixing Tank/Mixing Equipment (60044201729)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description




Product Description



Ritai is a professional manufacturer for all kinds of stainless steel tanks, such as mixing tank, reactor, storage tank, fermentor, bioreactor and CIP.

Ritai is one of the biggest manufacturers of stainless steel tanks in China.



Name: Liquid Pharmaceuticals Mixer/Mixing Tank/Mixing Equipment



Applications:

It is applied to liquid preparation and various water treatment process in purgative area,such as infusion solution, injection
solution, eye drop, syrup, oral liquid and blood preparation. and it is used for mixing liquid products in pharmacy, chemistry,
and biology fields.



We have different kinds of agitators

Bottom magnetic agitator with impellers. The range of its rotating speed is 50-400rpm or 50-800rpm. It is applied to many products, such as eyedrop, injection, CIP liquid, and water, etc.



Top mechancial agitator with  impellers. The range of its rotating speed is fixed 71rpm or adjustable 20-200rpm, or we can

make it according to your special requirements. This kind of agitator is applied to mix syrup, injection, blood, oral liquid, and

culture media, etc.



Top mechanical agitator with anchor or frame impellers, its rotating speed is from 10-70rpm. It has higher mixing viscosity, and it can be used for sediment or oral liquid, etc.



Top emusification homogenizer, its max speed is 2900rpm for small vessels, 1480rpm is for bigger tanks. This kind of agitator

 has the highest viscosity, and it is used for suspension, oil, fat emulsification, etc.



Bottom emusification homogenizer, its parameters are the same as the top emusification homogenizer. Certainly, it is used for suspension, oil, fat emulsification, etc.



One tank can install an agitator, if our clients have special requirements, the tank can be installed with two agitator together.





Product technical description:

Specification: 10L~30000L

Material: SS316L or SS304

Surface finish: inside surface is Ra0.28~0.4μm by mechanical polish. (passivation or electropolish are optional). Outside surface is Ra0.6~0.8μm by satin finish.

Pressure: ATM or pressure vessel (-0.1~1Mpa)

Structure: Single layer vessel, vessel with jacket, vessel with jacket and insulation

Jacket type: dimple jacket, full jacket, or coil jacket

Insulation material: rock wool

Components can be equipped as request:

standard components: manhole or handhole, sight glass, cleaning ball

optional components:

vent filter with Pall cartridge or china brand cartridge

temp. gauge, display on the gauge directly on the vessel

temp sensor pt100, digital display on the control cabinet by instrument

temp sensor with control for heating and cooling

level gauge with digital display of instrument on control cabinet

load cell

valves



Manufacture standard for pressure vessels: ASME with U stamp, PED 97/23/EC with CE mark, GB150-2011,

Working volumeInner
diameter
Outer
diameter
Vessel
height
Total volume
30L400mm500mm400mm44L
50L400mm500mm600mm69L
100L500mm600mm650mm130L
200L600mm700mm1000mm250L
300L700mm800mm1250mm370L
500L900mm1050mm1150mm650L
1000L1100mm1250mm1480mm1260L
1500L1200mm1350nmm1700mm1780L
2000L1300mm1500mm1980mm2200L
3000L1500mm1700mm2150mm3400L
4000L1600mm1750mm2630mm4000L
8000L1900mm2100mm3200mm8300L
The above dimension is only for reference, we can make up to 30000L , and we can make special dimension according to clients' specific requirements.

Mixing Equipment with Top Agitator or Botttom Agitator.JPGMixing Equipment.JPG



Packaging & Shipping



Packaging: plywood case                             Shipping: by sea or by air

loading



Our Services

 We offer design, customization, manufacture, and maintenance services, etc.

DESIGN MANUFACTURE INSTALLATIONProject Installation Example 7Installation example 6





Company Information



Shanghai Ritai Medicine Equipment Project Co., Ltd. mainly specializes in innovation and development of sanitary stainless steel pressure vessels, atmospheric pressure vessels, fermenters, valves and piping system which are widely used in the following fields, such as pharmacy, biology, chemistry, food and drinks industry.

Shanghai Ritai is qualified to design and manufacture pressure vessels with the certificates of ASME, PED 97/23/EC, NB, and ISO 9001:2008.

 -1PRODUCTION AREA

EXHIBITION STANDMAIN PRODUCTS-3

CERTIFICATE-1

SALES NETWORK-2





FAQ



Frequently Asked Questions:

1. Where are your production locations?

    1.1  No.39, Xinjin Road, Qingpu District, Shanghai, 201712, China

    1.2. No.3766,Qingzhao Road,Qingpu District, Shanghai,201712,China

2. List of your manufacturing machinery:

    Cutting machine, rolling machine, polishing machine, welding machine, detecting machine, etc.

3. How is the machinery servied and maintained?

    By professional engineers

4. Is measuring and inspection equipment continuously calibrated?

    Yes
