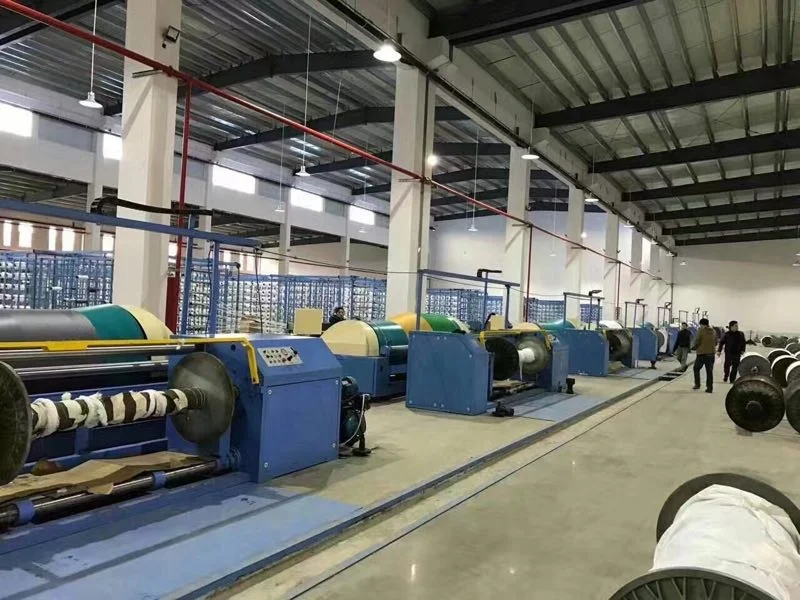

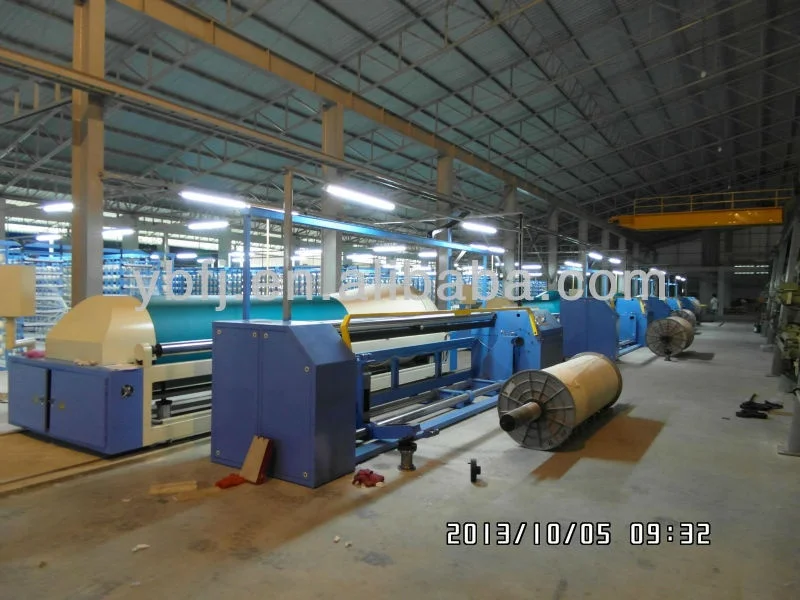

YBGA628 warper width customized high speed yarn warper and beaming machine

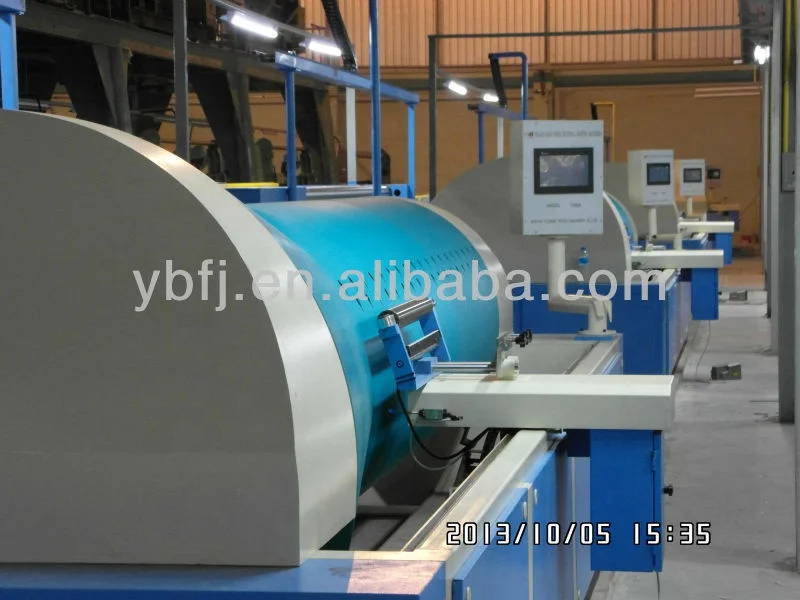

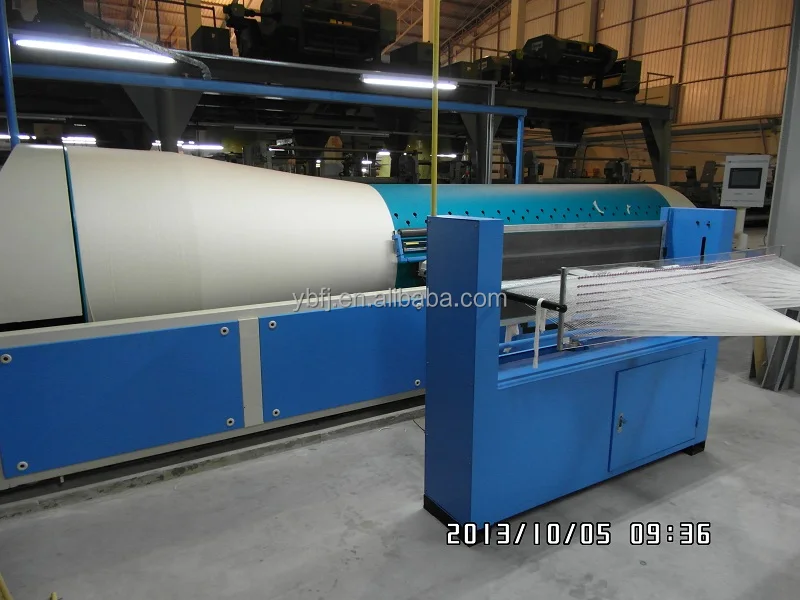

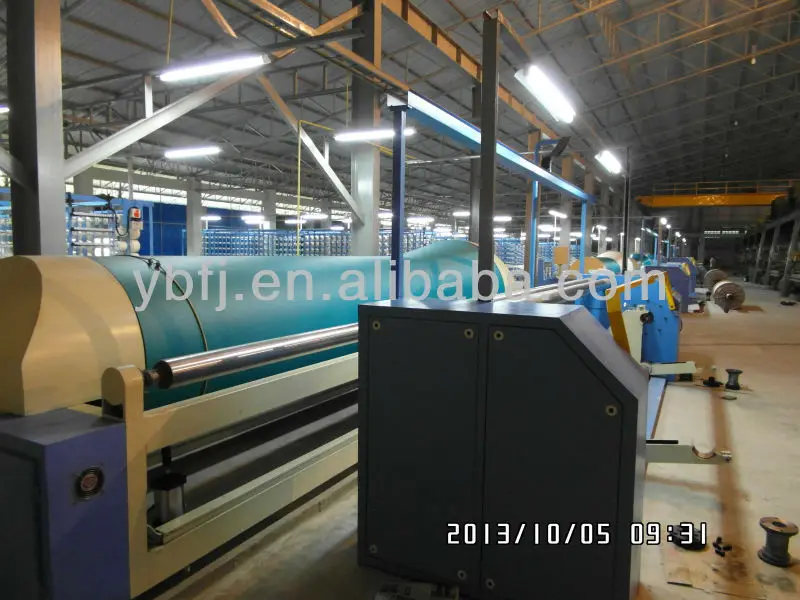

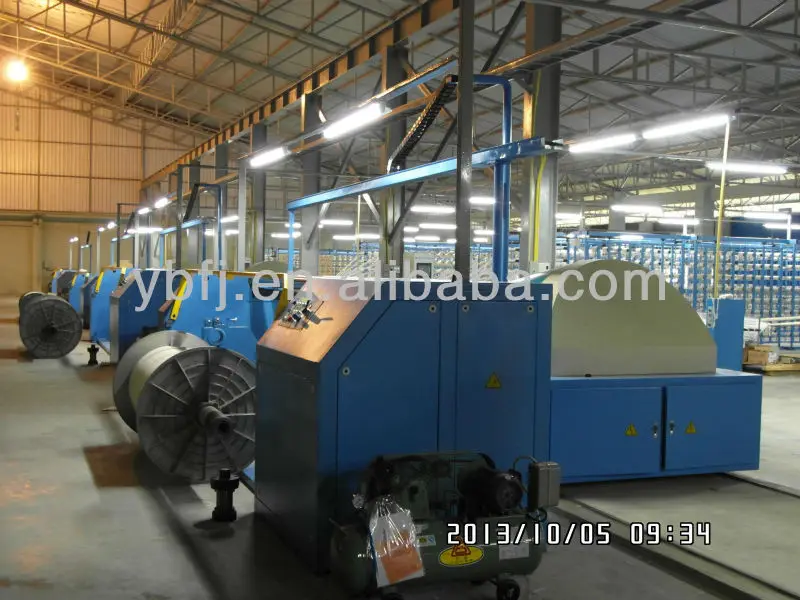

| Technical parameters and configuration of Model YBGA628 electronic sectional warping machine | ||
| I | Warping machine | |
| 1 | Frame | welded steel bar |
| 2 | Drum | steel |
| Drum Dia | 1026mm | |
| Drum length | 2300~4200mm(Other on request) | |
| Cone angle | 9°(1:6.3) | |
| Cone length | 1360mm(full warpingφ1000mm beam) | |
| Drum balance | ≤0.10mm | |
| Dynamic balance standard | meet GB9239 balance quality 6.3grade | |
| 3 | Drum drive | |
| Motor | 11kw three-phase asynchronous motor | |
| Inverter | 15kw Delta VFD-B Shared with beaming machine | |
| Speed | 0~600m/min | |
| 4 | Warping operation table traversing | |
| Drive | synchronous belt wheel,up&down lead screw drive | |
| Servo motor | 0.75kw AC servo motor ( Taiwan Delta) | |
| Servo drive | series 9300( Taiwan Delta) | |
| Strip traversing speed | 0.001~9.999mm/r | |
| Strip location | automatic | |
| 5 | Backwards & forwards of warping operation table | independent motor lead screw drive for equidistance winding |
| Motor | three-phase mixed stepping motor | |
| Driver | subdivision type stepping driver | |
| 6 | Brake of drum | clamping brake 4pcs |
| Break medium | special 719 braking liquid | |
| Driving force | hydro-pneumatic pressurized device | |
| Braking distance | ≤3m (500m/min) | |
| 7 | Beaming tension control | by air pressure adjusting damping |
| Driving force | by air pressure adjusting which according to craft | |
| 8 | Main controller | SIMENS S7—200 1PC |
| 9 | Operational display | 10.4inch Delta colorful touch screen |
| 10 | Pneumatic element | air valve ( FESTO for beaming tension,Others use JELPE) |
| 11 | Button | Schneider |
| 12 | Encoder | axle hole and drum mounted( Koyo) |
| II | Beaming machine | |
| 1 | Type | whole machine fixed |
| 2 | Frame | welded steel bar |
| 3 | Beam drive | belt wheel decelerating drive( rate 1:23) |
| Winding direction | C.W or CCW, can be set when it install | |
| Motor | 11kw three-phase asynchronous motor | |
| Inverter | 15kw Delta VFD-B | |
| Beaming speed | 0~100m/min | |
| Beaming tension | 0~8000N | |
| Speed deviation | ≤±1m | |
| 4 | Beam brake | air pressure,steel tape brake( width 10cm) |
| 5 | Load/drop beam | automatic air press,load/drop beam device |
| 6 | Safety device | safety bar and infrared guard device |
| 7 | Oiling device | three-roller step-less speed control |
| Revolve | guide roller drives decelerator, then drive Oiling roller | |
| Speed | adjustable, synchronous with sectional yarn | |
| Pump | stainless steel pump | |
| 8 | Controller | SIMENS S7-200 1PC |
| III | Pneumatic reed | |
| 1 | Frame | welded steel bar |
| 2 | Reed | special stainless steel reed(800 ends) |
| 3 | Splitter plate | alumina ceramics |
| 4 | Up&down lease reed control | air cylinder |
| 5 | Clamp yarn controller | revolving cylinder |
| 6 | Location | automatic, moving up&down during warping |

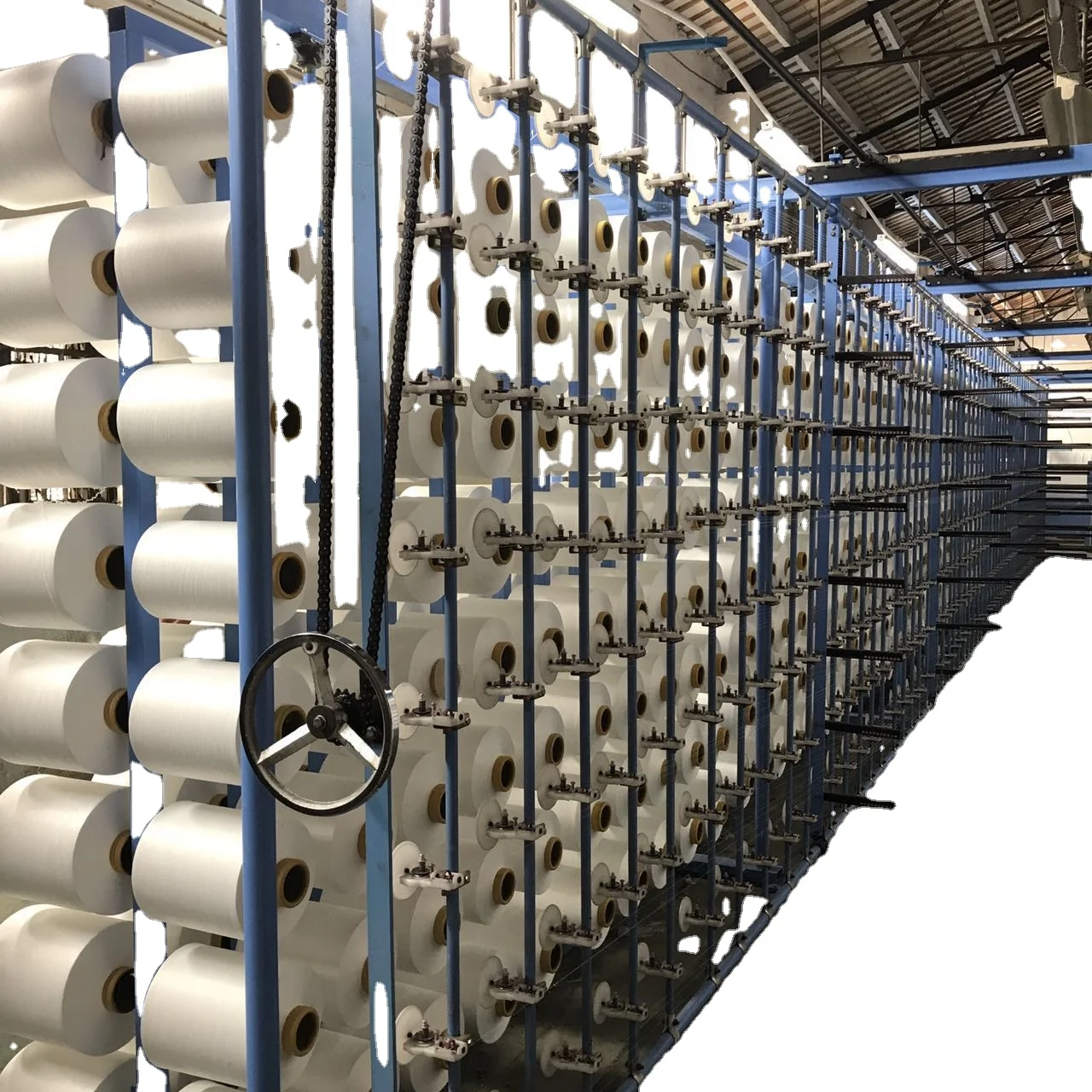

| IV | Creel | rotational inner guide yarn |
| 1 | Type | rotational inner guide yarn 720spindles |
| 2 | Structure | |
| Upright | 48 tube | |
| Girder | 40×80 square tube | |
| Tensioner upright | 19 rube | |
| 3 | Pitch | 250*250 |
| 4 | Layer | 8 |
| 5 | Tensioner | two-post type |
| 6 | automatic stop arrangement | Infrared automatic stop |
| This machine can be used for sectional warping worsted fabric,chemical fiber filament fabric,yarn dyed fabric,silk fabric,terry towel and special industrial cloth.And it can work with water-jet,air-jet,rapier,gripper and other shuttleless looms for preparation before weaving. | ||
