High quality pvc shower pan liner dance floor

Product Overview

Description





1.Product Details:



Shield Shower Tray Boards

Designed for shower and wet room applications, the Shield shower tray board is preformed to create an effective water slope to the drain. It is made from extruded polystyrene board faced with fiberglass mesh embedded into a cement polymer mortar on each sides. It is ideal for wet rooms and showers in confined locations.  It is a floor level panel that can be easily cut to fit the shower area or to produce an irregular or circular shower base.It has the following characteristics:



1. Fully waterproof



2. Pre-laid to falls



3. Center or offset drain



4. Load bearing



5. Fix the timber or concrete



6. Can be fit on site



7. Easy to cut with knife/saw



8. Create wetroom or shower



9. Easy access, floor level



10.  Light weight to handle



11. Reinforced for extra support



12.  Ready for tiling



13. Long service life



14.Environmentally friendly





2. Technical Data:

Thermal  conductivity, 90 days, 10℃	GB/T10294 (EN13164)	0.030-0.036W/(M.K)
Compressive strength at deformation of 10%	GB/T8813 (EN826)	Minimum of 300Kpa
Bond Strength	N/A	0.3N/mm2
Maximum tile loading weight	N/A	60kg/M2
Bending Stiffness (20mm)	ASTM C203	2.00Mpa
Moisture permeability	GB/T2406 (DIN EN 12086)	3.2m
Dimensional Stability	N/A	≤1.0
Working temperature	N/A	-50℃-80℃



3. Central Drain Sizes



Size (mm)	Thickness(mm)	Weight(KG)
800*800	20/25/30/40/50	3.5/3.62/3.74/3.98/4.22
900*900	20/25/30/40/50	4.2/4.35/4.51/4.82/5.13
1000*1000	20/25/30/40/50	5.0/5.19/5.38/5.76/6.14
1200*760	20/25/30/40/50	5.0/5.17/5.35/5.7/6.05
1200*900	20/25/30/40/50	5.2/5.41/5.61/6.02/6.43
1200*1000	20/25/30/40/50	5.83/6.06/6.52/6.98/7.44
1200*1200	20/25/30/40/50	7.0/7.27/7.55/8.1/8.65
1800*900	20/25/30/40/50	7.87/8.18/8.48/9.09/9.7
1800*1000	20/25/30/40/50	8.75/8.98/9.66/10.34/11.02



 We also provide customized dimensions on request.

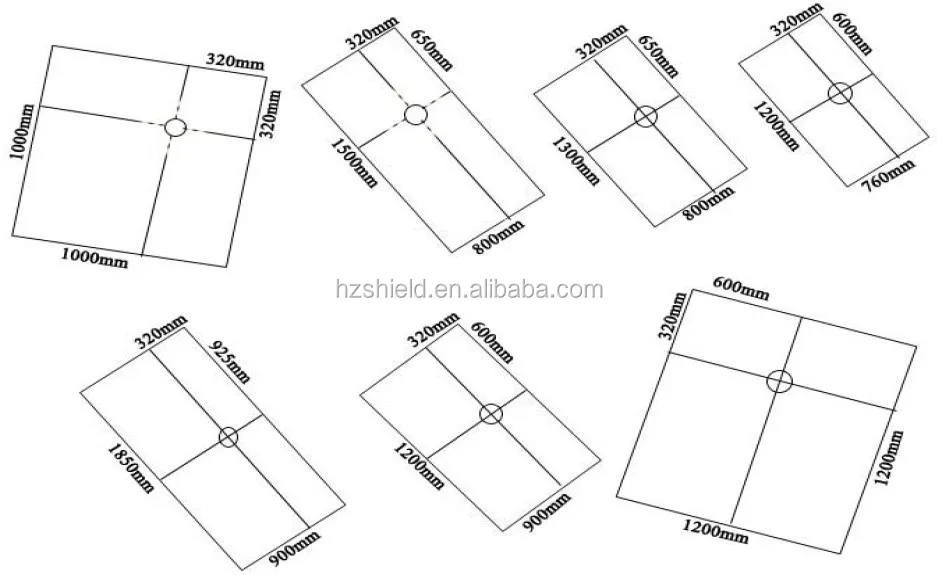

4. Offset Drain Sizes



Size (mm)	Thickness (mm)	Weight (KG)
1000*1000	20/25/30/40/50	5.0/5.19/5.38/5.76/6.14
1300*800	20/25/30/40/50	5.2/5.40/5.6/6.0/6.4/6.8
1500*800	20/25/30/40/50	6.02/6.25/6.46/6.90/7.34
1200*760	20/25/30/40/50	5.0/5.17/5.35/5.7/6.05
1200*900	20/25/30/40/50	5.2/5.41/5.61/6.02/6.43
1200*1200	20/25/30/40/50	7.0/7.27/7.55/8.1/8.65
1850*900	20/25/30/40/50	8.5/8.82/9.13/9.76/10.39

We also provide customized dimensions on request.



5. Linear Drain Tray Sizes







Length(mm)	Width(mm)	Thickness(mm)	Channel Length (mm)
900	800	25/40/50	700
1200	800	25/40/50	700
900	900	25/40/50	800
1200	900	25/40/50	800
900	1000	25/40/50	900
1200	1000	25/40/50	900
900	1200	25/40/50	1100
1200	1200	25/40/50	1100
1000	1000	25/40/50	800
1500	1000	25/40/50	900





We also provide customized dimensions on request.



6.Payment and Shipping Terms:



Payment: T/T, L/C, D/P

Shipping terms: FOB Shanghai/Ningbo, CIF, FCA, EXW



7.Fast Delivery:



Samples delivery: 1-7 working days.

Order: 7-30 days.



8.Package:



Normally packed 5pcs per carton.

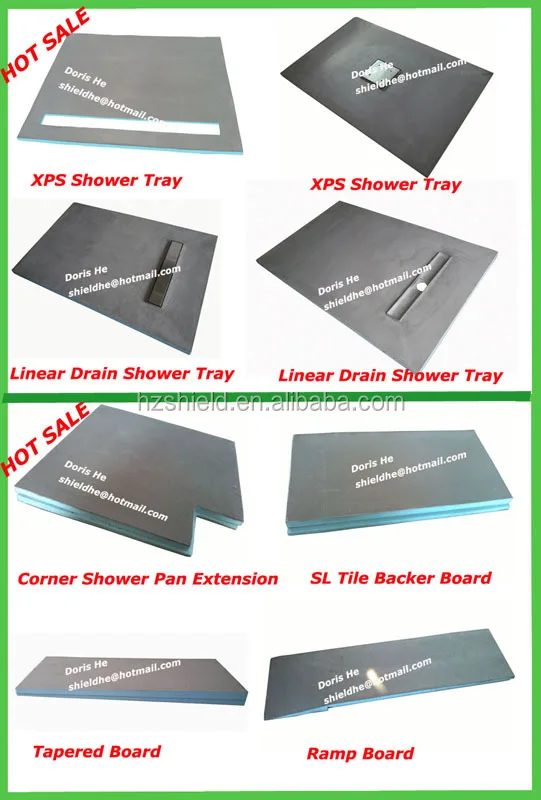

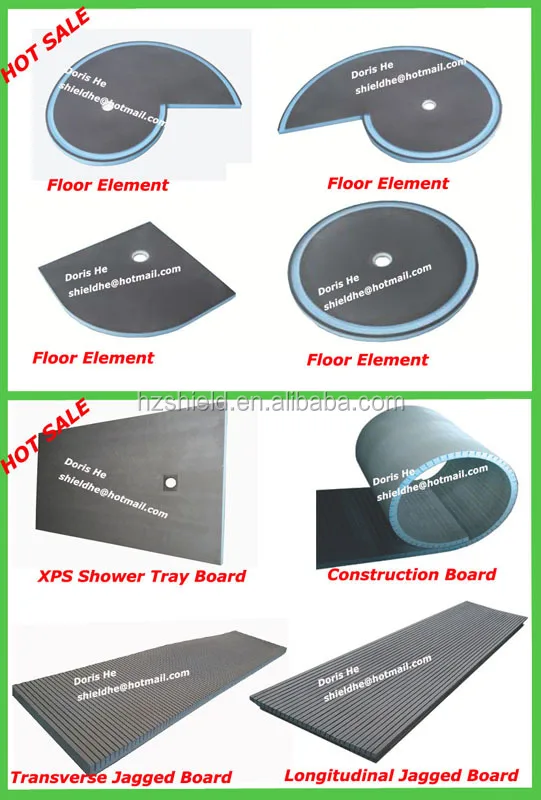

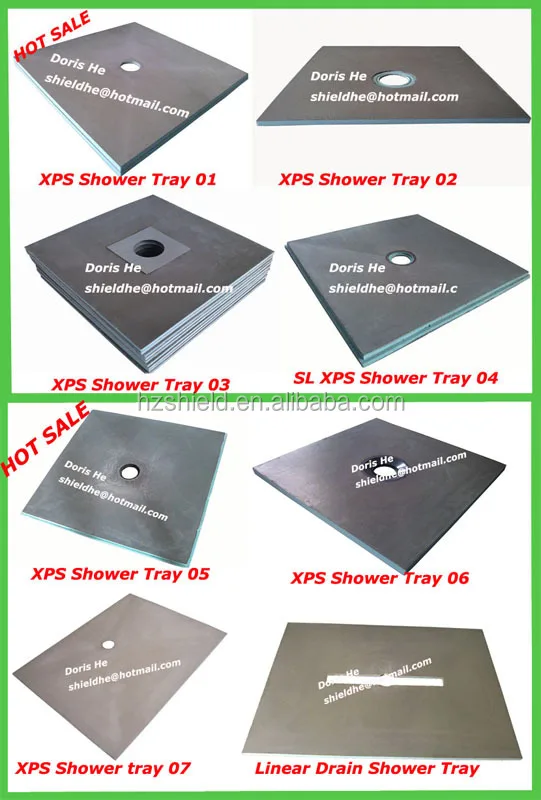

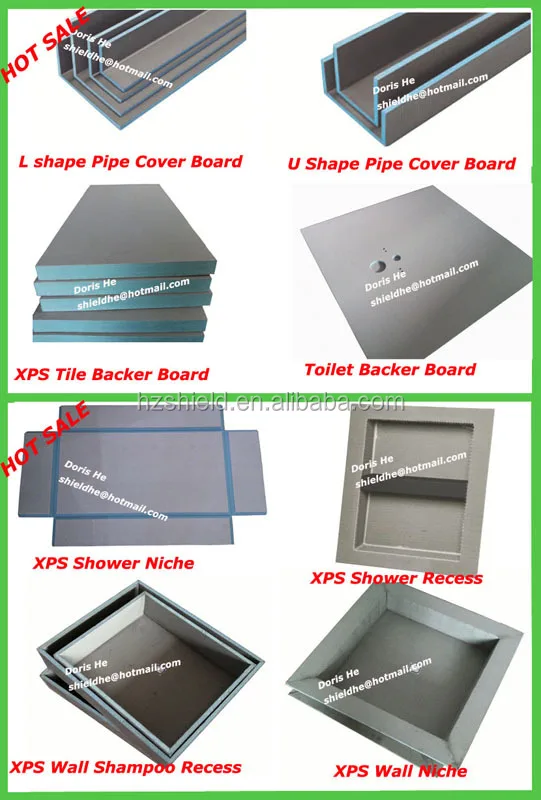

9.Products display:

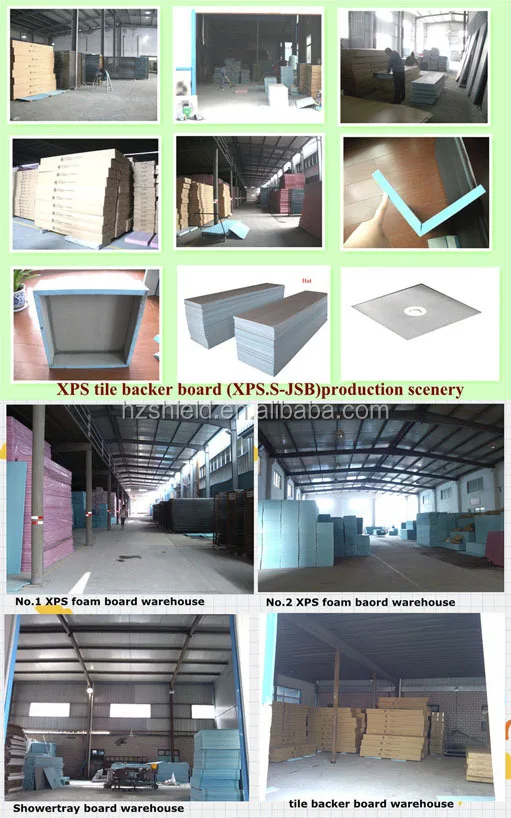

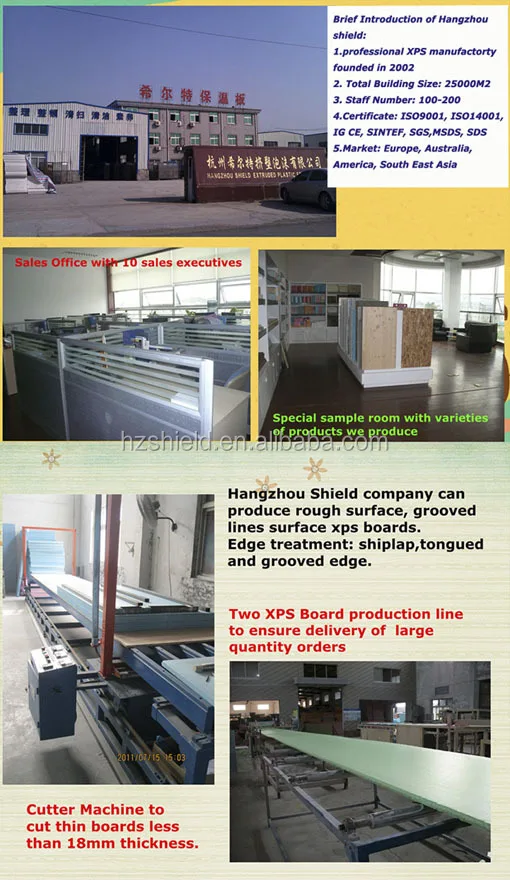

9. Our Factory:
