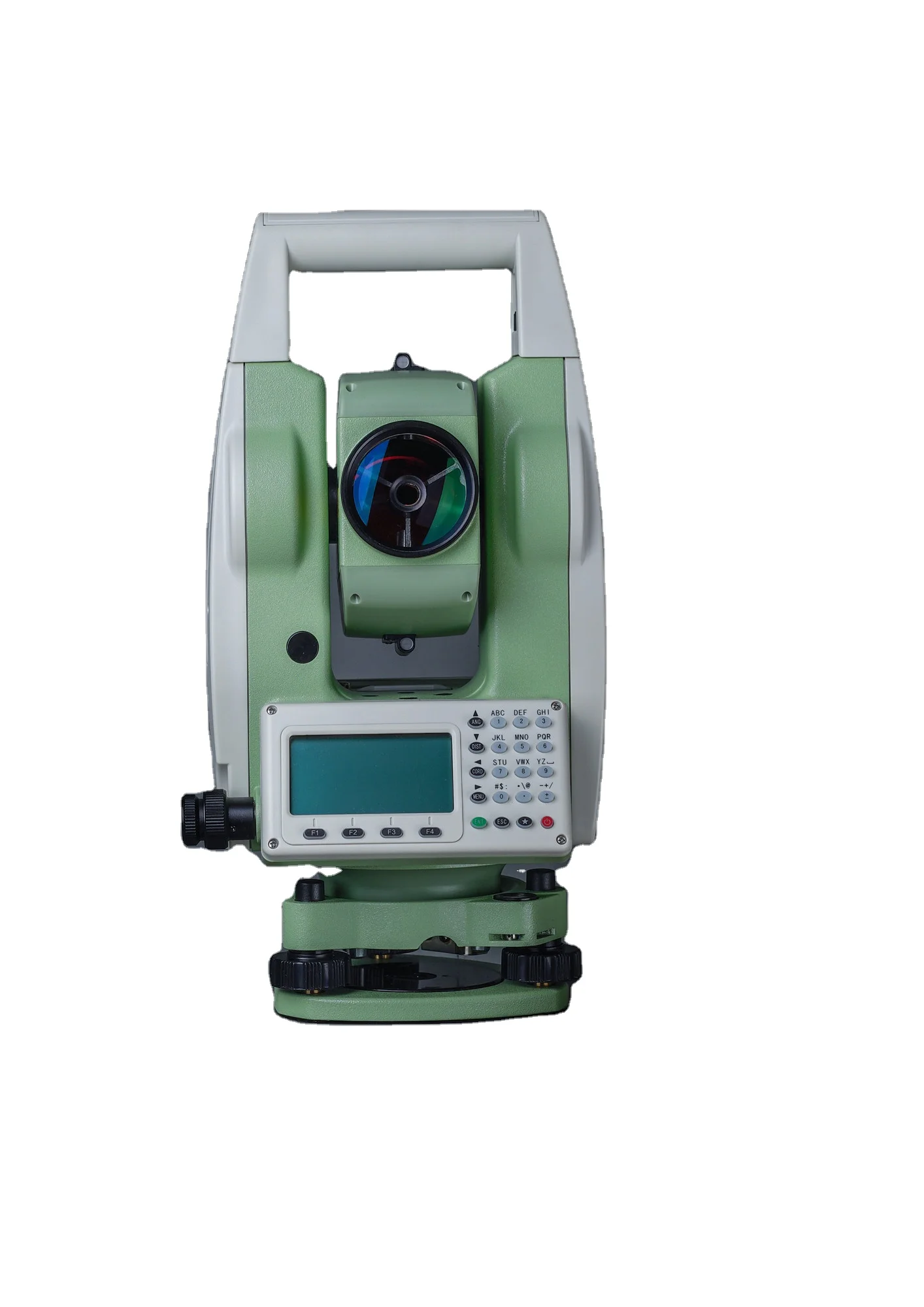

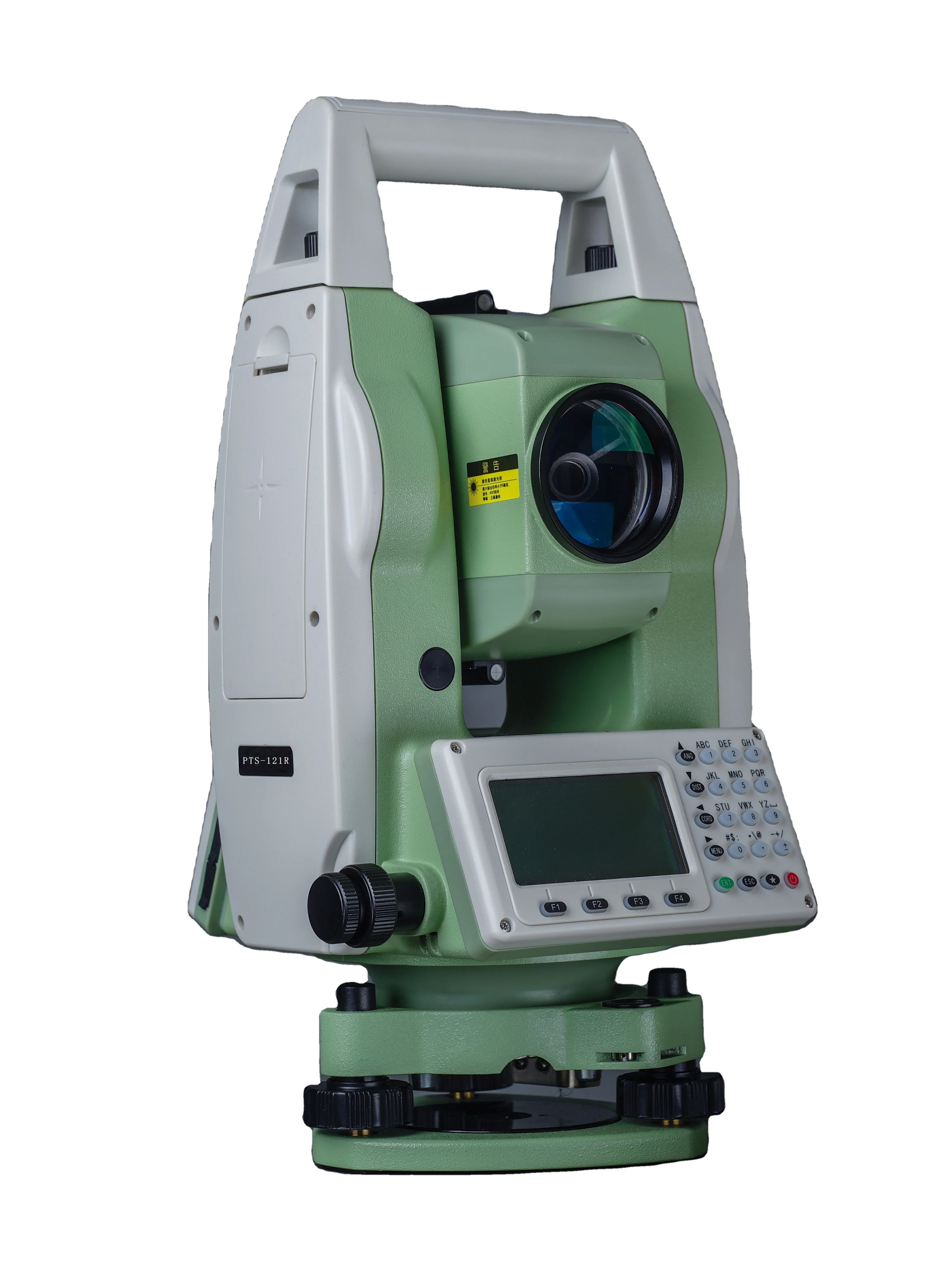

PJK BEST SELLING GEOMAX TOTAL STATION PTS121A PRICE WITH 5000M DISTANCE
- Category: Theodolites >>>
- Supplier: Shenzhen Pengjin Technology Co. Ltd.
Share on (60059788075):
Product Overview
Description
Product Description
SURVEY INSTRUMENTS PJK PTS121A CHINA MADE BETTER CHINESE TOTAL STATION
Features & Benefits:
Rich Features , Our series total station carries abundant surveying applications , at the same time has the functions of data storage, parameter settings and etc .It’s suitable for all kinds of professional measurements.
Absolute code disc
Equipped with absolute code disc , the instrument can measure after switched on .Even if reset the battery halfway, the azimuth information will not be lost.
A high-capacity RAM Management
It serves an easy management for file system, including the increase, deletion and transmission of data.
Non- prism distance measuring
With non-prism distance measuring, this series total station can be directly to all kinds of material, different colors of objects (such as the structure of the walls, poles, wires, cliff wall, mountain, clay, wood, etc.) for long, fast, high precision
measurement .This function is especially for the measurements of targets that cannot be accessed.
Special measurement program
Except for the basic functions, it also has some special measurement program to meet the needs of professional measuring, such as Remote Height (REM) Measurement, Offset Measurement, MLM (MLM Measurement), Resection, Area measurement calculation, Roadway design and staking-out.
Changeable eyepiece
As the eyepiece is changeable, it is convenient to be equipped with diagonal eyepiece, which makes it easy to you to observe the zenith direction high-rise buildings
Laser plumb
Easy to direct the station point and free station
Rich Features , Our series total station carries abundant surveying applications , at the same time has the functions of data storage, parameter settings and etc .It’s suitable for all kinds of professional measurements.
Absolute code disc
Equipped with absolute code disc , the instrument can measure after switched on .Even if reset the battery halfway, the azimuth information will not be lost.
A high-capacity RAM Management
It serves an easy management for file system, including the increase, deletion and transmission of data.
Non- prism distance measuring
With non-prism distance measuring, this series total station can be directly to all kinds of material, different colors of objects (such as the structure of the walls, poles, wires, cliff wall, mountain, clay, wood, etc.) for long, fast, high precision
measurement .This function is especially for the measurements of targets that cannot be accessed.
Special measurement program
Except for the basic functions, it also has some special measurement program to meet the needs of professional measuring, such as Remote Height (REM) Measurement, Offset Measurement, MLM (MLM Measurement), Resection, Area measurement calculation, Roadway design and staking-out.
Changeable eyepiece
As the eyepiece is changeable, it is convenient to be equipped with diagonal eyepiece, which makes it easy to you to observe the zenith direction high-rise buildings
Laser plumb
Easy to direct the station point and free station
Single prism(good condition) | 4000m |
Reflective sheet | 1000m |
Accuracy | 2mm+2ppm |
Measuring time(repeat/tracking) | 0.8s/0.3s |
Range(White board reflectivity 90%) | 400m/600m(Optional) |
Accuracy | 3mm+2ppm |
Compensator | Dual-axis |
Minimum focus distance | 1.3m |
Setting the Orientation
The orientation can be input manually or determined from points that are either measured or selected from
the memory The preset applications covers a wide range of measurement tasks. That makes the daily field measurement easier and faster. The all applications can be selected to use are as follows:
** Surveying
** Stakeout
** Free Station
** Tie Distance
** Area
** Remote Height
** COGO
** Road
the memory The preset applications covers a wide range of measurement tasks. That makes the daily field measurement easier and faster. The all applications can be selected to use are as follows:
** Surveying
** Stakeout
** Free Station
** Tie Distance
** Area
** Remote Height
** COGO
** Road
- COGO(Coordinate Geometry)
is an application used to perform coordinate geometry calculations by the preset conditions such as , coordinates of points, bearings between points and distance between points.
The COGO calculation methods include:
-- Inverse and Traverse
-- Intersections
-- Offset
-- Extension
-- Inverse and Traverse
-- Intersections
-- Offset
-- Extension
Model | PTS-121A | |
Angle measurement(H V) | ||
Detecting system | Absolute encoder | |
Minimum display | 1″/5″/10″(selectable) | |
Accuracy | 2″ | |
Telescope | ||
Magnification | 30X | |
Field of view | 1°30′ | |
Minimum focus distance | 1.3m | |
Image | Erect | |
Compensator | ||
System | Dual-axis | |
Range | ±3′ | |
Resolving power | 1″ | |
Communication | ||
Internal memory | 20000 points(Extended memory up to 32GB) | |
Interface | RS232, USB, SC card, Bluetooth | |
Data format | ASCII | |
Operation | ||
Operation system | Real-time operation system | |
Display | 320*240 true color TFT LCD screen, brightness adjustable in 3 levels | |
Keyboard | 2 sides alphanumeric backlit crystal keyboard | |
Laser plummet | ||
Type | Laser point,4 brightness level adjustable | |
Accuracy | 1mm(1mm at 1.5m instrument height) | |
Environmental | ||
Battery type | High Energy Li-ion battery | |
Voltage/Capacity | 7.4V 3400mAh | |
Operating time | 18 hours(continuous angle measurement every 30 seconds) | |
Measuring times | Approx. 12000 times | |
Language : | english/french/spanish/italian | |

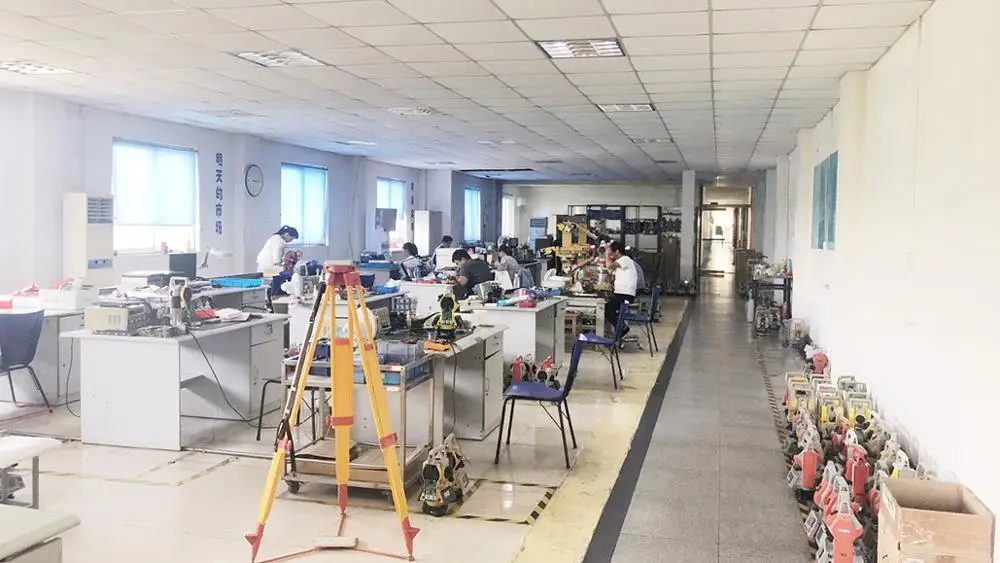

About us
Delivery and Payment

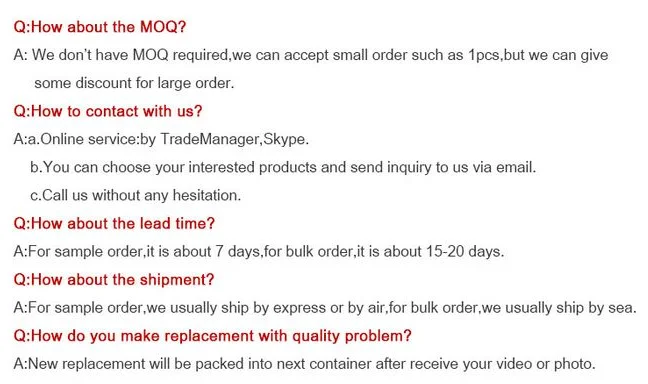

FAQ
