D248 converter pt100 RTD temperature sensor transmitter 4 20 mA
- Category: Temperature Instruments >>>
- Supplier: Beijing Zhongruizhicheng Technology Co. Ltd.
Share on (60060429950):
Product Overview
Description

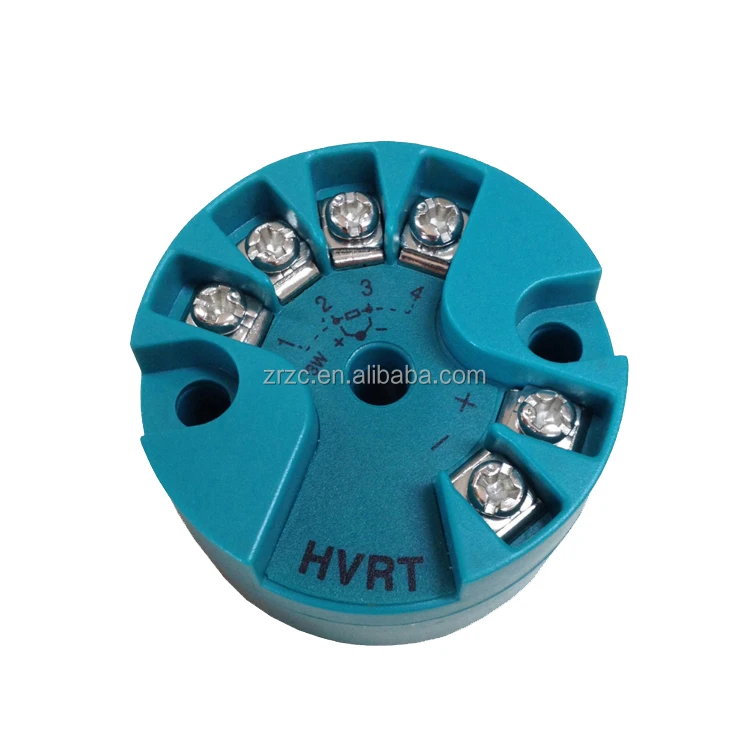

D248 temperature transmitter module:
Appliction | |
Used for | RTD, TC, Ohm, mV |
Specifications | |
Power supply: | 10-32VDC |
Output: | 4-20 mA DC |
Stability: | 0.01°C (RTD), 0.1°C(E J K N T) 0.2°C(B R S) |
Accuracy: | 0.01°C(RTD) 0.5°C(E J K N T) 1.0°C(B R S) |
Load resistance | ≤ (U-10)/0.22 |
Relative humidity: | 10%-90%RH |
Operating temperature | -40°C~+85°C |

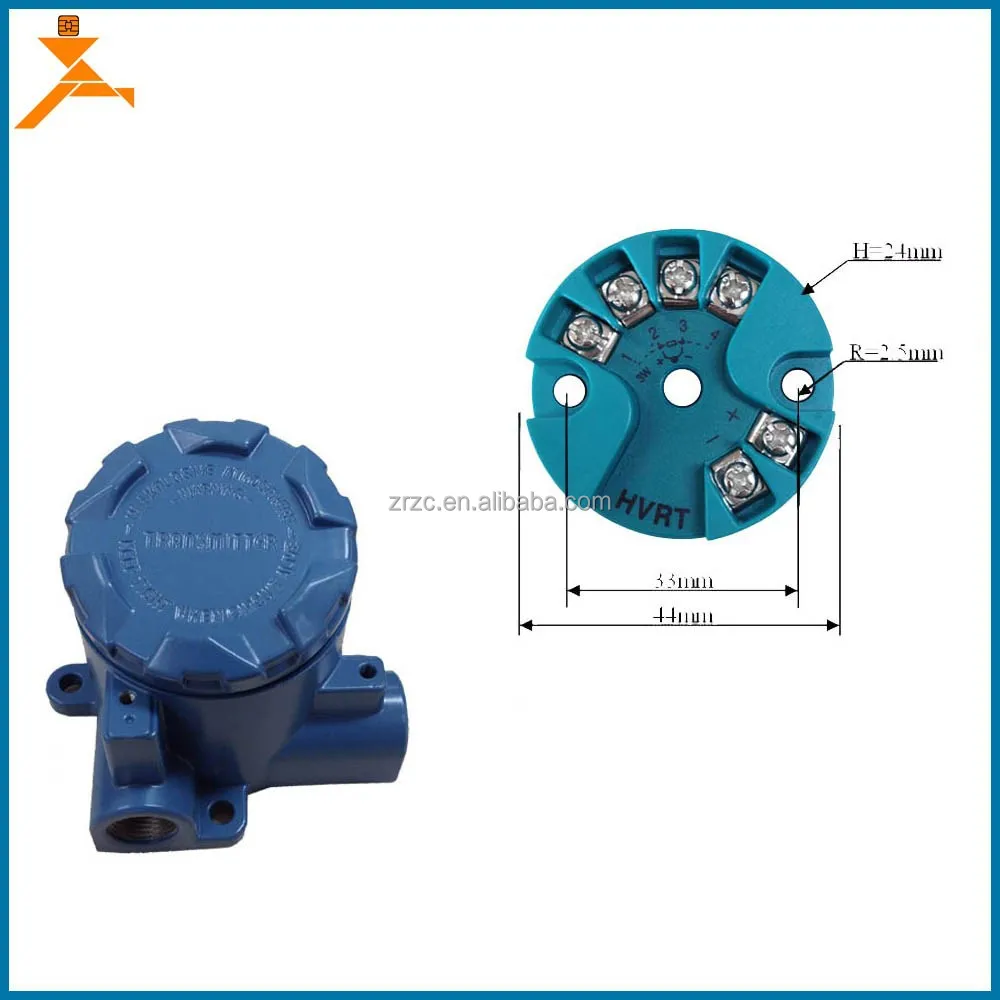

Dimension: | Diameter Φ=44mm |
Mounting hole pitch: | D=33mm |
Weight: | About35g |
Sensor Type RTD(Resistance Thermometer): PT50,PT100,PT500,Pt1000 TC (Thermocouple): E ,J, K, N ,T ,B, R ,S Ohm:0 ~ 500Ω, 0 ~ 4500Ω Millivolt:-120 ~120mV, -1000 ~ 1000Mv | |
3 types color:
Features:
1, High reliability and exceptional EMC performance: Built-in multi-level protection circuit for high reliability.
2, High-voltage isolation: As high as 1000V for the isolation voltage between metal capacitance sensor processing circuit and main circuit.
3, HVRT communication protocol: PC programmable
4, High performance-price ratio: HVRT digital bus communication, low price, high precision, good quality.
5, Easy to install and reliable with unique design.
6, HVRT protocol is a proprietary communication protocol developed by our company, based on the voltage modulation. Similar as HART communication protocol.
Size
Signal Type | Measurements Range | Minimum Range | Output Accuracy | ||
Thermocouples (TC) | T | -200~400℃ | 25℃ | ±0.4℃/0.2% | |
E | -200~1000℃ | 25℃ | ±0.4℃/0.2% | ||
J | - 210~1200℃ | 25℃ | ±0.4℃/0.2% | ||
K | -200~1372℃ | 25℃ | ±0.4℃/0.2% | ||
N | -200~1300℃ | 25℃ | ±0.4℃/0.2% | ||
R | 0~1768℃ | 100℃ | ±0.8℃/0.2% | ||
S | 0~1768℃ | 100℃ | ±0.8℃/0.2% | ||
B | 150~1820℃ | 100℃ | ±1.0℃/0.2% | ||
mV input | -120~120mV | 10mV | ±10μV /0.2% | ||
-1000~1000mV | 50mV | ±100μV /0.2% | |||
Resistance Temperature (RTD) | Pt50 | -200~850℃ | 10℃ | ±0.15℃/0.2% | |
Pt100 | -200~850℃ | 10℃ | ±0.15℃/0.2% | ||
Pt500 | -200~850℃ | 10℃ | ±0.1℃/0.2% | ||
Pt1000 | -200~850℃ | 10℃ | ±0.1℃/0.2% | ||
Ohm input | 0~500 Ω | 100Ω | ±0.2 Ω/0.2% | ||
0~4500 Ω | 100Ω | ±1.0 Ω/0.2% | |||
Packaging & Shipping

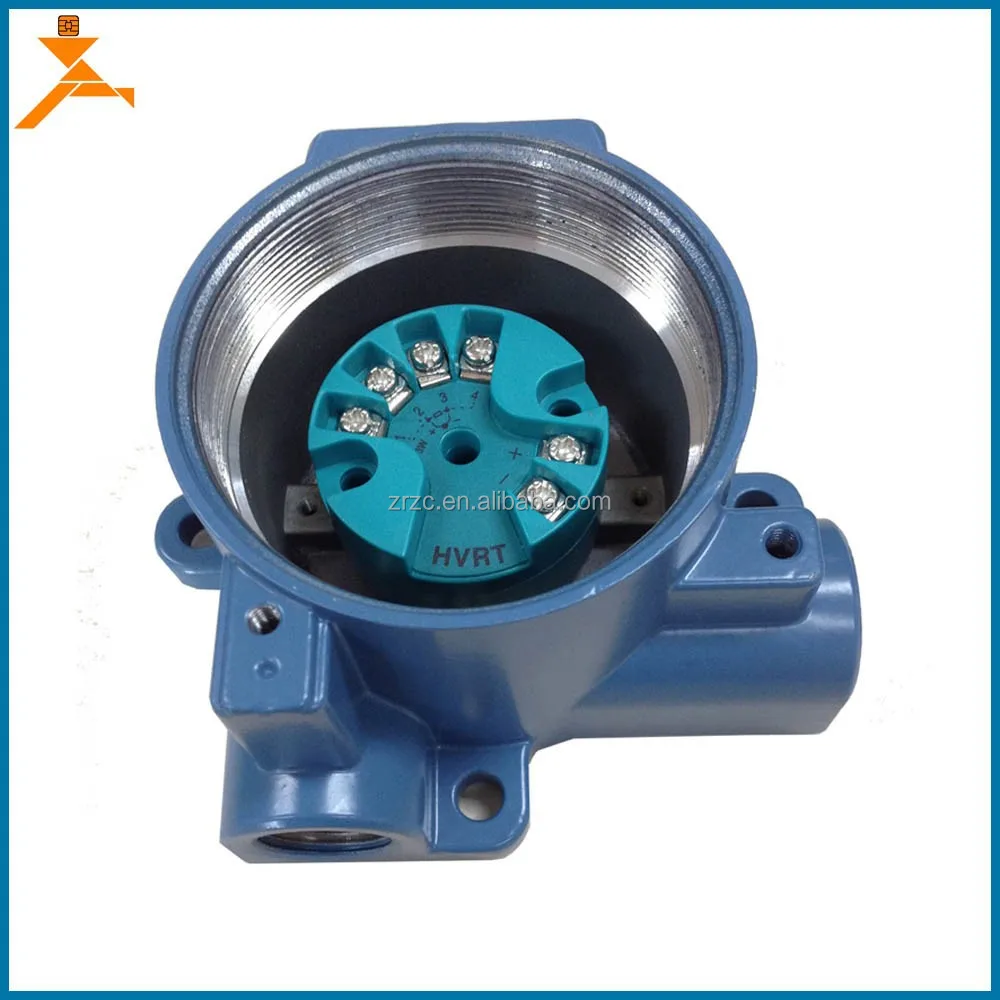

Detailed Images
Beijing ZhongRuiZhiCheng Technology Co., Ltd.
l A professional engineering team with 15 Years HART/5 years Profibus R&D experiences
l 80% Market share in China Mainland market for HART transmitters
l More than 1000k Units shipped per year
l One-stop Solution for various HART/Profibus transmitters
l Quick response in goods supply and post-sales support
l Globally distributed customers including China Mainland, Korea, India, America, Europe, etc
FAQ
1,Customer: i want buy the samples to test, it is ok?
Helen: of course, not free sample, but when the next order, we will return the samples money to your.
2,Customer: when will you do the shippment after my payment ?
Helen: we have the in stock, when we received the payment, i will ASAP send to your,(through DHL/ UPS/ TNT/FEDEX,etc)
3,Customer: How to pay?
Helen: the Western union, Paypal, person account, TT ,and so on.
Samples small quantity are avaliable at any time Welcome to contact me.
