ASTM A532 White Iron Wear Resistant Wear Liner Plate for Bucket

Product Overview

Description

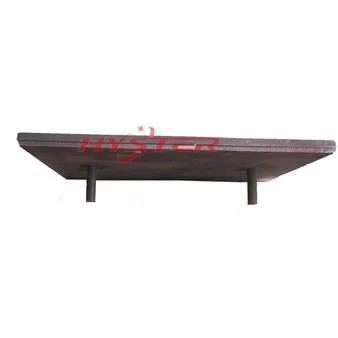

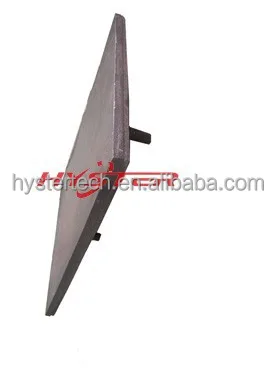

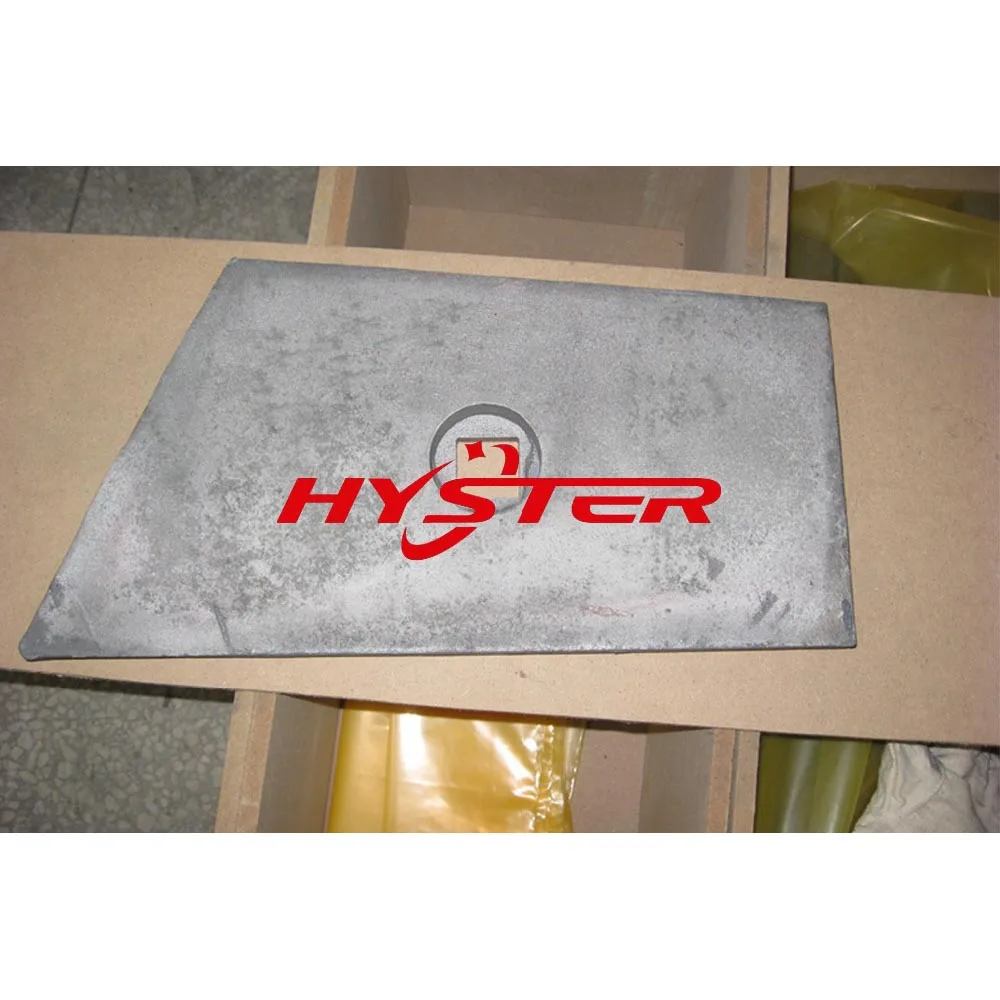

ASTM A532 White Iron Wear Resistant Wear Liner Plate for Bucket



Laminated White Iron wear plates  are exceptionally resistant to both impact and abrasion by combining  very high wear resistant qualities of  a high chrome cast iron(ASTM A532 15/3CrMo, 63HRC/700BHN) and a weldable & high impact toughness mild steel through a metallurgical bond.



Also, we could produce according to your drawings and specifications.



They are easy to use and install. They can be bent, cut and formed to suit different surfaces.



>Mechanical property:

1)  Hardness: 63HRC/700BHN

2) Shearing strength: 250Mpa Min.

3)Tensile strength 630Mpa Min.







A. Chemical
C	Cr	Mn	Mo	Cu	P	Si	S	B.V.Nb
2.5-3.5	15-18	0.5-1.0	0.5-2.5	0.5-1.0	0.02max	0.5-1.0	0.02max	0.1-0.5
B. Mechanical Property
1) Tensile Strength :			630Mpa Min.
2) Shearing Strength :			250Mpa Min.
3) Hardness :			63HRC/700BHN
C. Micro-structure
Carbide + Martensite + Retained Austenite, the carbide content is  about 35%
Contact:
Bonnie Deng
Cell: 86-189-4254-3248
Email: sales02(@)hystertech.com
Skype: bonniedeng.hyster





ISO9001:2008 Quality Certificate Manufacture Of Bimetallic White Iron Wear Blocks, Chrome Carbide Wear Bars, Hopper Wear Liners

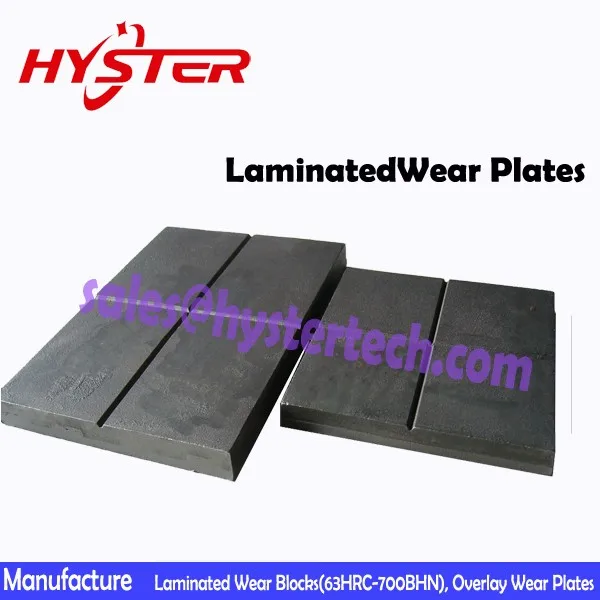

Following are our laminated wear blocks:

Types---the most common ones are:
  1) Chocky bars (CB 25. CB40, CB50, CB65, CB80, CB90, CB100, CB130. CB150)
  2) Standard wear bars (DLP201A, DLP 125, DLP184, DLP528, DLP619, DLP451, DLP450, DLP2230, DLP2017, DLP4, DLP919, DLP1191, DLP515, DLP200, DLP271, DLP270, DLP508, DLP115, DLP337, DLP1101, DLP343 )
  3) Shaped wear bars
  4) Wear buttons& donuts(WB60, WB75, WB90, WB110, WB115, WB150, DLP1920, DLP1921, DLP1994, DLP2196)
  5) Shredder/Grinder hammer tips (DLP1654,90X90X50mm; DLP653,90X90X45mm; DLP1927, 90X90X55mm)
  6) Bi-metallic wear plates
  7) Knife edges(DLP1065-22, 203X22X50MM; DLP1265-22,305X22X50MM; DLP1065A-16, 203x16x50mm, DLP1065A-25, 203x25x62mm; DLP1265A-25, 305x25x56mm)
  8) Skid bars, skid blocks(DLP412, 250x150x45mm; DLP413, 200x150x45mm; DLP414, 250x250x45mm)
  9) Elbow wear blocks
  10) Other sizes and shapes
  11) Multi-function gradient cutter tooth
  12) Rockbox liners
  13) Micro-ledges
