Product Overview
Description
Wuxi Wandeshun Machine Co., Ltd (we are professional factory)
our Transaction level is as follows:
1. About us
Wuxi Wandeshun Machine Co., Ltd. one of the leading wire drawing machine manufacturers in China , is specialized in manufacturing wire drawing machines , which was established in 2000.
Our products are popular in many provinces of china and have already been exported to Vietnam , Indonesia, Uzbekistan Kenya, South Africa,Algeria,Egypt, Iran, Turkey and so on.
Excellent geographic location and easy transportation access, only 2k meter from Wuxi airport and adjacent to national highway 312.Welcome friends of all industries to visit and instruct our factory.
My contact way
jeaqueline Zou
Marketing Manager
My mobile: 0086-13921534531
Whatsapp: 0086-13921534531
Skype: jeaqueline998
trademanager: wxwds
Email:sales(at)wxwds.com
QQ:349791577
Product Details
The pulley continuous wire drawing machine from manufactory
Description of for pulley wheel wire drawing machine:
The pulley type continuous wire drawing machine has the characteristics of simple structure, low cost, and easy operation, and it is suitable for drawing a variety of medium and thin fiber material, especially for mild steel wire, galvanized iron wire, steel head wire, stainless steel wire, rubber hose steel wire, spring steel wire, rod welding wire and copper wire aluminum rod, etc.
Scope of application: gas-protection welding wire, welding electrode, stainless steel wire, galvanized iron wire, bullet and hard wire, copper wire, and metal product wire, etc.
The equipment consists of main reduction box,die casing,wheel frame,sash brace and
electrical control system.The spinning drawing blocks are driven by JZT series motor,with gear coupling runs changeful gears to reduce speed. The drawing blocks are verticaly fixed in sealed box body.The gear pair are lubricated with oil.
parameters of for pulley wheel wire drawing machine:
| Items | Unit | LW2/700+3/600+5/450 | LW9/560(600) | LW9/400(300) |
| Capstan diameter | mm | 700/600/450 | 560(600) | 400(300) |
| Max inlet diameter | mm | Φ8-6 | Φ6.5 | Φ3.0-2.5 |
| Min outlet diameter | mm | Φ2.5 | Φ2.0 | Φ0.9-0.7 |
| Inlet tensile strength | Mpa | <1150 | <1150 | <1150 |
| Drawing speed | m/min | 240 | 360 | 720 |
| Drawing dies | time | 10 | 9 | 9 |
| Total compression rate | % | 90.23 | 90.53 | 91 |
| Average compression rate | % | 20.75 | 23.04 | 23.5 |
| Motor power | Kw | 18.5 | 18.5-30 | 7.5-11 |

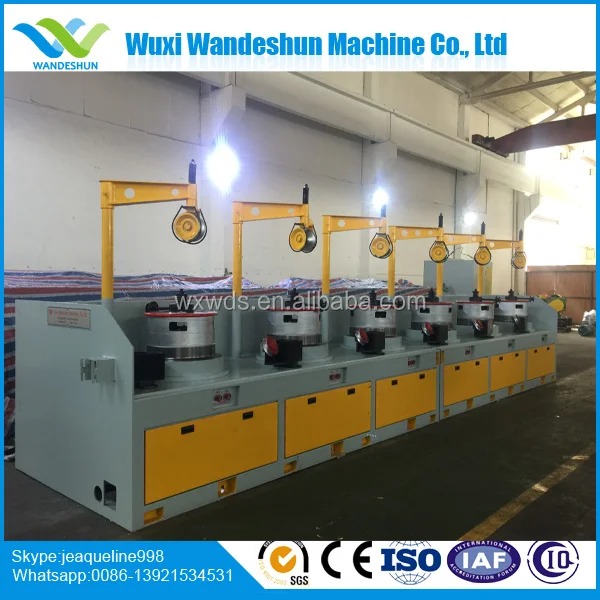

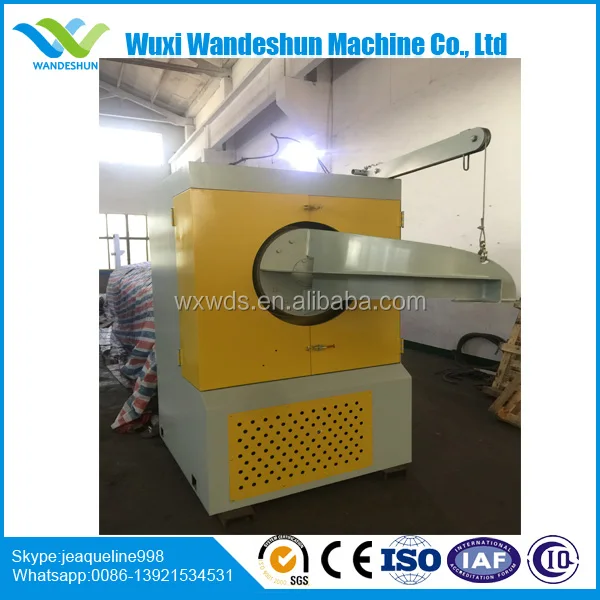

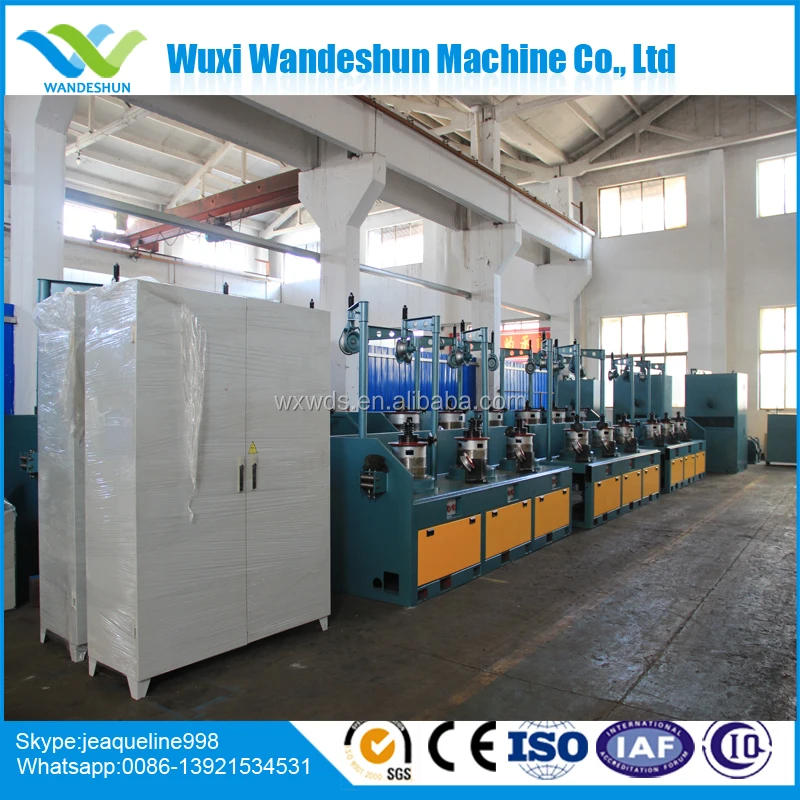

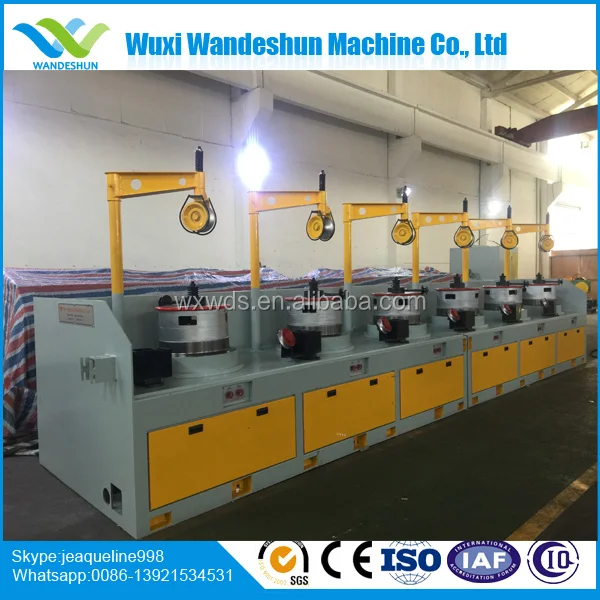

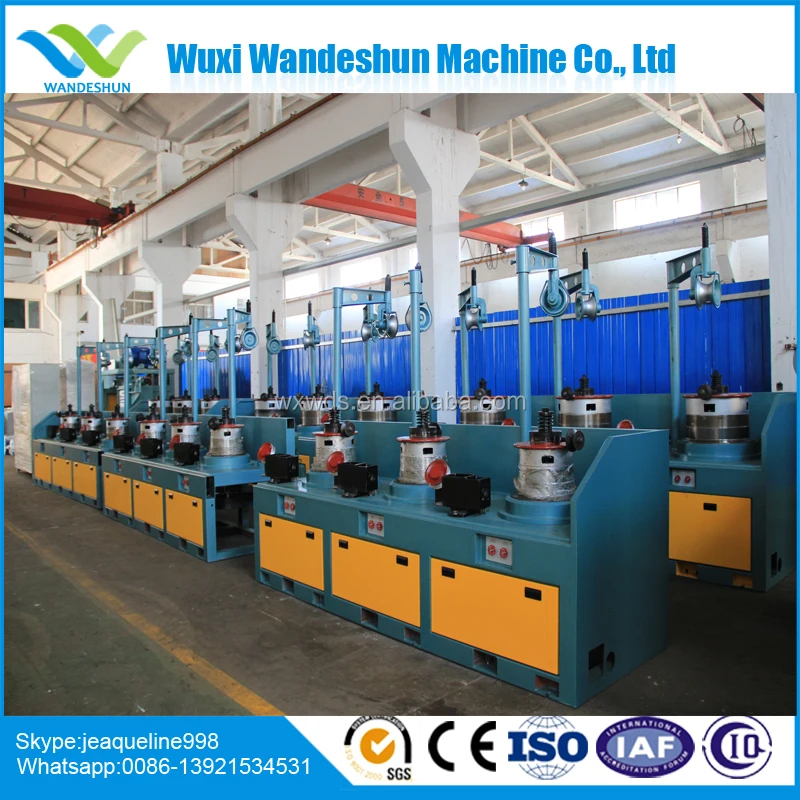

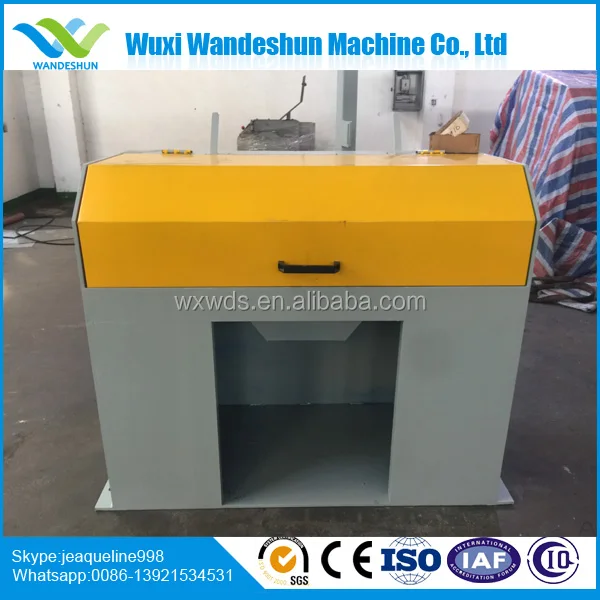

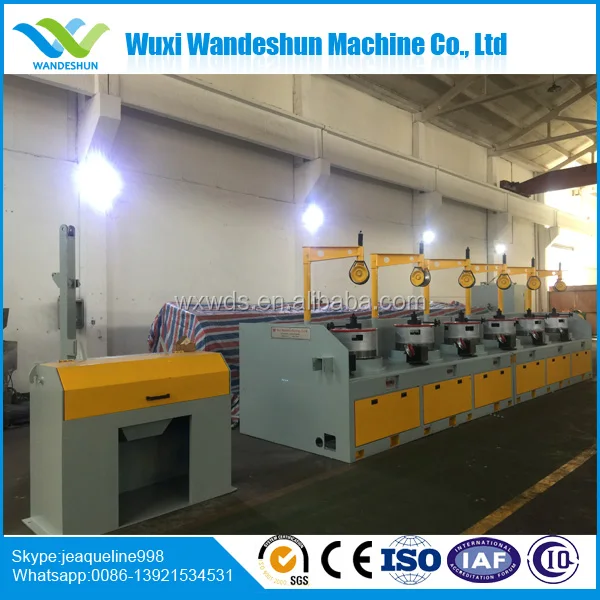

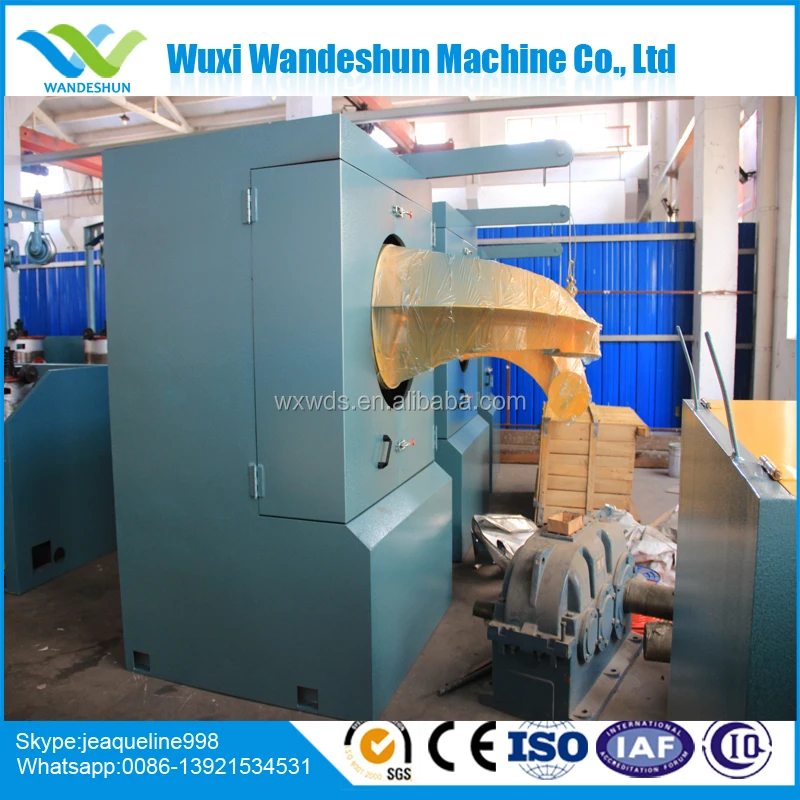

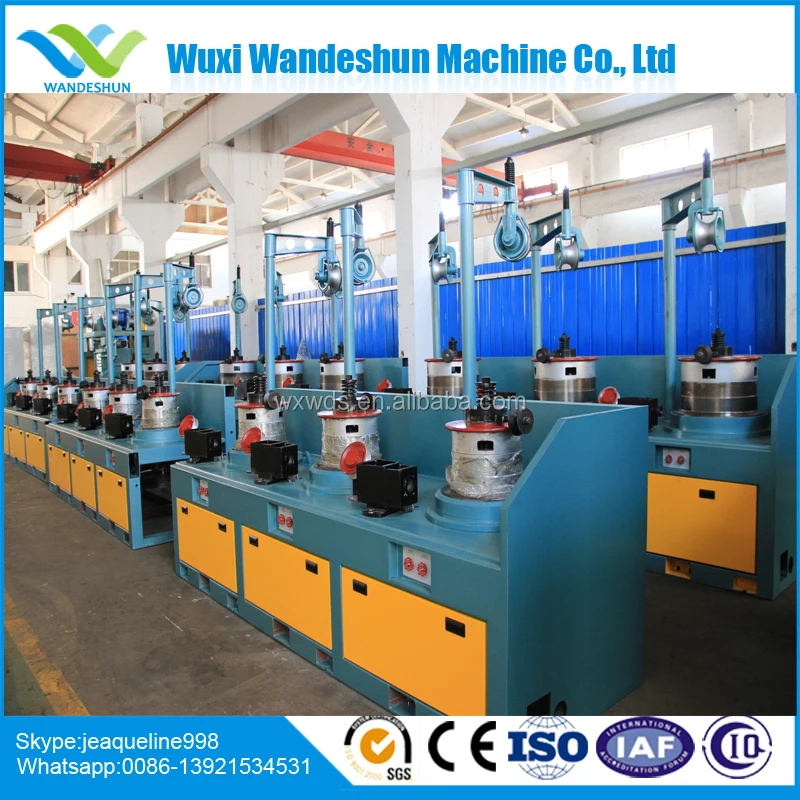

Pictures of for pulley wheel wire drawing machine:
