nice price air conditioning

Features ( 2015 nice price air conditioning ):

1. Wide application range

Wide range of outdoor units

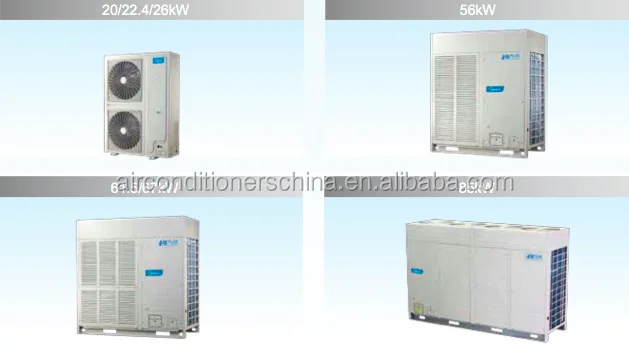

The outdoor units capacity range from 20kW to 85kW with 7 models and two air discharge type.

From 20kW to 26kW is side air discharge type, from 56kW to 85kW is top air discharge type. Maximum 39 indoor units with capacity up to 130% of total outdoor units can be connected in one refrigeration system.

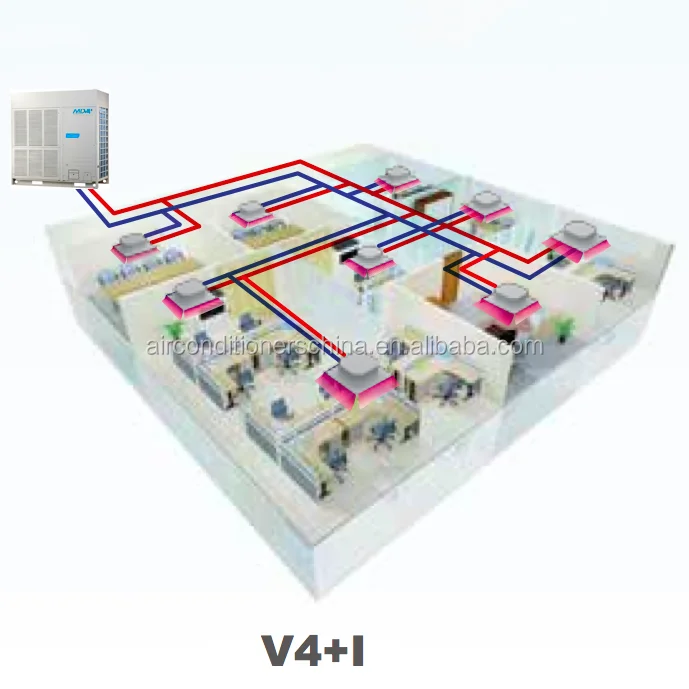

Flexible indoor units connection

Midea V4 Plus Individual Series with intelligent control gives you independent zoning control with maximum flexibility. A single outdoor unit supports up to 39 indoor units, freeing up considerable space outside. Use your backyard more wisely with much more space available created by less number of outdoor units.

Wide operation temperature range

The V4 Plus Individual series system operates stably at extreme temp. ranging from -20°C to 48°C.

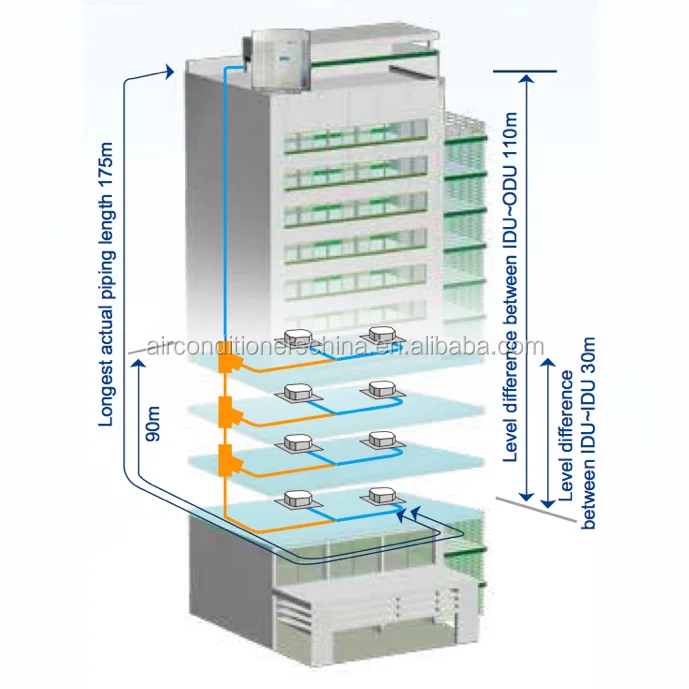

Long piping length

Total piping length: 1000m

Max. actual piping length: 175m

Max. equivalent piping length: 175m

Max. level difference between IDU-ODU: 110m

Max. level difference between IDU-IDU: 30m

Max. piping length from first indoor branch to the farthest IDU: 90m

High external static pressure

Max. 40Pa external static pressure can be customized for the top air discharge outdoor unit type, flexible to build-in installation.

A standard 0-20Pa external static pressure is equipped by default for the top air discharge outdoor unit type. 20-40Pa external static pressure can be customized.

2. High efficiency

Hight efficiency DC inverter compressor

High efficiency DC inverter twin rotary compressor (20-26kW)

High efficiency DC inverter scroll compressor (56-85kW)

High performance heat exchanger

• The window fins enlarge the heat-exchanging area, decrease the air resistance, save more power and enhance heat exchange performance.


• Hydrophilic fins and inner-threaded copper pipes optimize heat exchange efficiency.

3 Enhanced Confort

Night silent operation model - multi-choice of silent mode during the night

Super silent operation mode can reduce sound level further, minimum 46.8 dB (A).

Night silent operation will be activated X hours after the peak temperature during daytime, and it will go back to normal operation after Y hours.

                                                                              Mode 1→X: 6 hours,  Y: 10 hours

                                                                              Mode 2→X: 8 hours,  Y: 10 hours

                                                                              Mode 3→X: 6 hours,  Y: 12 hours

                                                                              Mode 4→X: 8 hours,  Y:  8 hours

Intelligent defrosting technology

Defrosting time can be shortned to 4 min. due to the specialized defroting value.

Quick warm-up & cool-down design

By utilizing the inverter compressor, the system can reach full load quickly and shorten the warm-up and cool-down times to proviee an immediate and confortalbe air solution.

Less temperature fluctuation will creat a better living environment.

4 Easier installation and service

Integrated design enhance installation efficiency and quality

Compare with combination units, the individual units don’t need complicated piping and wiring in the jobsite. It eliminates the communication wire, power wire, oil balance pipe, and refrigerant distributors between units.

1 Power wire and grounding wire

2 Communication wire

3 Main gas pipe

4 Main liquid pipe

5 Power wire and grounding wire

6 Communication wire

7 Oil balance pipe

Less possibility of vapor and moisture enter the system

There are more brazing joint in the combination system, therefore vapor and moisture is easy to enter the system. Thanks to the reduced joint in the individual system, it minimize the possibility of moisture enter the system.

Easy piping connection

The side air discharge type offering four directions to connect pipes and wirings for meet a variety installation request.

Introduction ( 2015 nice price air conditioning ):

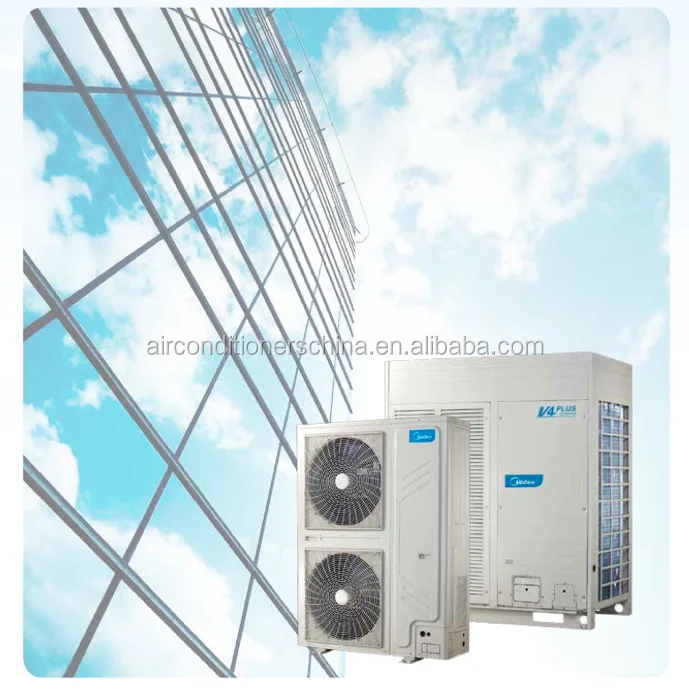

Midea proudly introduces the V4 Plus Individual VRV central air conditioning, which is designed to optimize performance and better match varieties of application requirement.

Especially, the integrated designed V4 Plus Individual VRV central AC is focus on provide better air conditioning system solution for the small and middle-sized buildings in the global market.
