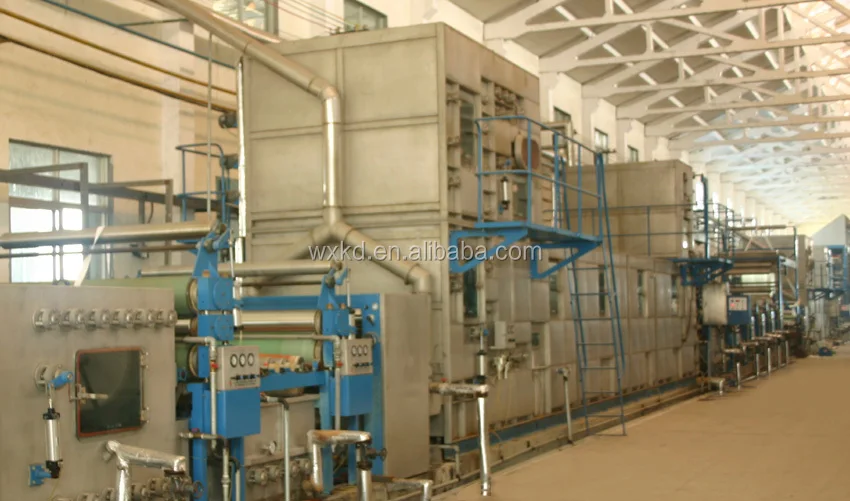

KD 093B desizing & scouring & bleaching machines

Product Overview

Description

Application:

This machine is used for desizing,scouring and bleaching the fabric of cotton,hemp and their blends.



Process flow:



Feeding & drawing out device(infrared centring) → MH502 steeping tank + HFM512 two-roller padder → MH983 double-layer composite steam box → middle feeding frame(infrared centring) →(MH915 steamer and washer + HFM512 two-roller padder)×4 groups →MH915 steamer and washer + HFM513 three-roller padder →MH616 drying cylinder drying machine(3 rows×10 pcs) →  swinging drawing out.



Technical parameters:



1,Guide roller width: 2200mm



2,Machine direction: face to the feeding side, drive is on left/right



3,Mechanical speed: 10-70m/min



4,Drive: variable frequency drive



5,Control device: PLC



6,Installed power: ~65kw



7,Steam pressure: ≥0.2 Mpa



8,Compressed air: ≥0.4Mpa



9,Water pressure: ≥0.2Mpa



10,Shape size: L*W*H: 69500×3000×4800mm
