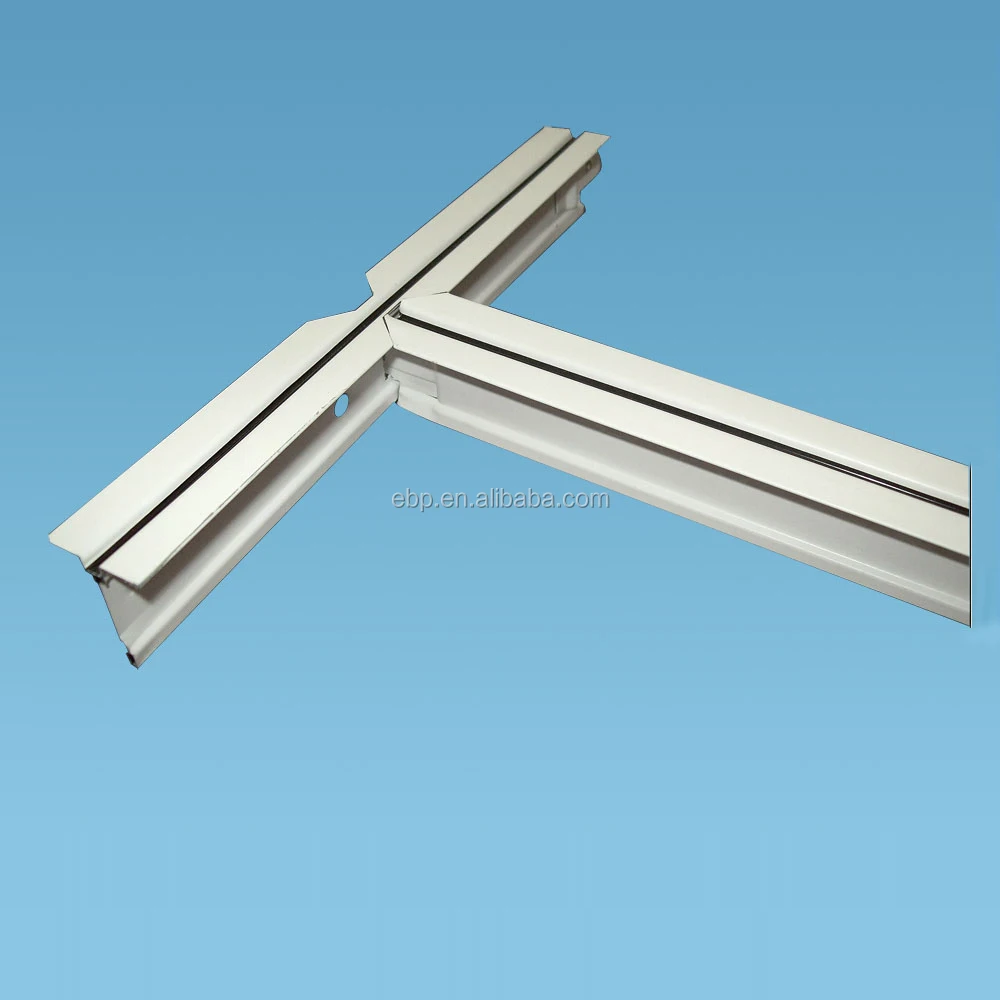

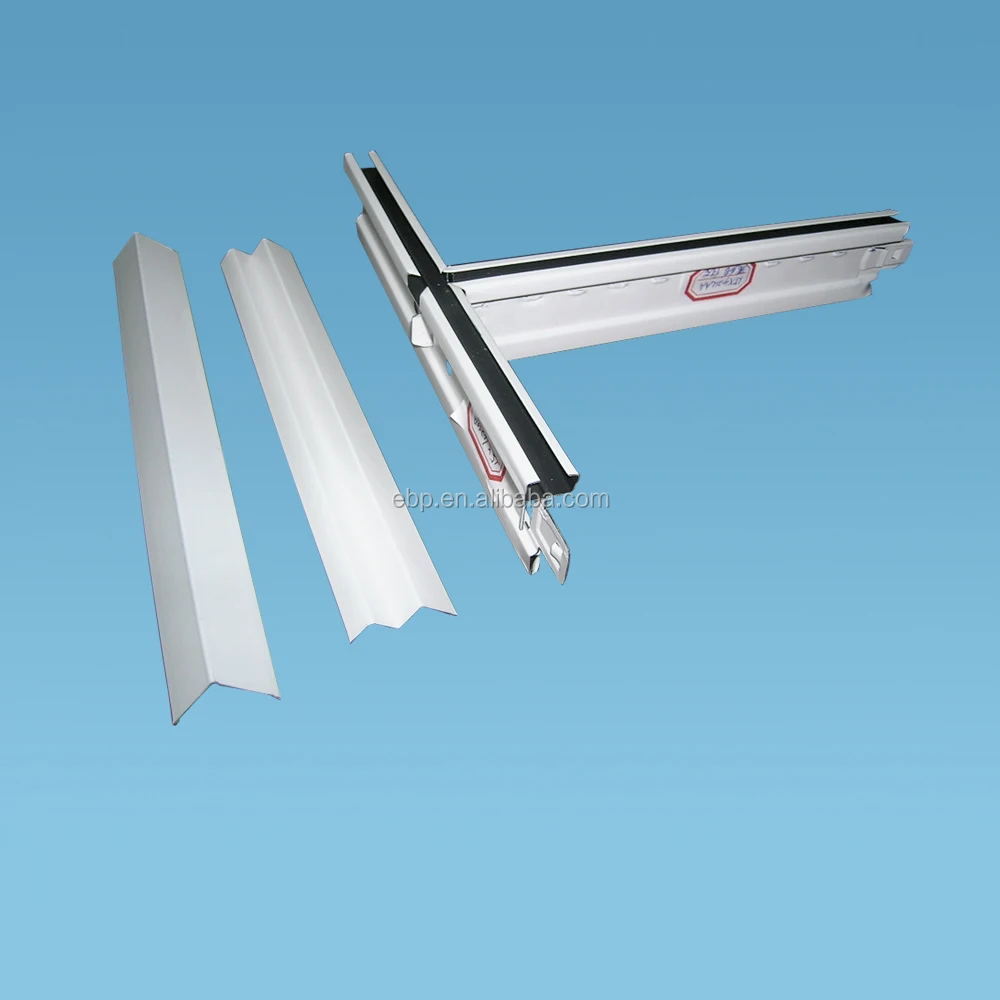

Primary Main Runner Main Tee cross tee runner for Ceiling Suspension System Exposed Grid System metal accessory

Product Overview

Description

Primary Main Runner Main Tee cross tee runner for Ceiling Suspension System / Exposed Grid System metal accessory



Raw materials : ZINC coating from 80 to 275 gram per square meter , also can use  the stainless steel mirror or aluminum mirror , prepaited.

Thickness: 0.25~0.4mm

- Dimension :

               Length : Main Tee up to 3.75 M ,Cross Tee up to 1.22 M ,

               Width : From 14mm to 24mm and Hight from 24mm to 38mm .

                We can produce any size to meet and install your ceiling .

Colour : The surface is white , but also can be stainless steel mirror and aluminum mirror .



1) Standard size for flat T grid

Item	Description	Width (mm)	Hight (mm)
1	T24 MAIN TEE	24	38
			32
			28
			26
			24
	T24 CROSS TEE	24	38
			32
			28
			26
			24
2	T15 MAIN TEE	15	38
			32
			28
			26
	T15 CROSS TEE	15	38
			32
			28
			26
3	T14 MAIN TEE	14	32
			28
			24
	T14 CROSS TEE	14	32
			28
			24

2) Standard size for groove T grid

Item	Description	Width (mm)	Hight (mm)
1	U23 MAIN TEE	23	32
			29
			24
	U23 CROSS TEE	23	32
			29
			24
2	U17 MAIN TEE	17	32
			29
			24
	U17 CROSS TEE	17	32
			29
			24
3	U15 MAIN TEE	17	32
			29
			24
	U15 CROSS TEE	17	32
			29
			24

3) Standard size for slotted T grid:

Item		Description		Width (mm)	Hight (mm)
1		U15 MAIN TEE WITH 8mm GAP		15	42
					32
					26
		U15 MAIN TEE WITH 8mm GAP		15	42
					32
					26
1		U15 MAIN TEE WITH 5mm GAP		15	30
					25
		U15 MAIN TEE WITH 5mm GAP		15	30
					25
