Gas and Air Vortex Flow Sensor Measurement Flow Meter RS485 HART

Product Overview

Description

Gas and Air Flow Sensor Measurement Flow Meter RS485 HART

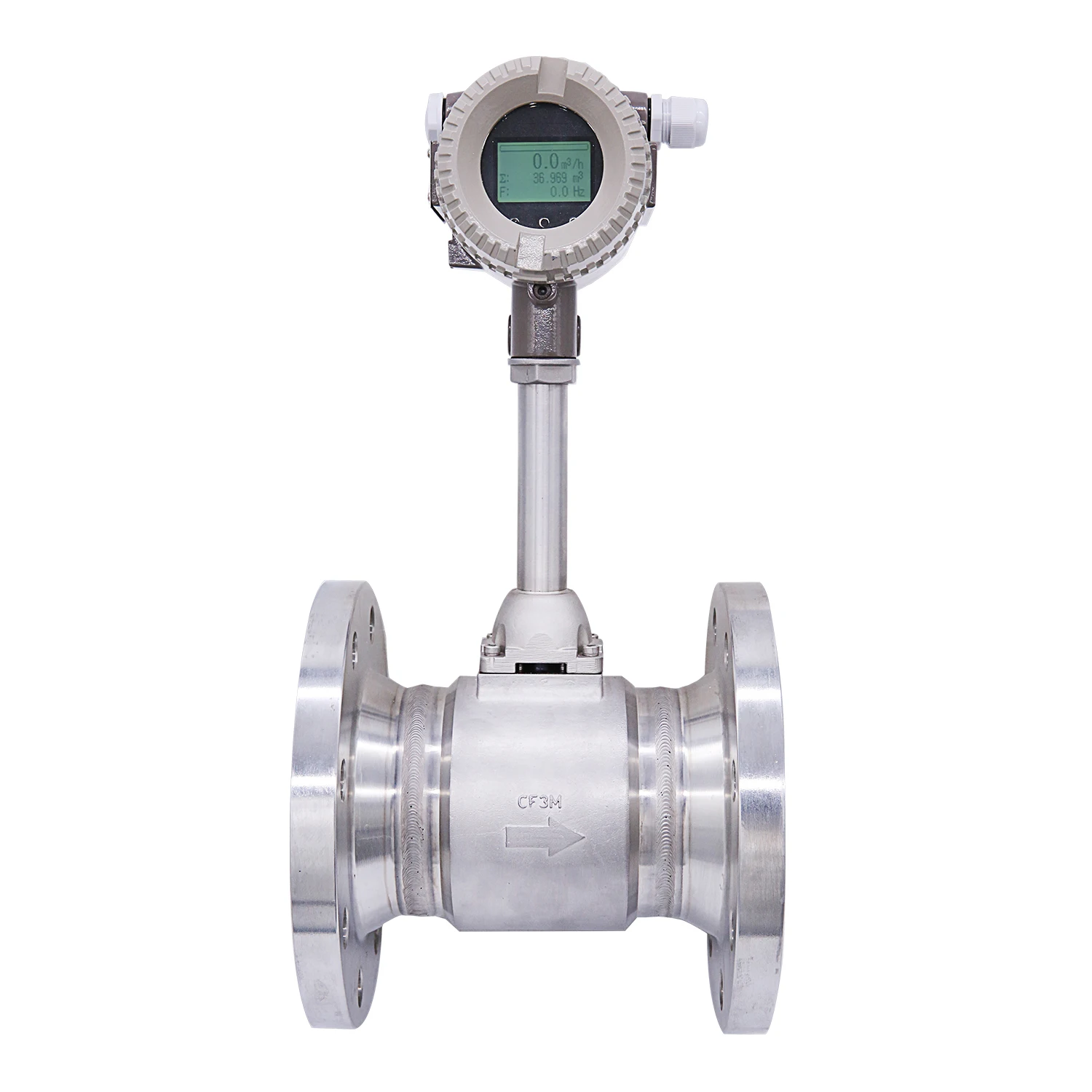

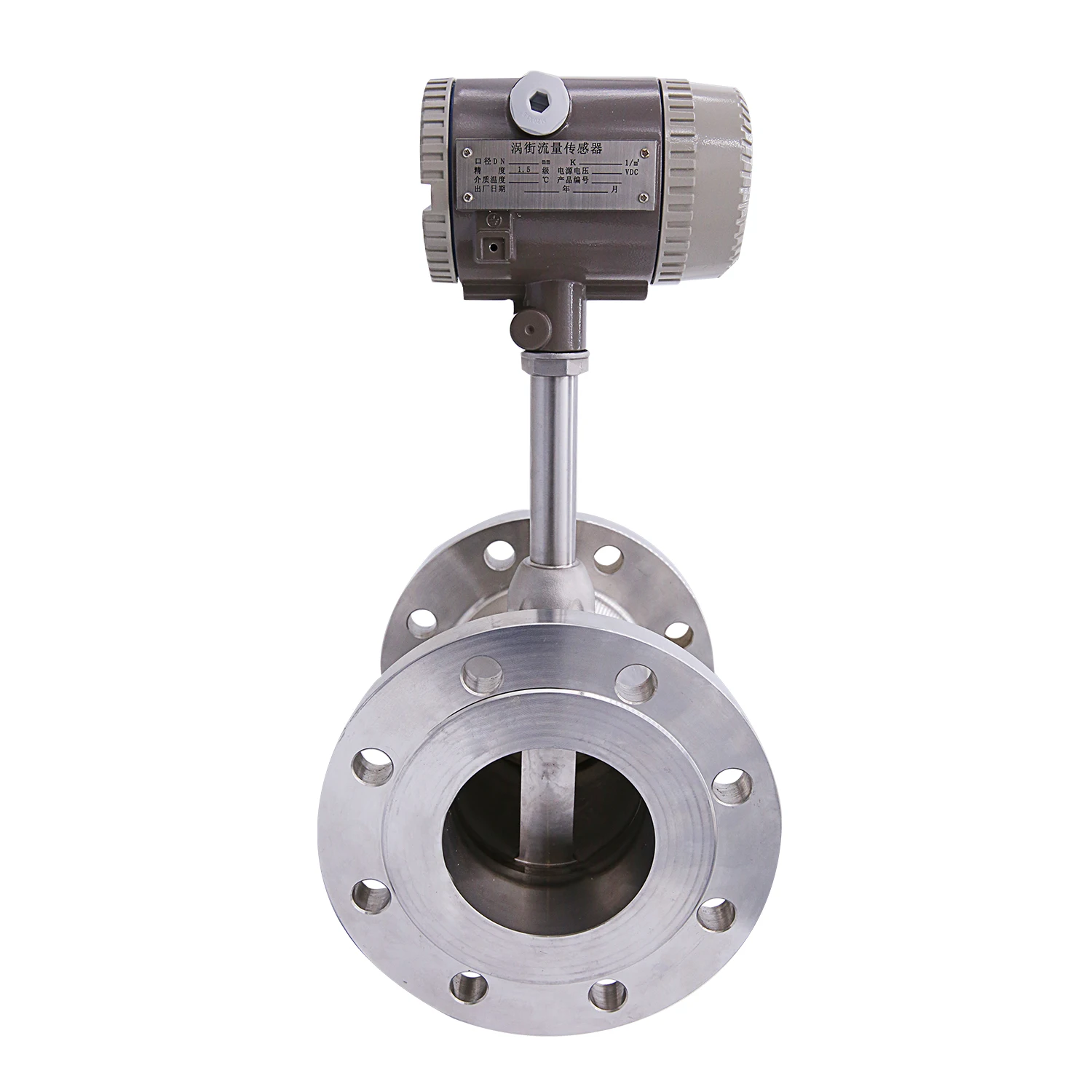

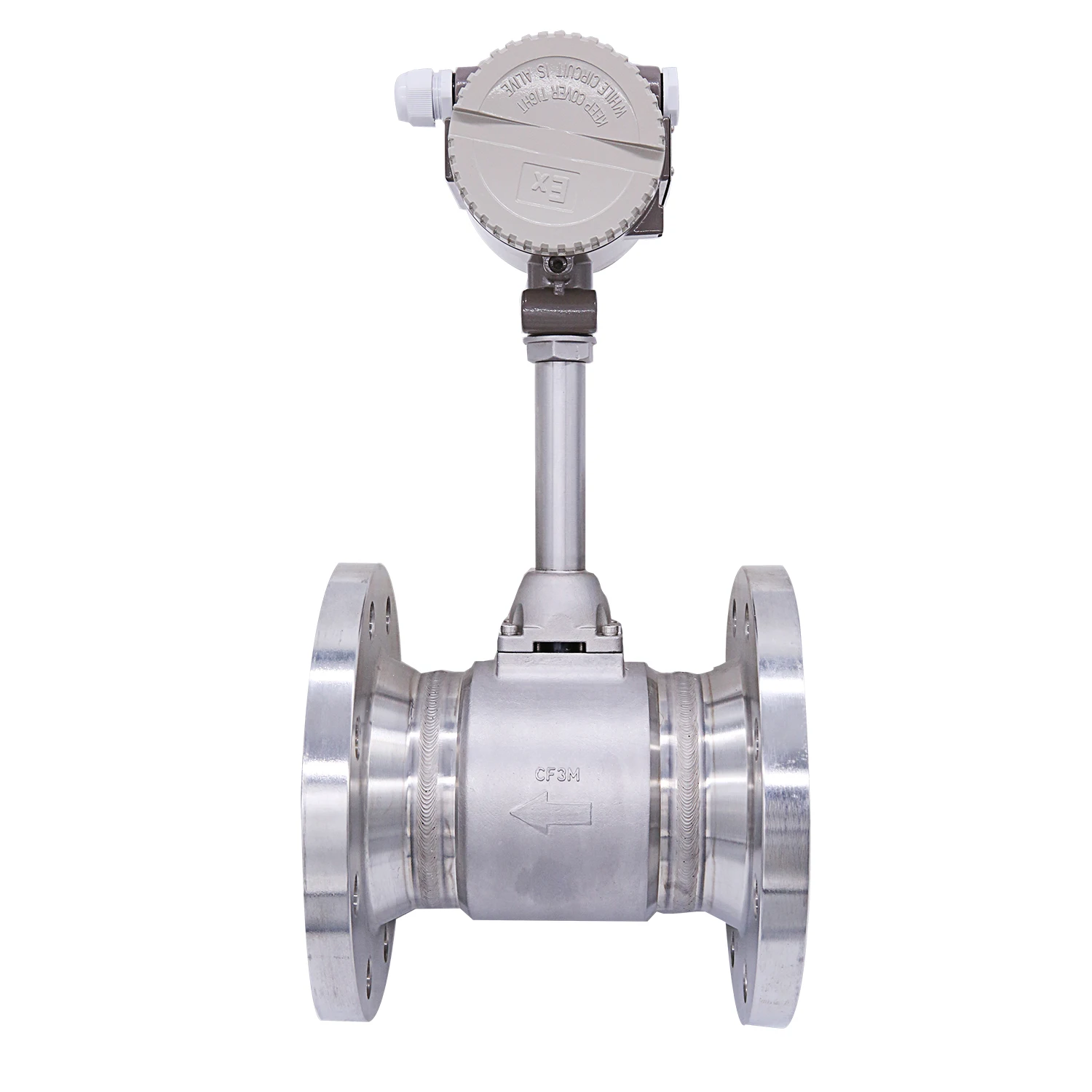

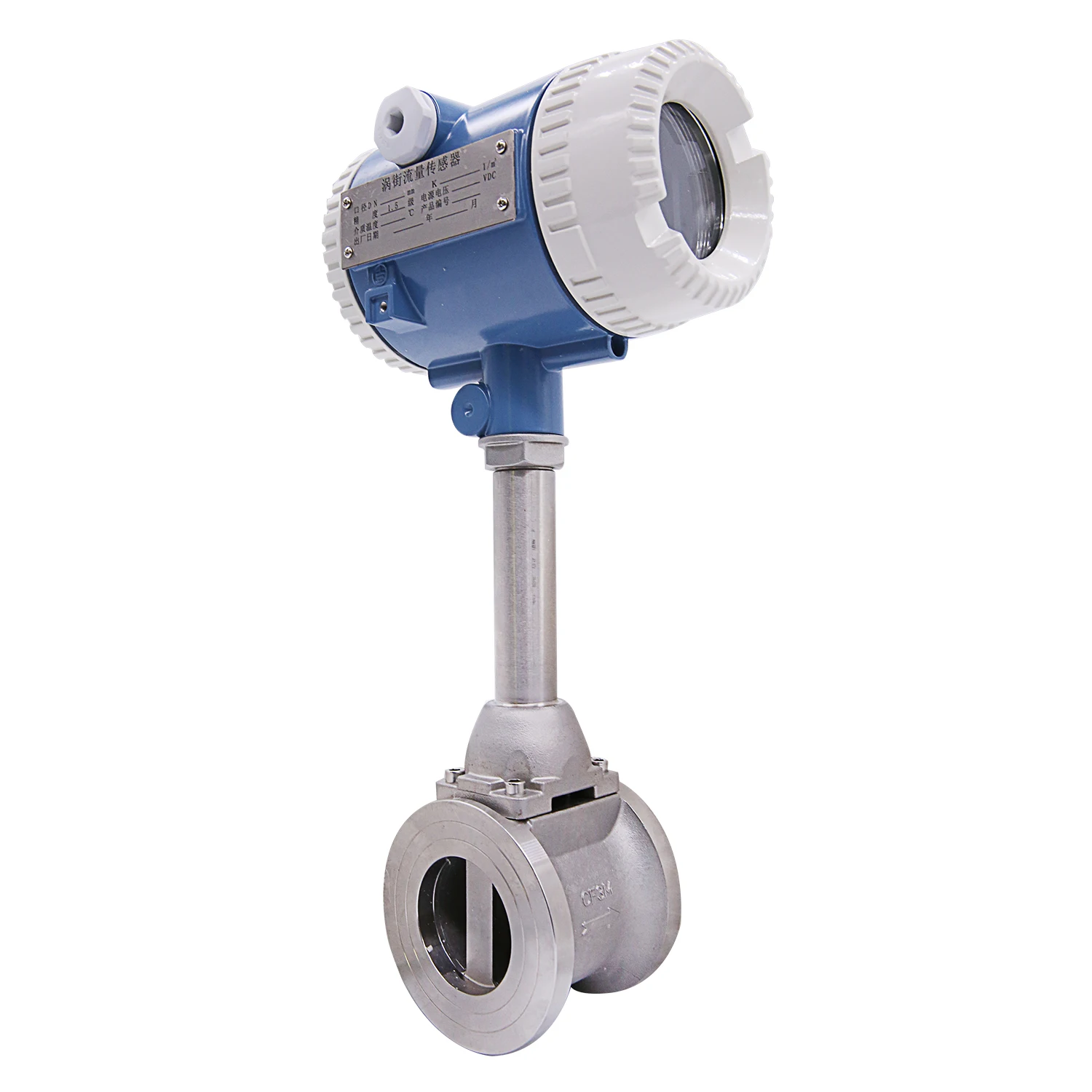

                                  LUGB Vortex Flow Meter

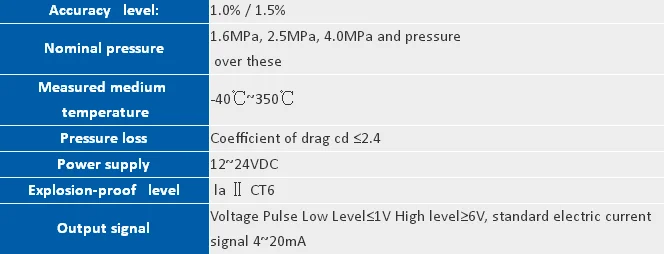

Scope:

Gas: air, compressed air, oxygen, carbon dioxide, nitrogen gas, natural gas, methane gas, ammonia gas etc.

Steam: superheated steam, saturated steam.

Liquid: water, oil



Application:

Flow meters are widely used in large, medium and small variety of pipes ,for drainage, industrial recycling, sewage treatment, oil and chemical reagents .As well as measuring compressed air, saturated and superheated steam metering,natural gas.



Features:

• Simple structure, and no moving wear parts.


• High measuring precision, and high reliable, no need on-site commissioning.


• It can transport flow signal from long-distance, networking with computers, and realize centralized management.


• The amplification board use unique design, and this flow meter can used to measure gas and liquid.


• Double row LCD, eight digital display.


• User can set small signal resection.


• 4-20mA two-wire current output(Can be customized according to customer’s requirement).


• Warm pressure compensation on line, artificial setting density compensation.


• 12V~24V or 3.6V lithium battery power supply.


• Self-contained temperature and pressure compensation, more convenient to install.





Flow range

Model selection

LUGB

-

-

-

-

-

-

-

-

-

-

-

Explanation

Nominal diameter (In mm)

diameter

DN15-300(Pipeline)

DN200-1500(Plug-in)

Connection

Pipeline

FL

Flange connection

JZ

Flange clamp

Z

Special rules

Insert

J

Simple Formula

Q

Ball type

Accuracy

Pipeline

10

1.0%R

15

1.5%R

Insert

20

2.0%R

25

2.5%R

Z

Special accuracy standards

Temperature and pressure

S

T(S)P(S)At normal temperature and pressure

Z

T(Z)P(Z)Twin extreme pressure

Communication protocol

N

No communication interface

H

HART protocol

M

MODBUS protocol

Output

1

No output

2

Two-wire 4-20mA output

3

Pulse output

Power supply

D

DC12V

DB

Dual 12V power supply and battery

DD

DC24V

B

Battery 3.6V power supply, no signal output uses only

Sensor Material

S

304Stainless steel

L

316Stainless steel

Core Component Materials

S

304Stainless steel Probes

L

316Stainless steel Probes

Measuring medium

1

Gas

2

Liquid

3

Saturated steam

4

Superheated steam
