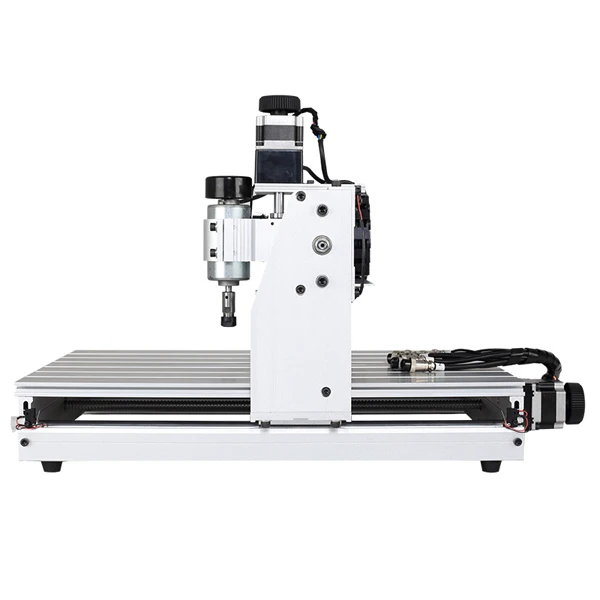

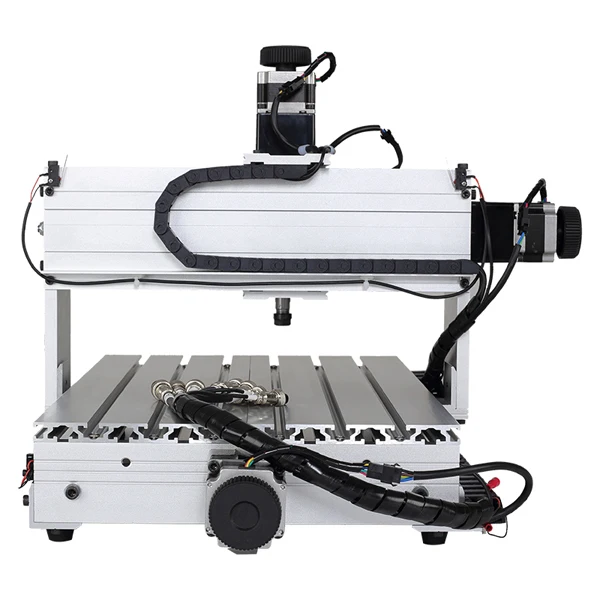

Desktop CNC 3040 Mini 3D CNC Router Machine For Milling, Drilling, Engraving & Carving
- Category: Woodworking Machinery >>>
- Supplier: Shenzhen Scotle Technology Ltd.
Share on (60071554696):
Product Overview
Description
Chinacnczone 500w 3/4 Axis Mini CNC 3040 Wood Router Engraving Machine
This 3 Axis Mini CNC 3040 CNC Wood Engraving Machine can be widely used as below
Widely used in Industry,Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes,
Building Model Making, PCB, Advertising Signs, Artwork,Crafts, Aircraft Models, RC Model parts, etc.
Can engrave wood,MDF board, native wood, PVC, Acrylic, non ferrous metal ect.
Widely used in Industry,Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes,
Building Model Making, PCB, Advertising Signs, Artwork,Crafts, Aircraft Models, RC Model parts, etc.
Can engrave wood,MDF board, native wood, PVC, Acrylic, non ferrous metal ect.
Specification Sheet
* Stable stock, CE certified factory, fast delivery for max production. Offer one-stop solution for engraving business.

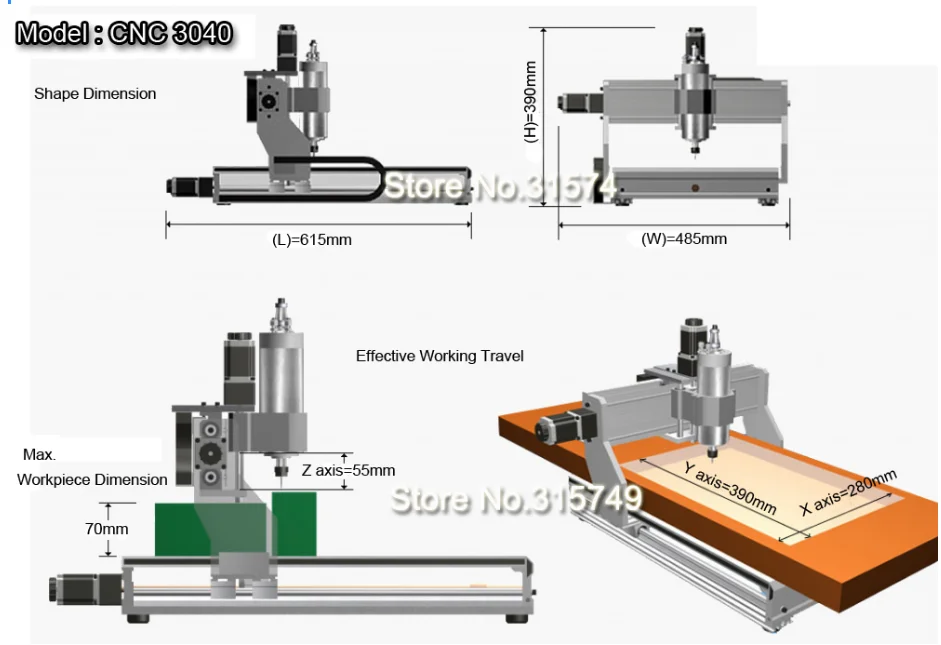

Effective working travel | 280(X)mm*390(Y)mm*55(Z)mm |
Shape dimension | 615*485*390mm |
Max.workpiece dimension | 280mm*390mm<70mm |
Work table dimension | 530mm*320mm |
Frame materials | aluminum alloy 6063 and 6061 |

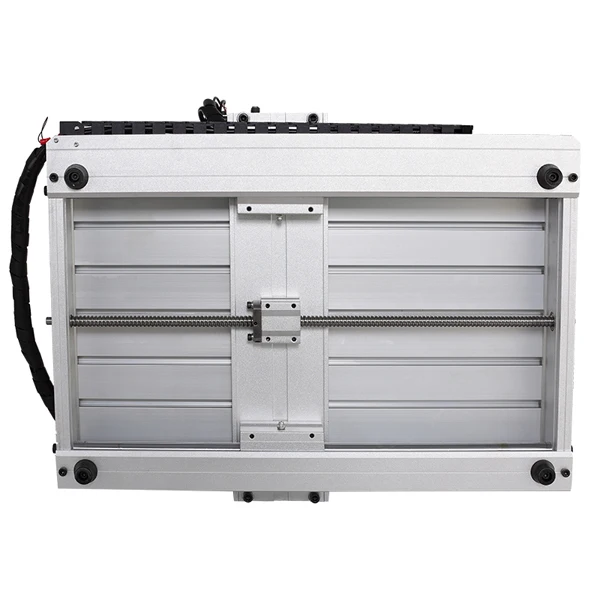

Driving units X/Y/Z axis | 1204 Ball Screw |
Sliding units X axis | Dia.16mm chrome plate shafts |
Sliding units Y axis | Dia.16mm chrome plate shafts |
Sliding units Z axis | Dia.12mm chrome plate shafts |
Stepping motor type | 57 two-phase 2.5A |
Spindle motor | Brand new 500w dc motor 12000PRM/Min 52MM 100V |
Principal axis collet | ER11/3.175 mm |
Repeat accuracy | 0.05mm |
Spindle precision | radial beat acuities 0.03 mm |
Control unit | JP382A +2 Independent power+ Continuously Variable speed |
Carving Instructions | G code/TAB files/nc file/NCC files |
Maximum speed | 0-4000mm/min |
Carving speed | 300-2500mm/min (different materials differ) |
Operating Voltage | AC110V/AC220V |
Command code | G code |
Acceptable software | MACH3 Support windows XP windows7 32bits, USBCNC support Windows XP, Windows 7/8/10 |
Protection | Emergency stop button |

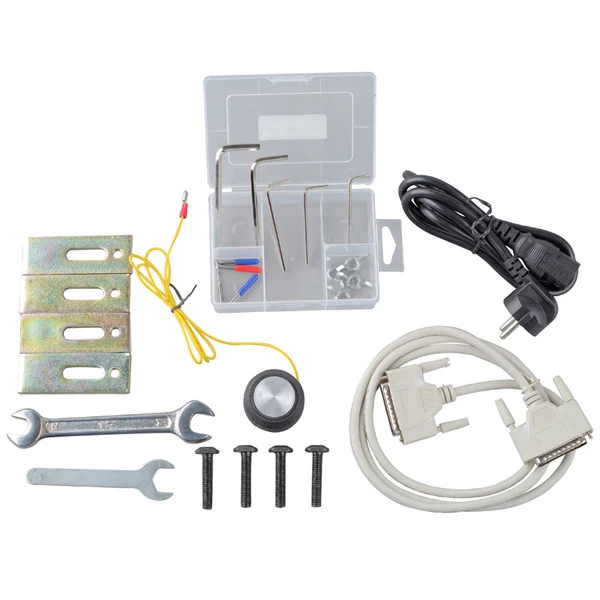

Accessories | Auto checking tool , cutter, same as accessories photo |
Warranty | Two Year |
Package size | 1 carton, 66*59*53cm |
Gross weight | 3Axis 29kg/4Axis 30kg |
4 AxisSize | 54*59*73mm |
Top diameter | 15mm |
Centre-height | 50mm |
Clamping diameter | 40mm finger tight fitting |
Reduction ratio | 1:3 |
Error Range | 0.1 |
Tips: 4th Axis for optional，4axis can engrave cylindrical objects
Our Advantages
Overseas warehouse in the United States
Overseas warehouses in Russia
Overseas warehouse in Germany
Overseas warehouse in Poland
In hardware capabilities aspect:
1. Limited switch added.
2. Auto checking function added
3. Ballscrew made it a higher precision.
4. Control box can be 3 axis and 4 axis universal.
5. USB or parllerl port.
6. Air cooling spindle, less noise
7. Easy operate.
8. 500W spindle.
In soft service aspect:
1. Got CE approval.
2. Youtube cnc machine video support.
3. Technical team always available.
4. English manual available.
5. USB CNC or Mach 3 software available.
6. High performance low cost
7. From reliable & trustable profesional China mini CNC router machine manufacturer.
1. Limited switch added.
2. Auto checking function added
3. Ballscrew made it a higher precision.
4. Control box can be 3 axis and 4 axis universal.
5. USB or parllerl port.
6. Air cooling spindle, less noise
7. Easy operate.
8. 500W spindle.
In soft service aspect:
1. Got CE approval.
2. Youtube cnc machine video support.
3. Technical team always available.
4. English manual available.
5. USB CNC or Mach 3 software available.
6. High performance low cost
7. From reliable & trustable profesional China mini CNC router machine manufacturer.
Product packaging
Recommend Products
Most popular china wood-carving-machine-price low cost 4 axis 3040
Do you want more powerful machines? The power of this machine is a 800w spindle, which allows you to work efficiently
Glass Cutting Stone Frame Used Making Foam Machines Sealing Mini Cnc Lathe Machine
Do you want to carve metal? This steel structure 3040 can engrave a large amount of metal materials, and has higher accuracy and power, which can shorten the working time.
Mini desktop pcb milling and drilling machine CNC 6040Z-S 3 axis
Do you want more work area and power? This 6040 3/4 axis can meet your needs. The working area is 600 * 400mm and the power is 1500 / 2200w.
Company Profile
Certifications
FAQ
After service Q and A
Question 1
I want to buy this machine but i don't know how to program G code ?
Answer: We can provide fee charge service Or you can go to study .
Question 2
I don't know how to setting parameters when need to use it .
Answer: We have instructions for our machine .All the parameters is very clearly on it. We also can provide online support service.
Question 3
I am interested in this CNC machine but i don't know how to use it.
Answer: We have video to show how to operate our machine ,If you still don't know after check the video and we can provide remote assistance .
Question 4
How can i do if the machine damage on the shipping way ?
Answer: No matter any problem with the machine please contact us by Alibaba message with photos or videos . We will give you a satisfied solution after check it.
Question 5
How long is the warranty of the machine?
Answer : This item comes with 12 months Manufacturer's Warranty from the date of customers purchased it.
Question 6
How can i do when the machine have quality problem ?
Answer : Please take a video to show your problem to us .We have professional engineer to help you solve the problem.A free replacement can send when needed
PS: Any other question welcome to contact us by Alibaba message .We are always here with you!
Our working time is 9:00AM-6:00PM from Monday-Friday .All the service can be provide during working time.
Question 1
I want to buy this machine but i don't know how to program G code ?
Answer: We can provide fee charge service Or you can go to study .
Question 2
I don't know how to setting parameters when need to use it .
Answer: We have instructions for our machine .All the parameters is very clearly on it. We also can provide online support service.
Question 3
I am interested in this CNC machine but i don't know how to use it.
Answer: We have video to show how to operate our machine ,If you still don't know after check the video and we can provide remote assistance .
Question 4
How can i do if the machine damage on the shipping way ?
Answer: No matter any problem with the machine please contact us by Alibaba message with photos or videos . We will give you a satisfied solution after check it.
Question 5
How long is the warranty of the machine?
Answer : This item comes with 12 months Manufacturer's Warranty from the date of customers purchased it.
Question 6
How can i do when the machine have quality problem ?
Answer : Please take a video to show your problem to us .We have professional engineer to help you solve the problem.A free replacement can send when needed
PS: Any other question welcome to contact us by Alibaba message .We are always here with you!
Our working time is 9:00AM-6:00PM from Monday-Friday .All the service can be provide during working time.
