Rotary-stitched during manufacture by a patented method for additional torsinal strength and extra stability during installation; maintains size and shape of reverl when cutting perimetre tees.
Choice of black and white reveal.
Peakform® patented profile increases strength and stability for improved performance during installation.
XL staked-on end detail provides secure loked connection.
The performance of the VisionBM Ceiling Tee Grid Suspension System is based on the specific combination of components and method of installation. Other manufacturer's components and installation methods were not tested and are not covered in this evaluation.
To provide an unrestrained ceiling system that will accommodate the movement of the structure during a seismice event and the objective is to have a free-floating ceiling.
Specifications
1 Main type:28H, 32H, 38H 2 Thickness:0.23mm,0.26mm,0.3mm,0.35mm,0.4mm

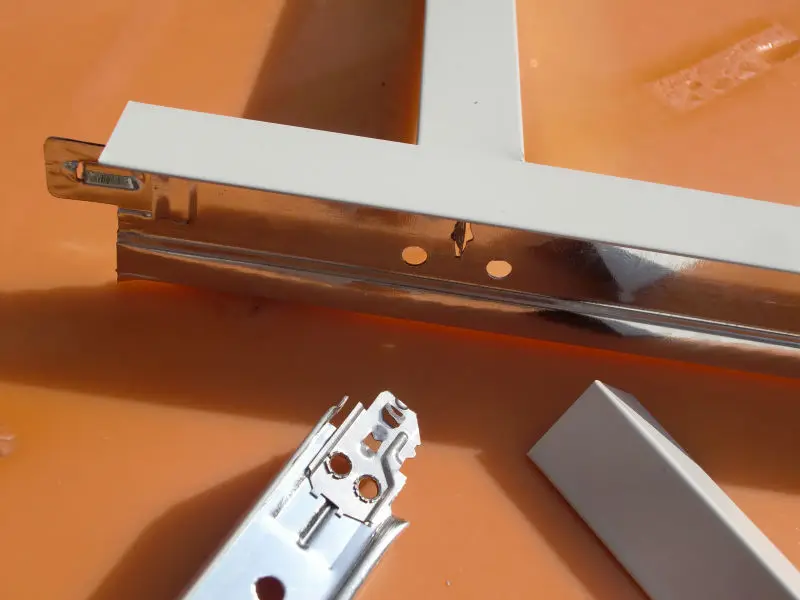

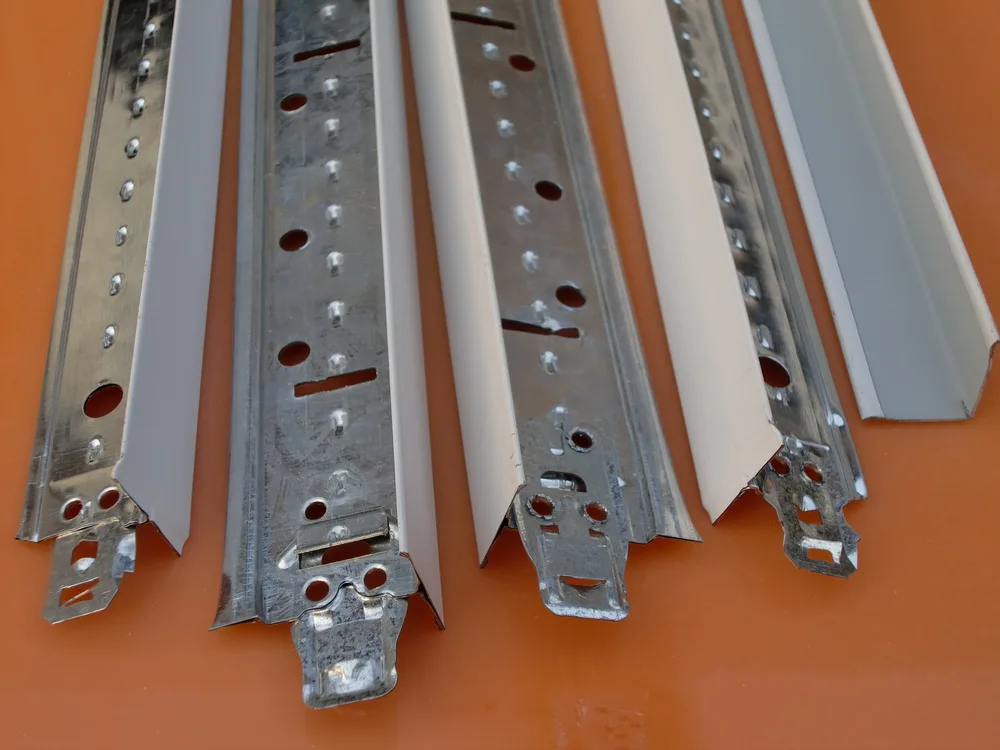

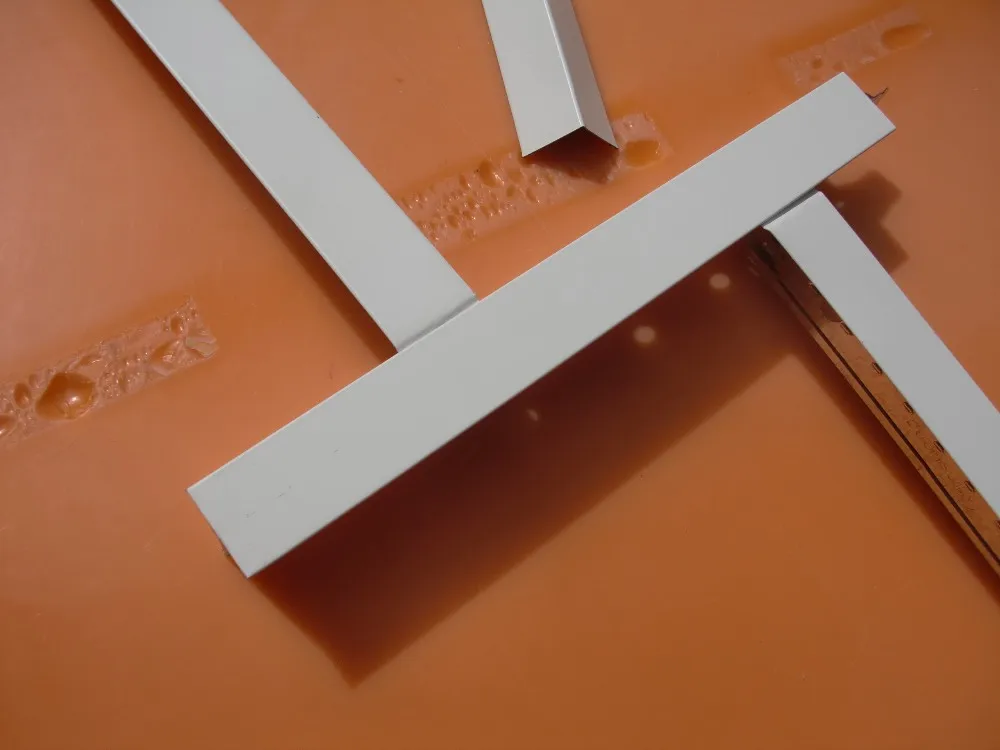

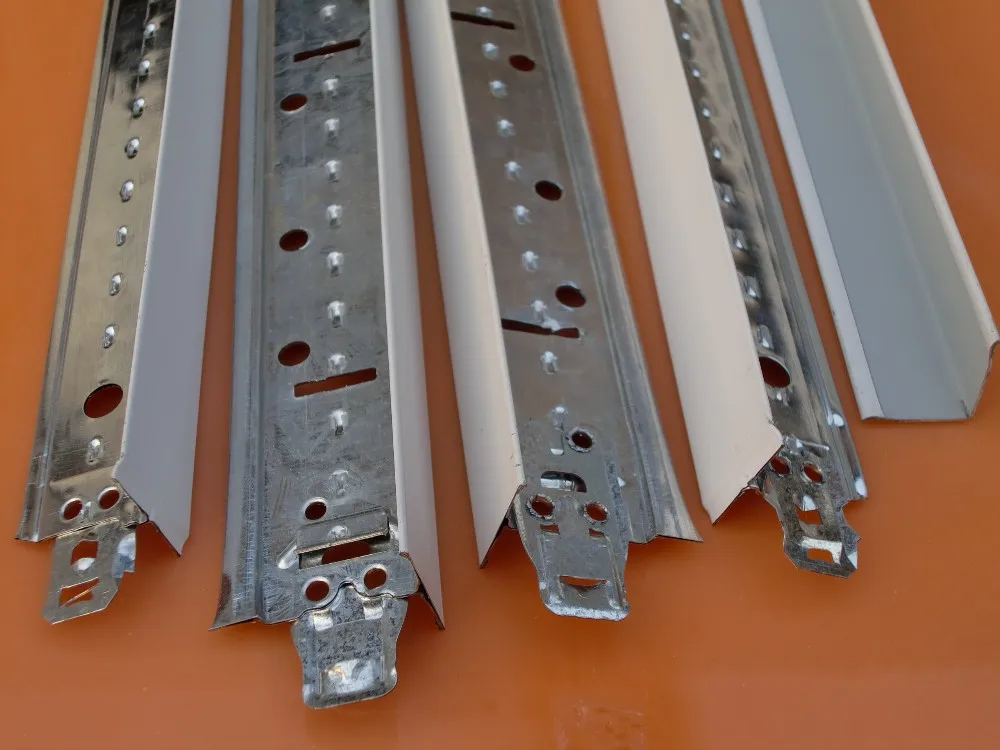

Ceiling grids, Ceiling T grid, Ceiling T bar
Adopts high-grade quality hot-dipped galvanized steel band
Produced strictly according to the GB/T11981-2001 standard
Beautiful appearance, high intensity and toughness
Available dimension
Main Tee: 28/32/38*24*3000mm
Cross Tee: 32/28/26*24*1200/600mm
Wall Angle: 22*22*3000mm
Main Types: 28mm, 32mm, 38mm
Thickness: 0.23mm, 0.26mm, 0.28mm, 0.3mm, 0.35mm, 0.4mm, etc.
Packing: 25pcs/27pcs/50pcs/75pcs/Carton (Shipping Mark Customed)
