Product Overview

Description

emc testing system   PRM61245A  contains ESD, EFT and Lightning surge three functions,it complies with the latest standards IEC61000-4-2,IEC61000-4-4,IEC61000-4-5

Product characteristic:

ESD, EFT, and SURGE, three functions combined into a single, more cost-effective

Built-in international standards level parameters and user models parameters,very convenient

LCD display, Intelligent control,Use the Programmable imported high-voltage power supply, Reliable performance

Built-in intelligent couping/decoupling network. Testing safely

Built-in the RS232 interface ,Remote operated by the optional control software.

Technical parameters:

Model

PRM61245TA

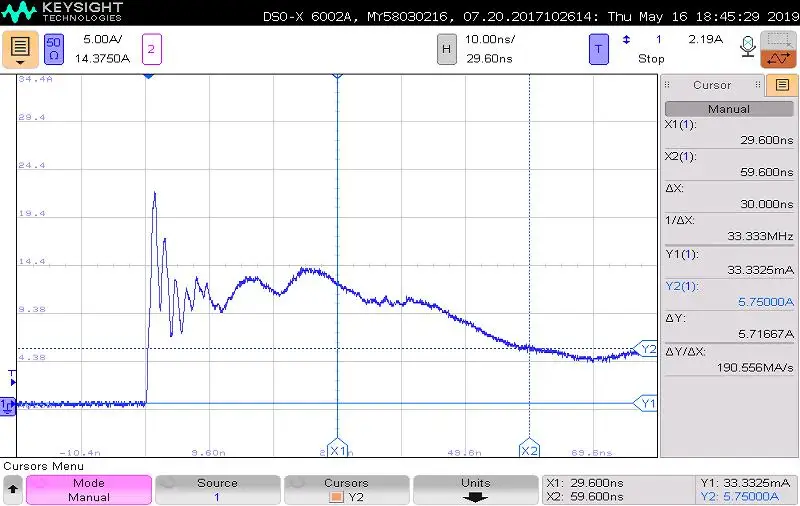

ESD

Output voltage

0.2~± 20 kV ± 5% ( or 30kV)Positive / Negative

Testing functions

Contact discharge /Air discharge

Working form

Discharge interval 0.05 ~ 99.99s ,Testing form20PPS discharge;setting less than0.05s,be called single discharge

Discharge capacitor/Resistor

150pF /330 Ω (optional)

Current rise time

0.6 ~ 1ns

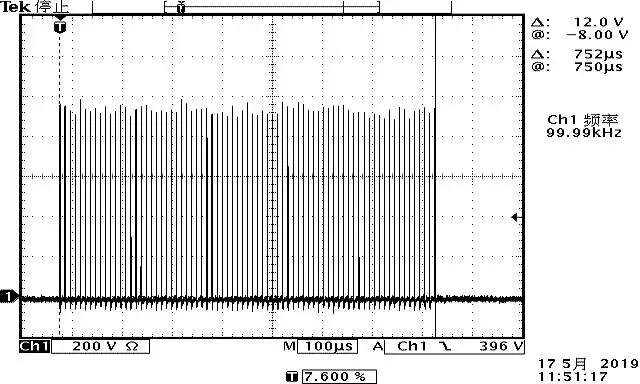

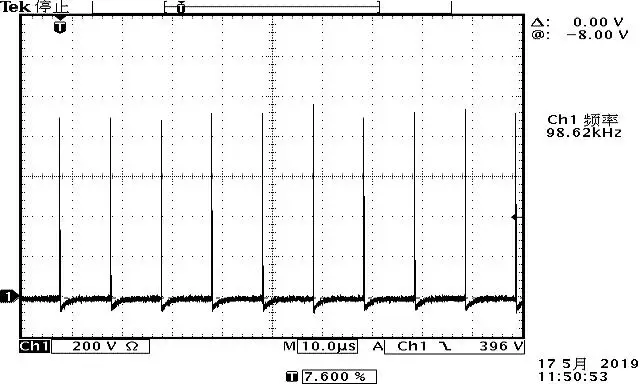

EFT

Output voltage

0 ~± 4500V Positive/Negative//Switchable

Pulse frequency

1kHz~1200kHz ± 10%, adjustable

Resistor

50 Ω± 20%

Rise time

5ns ± 30%

Impulse duration

50 Ω load

50ns ± 30%

1k Ω load

35 ns~150 ns

Number of burst

1~255

Burst period

300mS ( 0.15~9.99 S adjustable,step 0.01S )

EUT coupling path

Built-in,single phase three line AC220V,50/60Hz,max 16A

SUG

Open -circuit t voltage/short-circuit current

Waveform parameters parameters of Open -circuit t voltage: 1.2/50 μ s ,  0.2~ 6kV
Waveform parameters parameters of short-circuit current 8 /20 μ s ,0.1~ 3kA

Surge polarity

Positive / Negative/Switchable

Phase

Synchronism 0 °~ 360 °selectable/Asynchronism

Output impedance

Complex impedance: 2 Ω  12 Ω

Coupling path

Built-in,single phase three line AC220V,50/60Hz,max 16A

Surge count

1~9999

Surge interval

10~9999s

Working power supply

AC220V 50/60Hz





TUV & CE certification

 ISOCE



Customers visit our company



CV3CV 2C V 1



Manufacturing shop

COMPANYFACTORY 2FACORTY 7TESTING

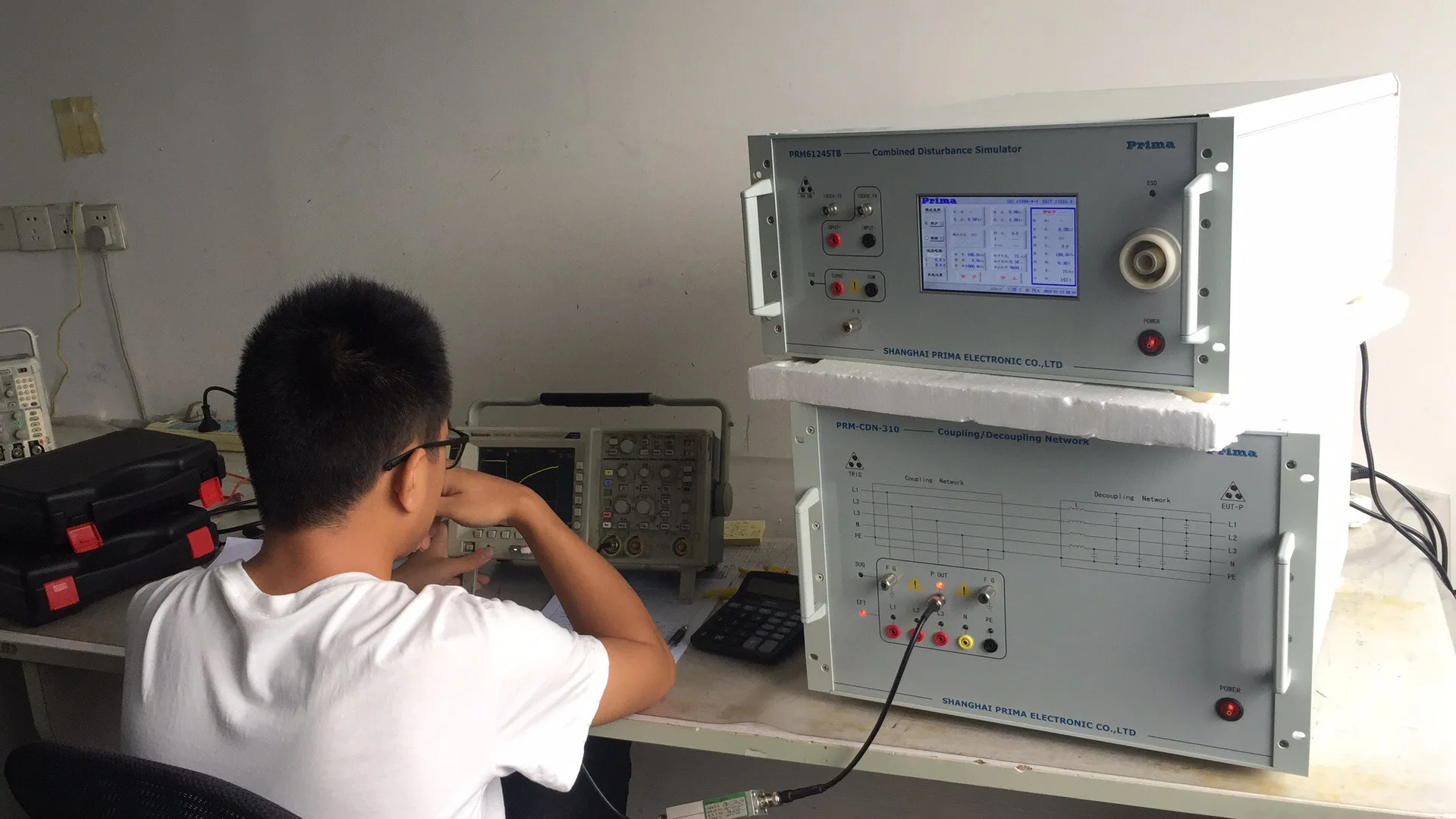

On-sit trainning
