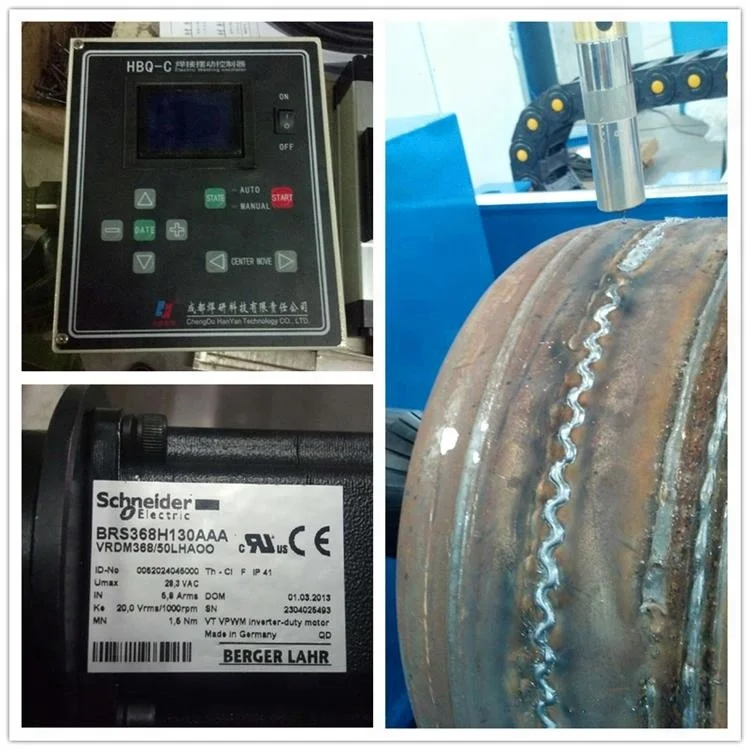

HBQ 60 2 welding linear oscillator torch oscillator

 HBQ-60-2 welding linear oscillator torch oscillator

Feature: Digital controlled, designed to increase weld width for improving forming and productivity with up to 16 sets of welding parameters preset. It is mainly used in MIG / MAG / TIG Welding processes.

  Model                                                       HBQ-60

Oscillation Speed                                  0.1-3.0m/min

Oscillation Range                                  0-30.0 mm

Adjustment range of center                   0- 60.0mm

Left stay time                                          0-5.0s

Right stay time                                        0-5.0s

Center stay time                                     0-5.0s

Power voltage                                        DC24-36V

Power Capacity                                    150VA

Size of Oscillator                                   400x180x90mm

Size of Control                                       225 x 205 x 145mm

Total weight                                            7.7kg

Chengdu Hanyan technology Co.,Ltd. is a high-tech enterprise which is involved in researching and developing,designing, manufacturing and service of welding equipment.

Chengdu Hanyan technology Co.,Ltd. As one of the most professional research & development and manufacture teams of auto parts automatic welding equipments in China, accumulated full experience in the field of auto parts manufacturing, we have provided many automation welding production lines and equipments for hundreds of auto parts manufacturers in China or abroad.

We successfully developed many technologies and equipments and obtained many national and province level awards, successfully applied several patents.

Our Managment system &  Certification

Guarantee and After-sale service

One year guarantee for whole machine

24 hours technical support by e-mail

Calling or door to door service

Engineers available to service machinery overseas
