Профессиональная эмалированная медная круглая проволока от производителя

Product Overview

Description





Our company mainly produces copper content 99.95% wire and cable with copper wire, large size aluminum rod, enameled aluminum wire, copper wire, copper clad aluminum wire. Our products are widely used in transformer, refrigerators, freezers, microwave ovens, air conditioners, fans, washing machines, compressor windings, vacuum cleaner windings and deflection coil of color televisions.

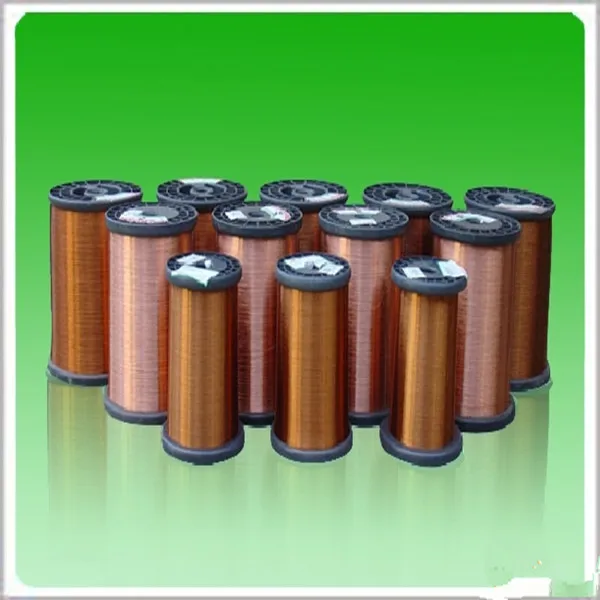

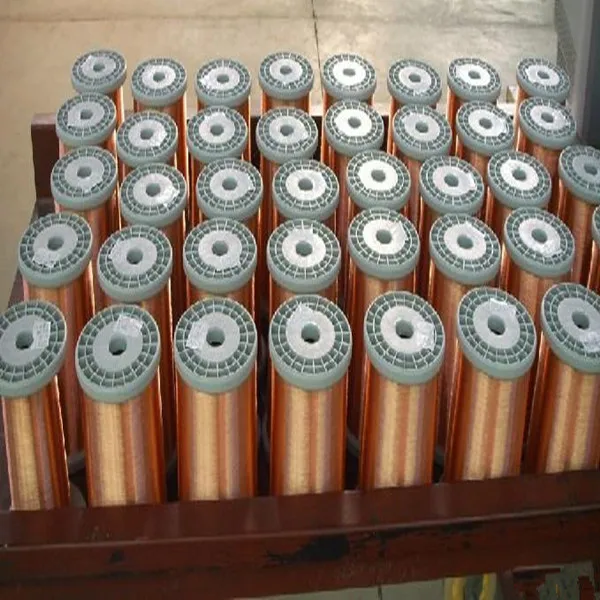

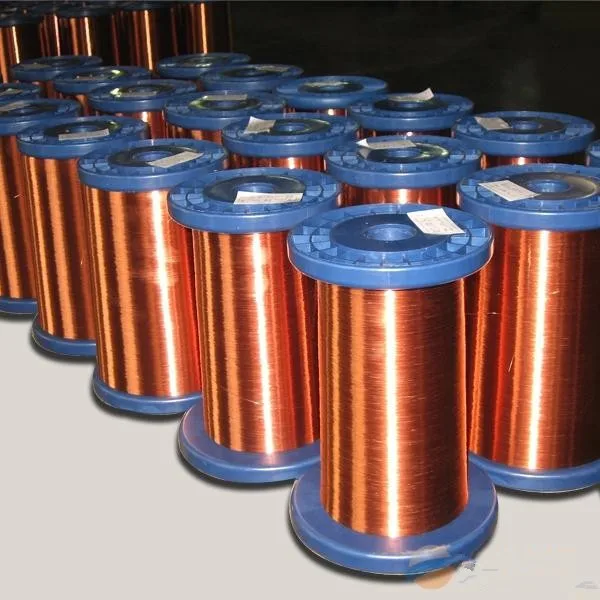

Enameled copper round wire



0.15mm---3.00mm



B 130 Class

Type: QZ-2/130L 1PEW, QZ-1/130L 2PEW

Standard:MW24-A, GB/T23312.1, IEC60317

Specification:0.15mm---3.00mm



F 155 Class

Type: QZ-2/155 1PEW, QZ-1/155 2PEW

Standard:MW24-A, GB/T23312.1, IEC60317

Specification: 0.15mm---3.00mm



H 180 Class

Product model: 1EIW, 2EIW, 3EIW, QZY-1/180,QZY-2/180,QZY-3/180

Product standard: IEC60317-7, GB/T6109.6, JISC3202, MW16-C, MW20-C, MW71-C

Product feature: olvent resistance, scratch resistance, thermal shock resistance



C 200 Class/220 Class

Product models: 1EI/AIWC, 2EI/AIWC, 3EI/AIWC, QZY/XY-3/200,QZY/XY-2/200, QZY/XY-1/200

Product standard: IEC60317-13(1990), GB6109.11, MW35-C,MW36-C,MW73-C, JISC3202

Product feature: good heat resistance, thermal shock resistance, wearing resistance, freezing resistance.





Enameled round copper clad aluminum wire



0.2mm---4.0mm



Product	Polyester enameled copper clad aluminum wire 130	Polyamide enameled cooper clad aluminum wire 155
Type	QZ CCA-2/130,QZ CCA-1/130	QZN CCA-2/155,QZN CCA-1/155
Class	130	155
Standard	-	MW24-A
Composition	Copper, polyester resin







Product	Polyimide enameled copper clad aluminum round wire 180	Polyamide composite polyester or polyester imide copper clad aluminum round wire 180
Type	QZY CCA-2/180,QZY CCA-1/180	Q(ZY/X) CCA-2/180, Q(ZY/X) CCA-1/180
Class	180	180
Standard	IEC60317-15	MW76-A,IEC60317-24
Composition	Copper clad aluminum conductor, imible-modified polyester resin













Product	Polyamide imide composite polyester imide copper clad aluminum round wire 200	Polyamide imide composite polyester imide copper clad aluminum round wire 220
Type	Q(ZY/XY) CCA-3/200, Q(ZY/XY) CCA-2/200, Q(ZY/XY) CCA-1/200	Q(ZY/XY) CCA-3/220, Q(ZY/XY) CCA-2/220, Q(ZY/XY) CCA-1/220
Class	200	220
Standard	IEC60317-25	MW35-A,MW36-A
Composition	Copper clad aluminum conductor, polyamide resin and polyamide-imide resin







Product	Polyamine enameled copper clad aluminum round wire 220
Type	QY CCA-3/220,QY CCA-2/220,QYCCA-1/220
Class	220
Standard	MW74-A
Composition	Copper clad aluminum conductor, polyimide resin





Characteristics comparison of enameled wires



Characteristic	CCA wire	Copper wire	Aluminum wire
Copper Volume (%)	15	100	0
Gravity (g/cm3)	3.63	8.89	2.7
Length Comparison with Copper	2.5:1	1:1	3.29:1
Conductivity	70	100	62
Resistivity	0.02462	0.01724	0.0274
Tensile Strength (Mpa)	95-135	215-265	68-107
Elongation (%)	≥10	≥20	≥8
Windablity	Good	Very good	Good
Weight	Good	Bad	Very good
Solderability	Very good	Very good	Bad
DC resistance	Good	Very good	Good















For regular electrical machines and apparatus, such as transformers, electric machines and other electric instrument, motor for fans/ washing machines, transformer, small motors, watch coils, magnetic heads and etc.



fridge, cooler, compressor motor, microwave, high tension transformer,

giant motors.
