Automatic Batch Foam making Machine
This automatic batch foaming machine is mostly used for single block’s discontinuous foaming. It’s ideal for customers who wish to make foam on a discontinuous basis and who are potentially new to the industry. This batch foaming making machine is an optimal equipment for medium or small foamers.
In addition to this, this foam machine allows customers a greater flexibility of production which can also make special foams, such as memory foam, elastic foam or other small lot production of foam. It is also providing to be in addition to this, an excellent support machine to bigger foamers.
Flexible configuration adapts to customers’ requirements.
This batch foam making machine can produce foam at density 9-50kgs/m3. It's highly automated, with high precision touch screen computer control. this batch foam making machine provides customers with more convenient, easier and more humanization operation.
Types of foam produced by this batch foam making machine:
1. Flexible Foam
2. High Resilience (HR) Foam
3. Memory Foam
4. Foam with filler
Main technical specification for this batch foam making machine
Parameter |
|
Foam Density |
9-50kgs/m3 |
TDI butterfly valve |
8inch |
Mixer motor |
15KW Delta inverter |
PLC |
DVP40ES200R+DVP24XN200R |
Human interface |
10.4inch ATOM+windows+Office |
Chilling Machine capacity |
10Ton |
Chilling Machine type |
heat and cool |
Chilling Machine |
Optional equipment |
Mixer capacity |
180KG per shot |
Standard box |
2.05X2.05X1.2m(2pcs Iron mould) |

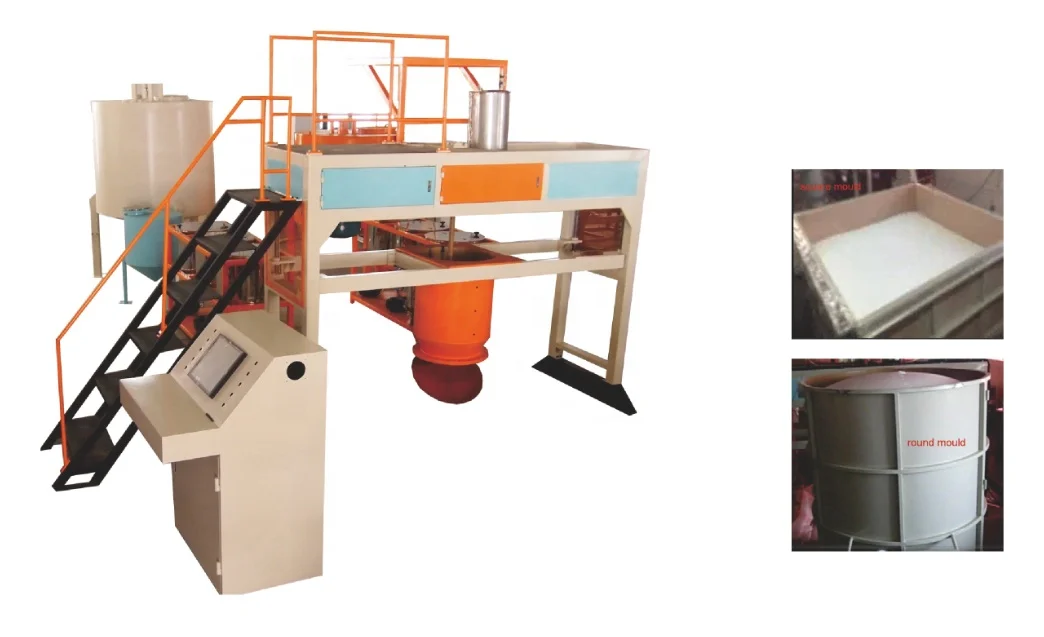

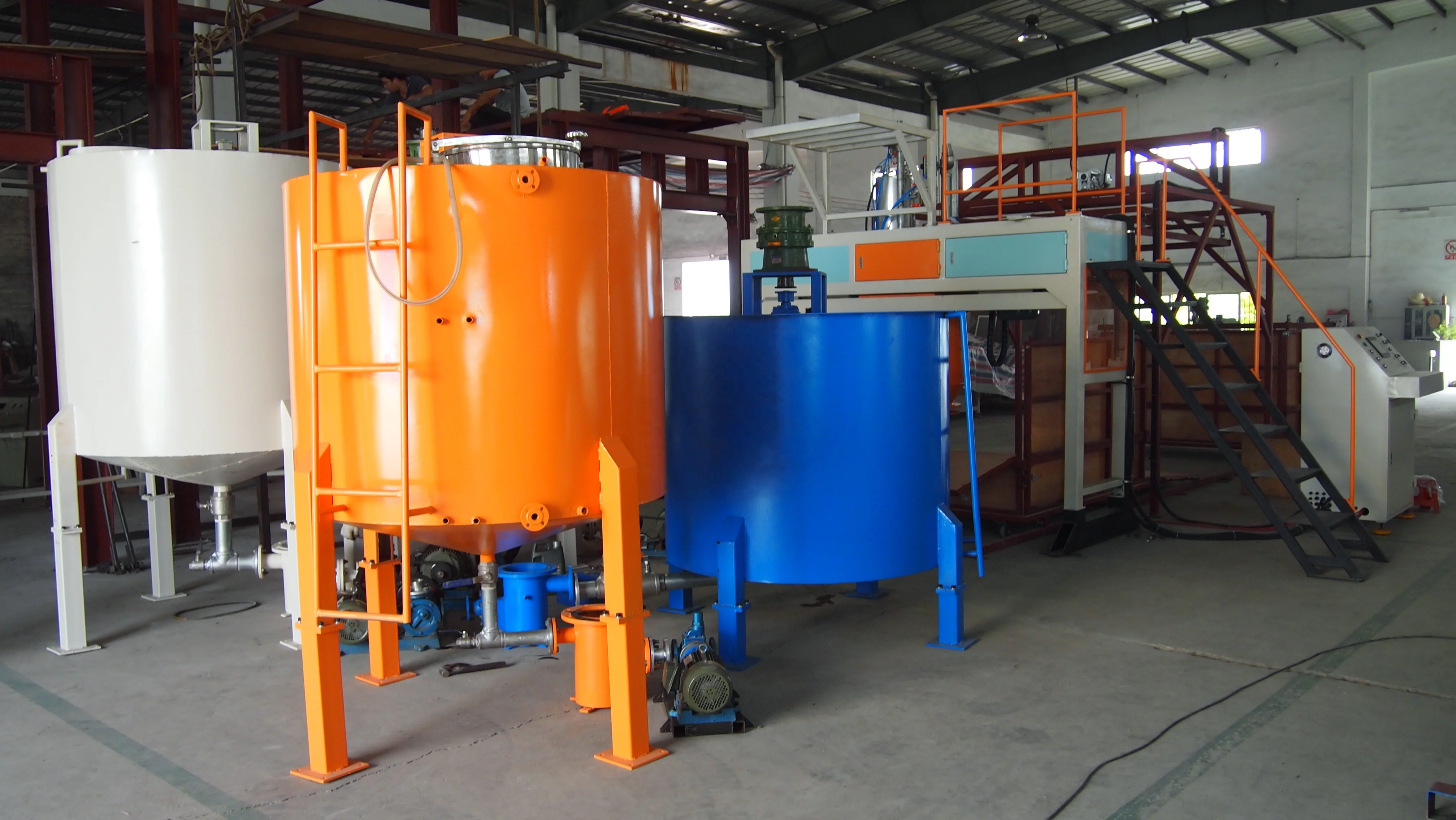

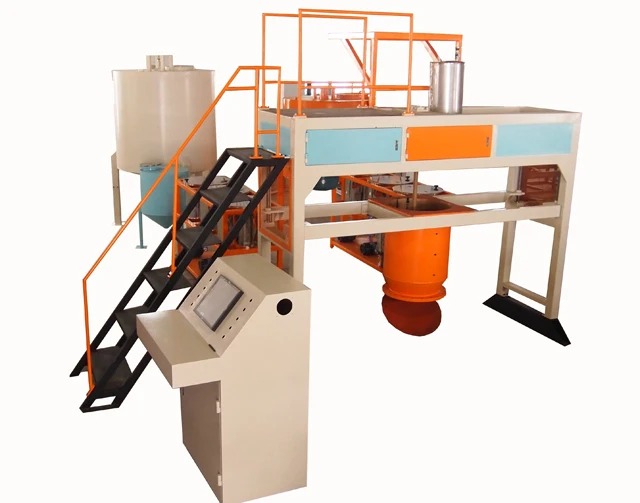

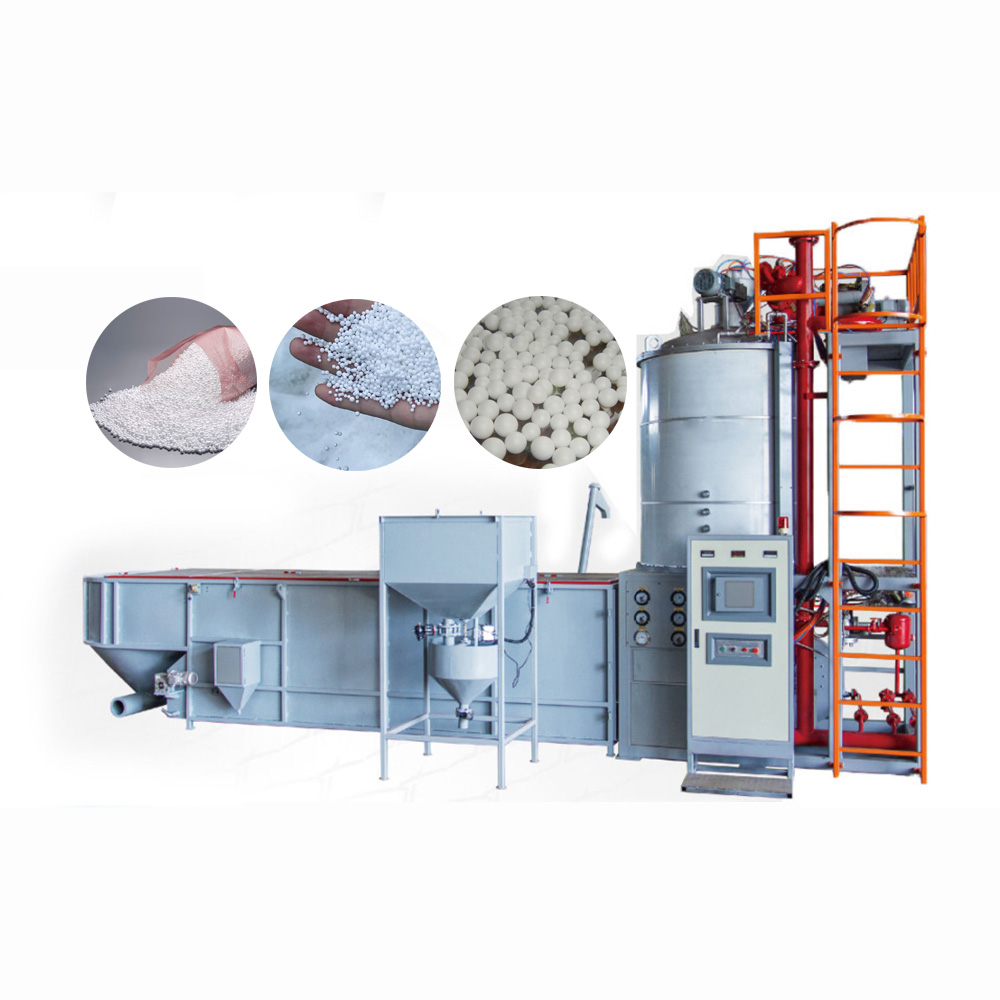

Machine photos for this batch foam making machine
