Description

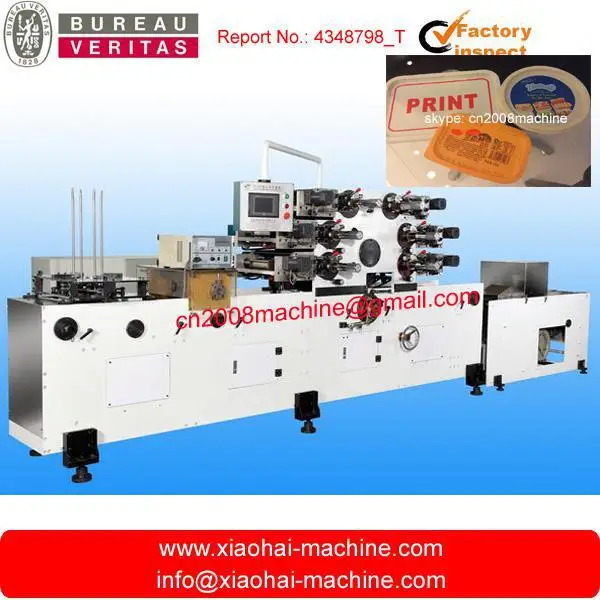

Automatic offset  type Plastic lid Printing Machine







I.Specification

Model No.	XYG-6A
Printing area(mm) (L*W)	160*155
Printing Lid deep (mm)	45mm
Printing Speed (pcs/h)	6000
Main motor power(kw)	5.5
Total power(kw)	18
out dimension of the machine(mm)	5500*2800*2000



We have machine from 6 colors,8 colors etc.



II.Function

1.The machine is adopting international printing technology,designed by engine,electricity and gas.and the machine is adopting PLC controller,so it is high- precision.

2.SIX-COLORED CURVED PRINTING MACHINE is widely used to print the cover for plastic product,

It mainly prints multicolor patterns, letters and brands on any plastic lid shape(round, knaggy ,rectangular, oval (elliptical ) shape, etc) or type(flat, concave, convex, etc).

3.It can overprint six colors once time,the highest reticle is over 130 lines.

4.The machine is adopting automatic feeding material,then through corona treatment to printing.UV drying and automatic overlapping to finish all the working procedure.



III.Main Fittings
1.Electric Fittings: Yatai PID Self-adjusting Automatic Temperature Control Meter, Schneider

Pushbutton, Selector Switches, Pilot Lights, Contactor and Thermal Overload Relay, Korea LG Circuit-breaker;
2.Lubricating System: Taiwan Famous Automatic Oiling System;
3.Pneumatic System: Japan SMC;
