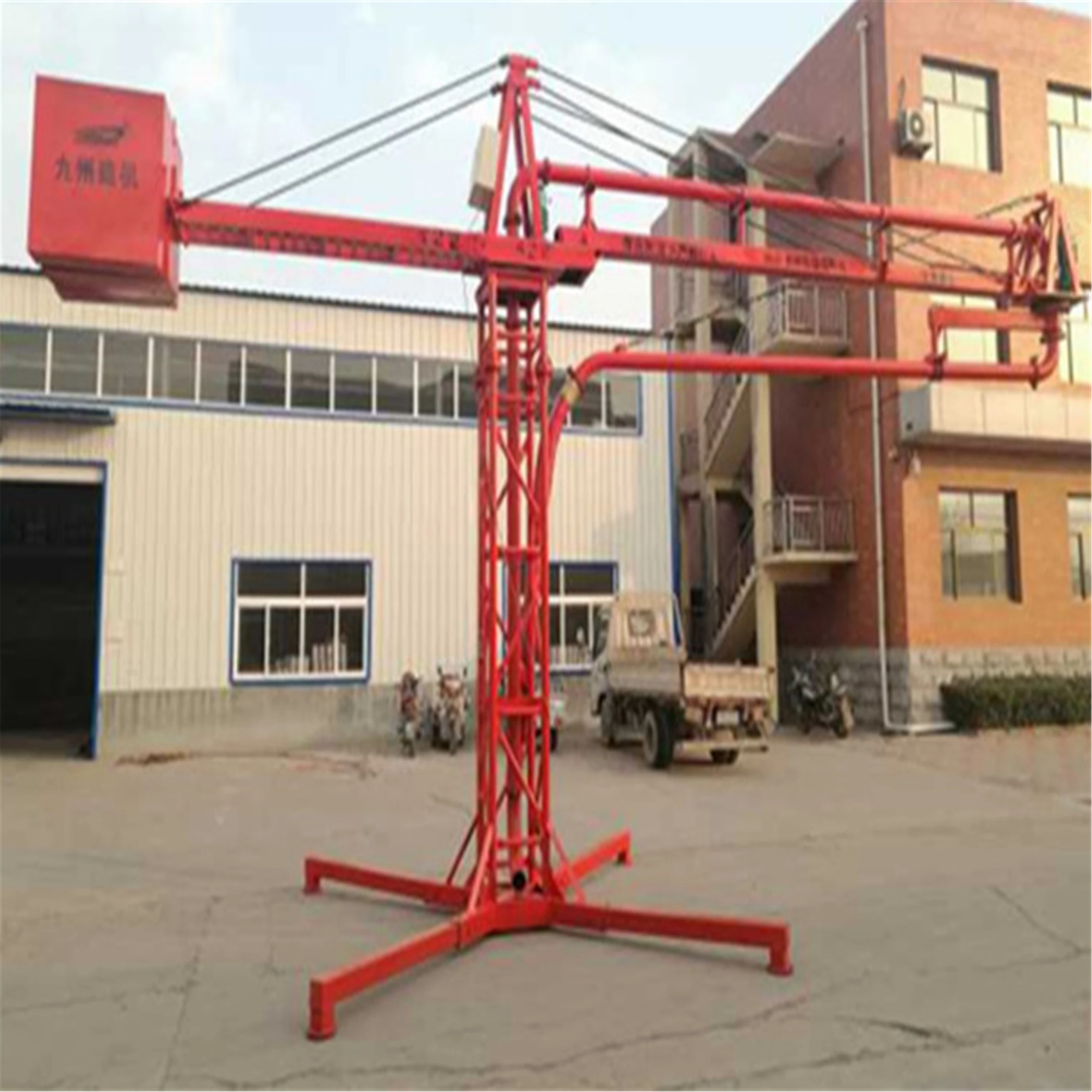

hot sale 18m mobile electric concrete boom placer trucks

Price:RUB 163,519.62

Quantity:

hot sale 18m mobile electric concrete boom placer trucks

It can be placed in suitable places required without being fixed.

It features compact structure, light weight and can be lifted as a whole

by a crane.With excellent maneuverability, it can meet the requirements

for concrete placement on different job sites, and is ideal for concrete

pumping and placing. Easy operation, reliable safety and economical purchase.

Main technology parameters of HG36 :

Model		HG36
Delivery pipe dimension (outside diameter × thickness) (mm × mm)		Φ133×4
Radius of placing boom (m)		35.7
Stationary height (m)		40
Max. attached height (m)		150
Three hydraulic foldable arms	1st section	8.85
	2nd section	7.62
	3rd section	7.74
	4th section	7.79
Boom articulation	1st section	-4°~+87°
	2nd section	0°~180°
	3rd section	0°~180°
	4th section	0°~270°
Slewing range (°)		360
Power of motor (kW)		15
Pressure of hydraulic system (MPa)		35
Type of hydraulic oil		ESSO NUTO H46
Interval of climbing frame (m)	Climbing	3.0
	Placing concrete	6.0
	Resting	6.0
Mode of operation		1. cable remote control
Mode of operation		2. radio remote control
Power		380V/50Hz
Wind speed	Placing concrete	≤60 km/h
Wind speed	Climbing	≤28 km/h
Working temperature		0~48°C

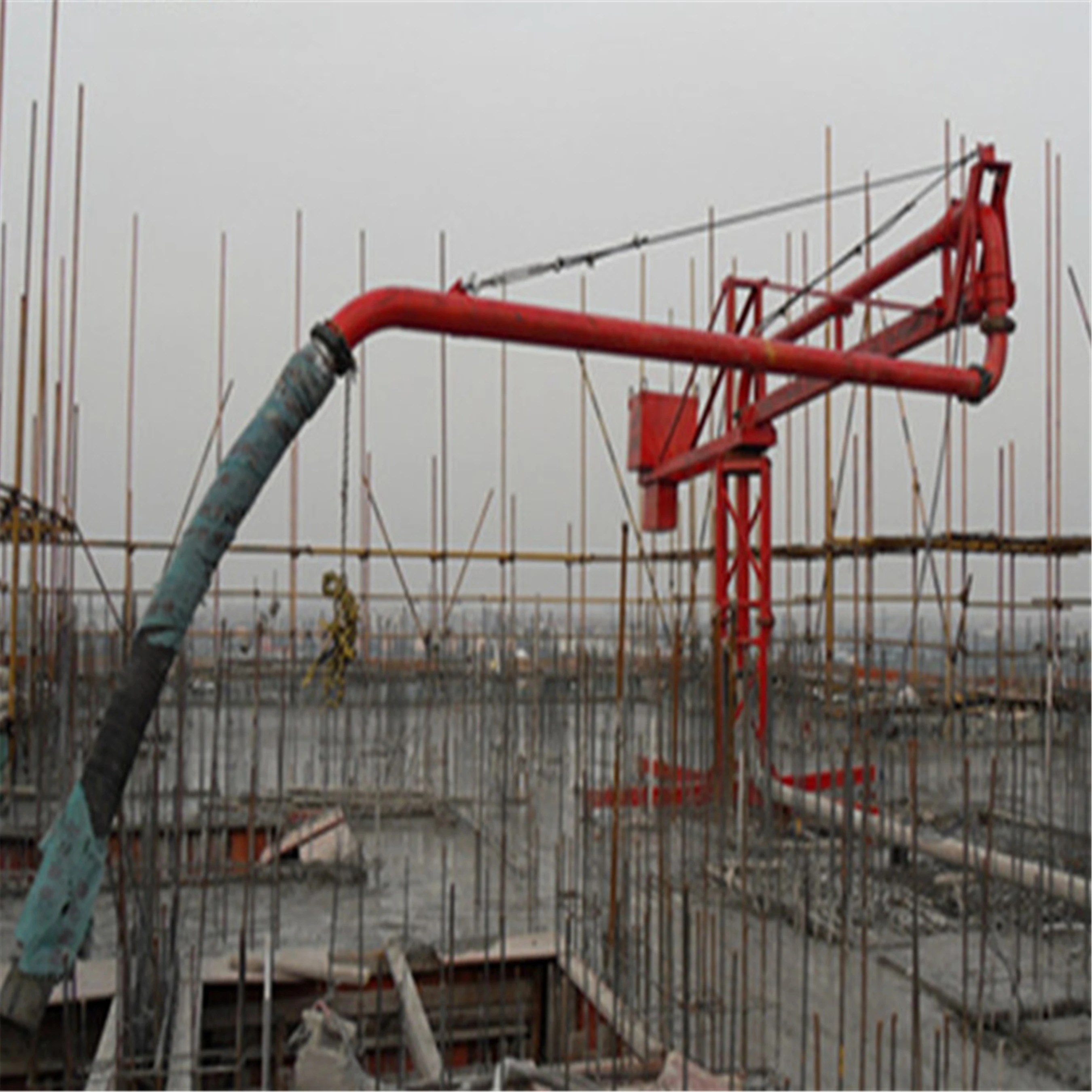

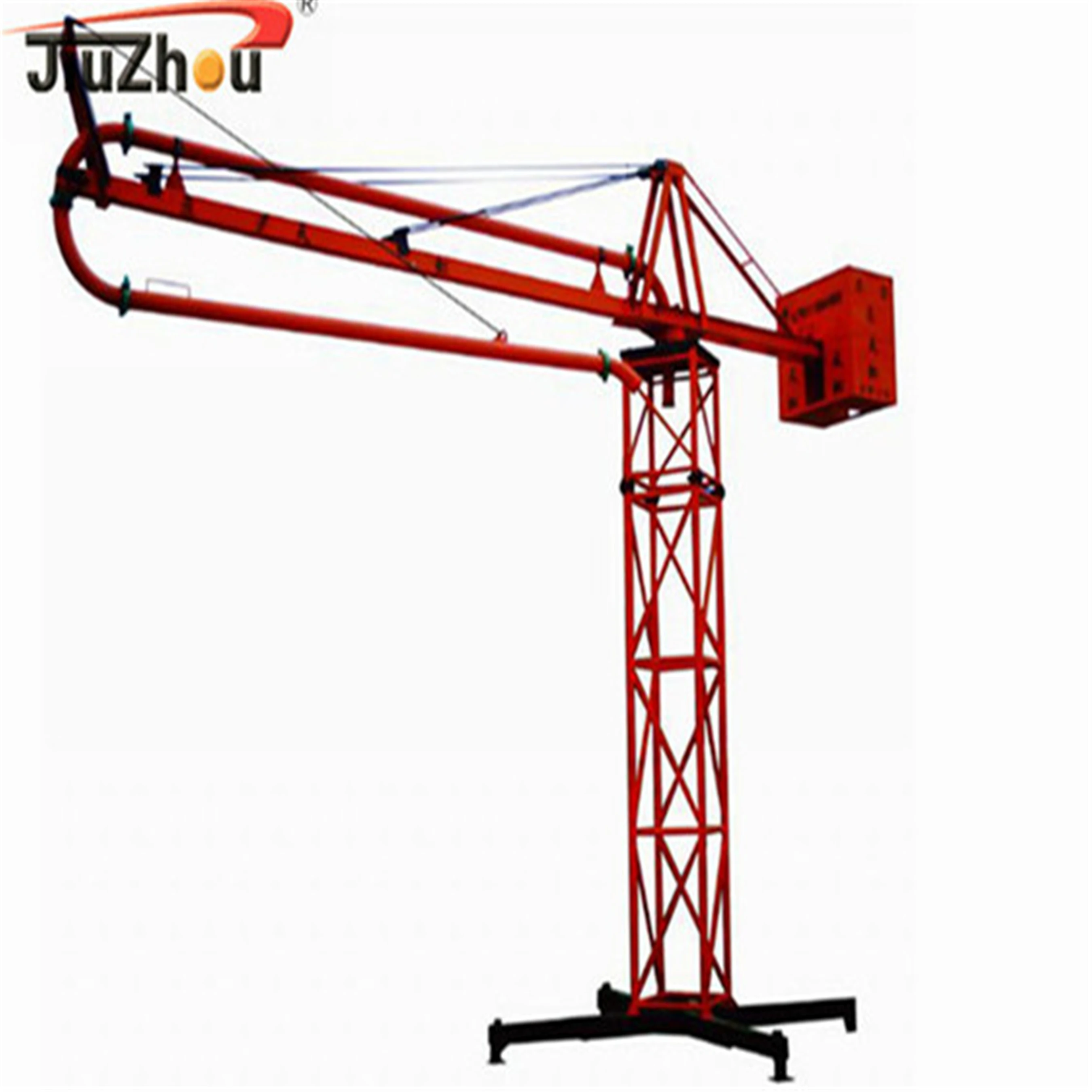

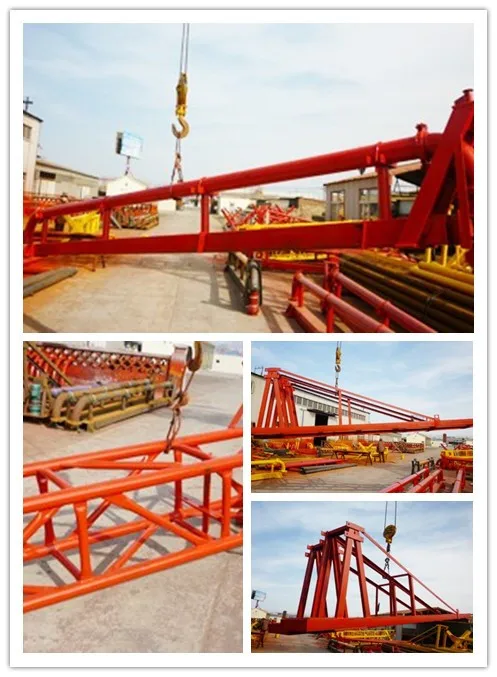

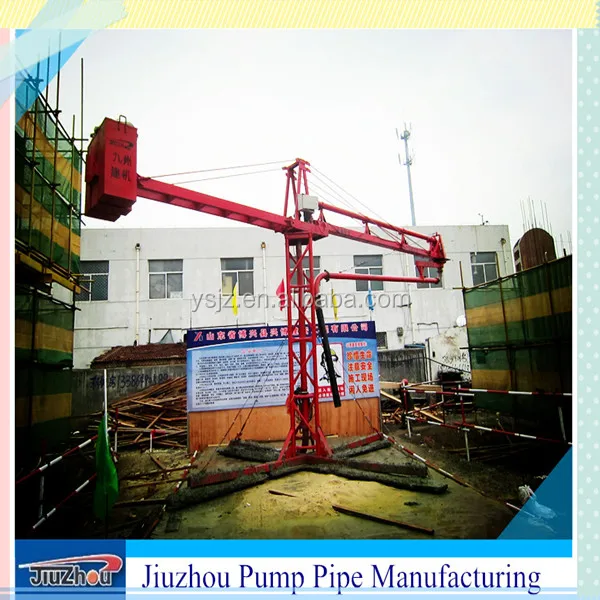

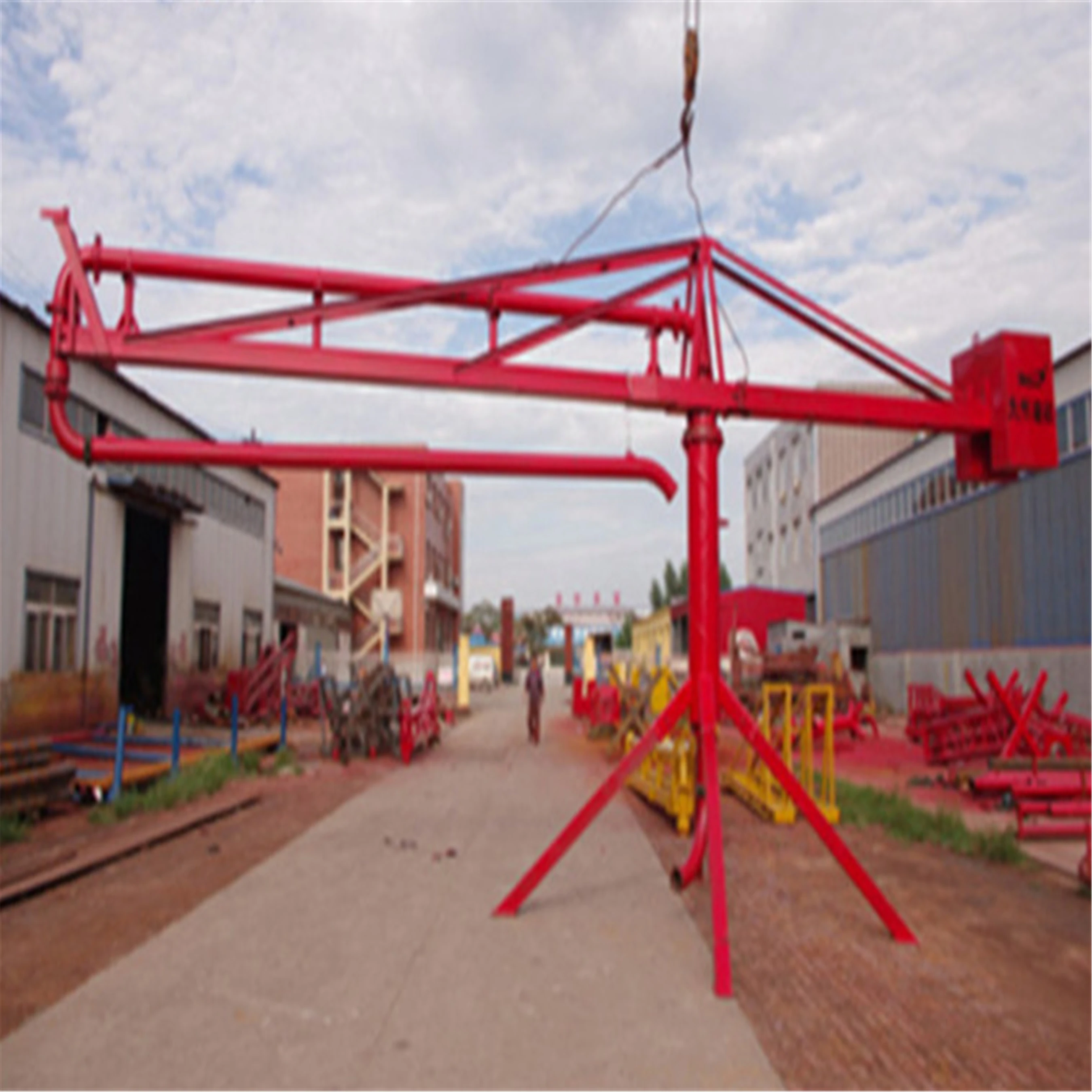

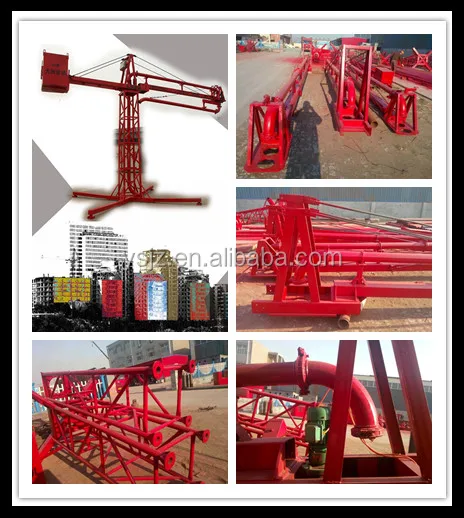

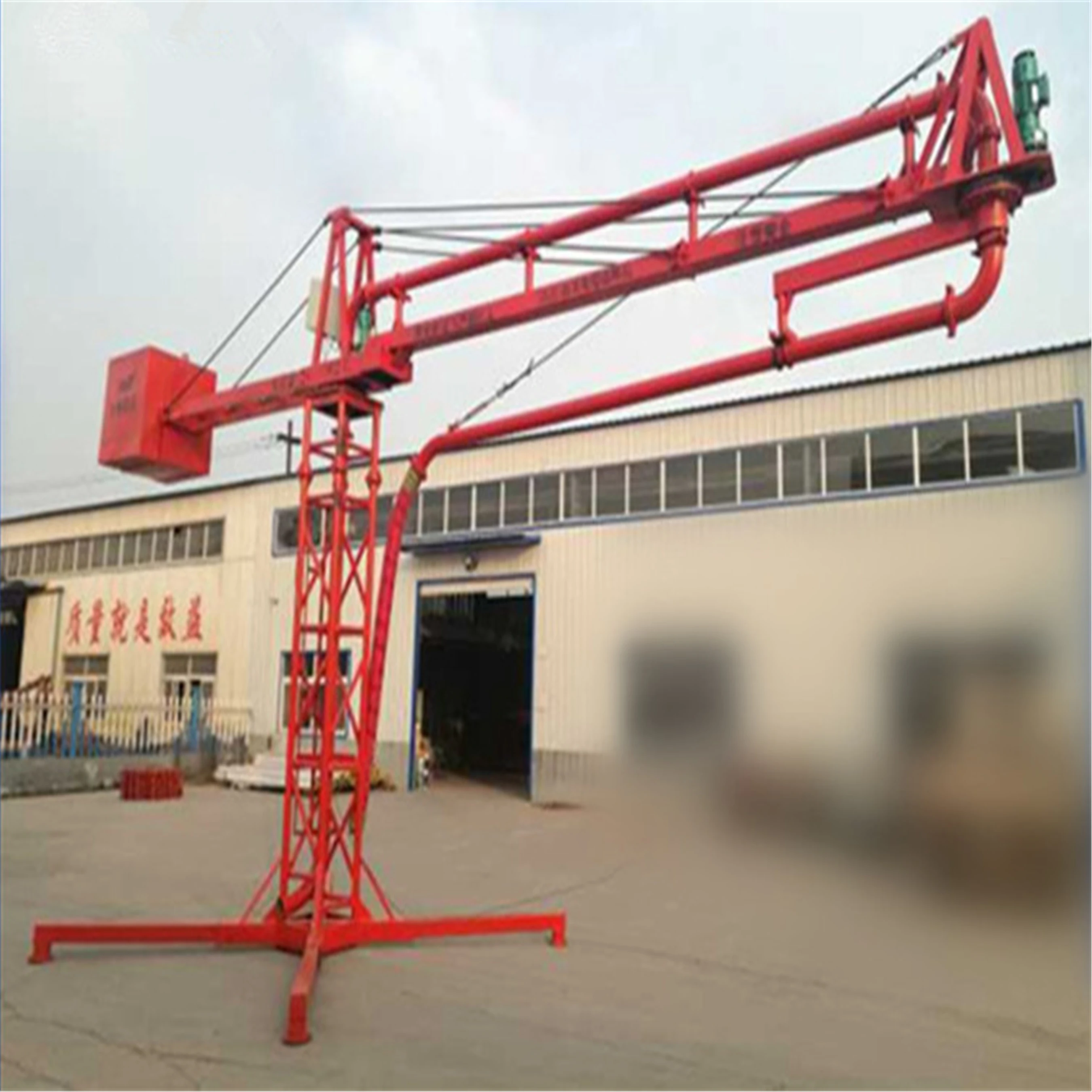

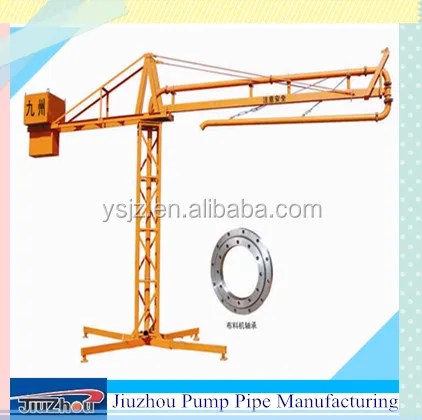

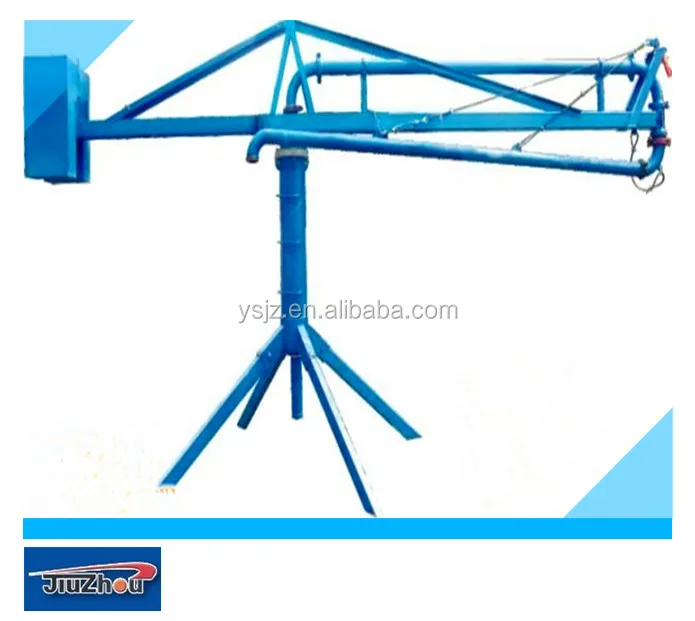

Sample pictures & Usage:
