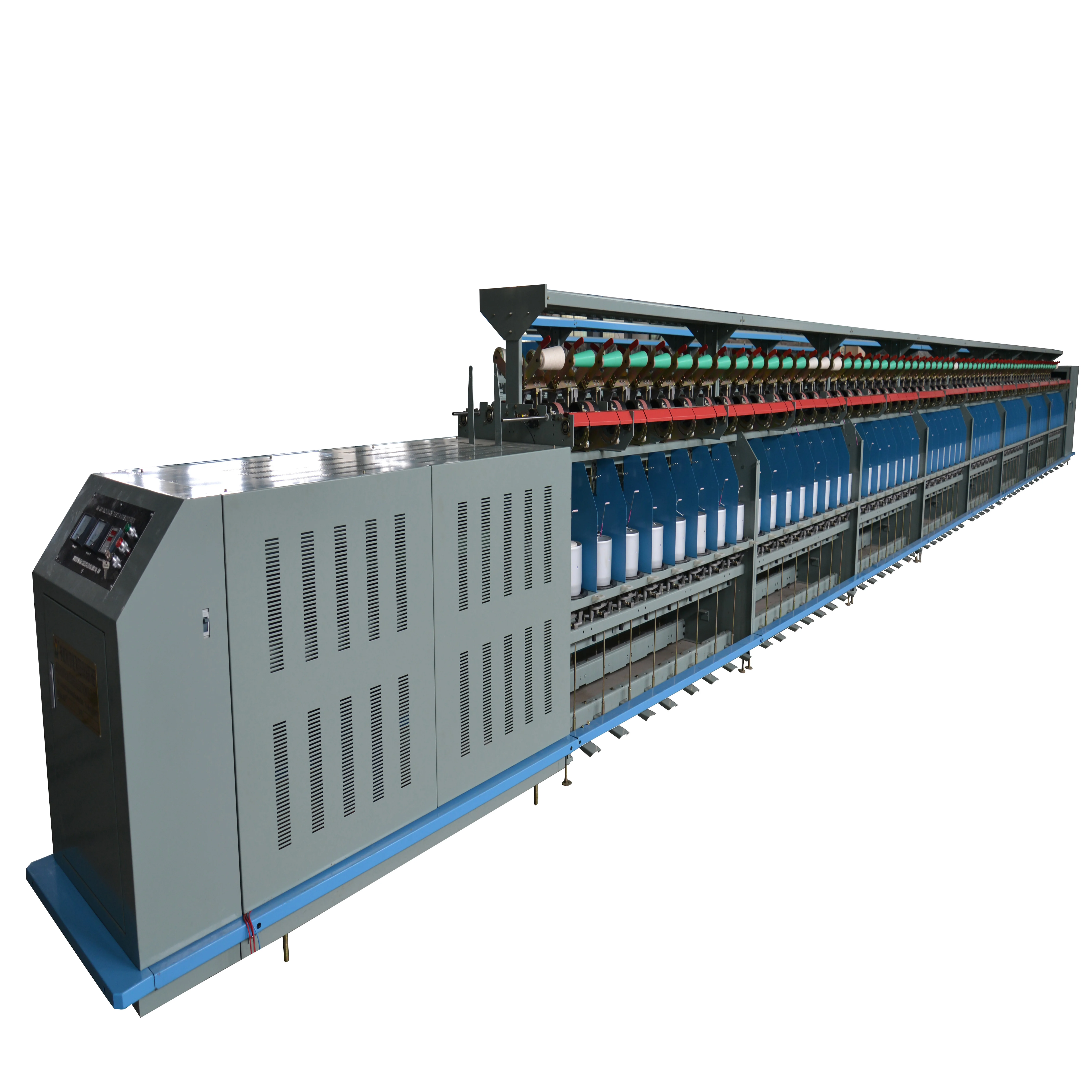

HW363 Cotton yarn two for one twisting machine
- Category: Spinning Machines >>>
- Supplier: Wuxi,Huawen,Machinery,&,Electronics,Co.,Ltd.
Share on:
Product Overview
Description
Cotton yarn two for one twisting machine
Product Description
1. Double side, single layer, beautiful aspect, logic structure, easy operation;High quality spindles perform a long-lasting stability under high speed running.
2. At the same time a capsule-type tension regulator is applied, accepting more extensive twisting conditions;
3. Winding tension is regularly on the overfeed roller at will, so applicable to a loose and soft winding for dyeing purpose;
4. Foot pedal barking to remove tangential belt from spindles, constant spindle speed, easy operation, also extending service life both of tangential belt and spindles;
5. Logic end remaining yarn structure makes latter operation job easy and handy;
6. Easily removable waxing device of air loop housing, bringing more adaptability to extensive yarn variety.
Application
Cotton yarn, wool yarn, acrylic yarn, polyester yarn and other blended yarns,etc.
HW363 Specification
HW363 Main Specifications:
1 | Machine Form | Double sides, single layer |
2 | Spindle Number | 128 Spindles (16 spindles/section ) |
3 | Spindle gauge | 254 mm |
4 | Spindle Speed | 5000-12000 r/min |
5 | Twist | 165-2020 t/m |
6 | Twisting Direction | S/Z |
7 | Winding stroke | 152mm |
8 | Motor Power | 22Kw |
9 | Spindle dia. | 166mm |
10 | Range of twisting count (tex) | 4.9-58.3 |
11 | Range of twisting count | Cotton 16/2-120/2Ne |
Wool 2/17-2/76Nm | ||
Blended 20/2-45/2Ne | ||
12 | Reversing bobbin | Φ43.5 x Φ37.5 x 170mm |
Φ51 x Φ45x 170mm | ||
13 | Loading amount | about 2500g |
14 | Shape of the take-up package | Cylinder bobbin, cone bobbin |
15 | Angle of taper | 14°47' -21°07' |
16 | Winding bobbin angle | 3°43', 4°20', 5°57' |
17 | Start mode | Y-star slow start |
18 | Spindle Transmission | Tangential belt tangential-wise transmission |
19 | Starting method | Star triangular frequency conversion slow starting |
20 | Tensioner | Capsule Type |
21 | Packing | Nude cargo, separated whole machine into sections and put then into a 40GP container for shipping |
22 | Payment | 30% T/T deposit, 70% balance paid before shipment. |
23 | Delivery time | 30 working days after received 30% T/T deposit . |
Customer visiting
Packaging & Shipping
FAQ
FAQ:
Are you the manufacturer or the trading company?
We are the experienced manufacturer of textile machines, especially for the two-for-one twisting machines, doubling winder machines, yarn covering machines and etc. We have got the self-support imports and exports right.
What is your advantage compared with other textile manufacturers?
We are expert at making yarn machines for almost 20 years and we have a professional technical team who can provide special customer requirements. Our machines have been exported to a lot of countries such as Vietnam, South Korea, Uzbekistan, the Philippines, Tunisia, Morocco, Iran and so on.
What kind of service can you offer?
Design with your requirements by professional team.
ISO 9001:2008 certificates and letters patent.
Engineers go overseas for training.
How to check my order at last?
We warmly welcome you to visit our company in Wuxi, which is close to Shanghai, for checking your machines. If you don’t come here, we can also take photos and videos for your confirmation.
