high Organic fertilizer compound fertilizer performance screening machine

Product Overview

Description





Manufacturer of Drum Screening Machine:



Drum screening machine is main equipment in compound fertilizer production, used for separating the returned materials and end product, also realize the classification of the end products, uniformize the end products.

This drum screening machine adopts the integrated screen which is easy for repair and replacement.

This machine is easy to operate and works steadily .



Drum screening machine mainly is composed of motor, reduction gear, drum, body and other components.

The motor through reduction, via drum to drive the screening machine rolling round the roller, after material enter into screening machine, with the angle and rolling of machine, the qualifity product will out from hole of screening,  and unqualified will out from the bottom of screening ,machine.







Technical Parameters Of beans sieving machine :





type	cylinder				capacity	Scope of powder	scope of granulator	electrimotor			reduction
	diameter	length	slop	rotary speed				type	power	rotary speed
	mm	mm	( .)	r/min	t/h	mm	mm		Kw	r/min
SF0830	800	3500	2-5	12	1-1.5	0.1-0.2	0.3-50	100L1-4	2.2	1440	ZQ250
SF1030	1000	3500		12	2-3			100L1-4	2.2	1440	ZQ250
SF1230	1200	3500		15	5-6			100L1-4	2.2	1460	ZQ250
SF1540	1500	4500		15	8-10			100L2-4	3	1460	ZQ350
SF1845	1800	5000		15.5	10-15			132S-4	5.5	1460	ZQ400
SF2045	2000	5000		15.5	15-20			132M-4	7.5	1460	ZQ400





We, Zhengzhou Ailence Machinery Equipment  CO.,LTD, We wil provide the most environment-friendly and safe products with high-quality at most favorable price for the customer with perfect after service.



--Packing
1.Machines are wrapped in plastic bags first before being convolved with straw rope.
2.Then the machines are putted in strong iron sheet case/wooden case, lined with metal wire if necessary.


--Payment Term
T/T, Western Union, Escrow.


--Delivery Time
We will deliver machine within 3-15 working days after receive your full payment



--Guarantee
One year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer.
We can provide you the spare parts with production cost all the year round.

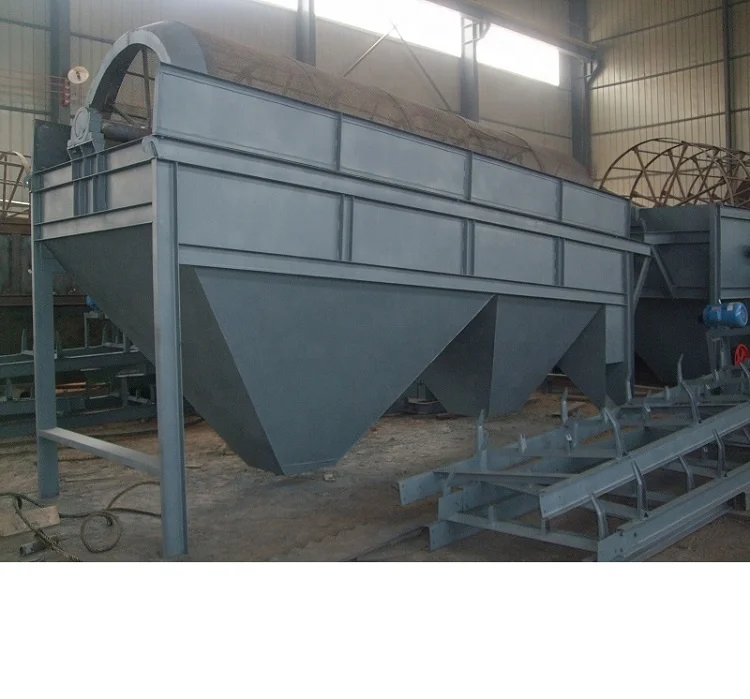

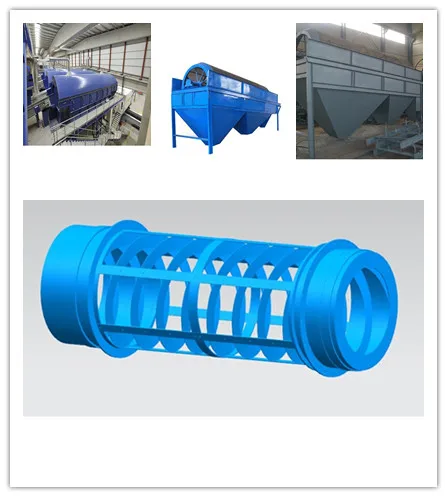

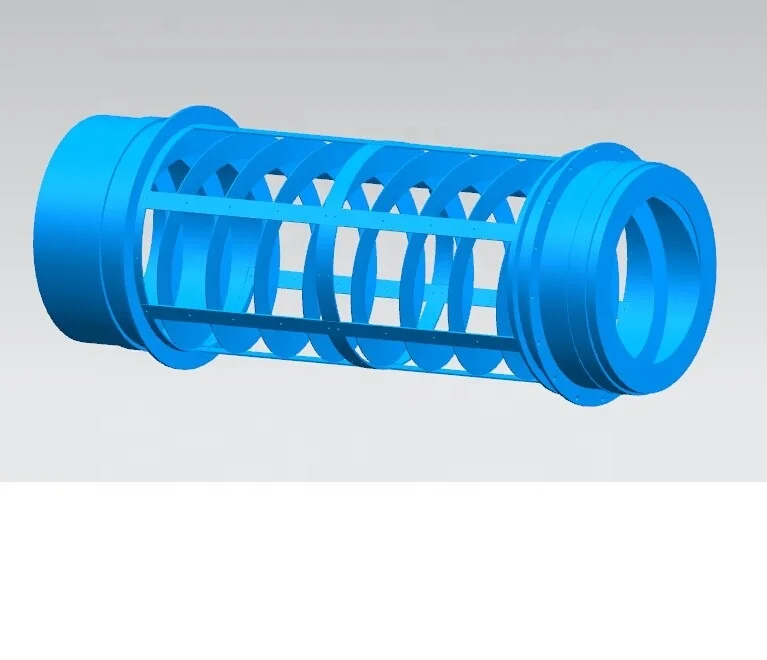

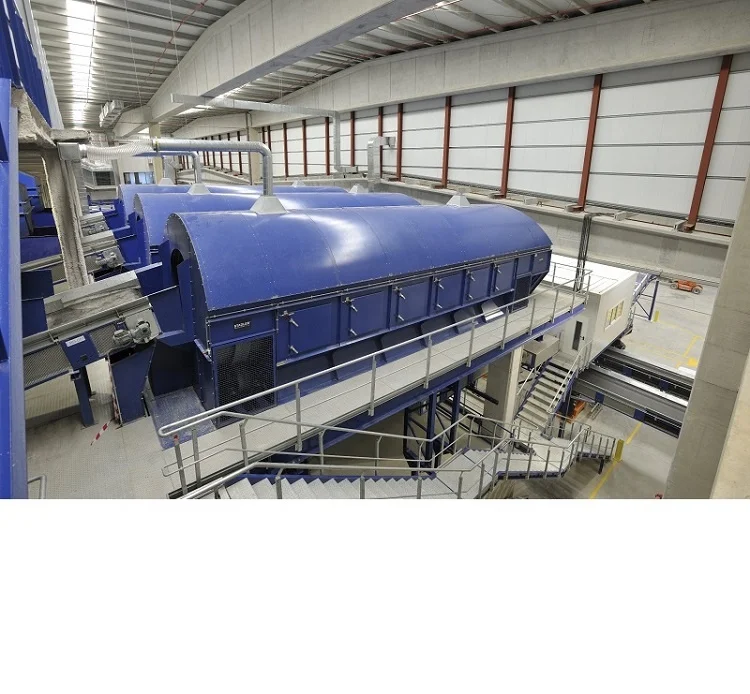

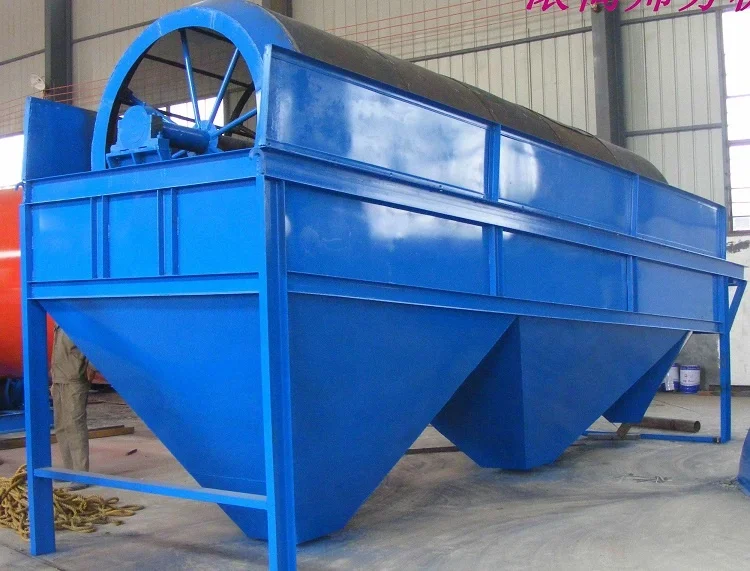

Pictures  Of Manufacturer of Drum Screening Machine





Pre-Sales Service

*  Device model choice.
*  Design and manufacture products according to the special requirements of customers.
*  Train technicians for customers.
*  Send engineers and technicians to the customers to plan the site and design the best process and plan free of charge.

After-Sales Service

*  Training how to instal the machine, training how to use the machine.
*  Engineers available to service machinery overseas.
*  Create a customer profile and track it
