Product Overview

Description


140701











































































































































RIG42 50 ohm 1000W ceramic resistor HF resistor Rf resistor
1.Specification:
Electrical Characteristics:
Range of nominal resistance1 ~500Ω
Resistance tolerance±5%
Frequency range 0~2GHz
Standing wave ratio1.2~1.3
Insulation resistance≥ 1GΩ
Withstand voltage500V/1 mm (Substrate thickness)
Environment Characteristics:
Rated power1~1000W (70°C)
Temperature range -55°C~+165°C
TCR ±300×10-6/°C
Temperature shock (-55°C/+125°C, 3 times)ΔR≤±5%R
Moisture proof (GJB306A-96-Method106)ΔR≤±5%R
Vibration (10-500HZ, 0.75mm, 6h)ΔR≤±3%R, No mechanical damage
Test at low temperature (-55°C, 24h) ΔR≤±5%R
Load life (96)ΔR≤±5%
CollisionΔR≤±3%R
Physical Characteristics:
Terminal strength(10N,5S)No loose and fall off
Solderability(240℃,3s)Tin layer covering area of 95%

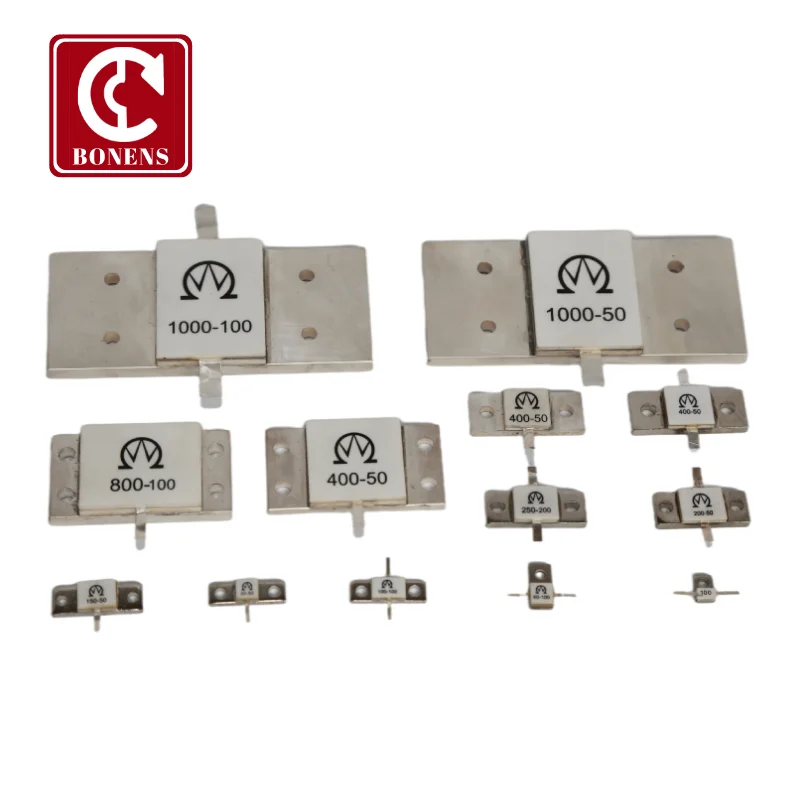

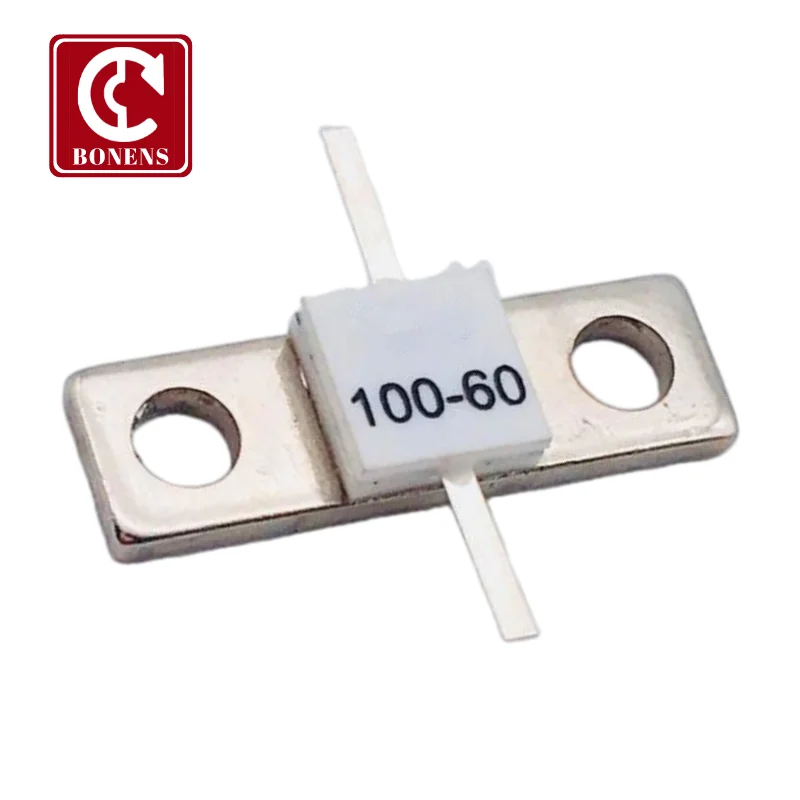

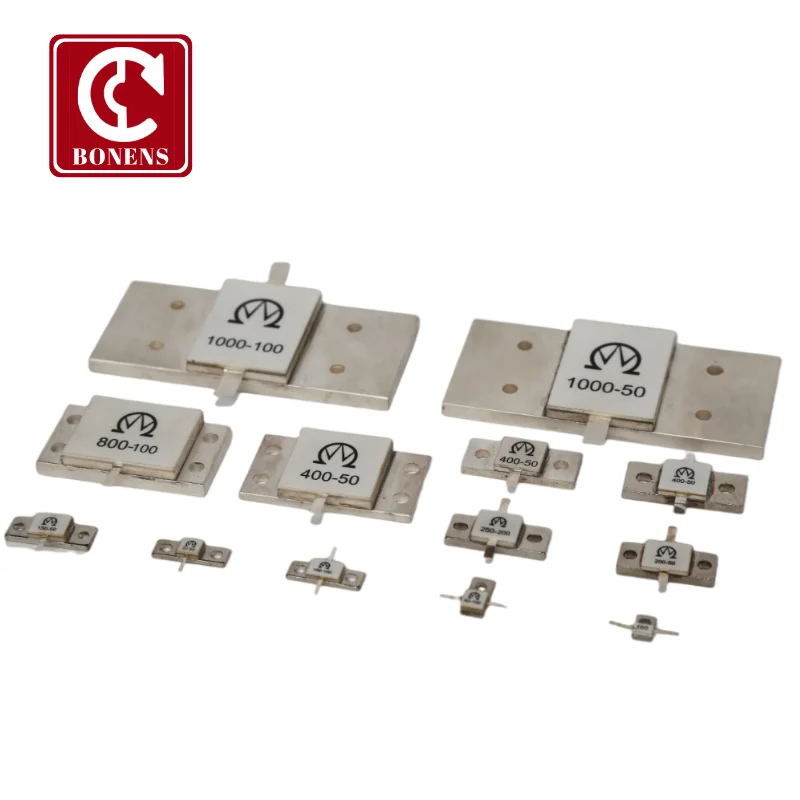

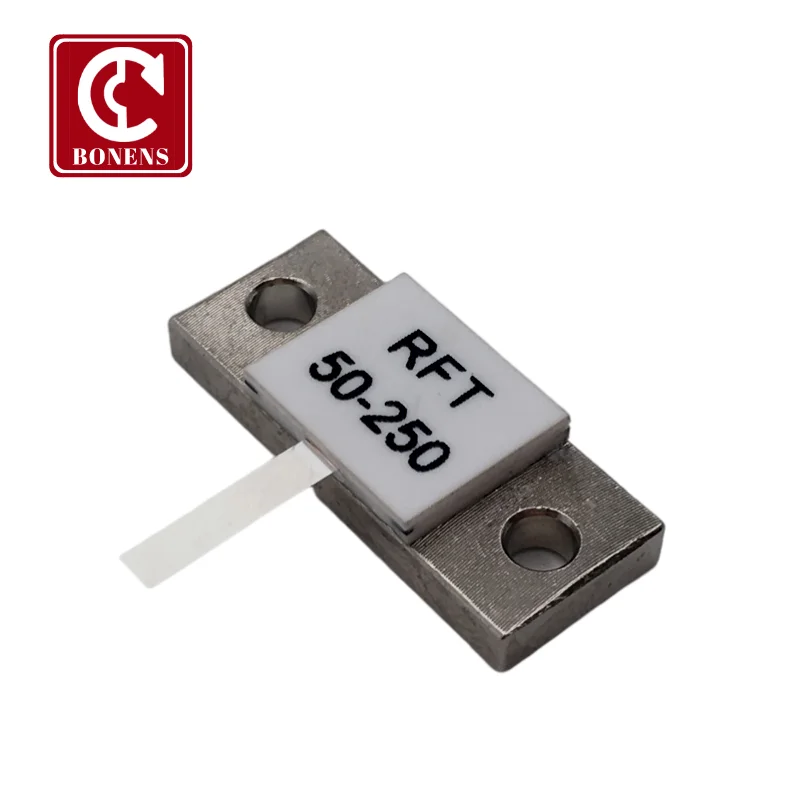

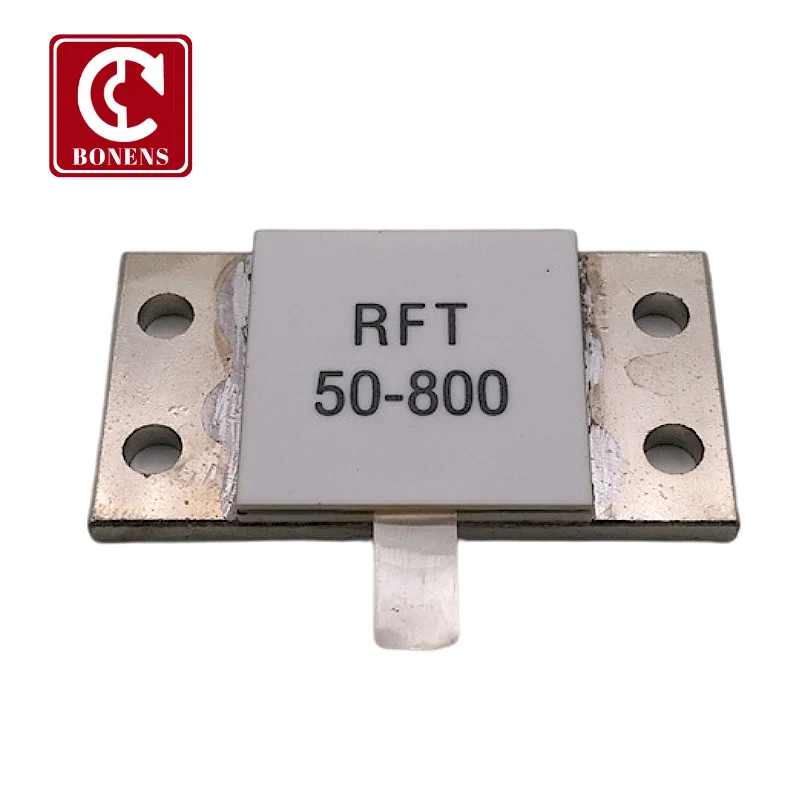

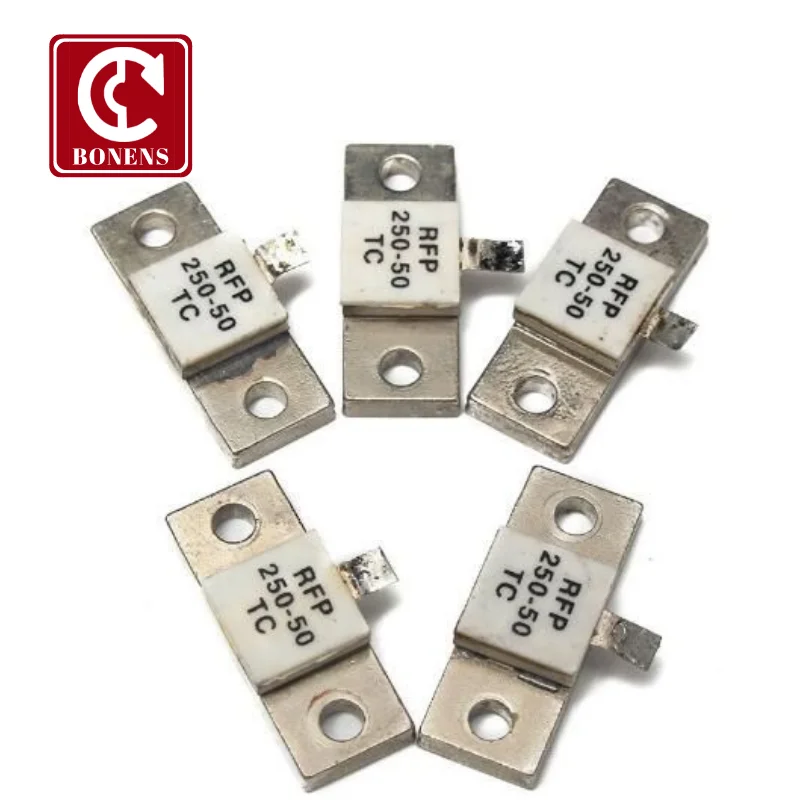

2.Pictures:
QQ20141017104303_


QQ20141017102752



Dimensions:




3.performance characteristics :

(1) High power


(2) Good heat dissipation


(3) Wide frequency


(4) Structure of the general



4.Directions for use:


(1) Products with the cooling plate must be installed on other radiators, radiator area of not less than 10 cm squared / 1 w.


(2)Heating panel and radiator must combine closely, it is suggested that with cooling silicon greas


(3)When the product is working, should add the air-filled or circulating water cooling.


(4) Pulse power for 20% of the rated power.


(5) After receiving the product, customers should be used within a year.



5.Samples:
1. Sample: Could provide sample.
2. Samples time: Need 3-10 days to prepare the samples after payment.
3. Samples payment term: T/T, PAYPAL, Western union


6.Advantage:
1.Low MOQ: 1pc
2.New design Accepted:  As your requirement
3.Good Service:  Customer as God
4.Good Quality:  Strict quality control  and good reputation
5.Fast & Cheap Delivery:  Big discount from express agent (Long-term Contract)



7.Our other main products:







8.Our factory:

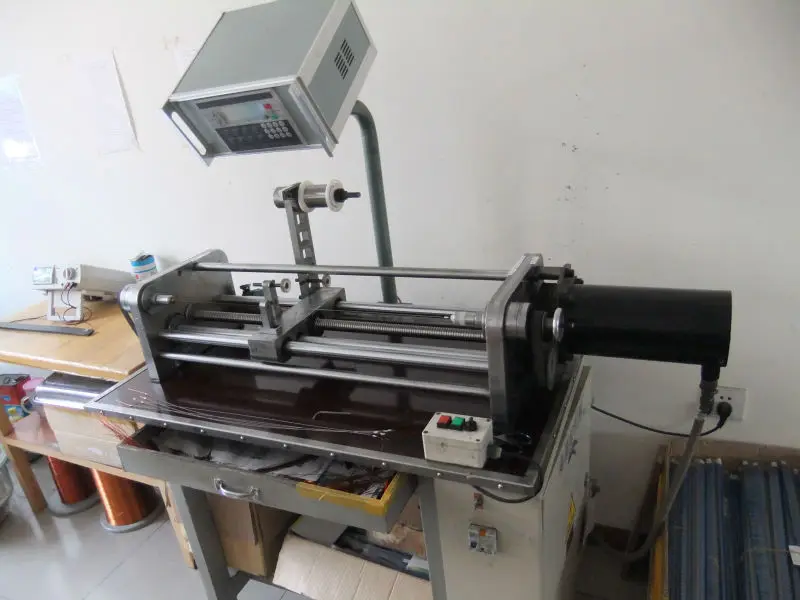

DSCF4167
clip_image002

9. Main shipping ways:




10.Welcome to consultation:


Att:Aimee


Tell:+86-18030517459


Tell:+86-028-82767470


Skype:aimee.jiang122


QQ:2228156427
