ZH-800g Factory price High Productivity lock bottom folder gluer
US $11500-$13000
ZH 580S автоматическая машина для склеивания папок с дном блокировки
- Category: Gluing Machines >>>
- Supplier: Shanghai Printyoung International Industry Co. Ltd.
Share on (60104035216):
Product Overview
Description

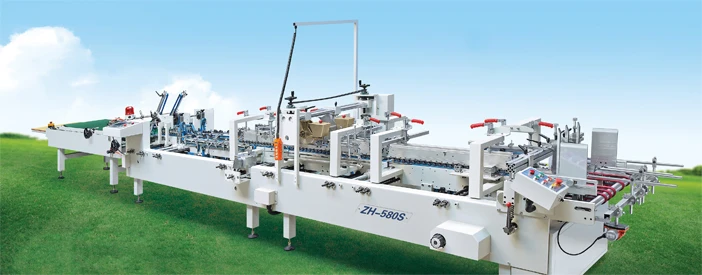

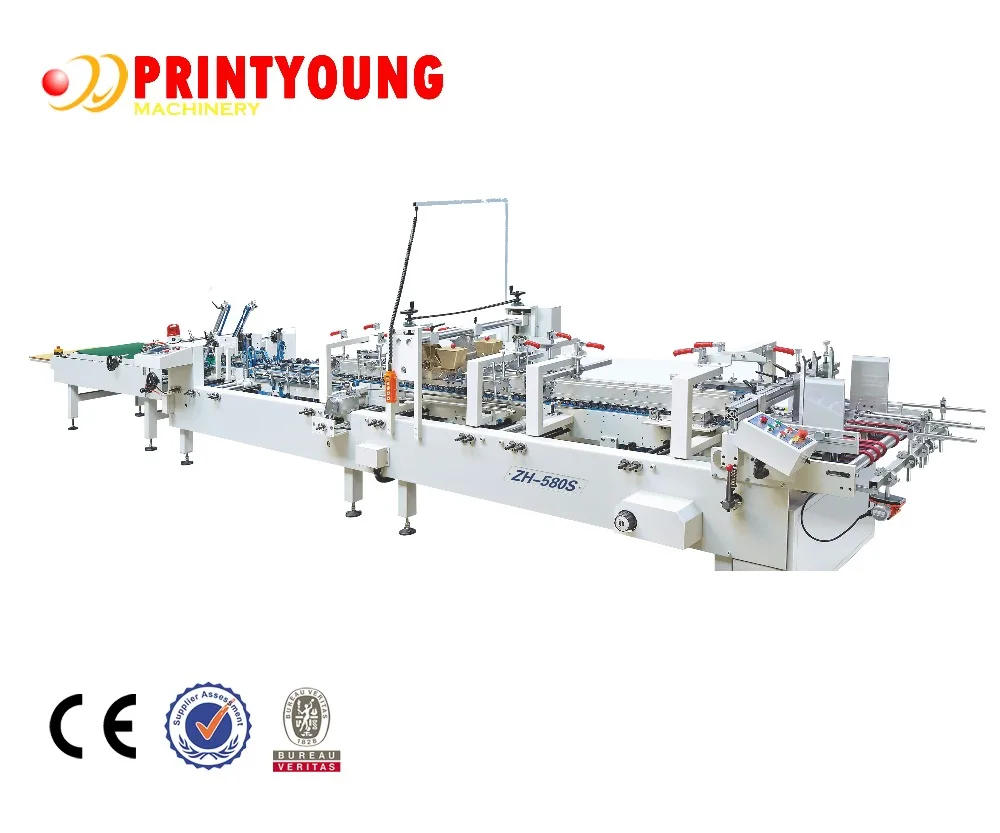

ZH-580S Automatic Folder Gluer machine with Crash Lock Bottom
Features
1.The whole machine's steel frame adopts laser cutting, after-punching folding. So the structure is more reasonable, assembling is more accurate and running is more stable.
2.It adopts synchronous belt driving. Synchronous driving is faster, noise-lower and safer.
3.Adopts PLC and frequency speed regulator.
4.New human-oriented design, easier operation, decreased test run time, better university, various complicated box making.
5.Can be applied to crash lock box, pre-fold box and straight line box.
6.Adopts cold and hot-melt glue system(optional).
2.It adopts synchronous belt driving. Synchronous driving is faster, noise-lower and safer.
3.Adopts PLC and frequency speed regulator.
4.New human-oriented design, easier operation, decreased test run time, better university, various complicated box making.
5.Can be applied to crash lock box, pre-fold box and straight line box.
6.Adopts cold and hot-melt glue system(optional).
Technical Parameters
Usage paper | 180~650g/m2 Paperboard, E corrugated board |
Box forming | straight line, crash lock bottom, double side, multi-functional side glue(optional) |
Speed | 300m/min |
Electric | 4kw, AC380V (ZH-580S);5.5kw, AC380V (ZH-780S); 7.5kw, AC380V (ZH-980S) |
Weight | 3000kg (ZH-580S); 3500kg (ZH-780S);4000kg (ZH-980S) |
Dimension | 8600×1000×1400mm (ZH-580S);9000×1200×1400mm (ZH-780S); 10000×1400×1400mm (ZH-980S) |

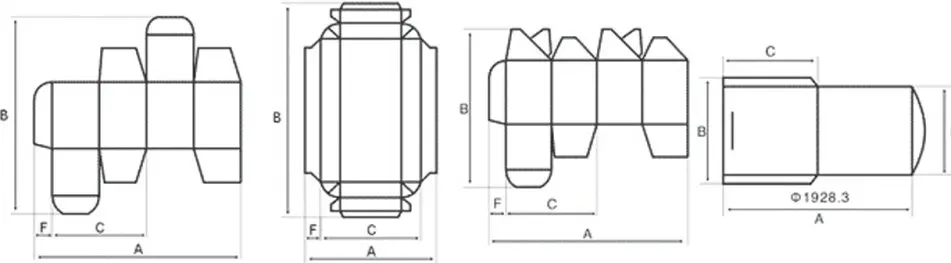

Model | Box type | A Max | A Min | B Max | B Min | C Max | C Min | F Max | F Min |
ZH-580S | Straight lined(I) | 580 | 90, | 600 | 60 | 280 | 40 | / | 8 |
ZH-580S | Double side gluing(II) | 450 | 100 | 600 | 60 | 450 | 80 | / | 10 |
Crash lock bottom box(III) | 550 | 150 | 600 | 80 | 270 | 70 | / | 8 | |
CD box/file folder (IV) | 600 | 180 | 460 | 100 | 400 | 100 | 460 | 80 | |
ZH-780S | Straight lino(I) | 780 | 90- | 700 | 60 | 380 | 40 | / | 8 |
ZH-780S | Double side gluing(II) | 460 | 100 | 700 | 60 | 450 | 80 | / | 10 |
Crash lock bottom box(III) | 750 | 150 | 700 | 80 | 370 | 70 | / | 8 | |
CD box/file folder (IV) | 700 | 180 | 460 | 100 | 450 | 100 | 460 | 80 | |
ZH-980S | Straight line(I) | 980 | 90- | 800 | 80 | 480 | 60 | / | 8 |
ZH-980S | Double side gluing(II) | / | / | / | / | / | / | / | / |
Crash lock bottom box(III) | 960 | 150 | 800 | 80 | 470 | 80 | / | 8 | |
/ | / | / | / | / | / | / | / | / |
I II III IV
Q1: Are you a manufacturer or a trading company?
A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.
Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.
Q3. What is the production time while placing order?
A: Normally about 10-20 days.
Q4. What is the delivery time?
A: 15-30days after deposit.
Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.
Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..
Q7. How about the machine installation and training ?
A: 1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.
2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.
Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
Q9. How can you assure the machines’ quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.
Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material
Q11. What’s the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.
Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.
Q13. How many years are you in printing field?
A: Shanghai company is 12 years old, the factory is more than 20years.
Q14. How many clients do you have?
A: We have sold our machines to about 60 countries. We have agents in South Africa, Morocco and Italy.
