gypsum board machine/gypsum board making machines
US $7500-$12000

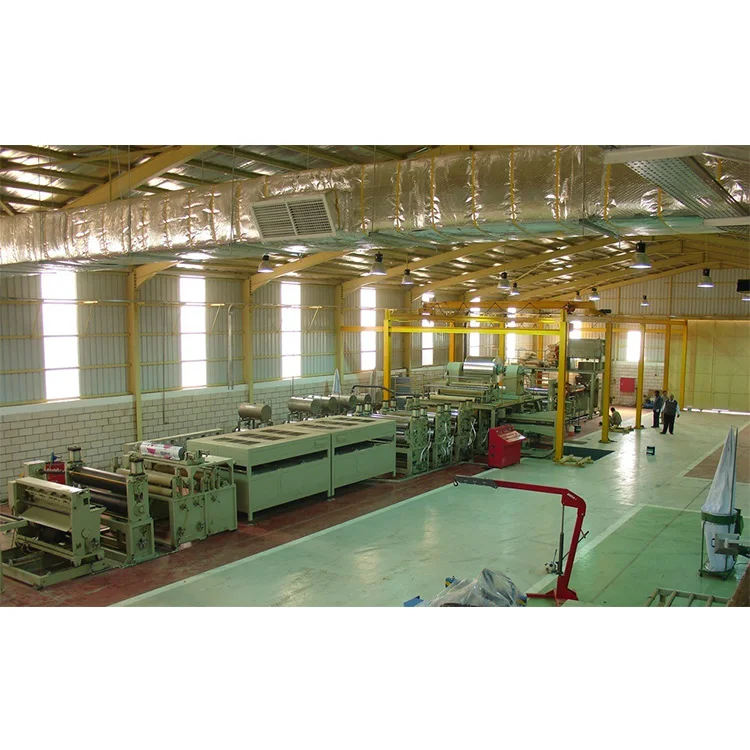

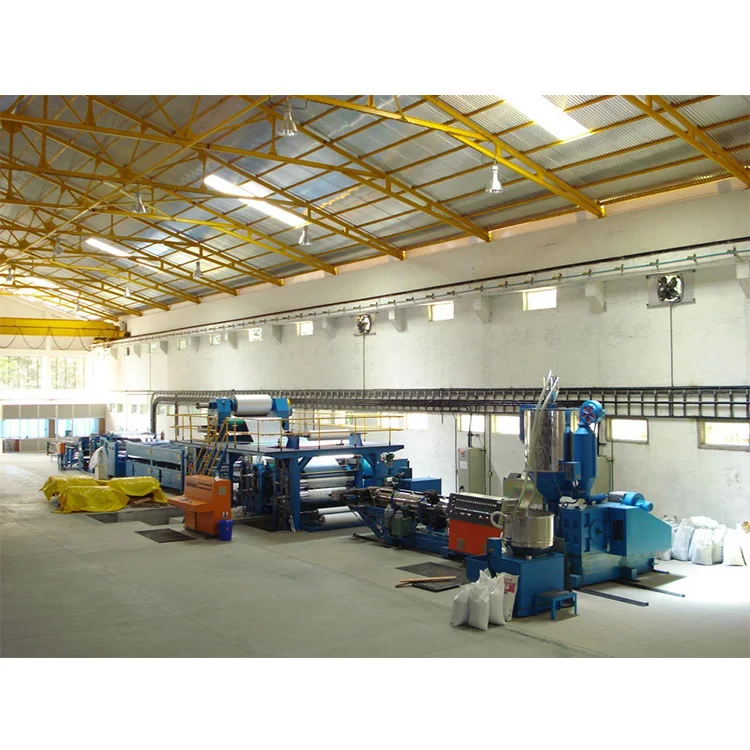

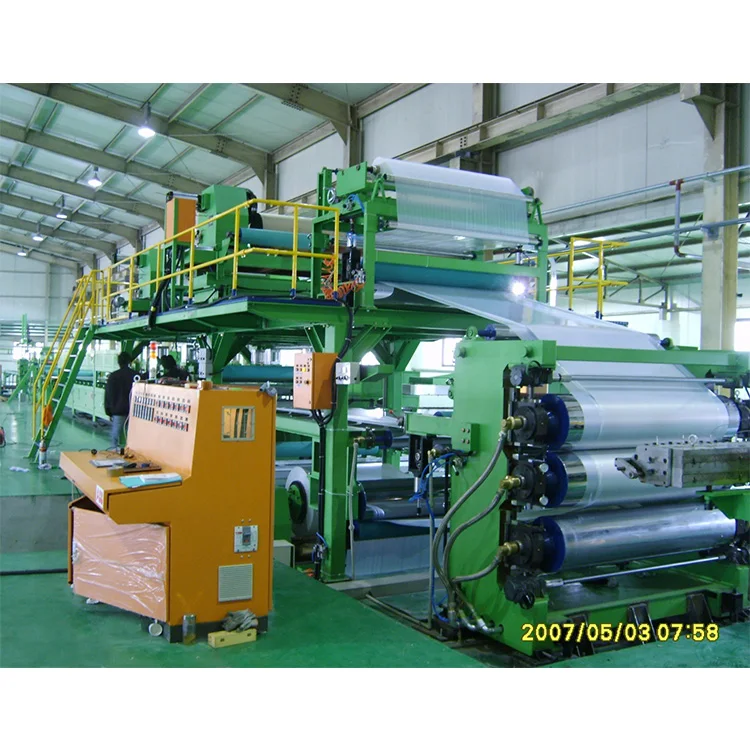

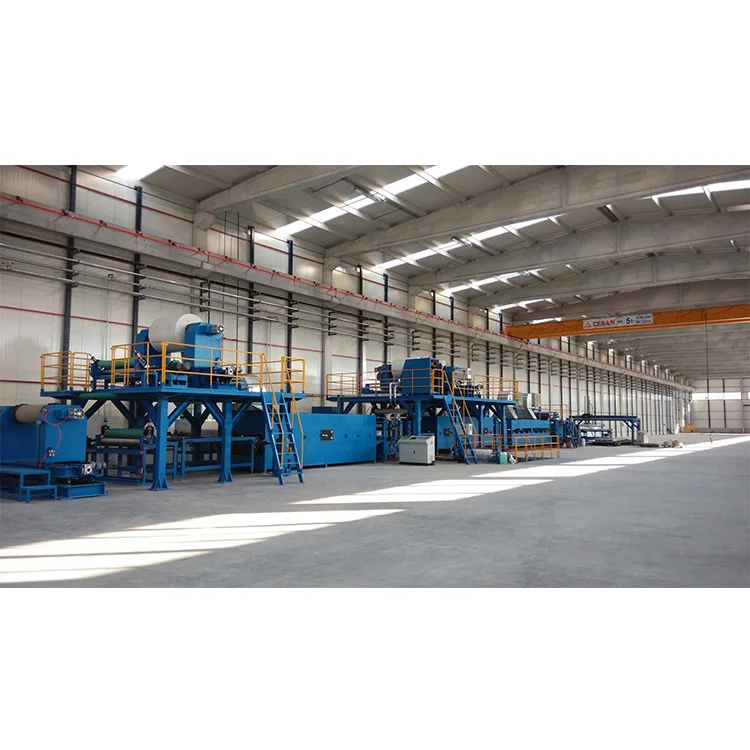

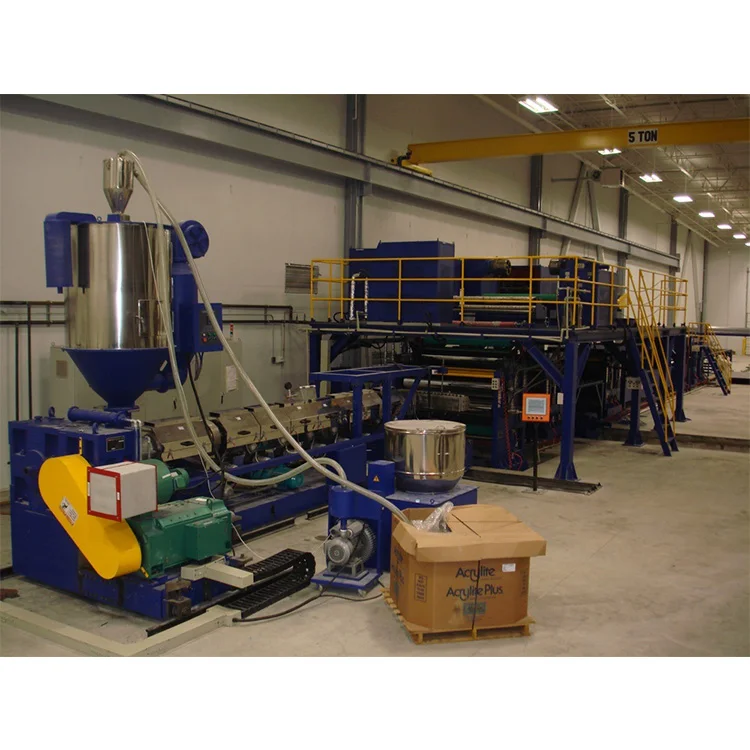

A2/B1 aluminum composite panel / fireproof ACP panel production line
- Category: Other Construction Material Making Machinery >>>
- Supplier: Jiangsu Xiecheng Science And Technology Deve. Co. Ltd.
Share on (60107773406):
Product Overview
Description
This machine use double screw extruder which is our new design, there are two parallel screw inside the extruder,the capacity can reach 1000kg/H and it improve the production speed. This machine is very good for making B1 panel, it can guarantee the production speed and panel quality.The power of main motor is only 132kw and can save much power for the customer,it can save production cost and improve the production capacity, it's the best choice for making B1 fire resistant panel.
| BASIC PARAMETER | ||
| Model | 1600(M-ACP3) Single extruder | |
| Raw Material | Core material | New PE,LDPE,HDPE,recycle core material,FRB1 material |
| Aluminium coil thickness | 0.21mm-0.5mm | |
| Aluminium coil width | 800mm-1600mm | |
| Weight of aluminium coil | Max. 5 tons | |
| Macromolecule film width | 800mm-1630mm | |
| Macromolecule film thickness | 0.03mm-0.08mm | |
| Protective film width | 800mm-1630mm | |
| Protective film thickness | 0.06mm-0.08mm | |
| Finished Panel | Thickness | 2mm-6mm |
| Width | 800mm-1600mm | |
| Line speed | For FRB1 ACP (4mm/0.5mm ACP) | Speed is 3-4.2m/min, Steady speed is 3.8m/min Line speed depends on core material's quality and thickness of core |
For PE ACP (4mm/0.5mm ACP) | Speed is 3-4.4m/min Line speed depends on core material's quality and thickness of core | |
