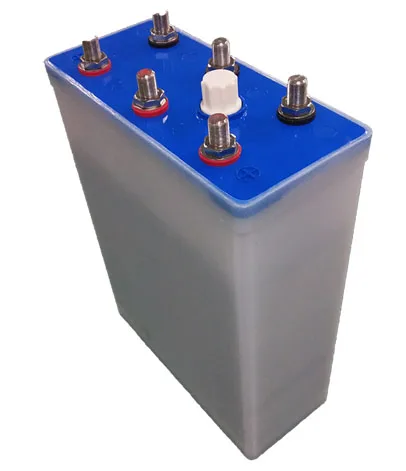

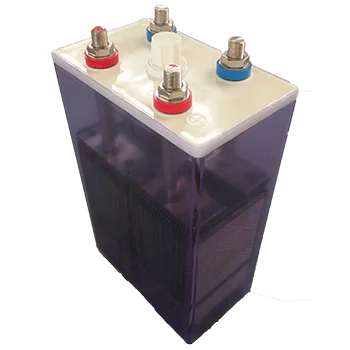

1.2v nickel iron ni fe battery 600Ah

Product Overview

Description

1.2V long-life nickel-iron battery

Nickel iron battery is widely used as DC back-up power supply for railway, rolling stocks, mine tractors, petrochemical, oil and gas, electricity industries,  photovoltaic and other renewable power applications.



Nowadays, more and more countries have attached great importance on environmental protection and advocate using green energy. Because of its high reliability, long service life, lower maitenance cost, pollution-free and other characterizes, the Ni-Fe batteries are gradually replacing lead-acid batteries in wide ranges of applications, especially in photovoltaic and renewable energy applications.



Specifications of nife battery

Model	Nominal Voltage(V)	Rated Capacity (Ah)	Max. dimension(mm)			Pole	Weight (filled) (Kg)	Electrolyte(L)	Container
			L	W	H
TN10	1.2	10	85	39	156	M8	0.8	0.3	ABS
TN 20	1.2	20	82	43	258	M10	1.3	0.3	ABS
TN 30	1.2	30	135	54	265	M10	2	0.5	PP
TN 40	1.2	40	135	54	265	M10	2.4	0.5	PP
TN 50	1.2	50	138	61	266	M10	3.2	0.7	ABS
TN 60	1.2	60	143	76	275	M10	4	1.1	MBS
TN 70	1.2	70	139	79	295	M10	4.4	1	MBS
TN 80	1.2	80	139	79	295	M10	4.7	1	MBS
TN 90	1.2	90	139	79	362	M10			ABS
TN 100	1.2	100	139	79	362	M10	6	1.4	ABS
TN 150	1.2	150	165	105	345	M20×1.5	9.3	2	ABS
TN 200	1.2	200	167	162	345	M20×1.5	14	3.3	ABS
TN 250	1.2	250	167	162	345	M20×1.5	14	3.4	ABS
TN300	1.2	300	282	170	348	M20×1.5	22.5	5	MBS
TN400	1.2	400	282	170	348	M20×1.5	24	4.5	ABS
TN 500	1.2	500	285	172	490	M20×1.5	33.6	7.8	ABS
TN 600	1.2	600	285	172	490	M20×1.5	34	7.5	ABS
TN700	1.2	700	285	172	490	M20×1.5	40	9.4	ABS

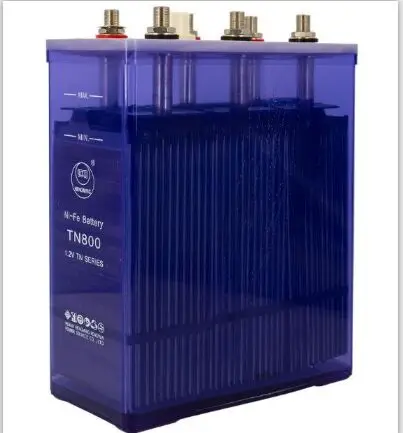

TN 800	1.2	800	395	185	560	M20×1.5	57.5	15.5	ABS
TN 1000	1.2	1000	395	185	560	M20×1.5			ABS
TN1200	1.2	1200	395	185	560	M20×1.5			ABS







 Benefits of Pocket plate nife nickel-iron battery

• Excellent charging efficiency and smooth discharge voltage


• High reliability without sudden death


• Ability to withstand ultra-high and ultra-low environmental temperatures


•

  Withstand physical and mechanical abuses




•

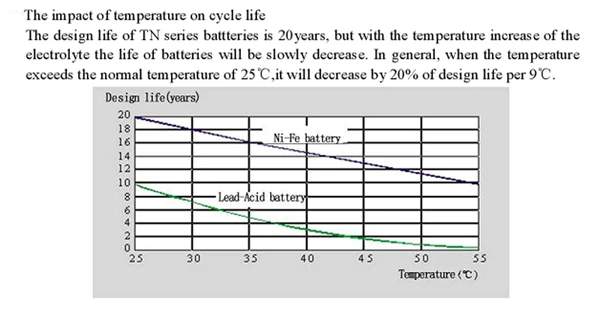

  Exceptionally long & reliable service life




•

  Pollution-free,total green energy




•

  low Self-discharging




•

  No emission of corrosive gases, Safe from flame & explosion




•

  Pollution-free and excellent mechanical strength




•

  Convenient for installation and low maintenance




•




  Availability to design and manufacture other model according to user's requirements
