LY SV550C Bga rework station widely used in LCD TV boards,laptop boards and server boards repair
- Category: >>>
- Supplier: Shenzhen Liyang Welding Equipment Co. Ltd.
Share on (60115043419):
Product Overview
Description

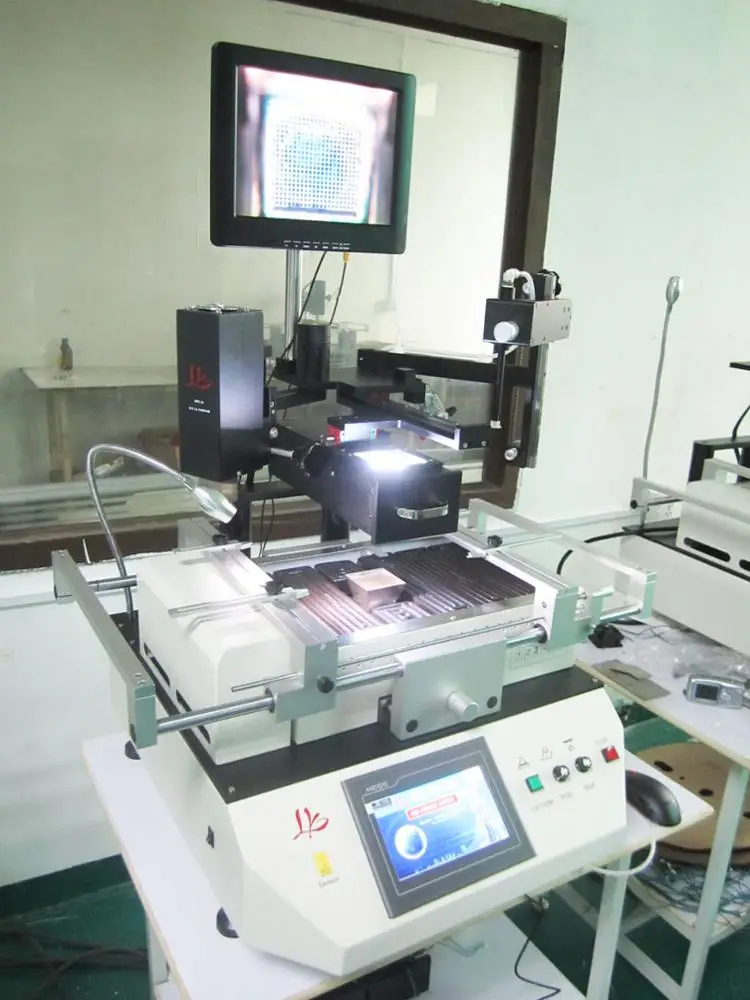

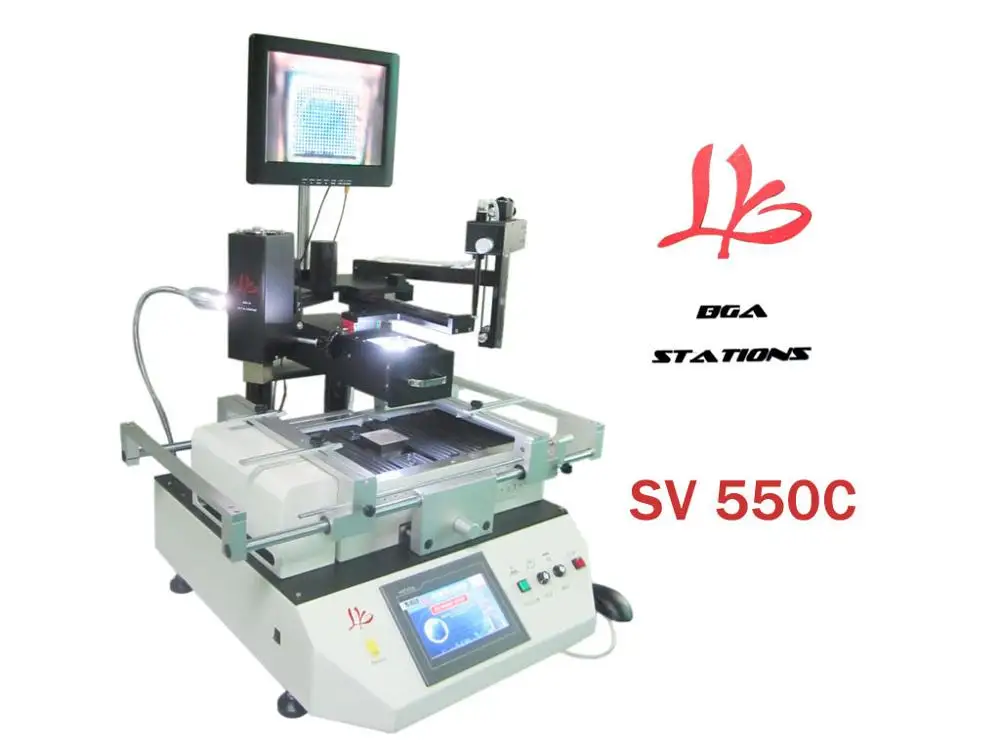

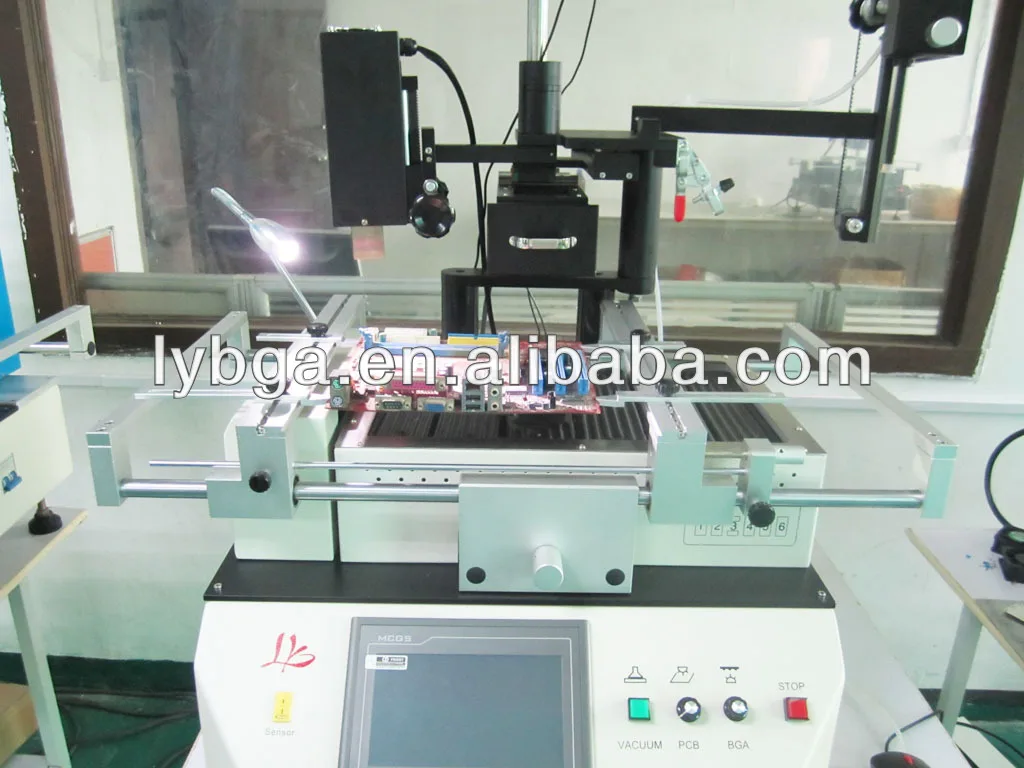

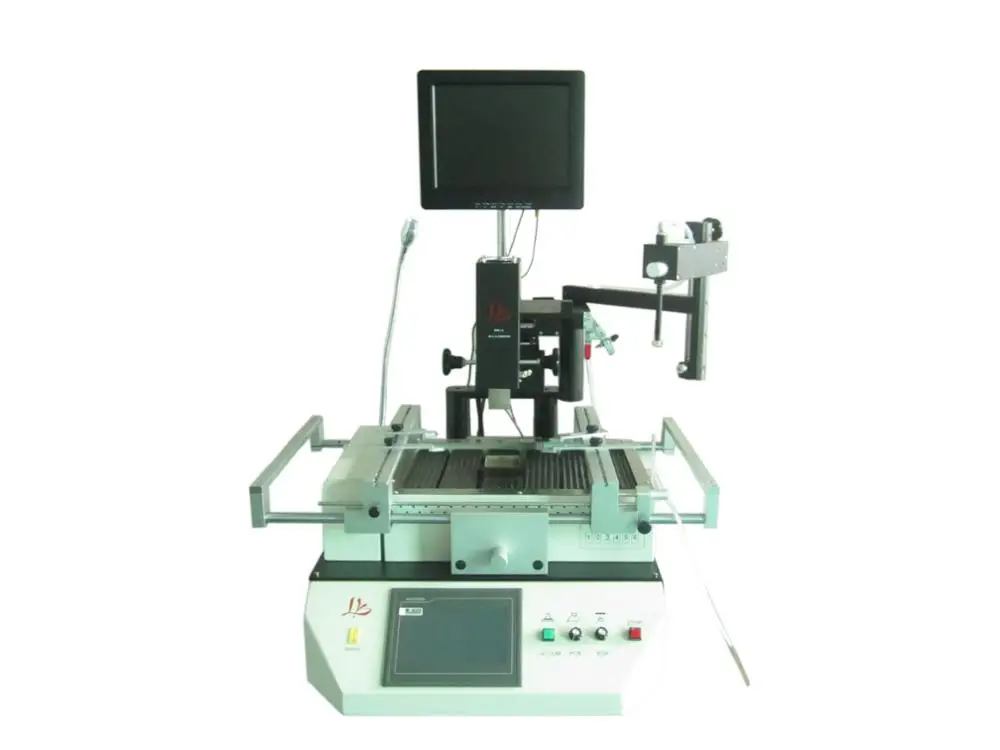

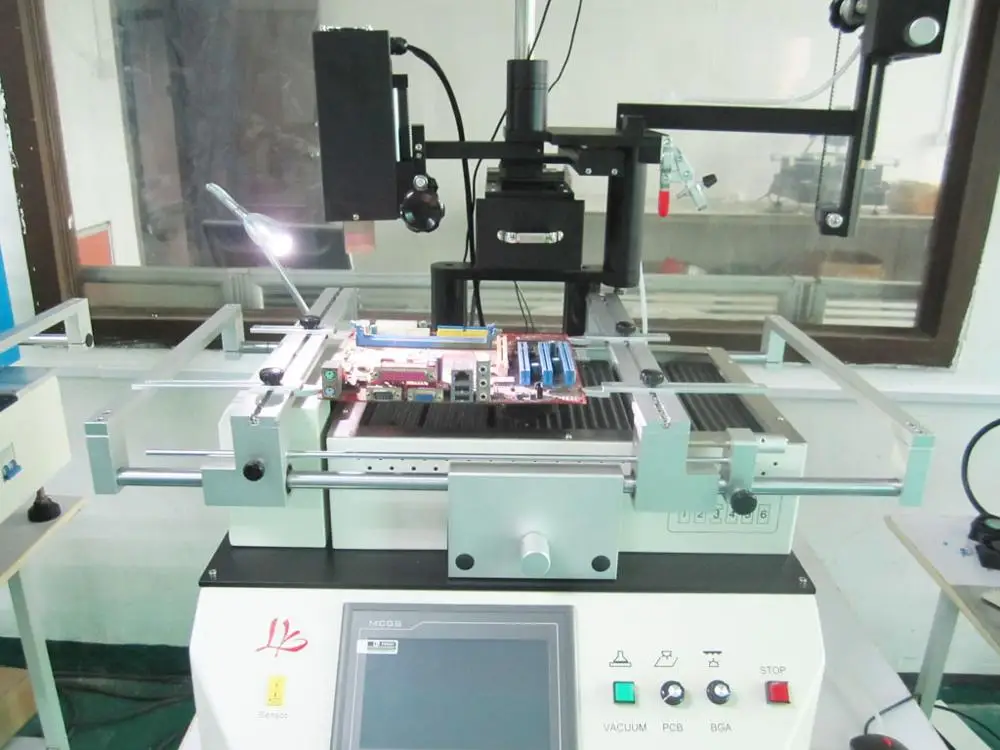

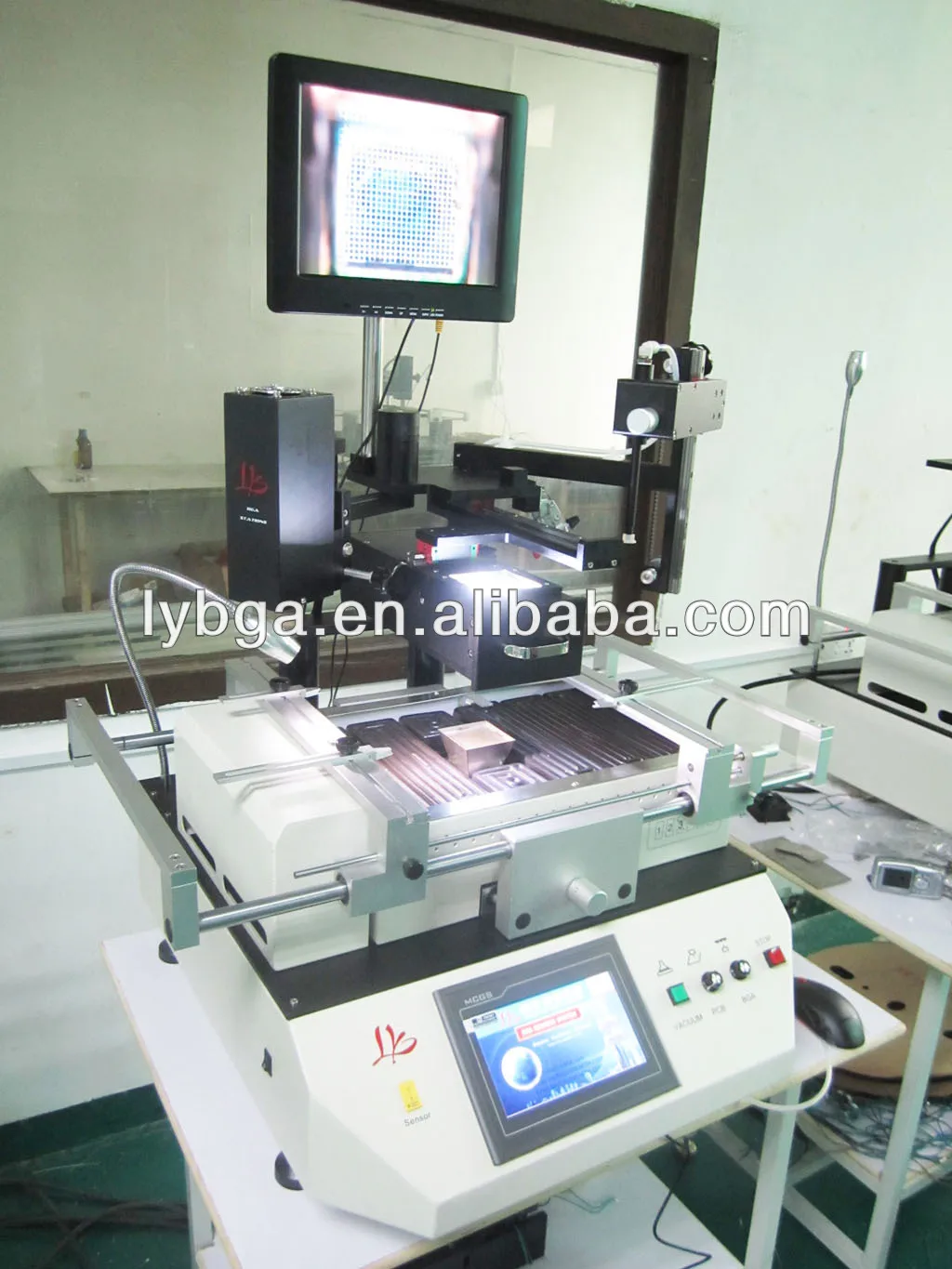

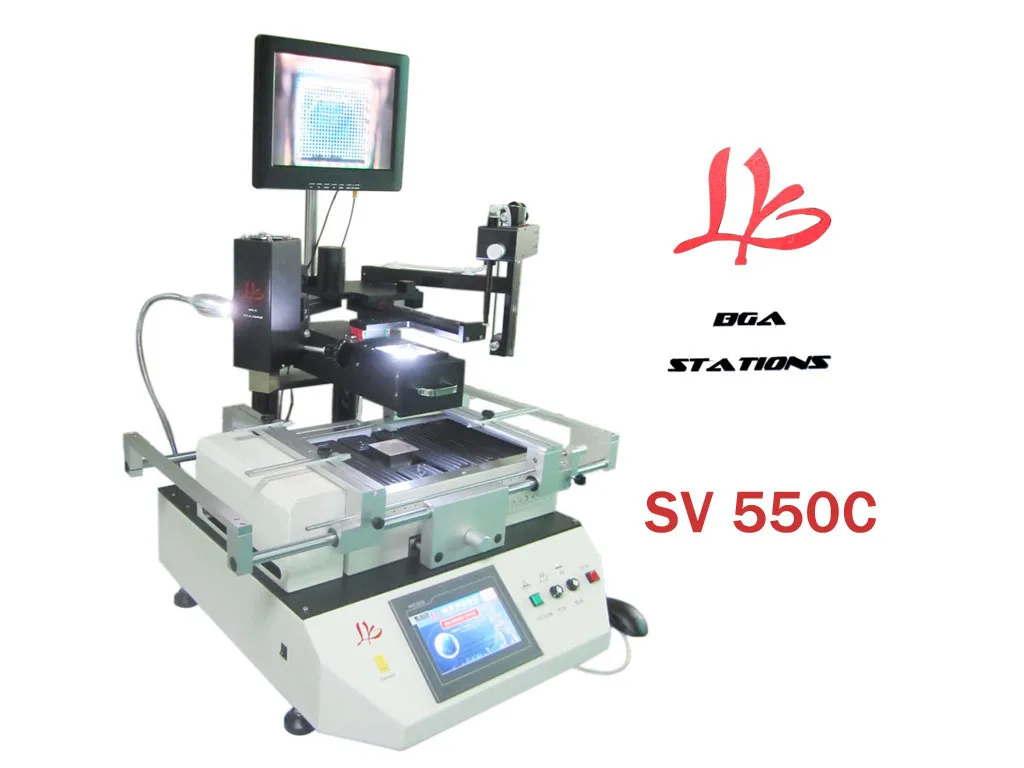

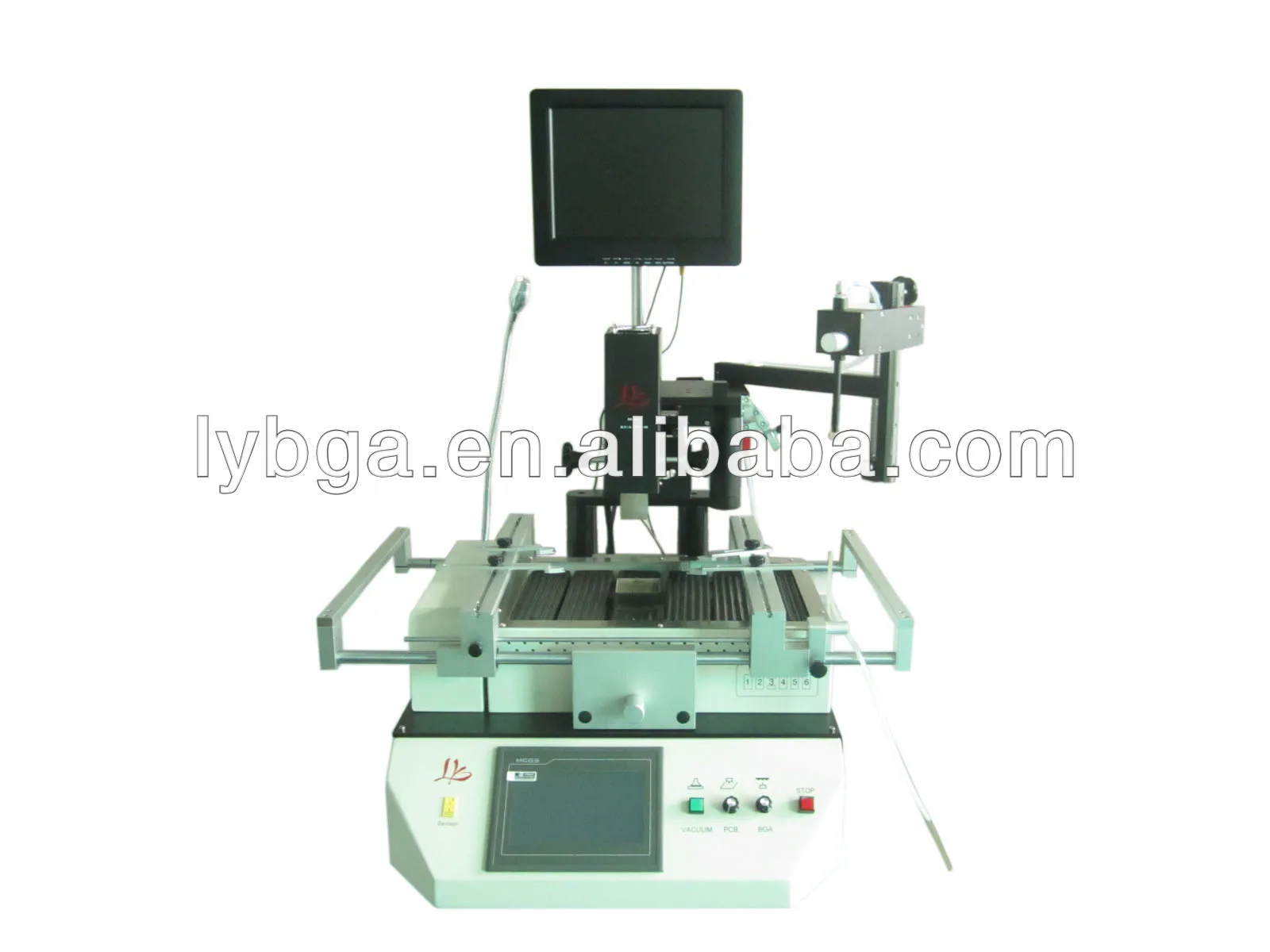

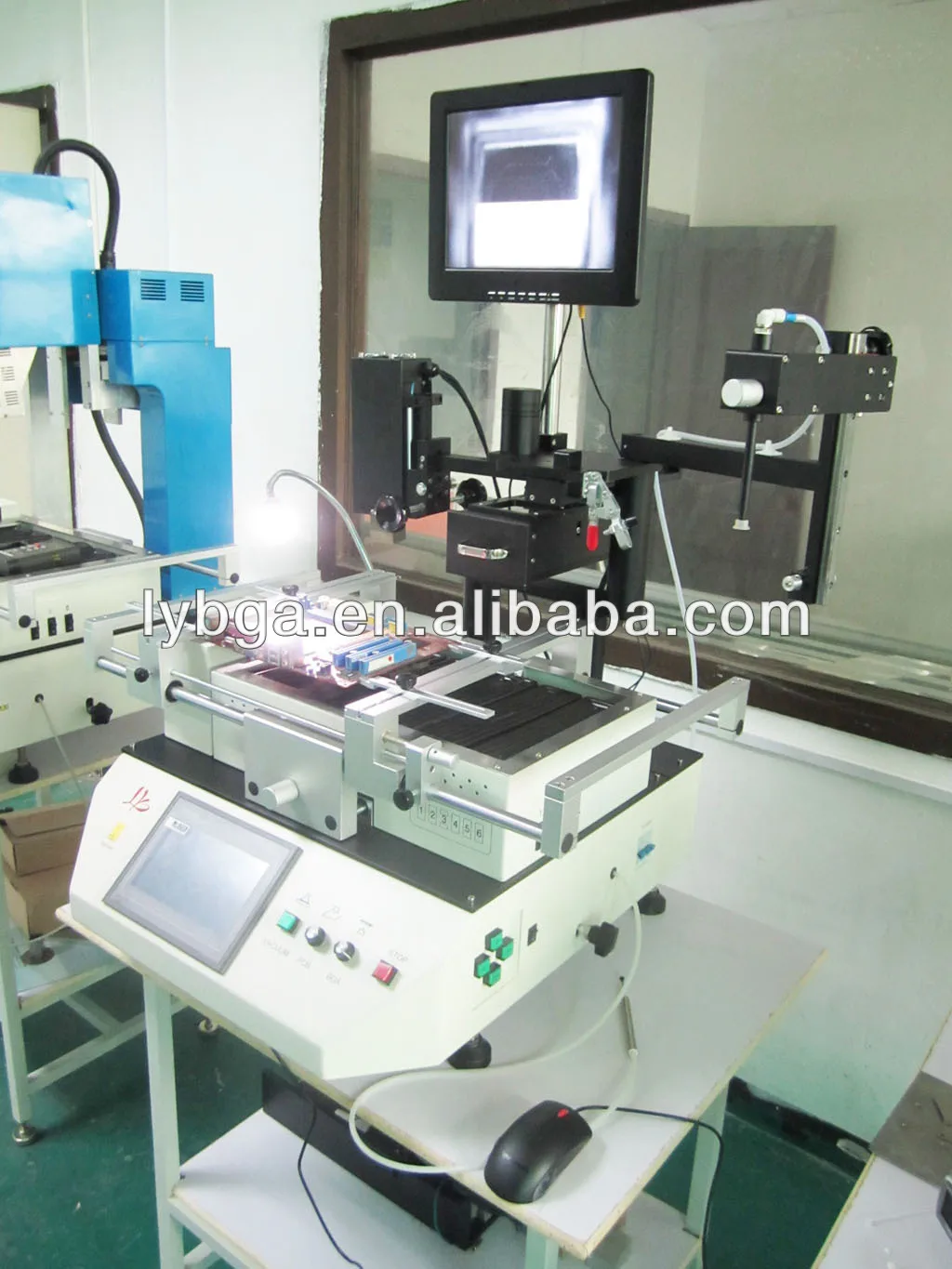

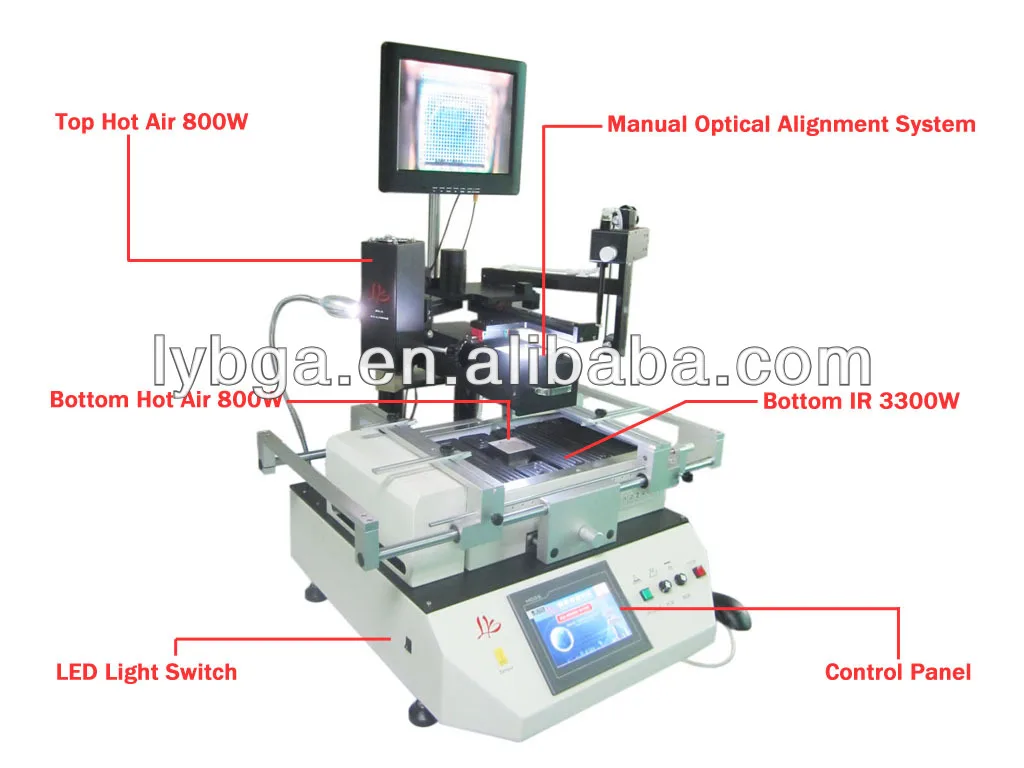

Automatic optical alignment station LY SV550C
1. Characters: small size; powerful functions; automatic optical alignment;
2. efficient in repairing; with a successful rate of above 98%;
3. widely used in LCD TV boards, laptop boards and server boards repair.
performance parameter:
1. The station is small and light and easy to repair by the modual design, it is unneccessary to connect external pressed air and working volatge is 220V.
2. This station is with powerful fuction, which can dismantle, solder and align, mount automaticlly.

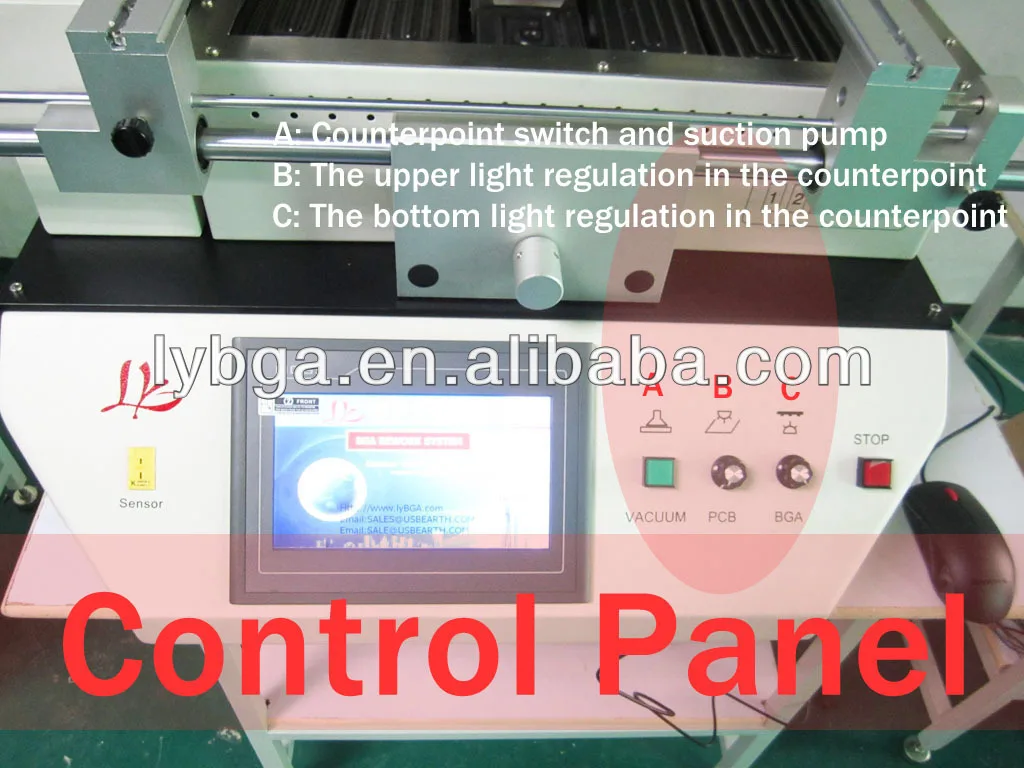

3. It is intelligent and easy to operate, controlling by PLC.

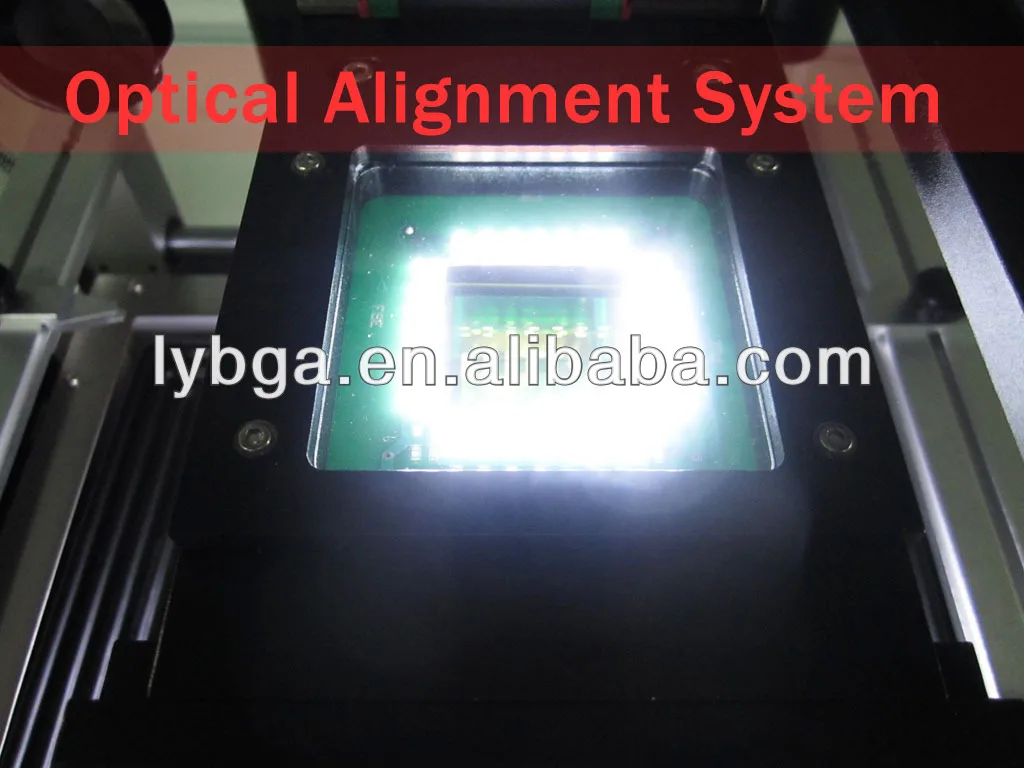

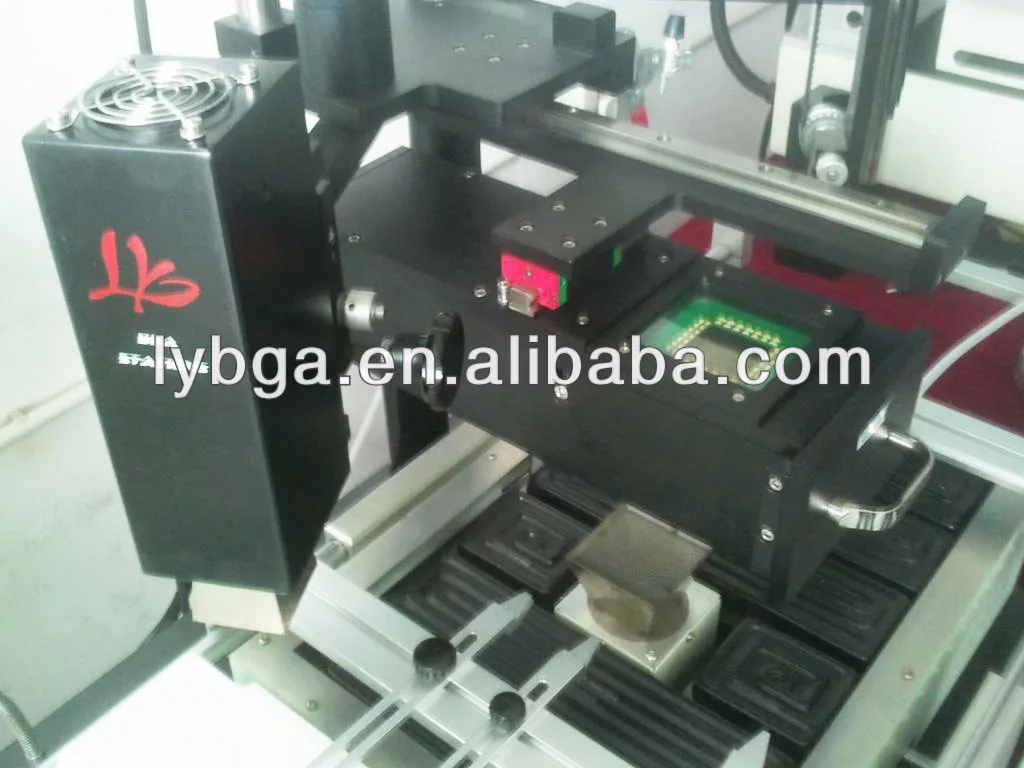

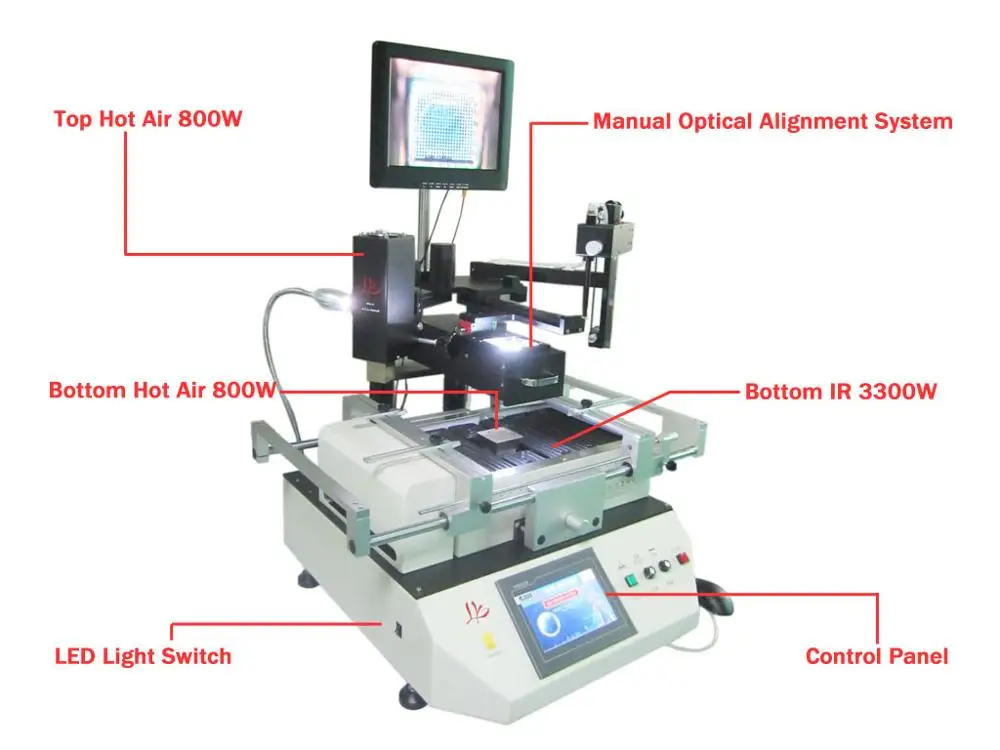

4. The optical alignment system apply special prism and high-accuracy CCD system, thus the user can observe the two images(BGA(CSP) chip bottom tin soldering and BGA(CSP) soldering pad on the PCB) overlapping. The chip can be accurately mounted by the fine adjustment along X and Y axis and the angel adjustment.
5. It has three heating areas, which is good for lead free reworking.
6. Wth a large bottom heating area of 300X400mm and hot net.
7. Six temperature segments, which can totally simulate the result of soldering oven.

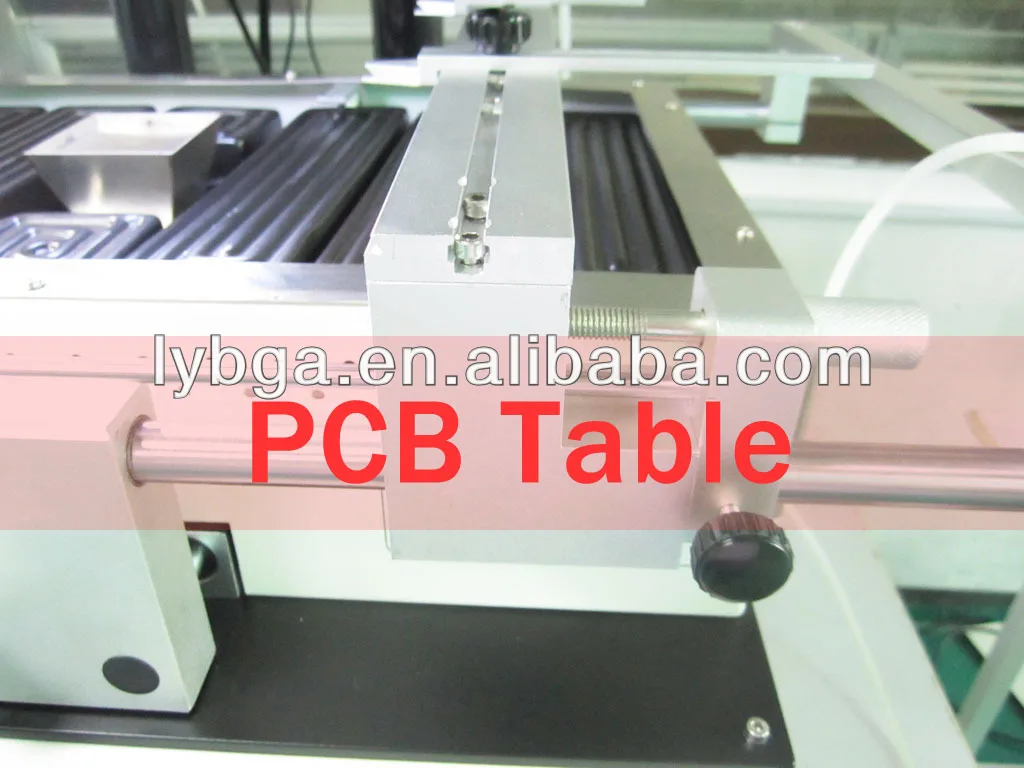

8. Seperated 5 points structure, which can prevent the bend of PCB board. It is suitable for laptop and LCD TV repair.
9. After heating, using high current constant fan to cool PCB in case of being out of shape and to keep the good effect of soldering..
10. It is with audio prompt when dismantling and soldering finishes, and the vacuum suction pen can suck the BGA, which is convenient, reliable and durable.
Packaging & Shipping
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
Company Information
LyBGA factory is located in Shenzhen, China.
Our factory owns 2 brands , Ly and Bauer.
We has 10 years experiences in manufacturing and exporting BGA rework stations.
Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …
CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
