Product Overview

Description

    hardfacing electrodes tungsten carbide welding rods



Why choose us?

Zhuzhou Better Tungsten carbide company is an export focused manifacture based in Zhuzhou City, where is called"town of tungsten carbide".



ZZBetter started tungsten carbide business from 2000, to now it has been 14 years. With good social relation and  good reputation in Zhuzhou carbide field, we are a leading export company in Zhuzhou city.



Zhuzhou Better Tungsten Carbide Company is devoting to offer her customer with good quality and good price carbide products to make progress together with her customers. ZZBetter also dares to chanllenge technical difficulties, at present it can provide tungsten carbide rods, strips, carbide heading dies, carbide drawing dies,c arbide disc cutter, carbide mining tools, carbide saw tips and brazed tips such regular products, it can also provide tugnsten carbide rollers, sleeves, complicated carbide ball valves. And now tungsten carbide composite rod, tungsten carbide welding rods are also available.



Our faith is: growing up with our customers!

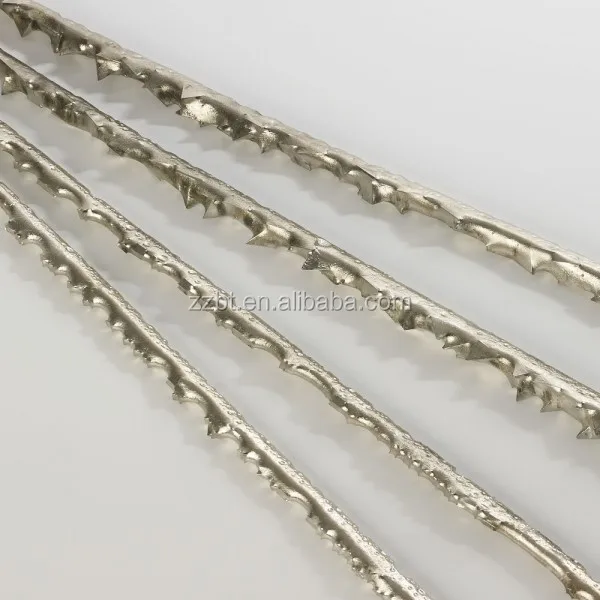

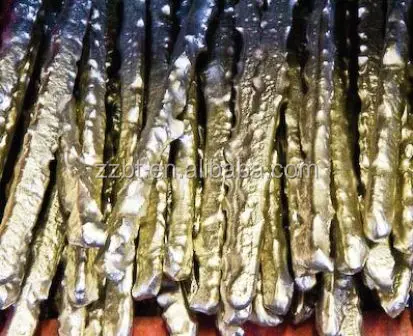

Description of the tungsten carbide composite rod:



Composite Rod used for cutting applications is manufactured from tungsten carbide processed to produce high quality angled fragments.

Composition: NCu, tungsten carbide grits

Hardness: >160 HB

TRS: >690MPa



Sizes:



Item	Size(mm)	Grain Size(mm)	Color
YD-9.5	9.5	9.5-6.5	Dark Green
YD-8	8	8-6.5	Dark Blue
YD-6.5	6.5	6.5-5	Red
YD-5	5	5-3	Yellow
YD-3	3	3-2	Pink
YD-10	10	10-18	Pale Green
YD-18	18	18-30	Pale Blue
YD-30	30	30-50	Pale Yellow









Application

1. Thoroughly clean the base metal.


2. Lightly heat base material then apply flux. A little heat before applying powdered flux helps it stick to the base material, as the torch has a tendency to blow the flux away.


3. Gently heat the base material to melt flux, observe its coverage and correct any bare spots.


4. Applying a coating of Tungchip Tinning Rod can assist in the adhesion of the Composite Rod to the base material. The tinning rod can also be used to fill voids and give a smooth appearance if required.


5. Heat base material until it just begins to turn red. At this point begin applying rod to base material. The Tungchip Tinning Rod should flow onto the base material. If the Tungchip Tinning Rod balls up, it is not hot enough. Adversely, if the Tungchip Tinning Rod runs across the base material it is too hot. Care must be taken to maintain the proper temperature of the base material during application.


6. Composite Rod is sluggish and does not flow easily. How it flows can vary considerably, depending on the size and percentage of the Tungchip Tungsten Carbide Grit in the rod. Explanation of the exact technique for application is difficult but certain general advice can be given. Work slowly and gently with as little heat as possible. Allow the Composite Rod to precede the torch rather than follow it. If necessary use the rod as a pushing, packing and smoothing tool while applying just enough heat to melt the matrix. It would probably be beneficial for the beginner to practice on a scrap piece of steel before tackling the actual parts to be hardfaced. With practice good coatings can easily be made.
