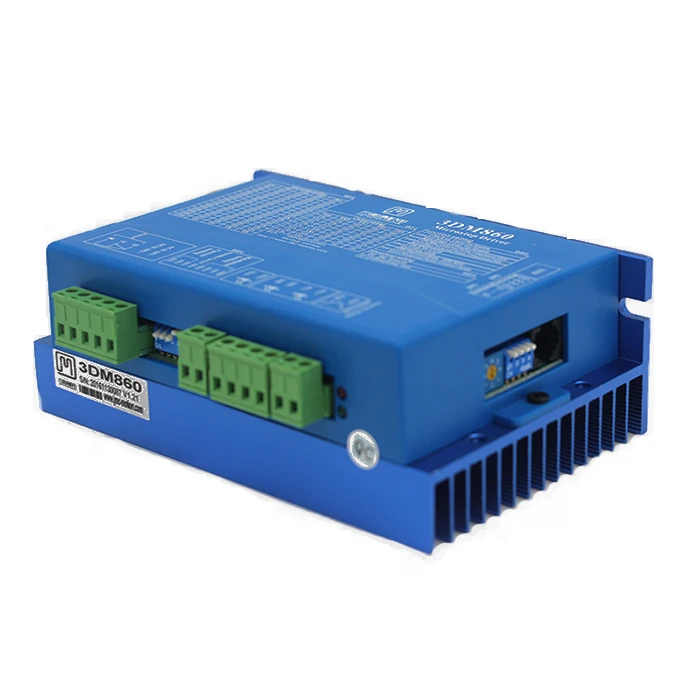

3-phase hybrid stepper motor driver 3DM860







Product Description





Stepping Drivers Key Features:

1  18 to 80VDC Supply Voltage

2  H-Bridge, 3 Phase Bi-polar Micro-stepping Drive

3  Suitable for 3-phase, step motors, with Nema size 16 to 34

4  Output current selectable from 1.9 ~ 8.2A peak

5  Current reduction by 50% automatically, when motor standstill mode is enabled

6  Pulse Input frequency up to 200 kHz

7  Optically isolated  differential TTL inputs for Pulse, Direction and Enable  signal inputs

8  Selectable resolutions up to 12800   steps

9  Over Voltage, Coil to Coil and Coil to Ground short circuit protection.



Introduction

3M860  is a bi-polar three phase micro-stepping drive applying pure-sinusoidal current control technique.  It had the potential of delivering more torque with smoother stepping motion with a three phase motor. This results in lower vibration and higher performance as compared to the two phase type.   It is best suited for applications that desire extreme low speed smooth motion, especially in multi-axes linear and circular interpolated application, or application that is sensitive to vibration, at extreme slow speed.



With precise current control technique and optimization in speed control, this three phase PowerStep drive is well suited for three phase hybrid step motor, producing a performance close to a brushless DC servo operation.



Specifications



Parameters

Min

Typical

Max

Unit

Output Current (Peak)

1.9

-

8.2

Amps

Supply voltage

18

48

80

VDC

Logic Input Current

-

10

-

mA

Pulse input frequency

0

-

200

KHz

Low Level Time

2.5





µsec



Cooling

Natural Cooling or Forced Convection

Environment

Space

Avoid dust, oil frost and

corrosive gases

Ambient Temperature

0°C50°C

Humidity

40 80%RH

Vibration

5.9m/s² Max

Storage Temp.

 -10°C 80°C

Weight

Approx. 260 gram



Cooling

Natural Cooling or Forced Convection

Environment

Space

Avoid dust, oil frost and

corrosive gases

Ambient Temperature

0°C50°C

Humidity

40 80%RH

Vibration

5.9m/s² Max

Storage Temp.

 -10°C 80°C

Weight

Approx. 500 g
