KL8M LED miner cap light miner lamp

Product Overview

Description

KL8M LED miner cap light miner lamp



The kind of miner helmet light is designed based on GB7857-2003 General requirements for safety of mine lamp and MT927-2004KL mine light, which have characteristics of small size, light weight, long service life, free of maintenance, environmental protection.



safety:contained in a sealed battery case.the product has a short-circuit protection.LED light head lamp and anti-static housing which makes it   explosion-proof.
economy:used a environmentally friendly lithium battery as a power sourse.The bulb is an energy saving,high power lumiled with a service life of over 50,000 hours.the battery can be charged for more than 1000 cycle  times.

portability:small in size,light in weight,humanized design,simple charging,easy operation.



We are a professional miner lights' factory.We can produce the mine lamp according to customers' requirement.such as shape of the battery box and lamphead,illumination of the bulb,capacity of the battery,color of the lamp.

Detailed Specification



Features	Specifications
Rated capacity	≥ 8.8Ah
Rated voltage	3.8V
Continuous working time(standard version)	≥ 13 hours
Main light LED Working voltage	3.0V
Main light LED Working current	550mA
Main light Power	2.3W
Main light Luminous flux	230Lm
Lamp lighting degree Initial Lighting degree	≥ 16000Lux  (16000Lux~23000Lux)  (distance in 1 m)
Lamp lighting degree Lighting degree in 13 hours	≥ 16000Lux  (16000Lux~23000Lux)  (distance in 1 m)
Main light life span	≥ 30000h
Auxiliary light Power	0.4W
Auxiliary light life span	≥ 20000h
Short circuit protect time	<320μS
Life span of the battery (recharges)	1000 cycles (in reasonable working condition)
Charging time	8-10 Hours
Dimensions	75 x 26 x 82mm (size of the battery box)
Main cable	1.4M  / 1.65M
Weight	0.6kg

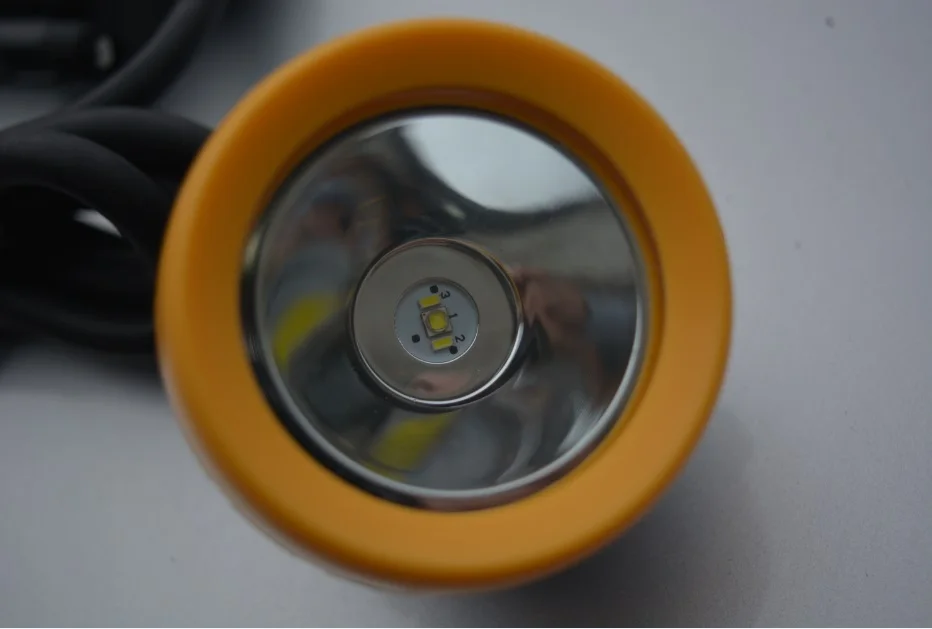

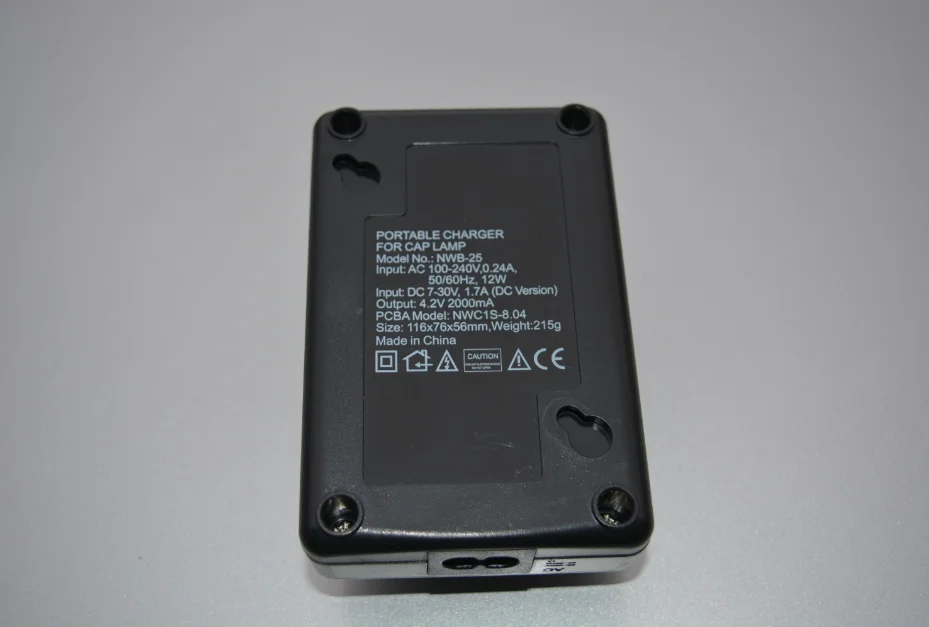

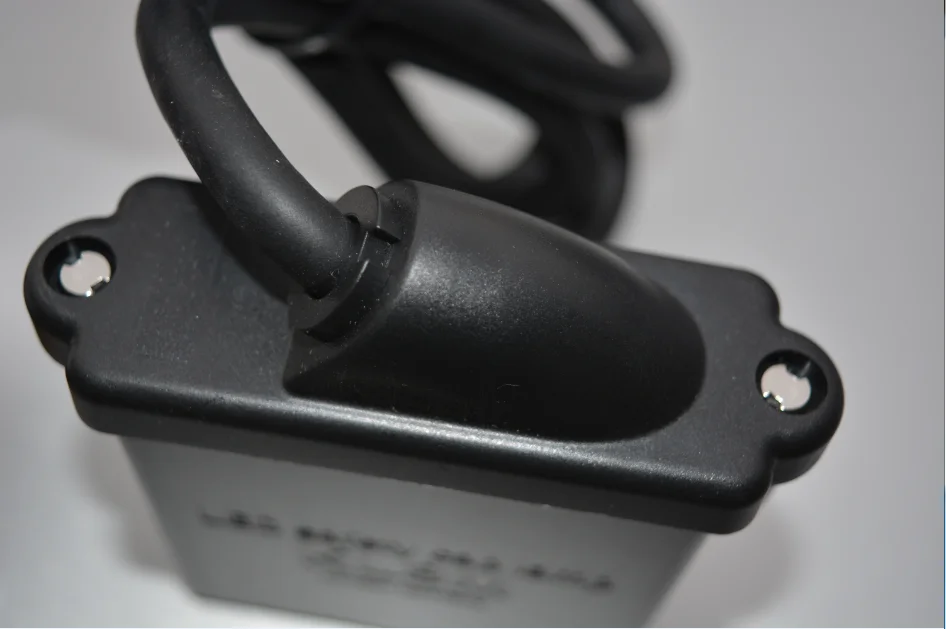

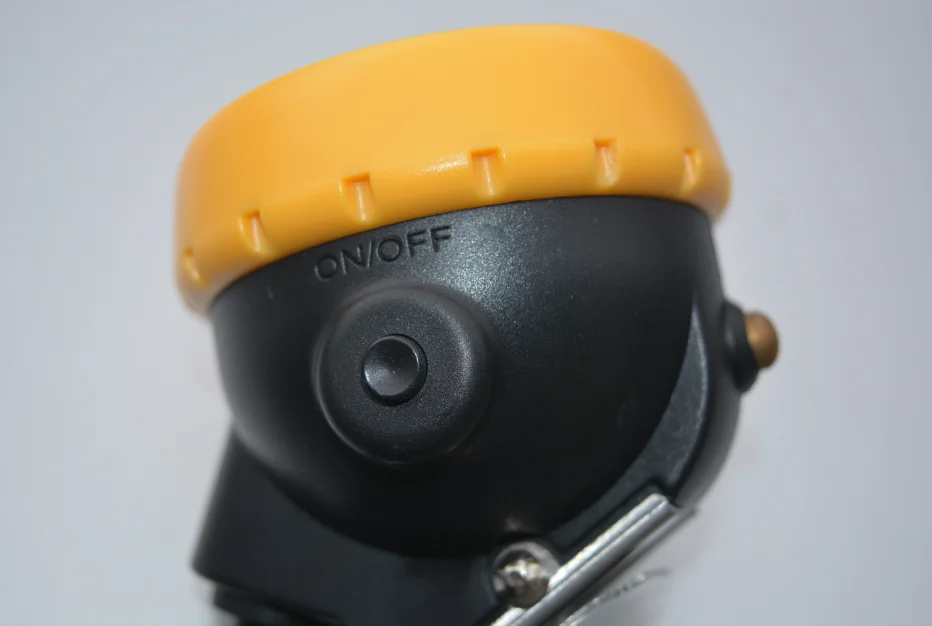

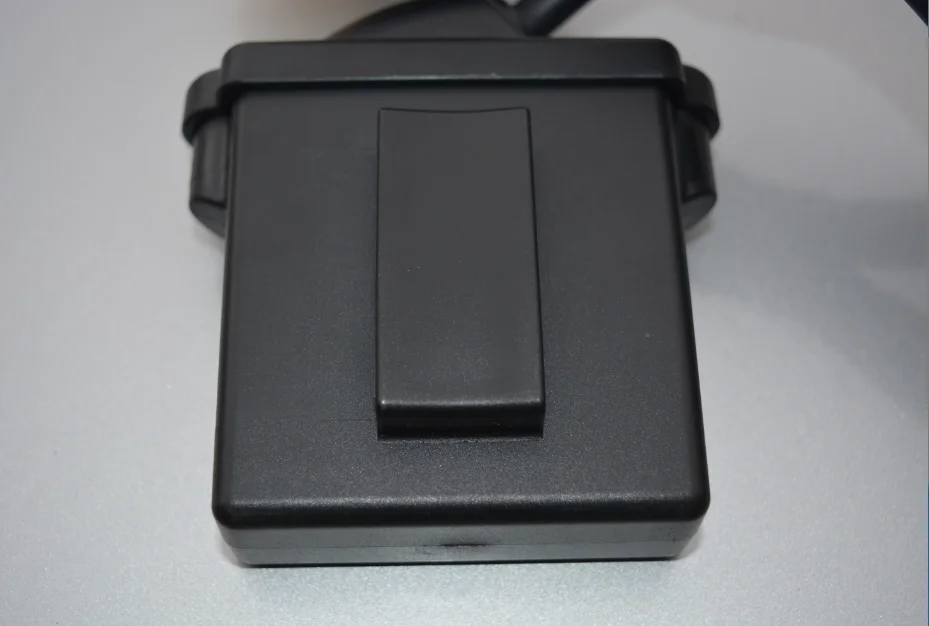

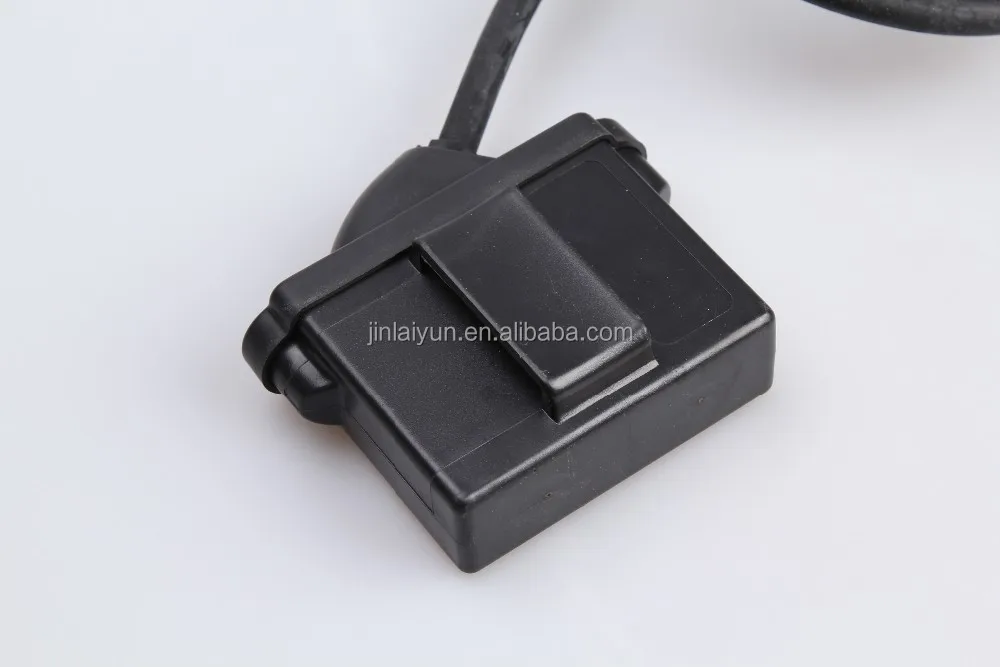

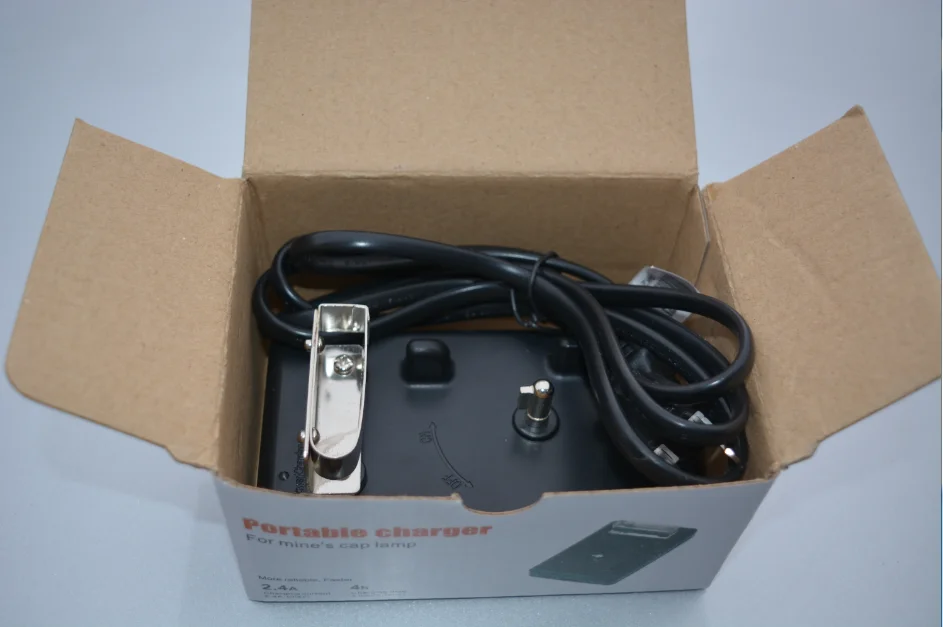

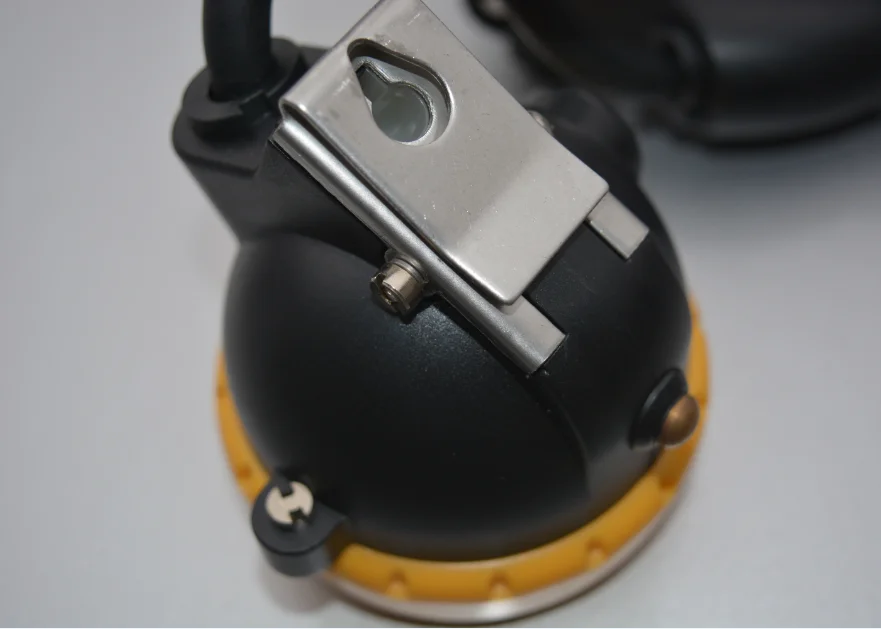

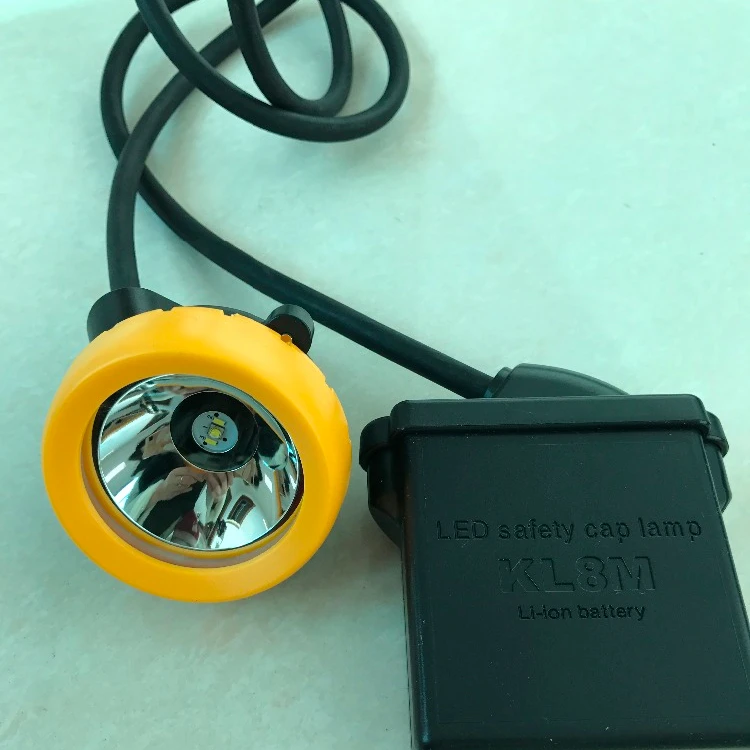

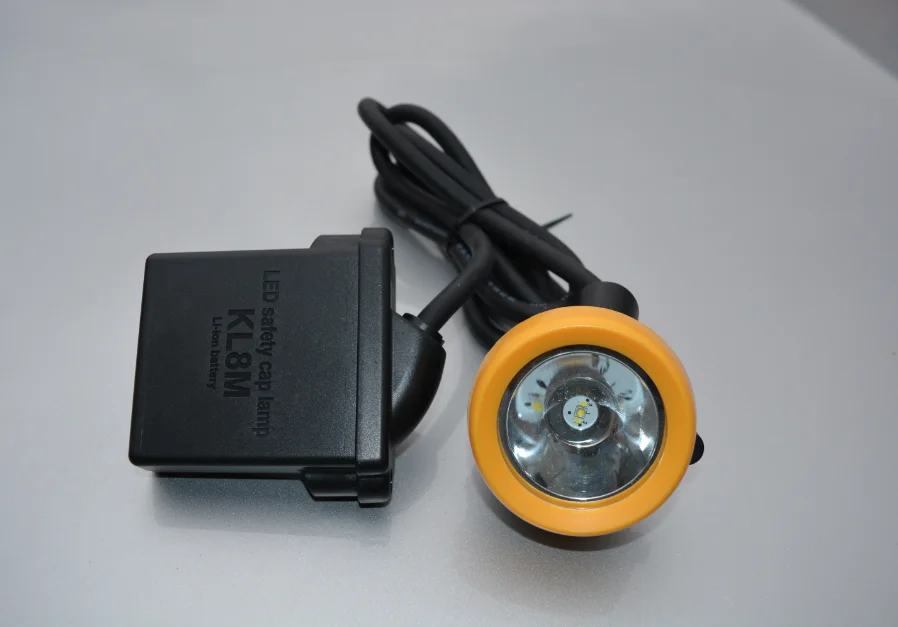

The picture of LED mining cap lamp KL8M
