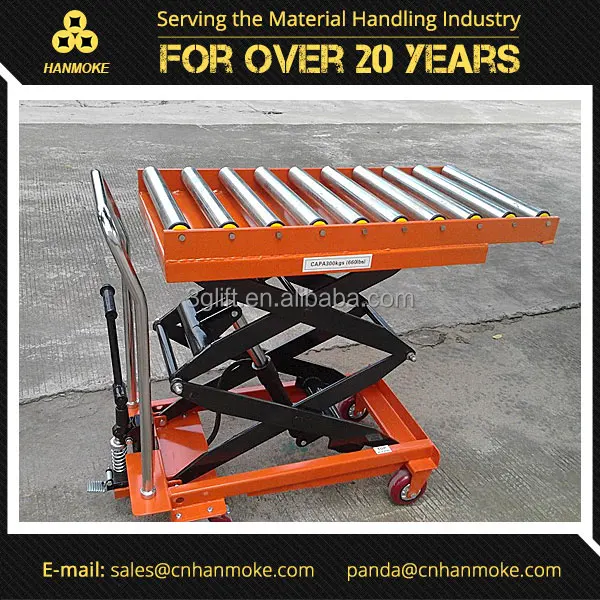

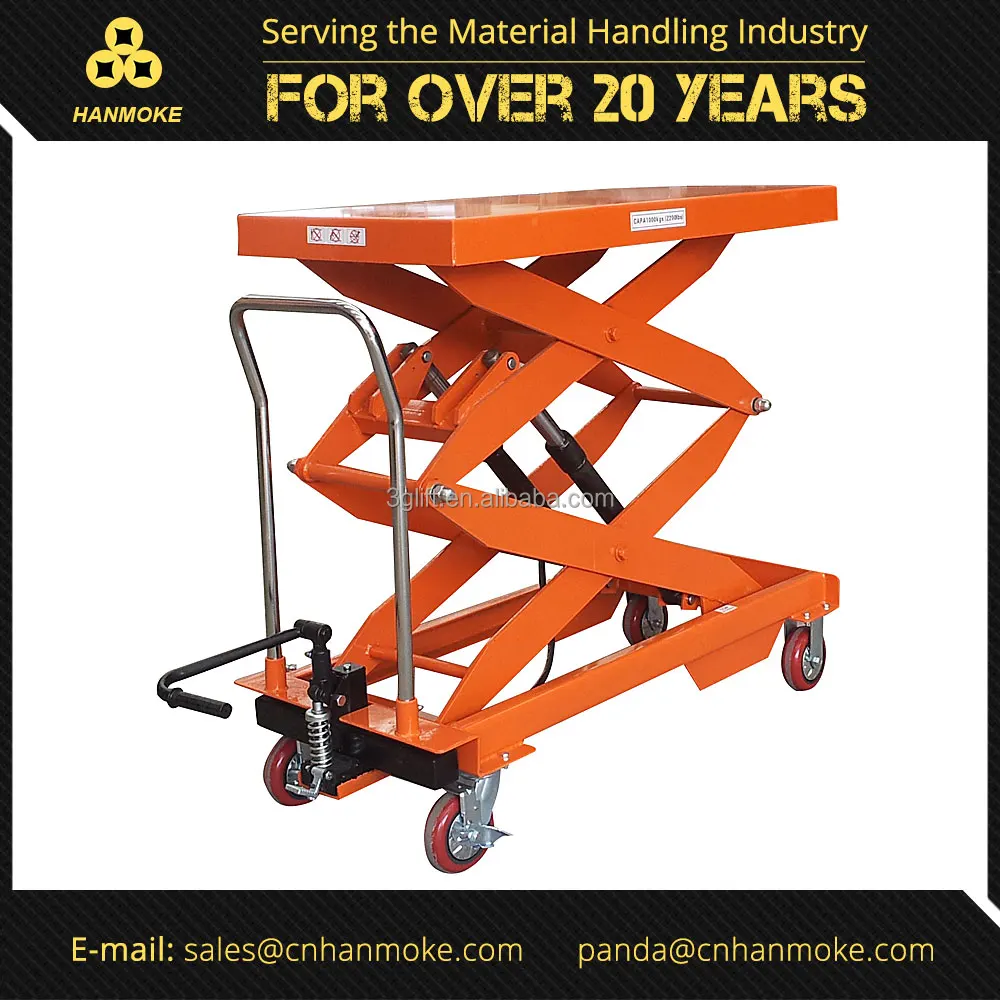

Roller Top Foot Pump Hydraulic Manual Lift Table, Customized Available

Product Overview

Description

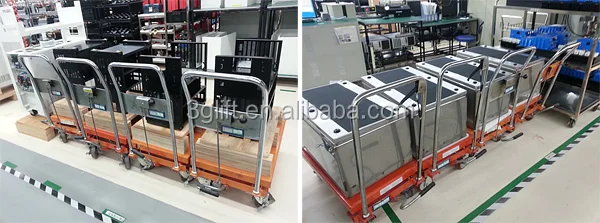

Ideal for transporting loads to and from work cells, the portable manual lift table can be used as work platforms or raised and lowered to facilitate load transfer to tables or benches.





Specifications:

Model			HPD-1000	HPD-2000	HPS-1000
Load capacity		kg	1000	2000	1000
Raised height	h12	mm	1000	1000	1700
Lowered height	h13	mm	380	380	500
Platform size	l x b5	mm	1200 x 610	1200 x 610	1200 x 610
Tabletop thickness	s	mm	80	80	80
Lifting speed		mm/s	15	15	15
Wheel dimensions	d	mm	Ø150	Ø150	Ø150
Net weight		kg	165	190	225
Gross weight		kg	167	192	227
Packing size		mm	1370/620/390	1370/620/390	1370/620/510
Packing volume		CBM	0.33	0.33	0.44
Qty./20'GP		pcs	65	65	52



Measurements:

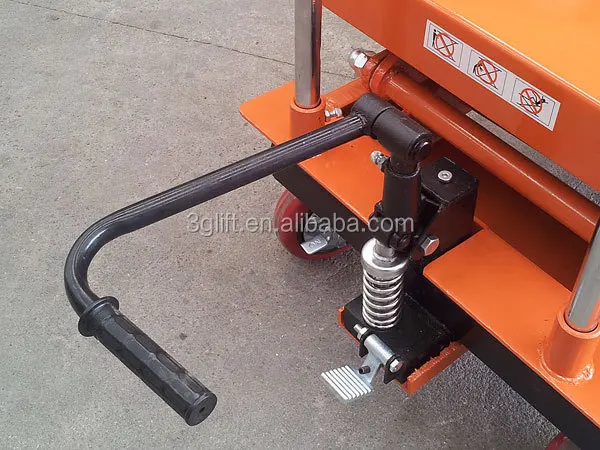

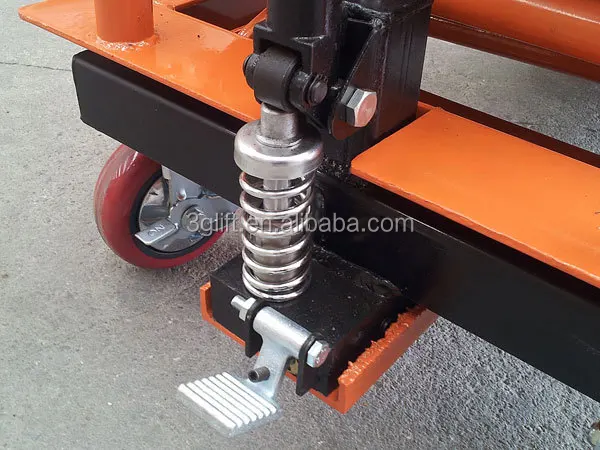

• Convenient foot pump for easy lifting and lowering.

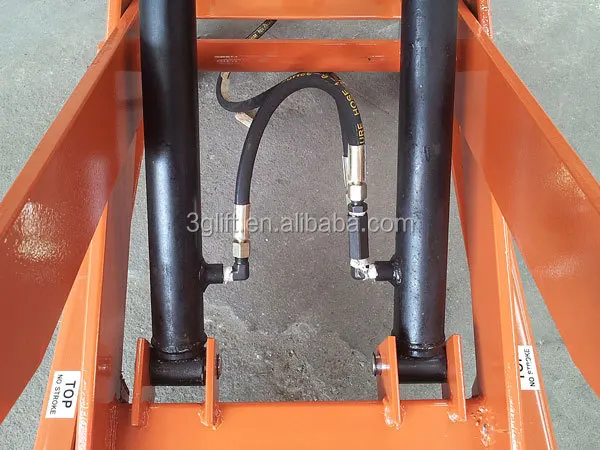

• Dual-Cylinder design (standard on HPD models & HPS1000).









• Overload protection ball valve prevents lifting loads past maximum capacity.

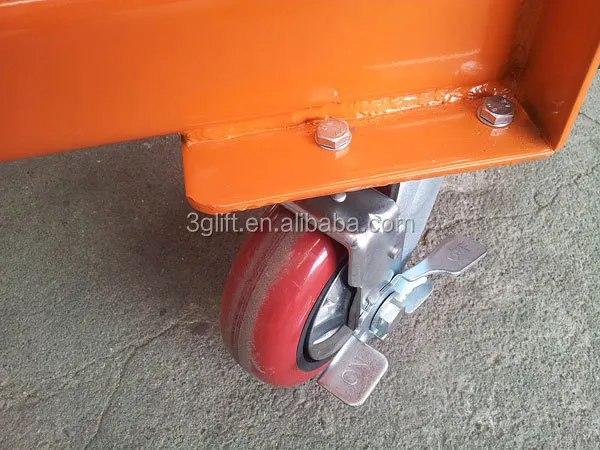

• Steering casters with brakes.

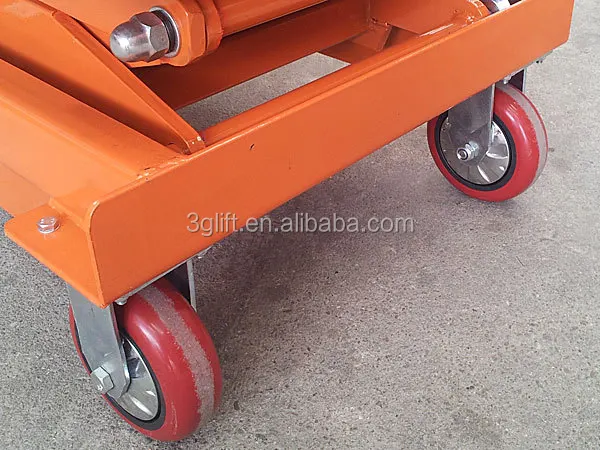

• Rigid load casters.

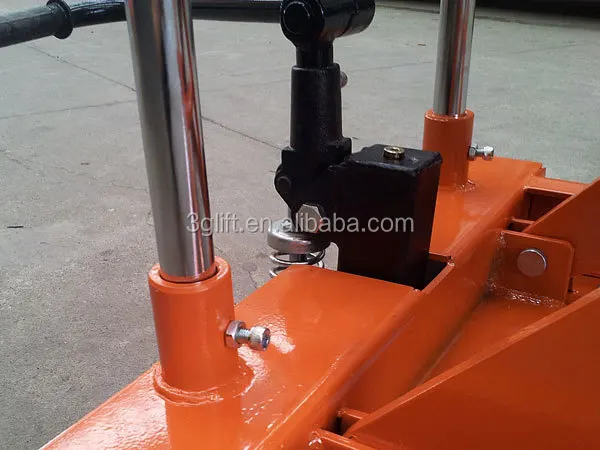

• Removable chromed handle frame is both attractive and durable.

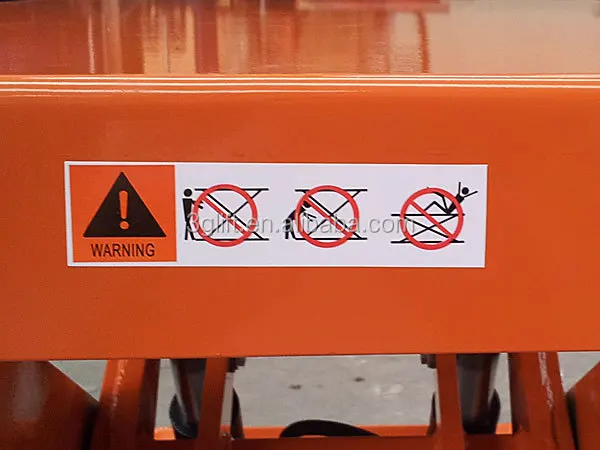

• Safety Instruction.

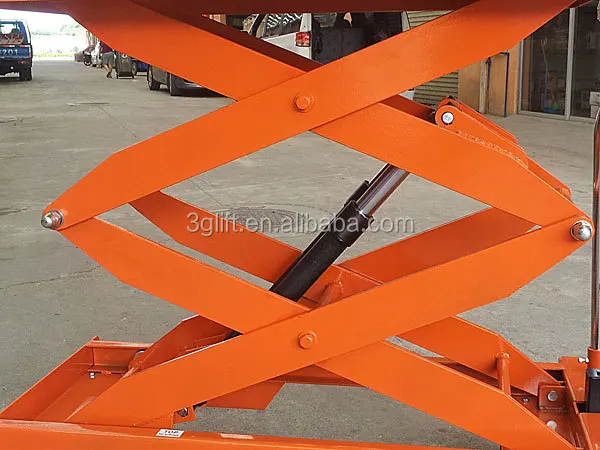

• Double scissor lift provides additional lifting height (standard on HPS models).







• Packed in standard export package (packed in cartons)







• Custom sizes and capacities can be designed for your specific needs.





With more than 10 years experience in manufacturing, Hanmoke is able to supply scissor lift, loading ramp, electric stacker, pallet truck and most of the material handling equipment.





 Finished Products Warehouse:
