Product Overview

Description



Best Selling




Product Description

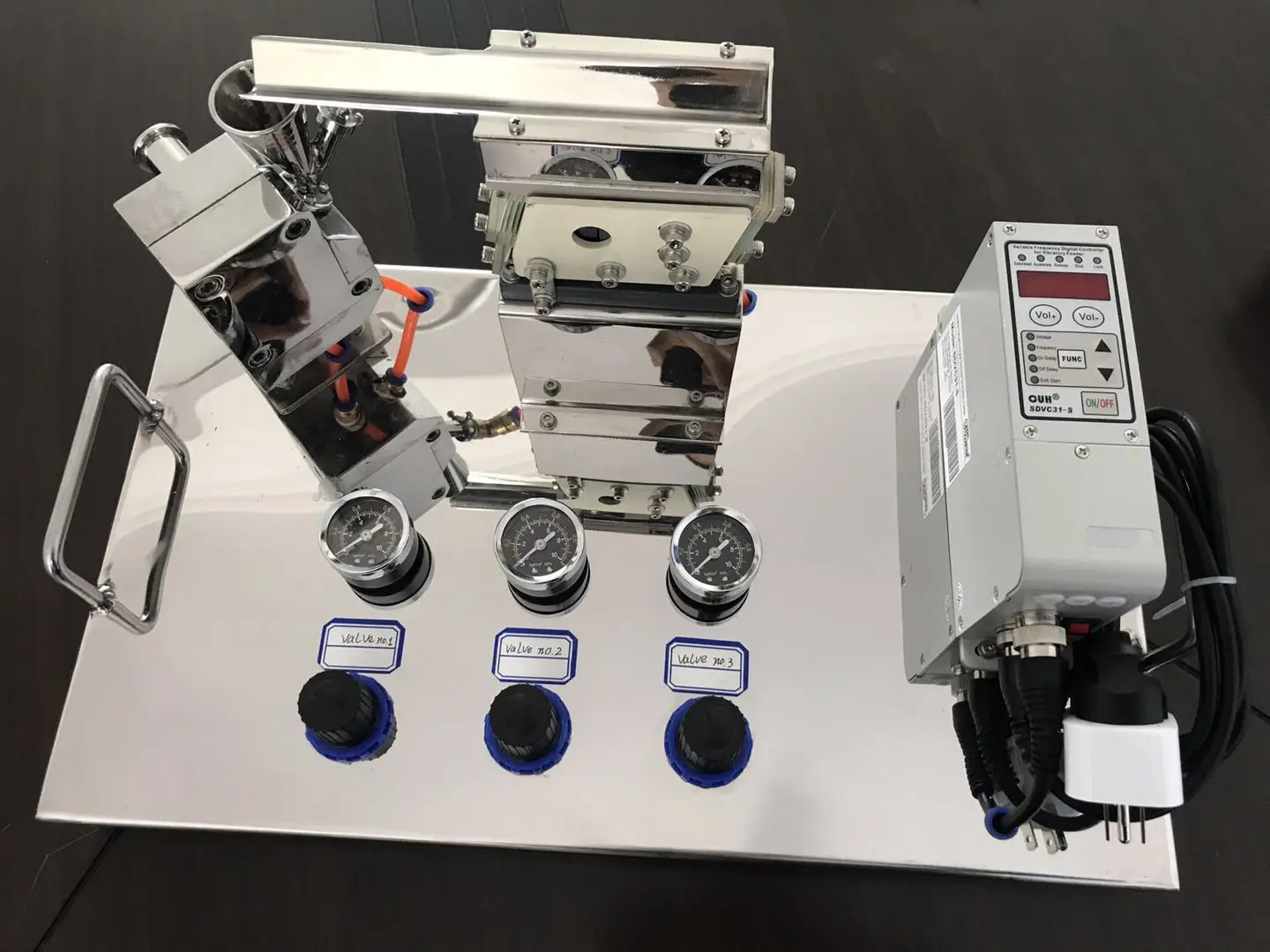

lab air jet mill




It is easy to obtain particles of micron meter grade or hypo micron meter grade.
crushing material: pigment, Chemicals,pharmaceutical,metallurgy,abrasives,non-metallic minerals,battery anode and cathode materials,talc,kaolin,quartz,graphite,flame retardant,ceramics,pigments and food additives,etc.



Product Name
AO air jet mill
feeding size(mm):
≤ 0.38mm
fineness(d50=μm)
1-10μm
working pressure
0.6-1.0MPa
air consumption
0.3m3/min
Yield(kg/h)
5-300g


Using Effects


High-speed jet stream which formed by compressed-air pass through feed injector make powder materials suck into grinding chamber.Pulverizing nozzles which are installed around the grinding chamber inject high-speed jet stream to grinding chamber directionally, make powder materials pulverized by the action of impaction and friction between powder materials. High-speed jet stream form strong rotational flow in the grinding chamber, from this, the centrifugal force make powder particles do high-speed movement around the grinding chamber. When particle size is pulverized below classify size, particles come into collection system through centre discharge tube because of losing centrifugal force and be broken away from the classification ,rotational flow by the action of centrifugal air-stream s



Related Products

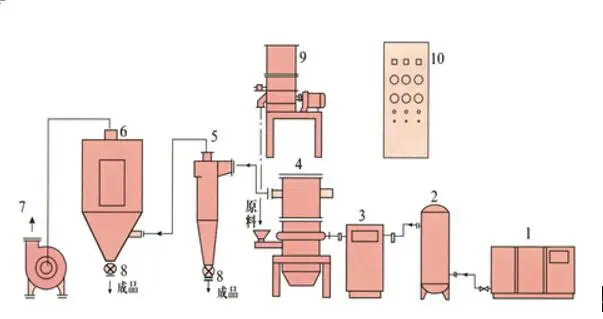

Flow Diagrammatic Sketch mart Lip



Packing & Delivery




Packing: LVL box ; shipping by sea or air


Company Introduction


1, our factory produce air jet mill from 1995 , We have professional producers & engineers and the designers carefully, we
have beeninnovative in concept to good quality to win market recognition.
2, OEM &ODM are accepted.
