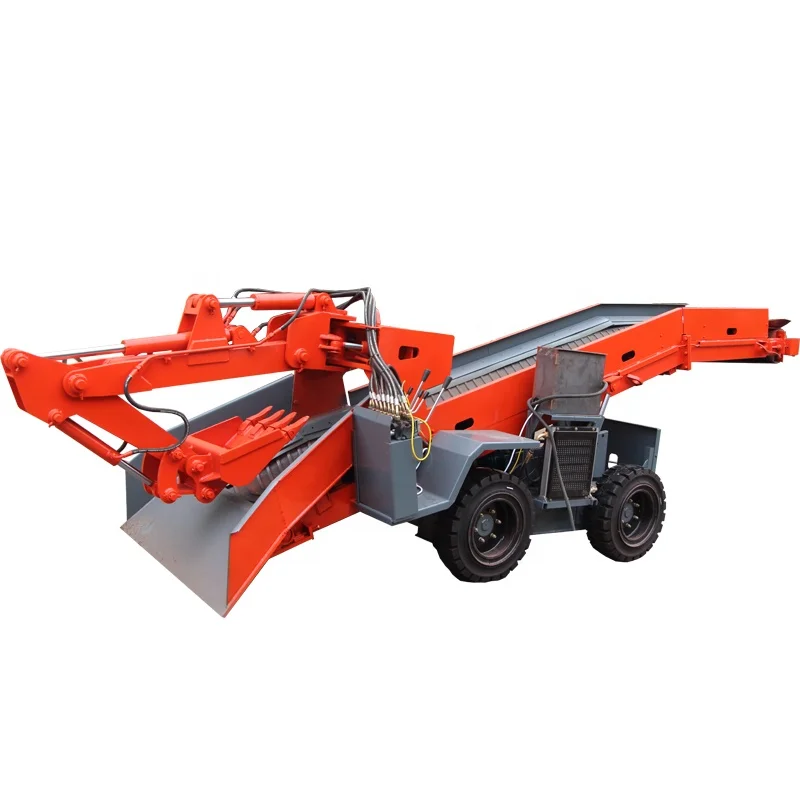

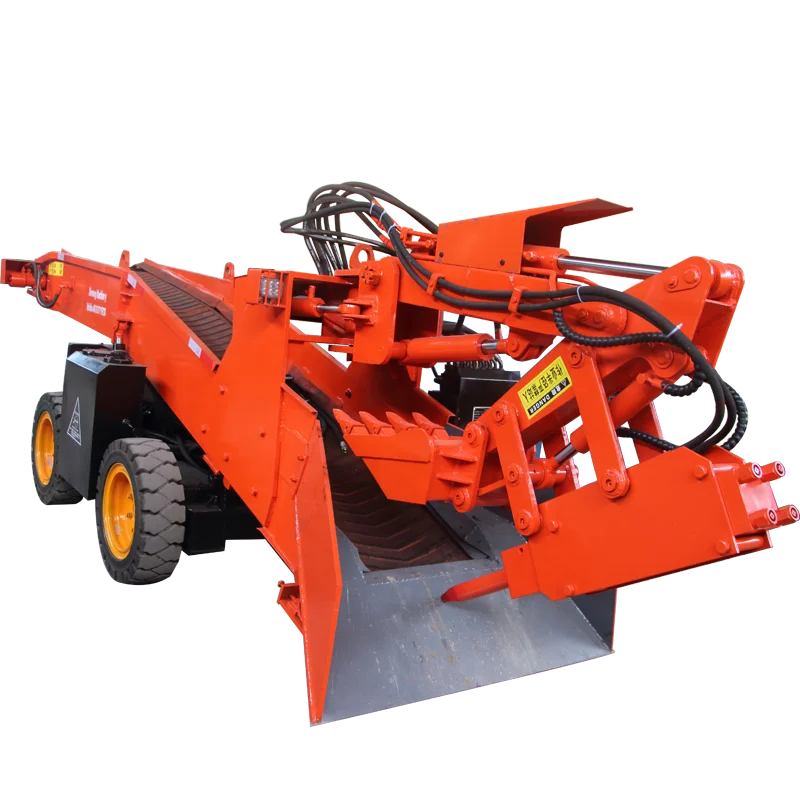

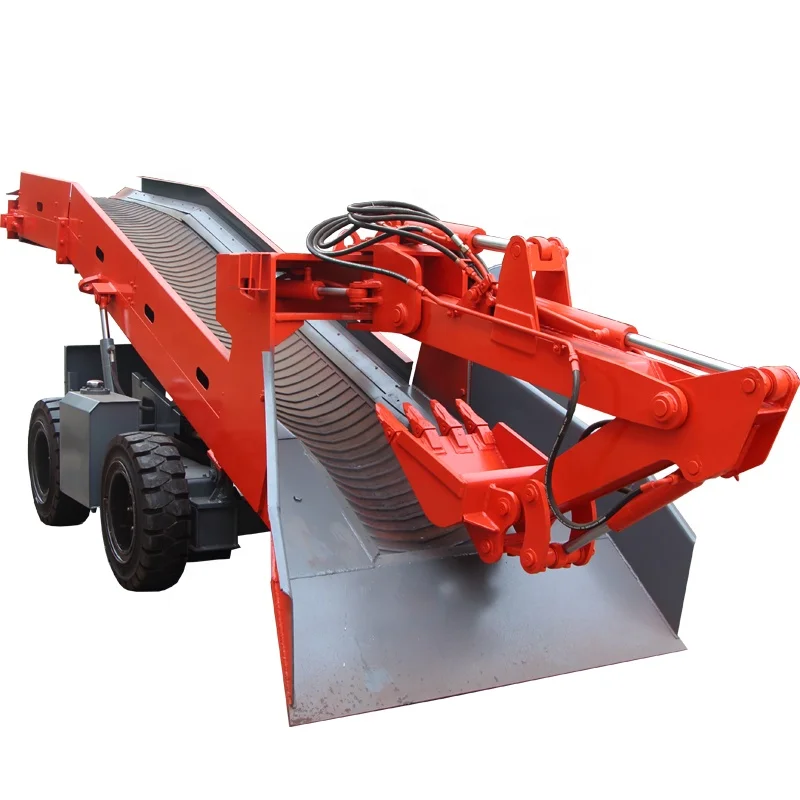

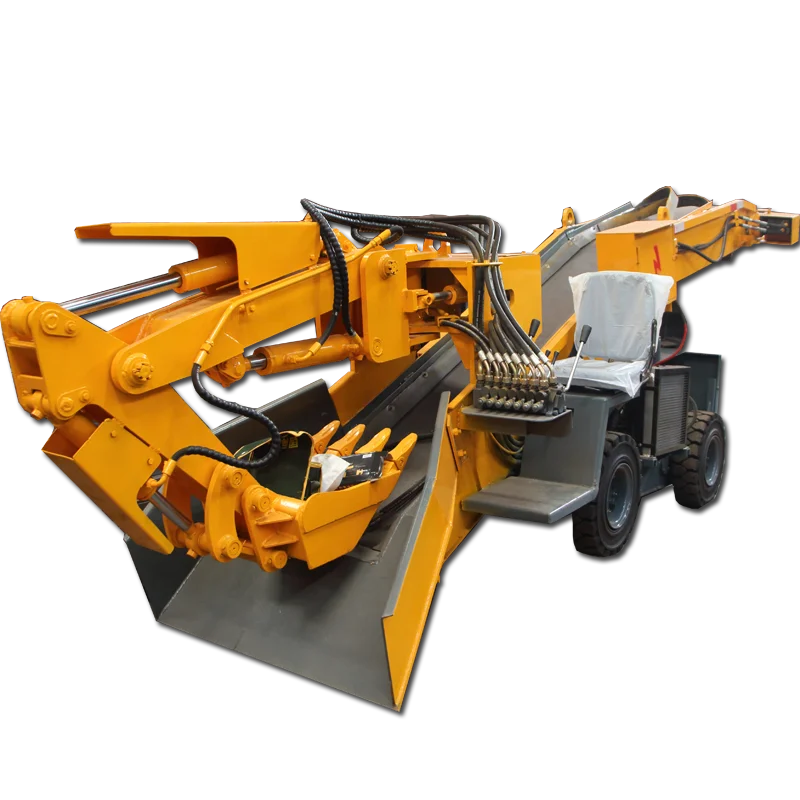

Crawler mucking loader in mining, mucking loader in mining for Small Tunnel
- Category: Other Mining Machines >>>
- Supplier: Gongyi Xiaoyi Jinwang Machinery Factory
Share on (60128984398):
Product Overview
Description
Product Description
Mucking loader is also called excavating loader.Reasonable bonding of manipulator and conveyor.Acquisition and transmission function combined into one.Besides,it adopts hydraulic control system and production equipment,so safety and environmental protection,low energy consumption,high efficiency,etc.
Main technical parameters
Model(wheel type) | ZWY-50A | ZWY-60A | ZWY-80A |
Traveling Speed | 2km | 2km | 2km/h |
Ground Clearance | 200mm | 200mm | 220mm |
Wheel Tread | 1380mm | 1480mm | 1700mm |
Wheel Base | 1500mm | 1500mm | 1600mm |
Rated WorkingPressure | 16mpa | 16mpa | 16Mpa |
Big Arm Maximum Turning Angle | ±73º | ±73º | ±73º |
Total Motor Power | 11+4kw | 11+4kw | 15+4kw |
Maximum Material Dimension | 650*500*500mm | 600*500*500 | 650*600*500mm |
AdaptiveTunnel Gradient | ≤15º | ≤15º | ≤15º |
Belt Speed | 0.63m/s | 0.63m/s | 0.63m/s |
Overall Dimensions | 4600*1380*1600mm | 5200*1500*1600mm | 6150*1750*1700mm |
Machine Weight | 3100kg | 3400kg | 3400kg |
Minimum Turning Radius | 4m | 4m | 4.5m |
Digging Width | 2000mm | 2400mm | 2400mm |
Digging Height | 1700mm | 1900mm | 2100mm |
Digging Depth | 700mm | 700mm | 700mm |
Digging Distance | 1300mm | 1550mm | 1800mm |
Dumping Height | 1400-1700mm | 1480-1700mm | 1700-1900mm |
Dumping Distance | 1400mm | 1400mm | 1900(can be raised) |
Grade ability | ≤15º | ≤15º | ≤15º |
Adaptive Tunnel Minimum Fracture | >1.6*1.8m | 1.8*2m | 2*2.4m |
Model(crawler type) | ZWY-80/37L | ZWY-120/55L |
Machine Weight | 6500kg | 8000kg |
Loading Ability | 80m³ | 120m³/h |
Digging Width | 2800mm | 4300mm |
Digging Distance | 1800mm | 2700mm |
Digging Height | 2100mm | 3800mm |
Digging Depth | 700mm | 700mm |
Dumping Height | 1400-1600 | 1550-1850mm(can be changed) |
Dumping Distance | 1500mm(could be raised) | 2800mm(can be changed) |
Traveling Speed | 0.63±5%km/h | 0.63km/h |
Speed of Scraper Chain | 0.5m/s | / |
Working pressure | ≤20Mpa | ≤31.5mpa |
Ground clearance | 200mm | 220mm(variable) |
Power | 37kw | 55kw |
Operate mode/Operation Manner | Mechanical pilot | Hydraulic Control |
Crawler Inner Width | 900mm | 1250mm(variable) |
Maximum Material Dimension(Width*Height) | 650*600*500 | 600*650mm |
Overall Dimensions during transport | 5500*1550*1650mm | 7000*2000*1850mm |
Overall Dimensions during operating | 7000*1550*2000 | 9700*2000*1900mm |
Grade ability | ≤25º | / |
Adaptive Tunnel Fracture(Width*Height) | 2*2m | ≥3*3m |
Adaptive Tunnel Slope | / | ≤30º |

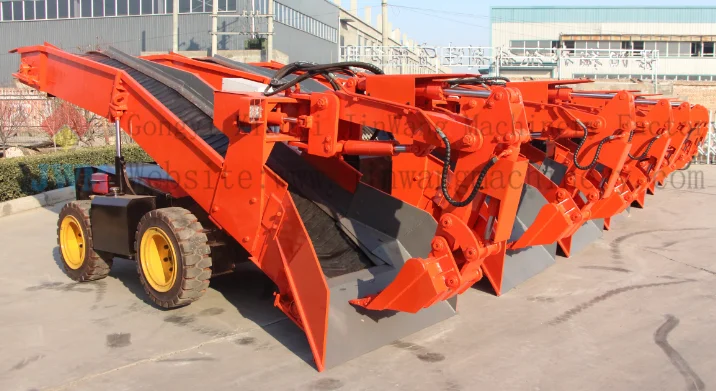

Main Application and Advantages

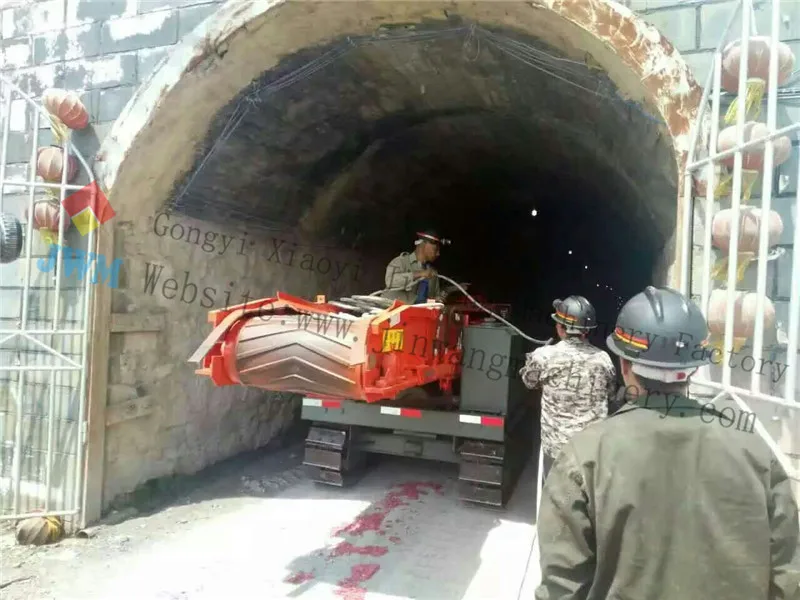

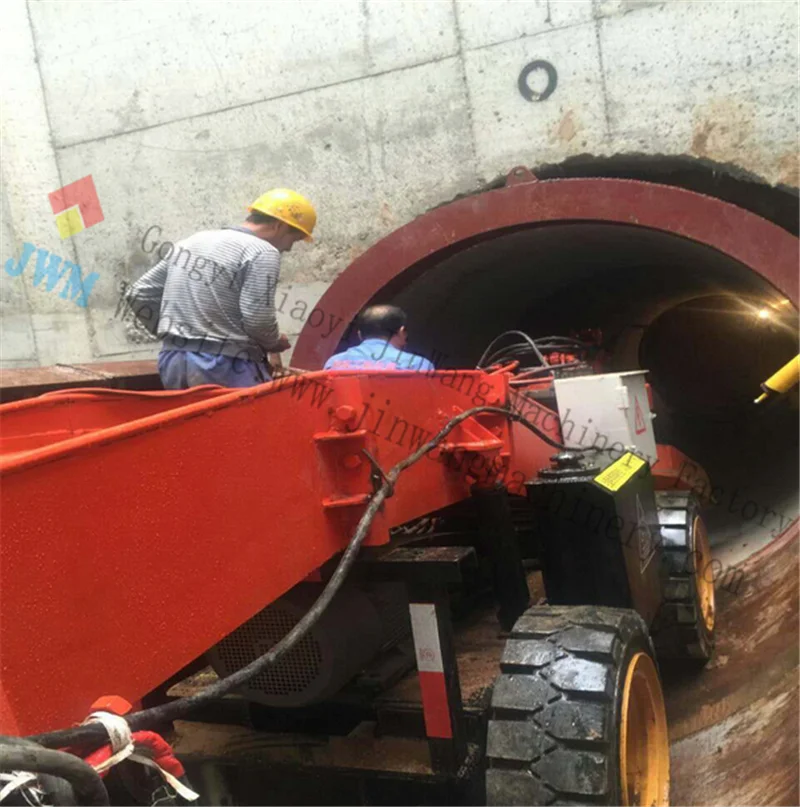

* Suitable for tunnel and river excavation,mine engineering,water conservancy engineering and so on.
* Safety and environmental protection
* Energy consumption of small
* High efficiency
* Low cost
* High yield
* Low safety risk
* Safety and environmental protection
* Energy consumption of small
* High efficiency
* Low cost
* High yield
* Low safety risk

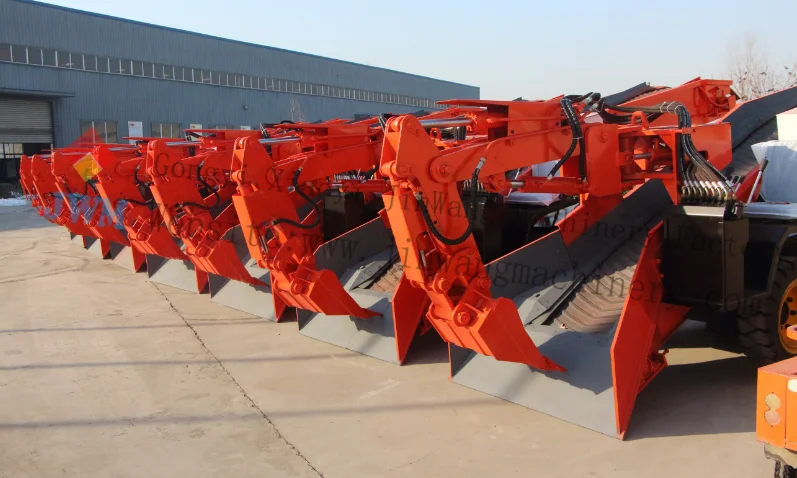

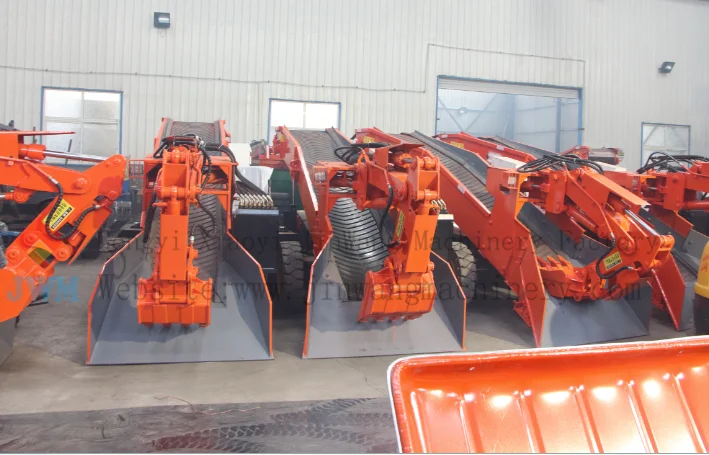

Details Images

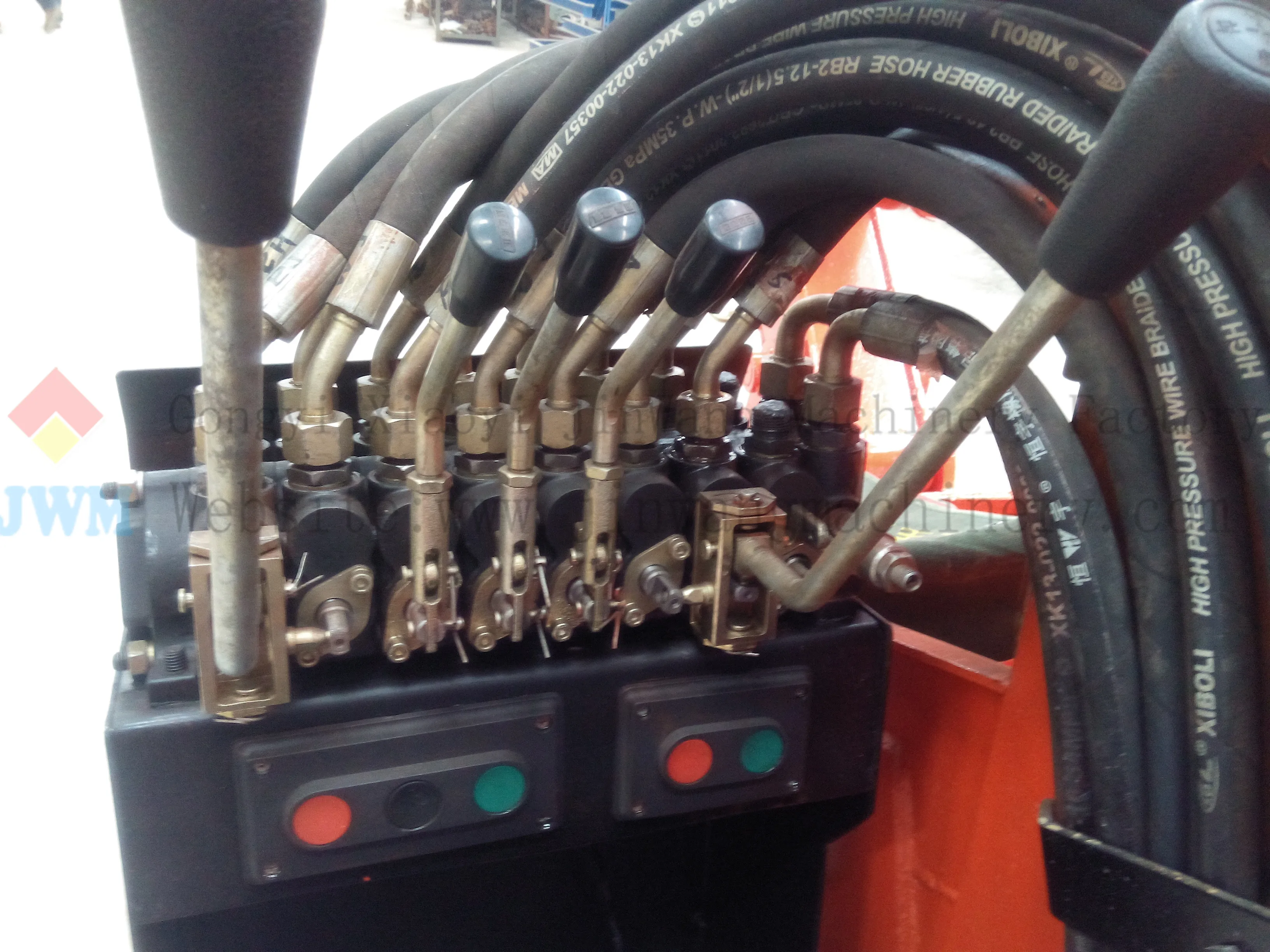

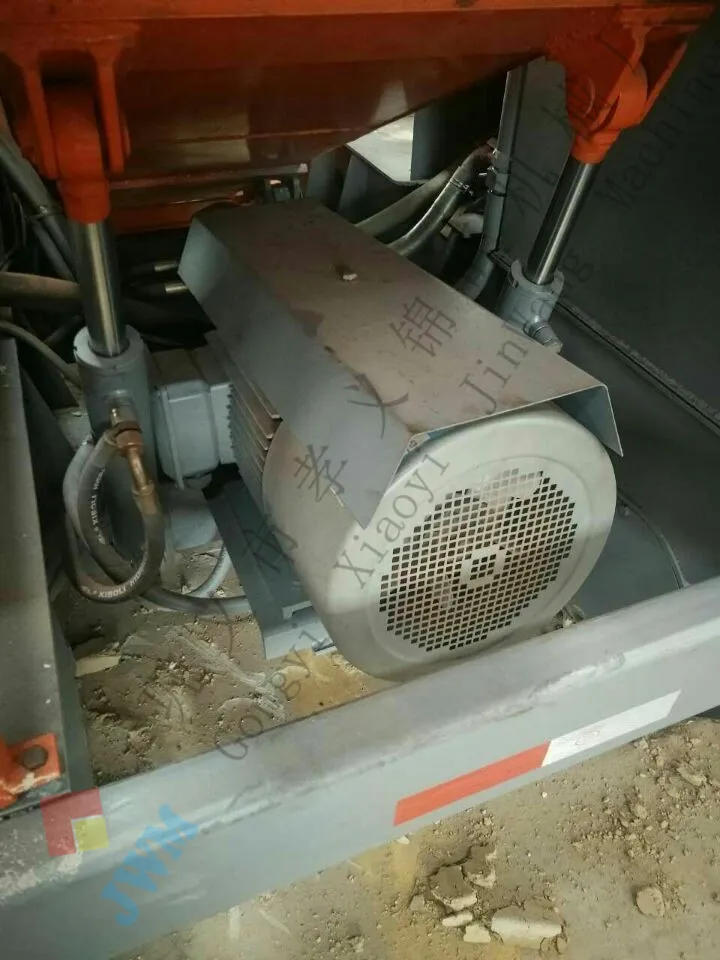

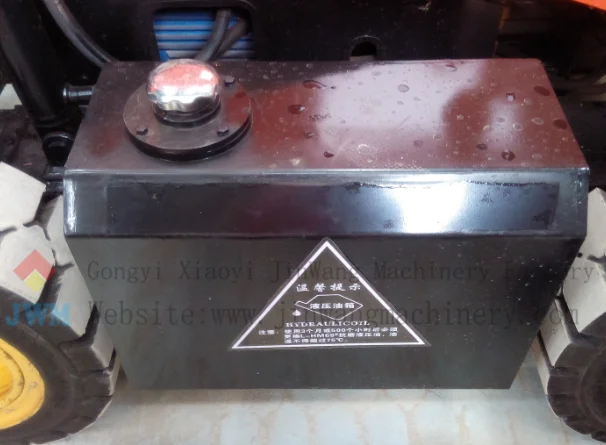

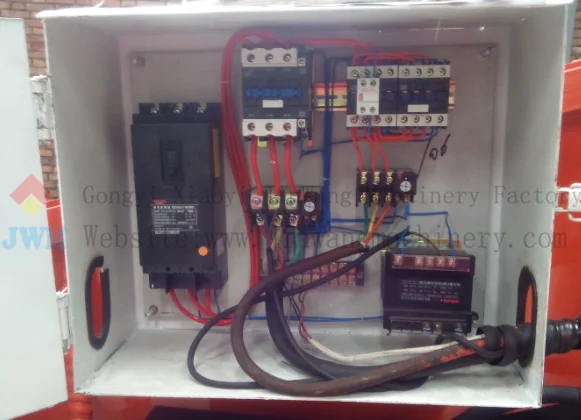

1.Hydraulic System
After many times updating,the whole design is advanced and top.
The hydraulic system adopts famous brand at home and broad,so it can ensure working stability.
The hydraulic system adopts famous brand at home and broad,so it can ensure working stability.
It is controlled by the
secondary,equipped with imported hydraulic joystick.
secondary,equipped with imported hydraulic joystick.

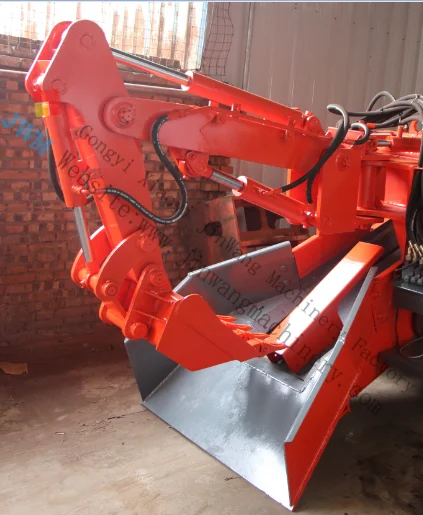

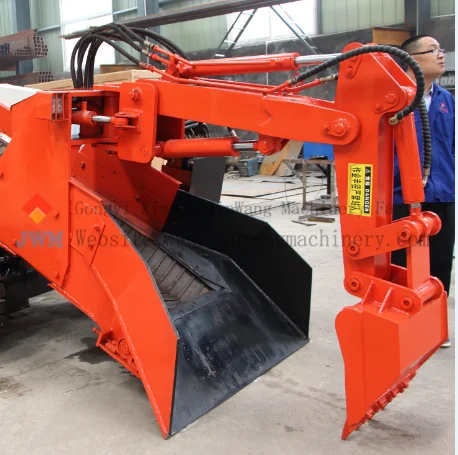

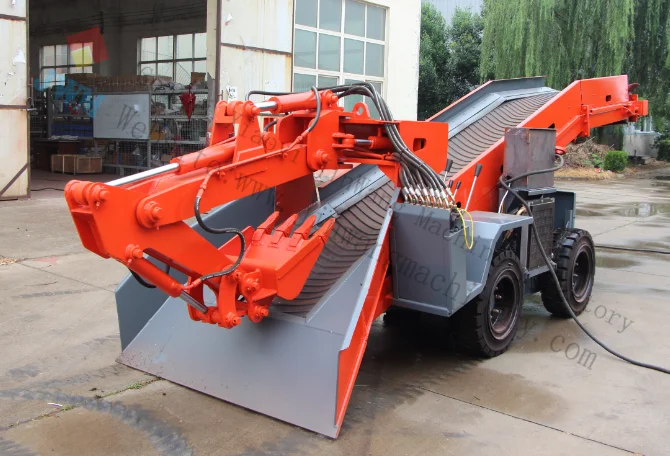

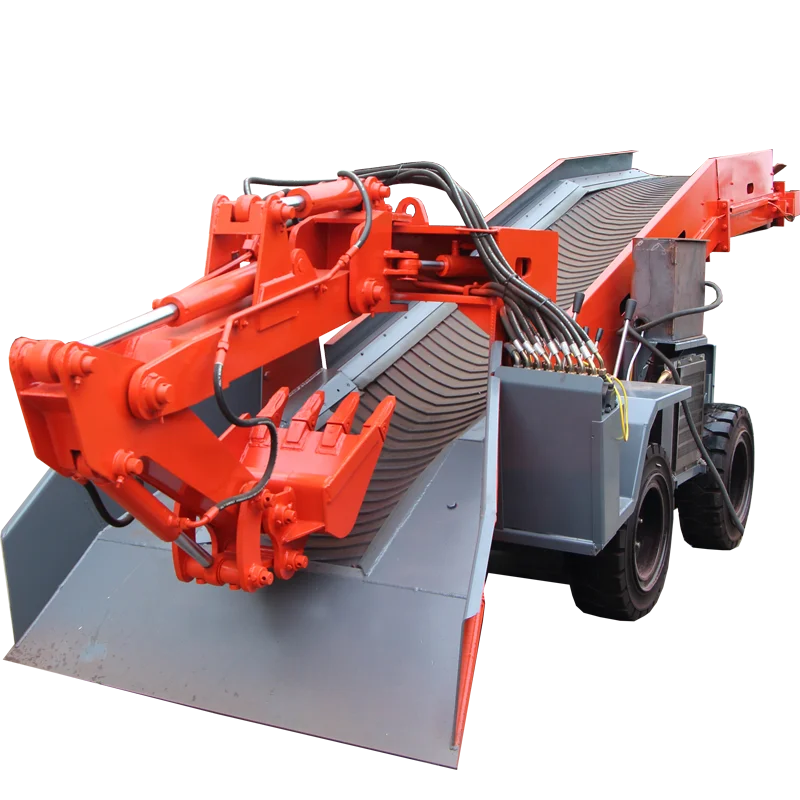

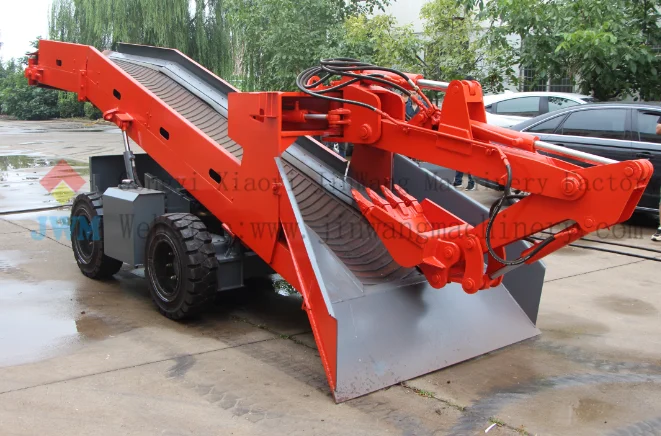

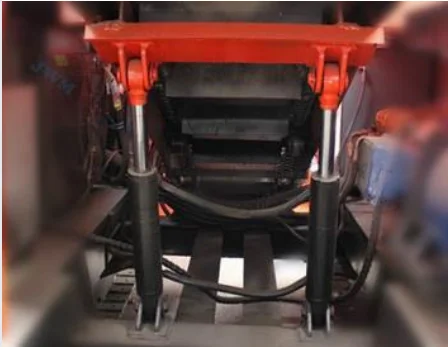

2.Working Arm

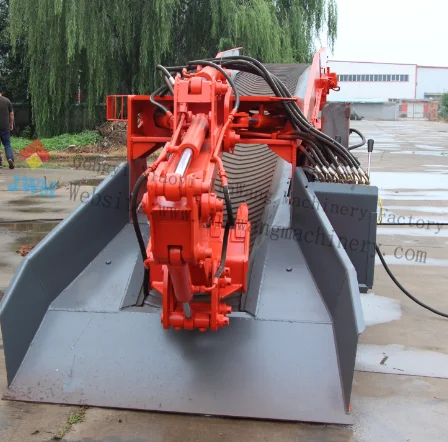

The structure parts of the big and small arm can be adjust to adapt different working sections.
The bucket adopt imported wear resistant materials,so reducing loss,and improving the durability of use.

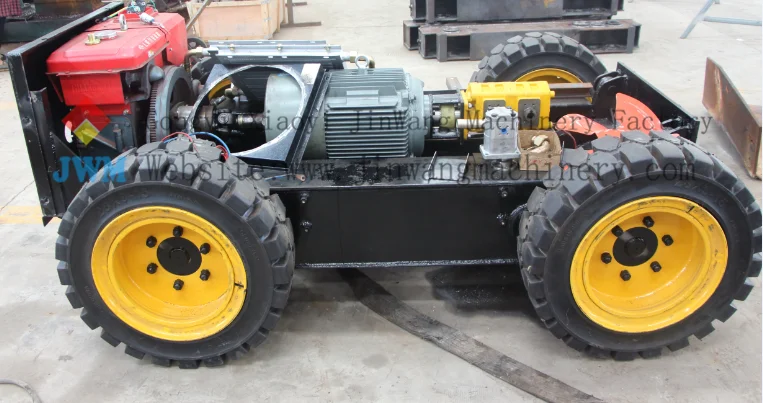

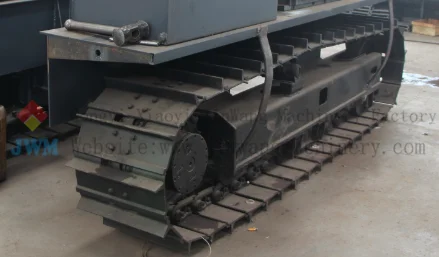

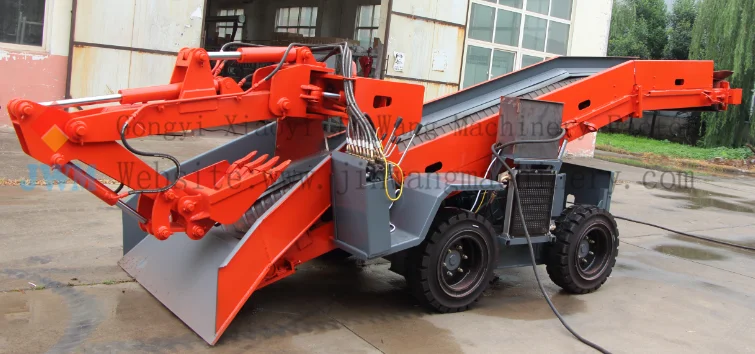

3.Chassis

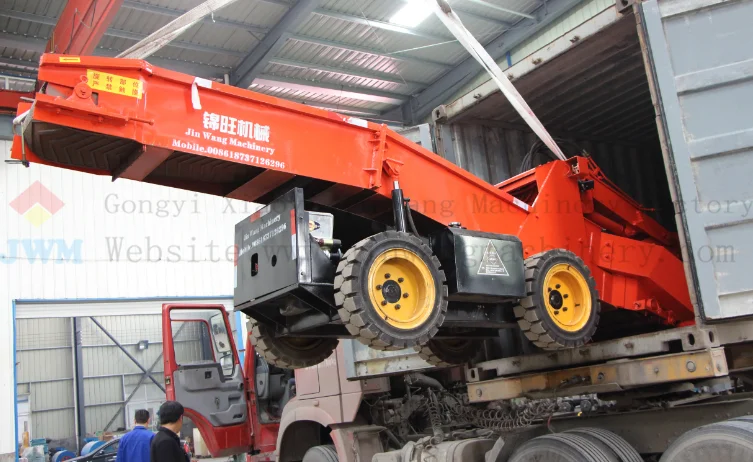

wheel type and crawler type are available.

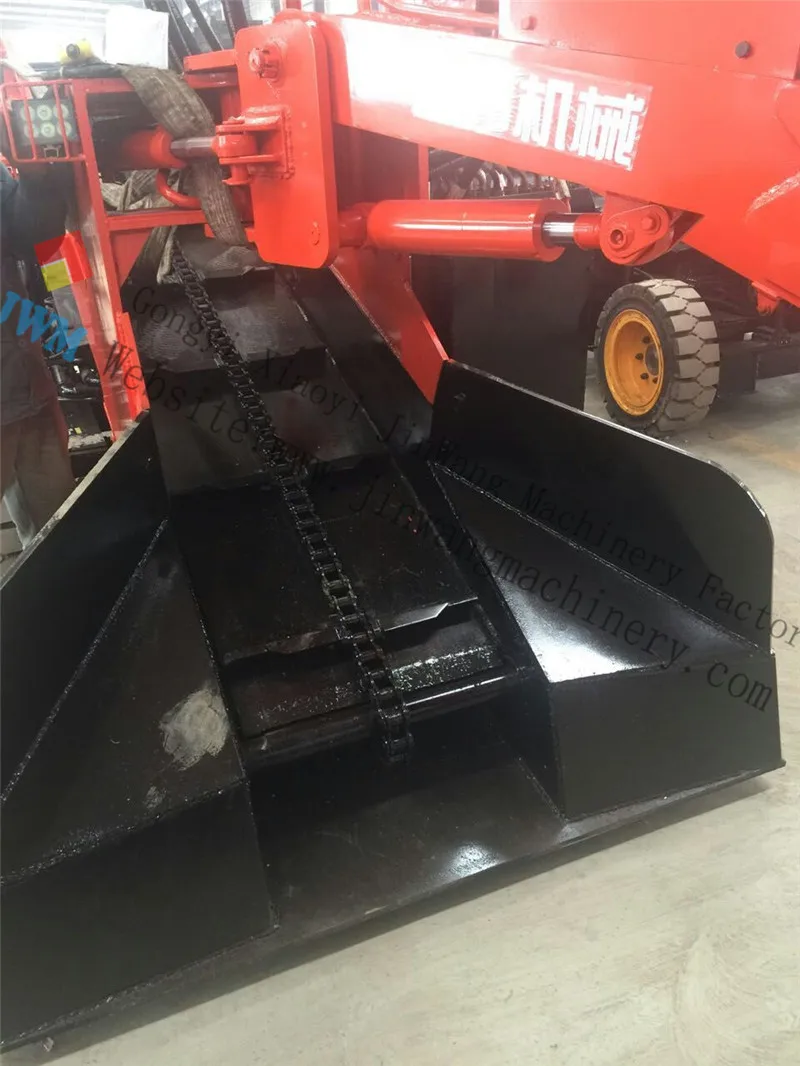

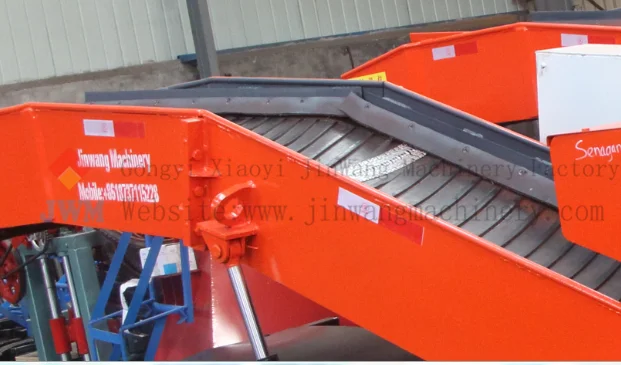

4.Conveying Trough
It is made of high hardness material.
The special design is to ensure the successful conveying of the rock.

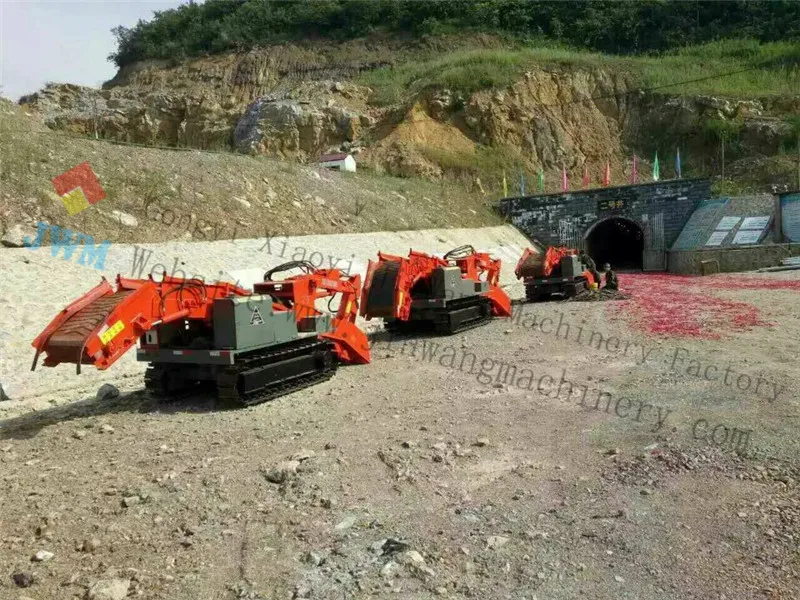

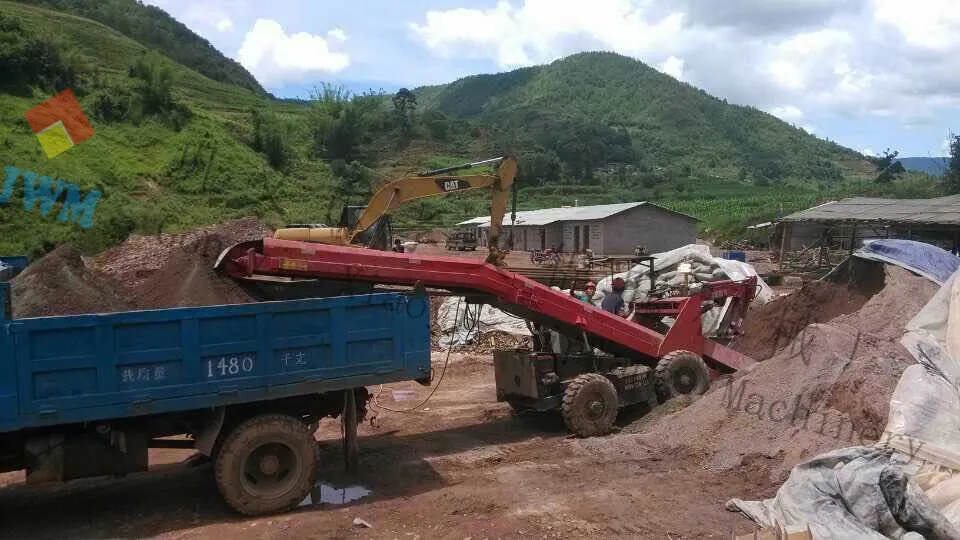

Application
Packing & Delivery
Company Profile
Gongyi Xiaoyi JinWang Machinery Factory was established in 2006,it is a professional engaged in equipment research and development design,manufacturing,installation as one of the professional manufacturers. The main products electric mini dumper, electric and diesel loader, crusher, mucking loader, brick machine, forklift and some mining products. Our factory has strong technical force,advanced technology, sophisticated equipment and favourable price. In the past years, our products are well received at home and abroad, receive good comments from customers. Put high technology innovation, research and development sales as one of the enterprise.
