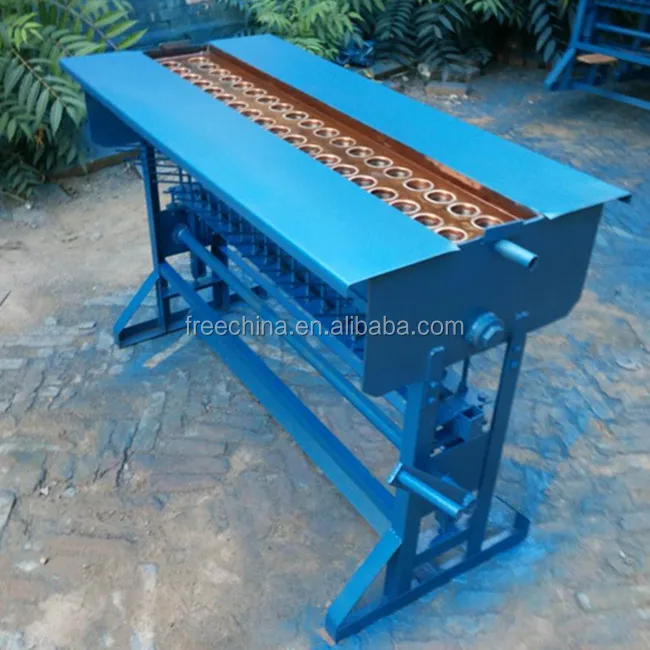

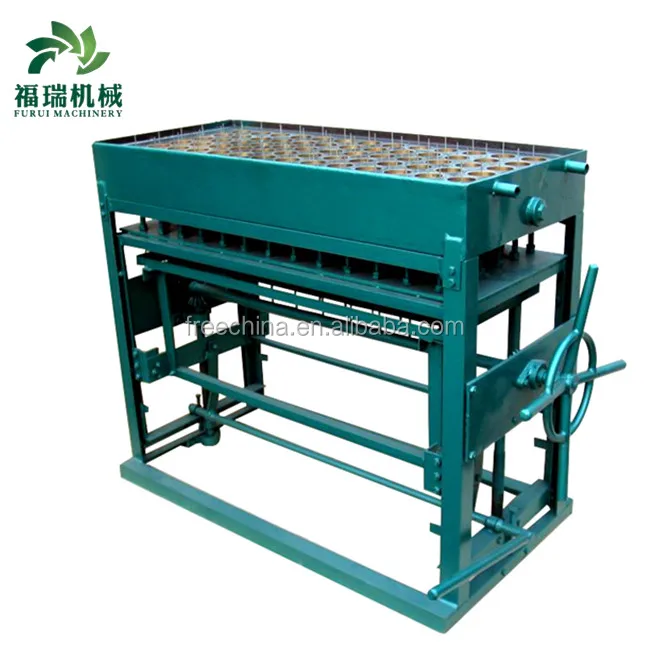

Excellent!!! candle making machine/manual candle making machine/machine used candle

Product Overview

Description



1.Description of machine used candle



1).Candle making machine is used to make candles. The mold is made of seamless copper tube which can be used for more than 10 years non-stop.



2).The way of cooling is by circulating water .Meanwhile we can adjust the output according to custom's demand.



3).There are many kinds of molds which can made different candles. If you need, we all can do it.



2.Structure of machine used candle

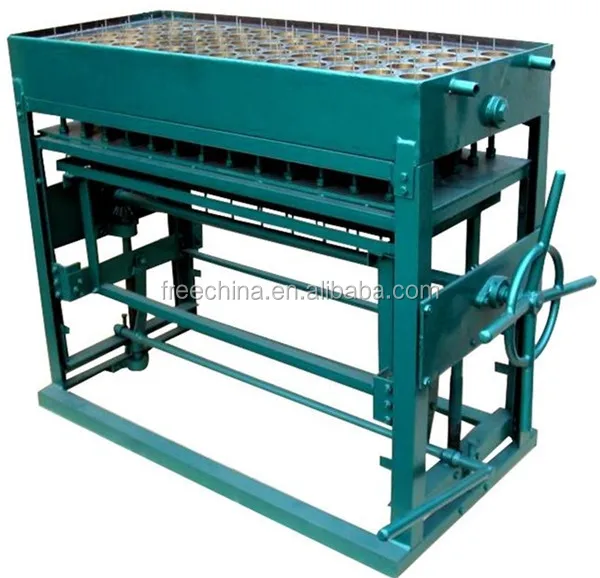

The machine is composed of candle holding dish, water tank, machine frame, spool box, hand wheel, spindle, bevel gear, lead screw, nut, nut shelf, bearing box, cross beam, push-off tube and candle molding tubes, etc.



3.Parameters of machine used candle



Model	Candel size (mm)	Weight (G)	Pipe quantity	Time (H)	Capacity (KG/H)	Machine size (cm)	Package size (cm)
19B	φ13.5×φ12×170	19	240	6	27	140×50×90	145×55×115
19C	φ13.5×φ12×170	19	240	6	27	140×65×110	145×60×115
25A	φ14.5×φ12.5×203	25	80	5	10	140×50×85	145×55×100
25B	φ14.5×φ12.5×203	25	240	5	30	140×50×90	145×55×115
25C	φ14.5×φ12.5×203	25	240	5	30	140×65×110	145×60×115
28A	φ15×φ13.8×203	28	80	5	11	140×50×85	145×55×100
28B	φ15×φ13.8×203	28	240	5	33	140×50×90	145×55×115
28C	φ15×φ13.8×203	28	240	5	33	140×65×110	145×60×115
35A	φ17×φ15×203	35	80	4	11	140×50×85	145×55×100
35B	φ17×φ15×203	35	240	4	33	140×50×90	145×55×115
35C	φ17×φ15×203	35	210	4	29	140×65×110	145×60×115
50A	φ20×φ18×210	50	70	3	10	140×55×90	145×58×105
50B	φ20×φ18×210	50	210	3	31	140×50×90	145×55×115
50C	φ20×φ18×210	50	180	3	27	140×65×110	145×60×115
66A	φ22×φ20×220	66	60	3	12	140×55×90	145×58×105
66B	φ22×φ20×220	66	180	3	36	140×50×90	145×55×115
80A	23X21.5X240	80	60	3	14	140×55×90	145×58×105
80B	23X21.5X240	80	180	3	43	140×52×90	145×58×115
