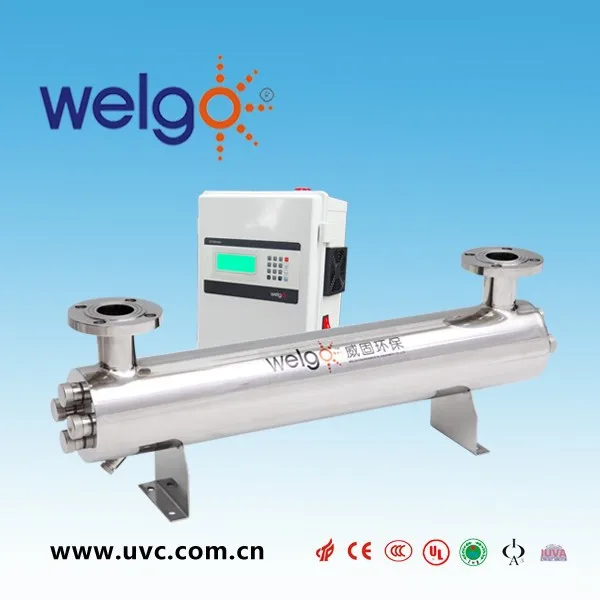

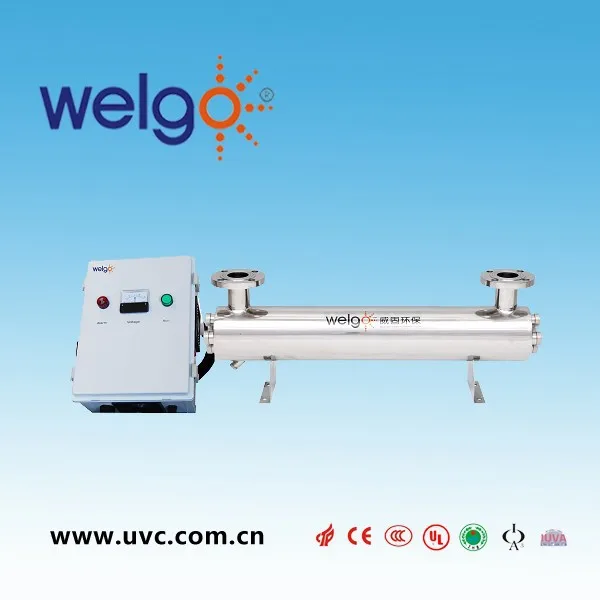

UV Sterilizer for Swimming Pool Sanitation

Product Overview

Description

UV Sterilizer for Swimming Pool Sanitation



Ultraviolet sterilizer is the most environmental protection, effective, safety and economical way to kill all bacteria, viruses, yeast, mold and algae, without adding any chemicals, so it takes no harm to human body and environment. The UV Disinfection is recommended to used in all drinking water and wastewater disinfection.



Advantage of UV Disinfection:
*High germicidal efficiency
* Without secondary pollution
* Great volume of disinfection continuously
* Low maintenance costs
* Safe and reliable operation
* Wide application



Features:

SQ series UV sterilizer is the one with multiple lamps and manual cleaning system for large flow rate and fast flow speed.
1. Chamber: Polished 304 L stainless steel, 316 L on request
2. UV lamp: Low pressure amalgam high intensity UV lamp. Preheating improves the lamp lifetime. 254nm wavelength, 8000-12000 hours service life.

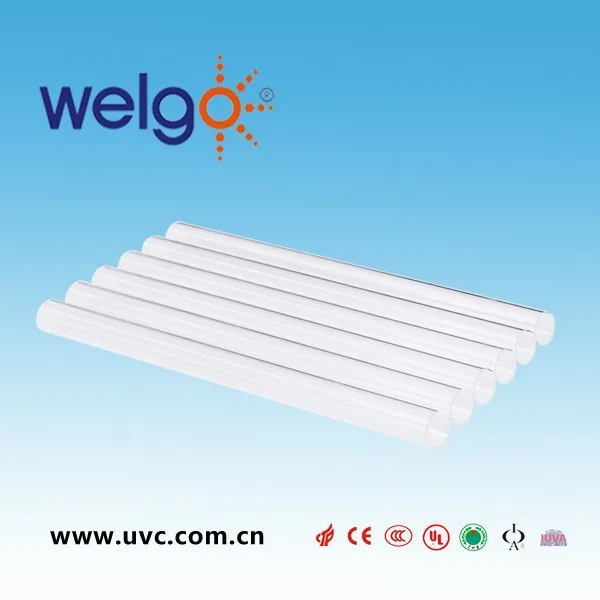

3. Quartz Sleeve: High transmittance more than 92%, high UV output.

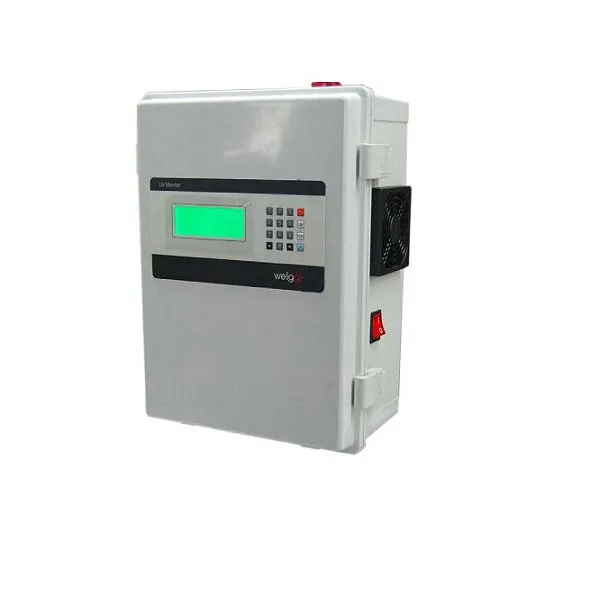

4. Electrical Cabinet:
Housing material: 304 stainless steel;
with voltmeter, status indicating light, audible and visual alarm, ballast (with UL certificate), UV Intensity Monitoring System and time accumulator monitor as optional.
5. Munual cleaning system, pneumatic cleaning and electric cleaning as optional.
6. High Bactericidal Efficiency: up to 99%
7. Natural way disinfection, no additional harmful chemicals



Technical Parameters
Model	WGUV-45T155-4U
Flow rate @30mj/cm2	45m3/hr
Lamp	155W*4pcs
Lamp Life	9000-12000 hours (approx. 1 year)
Total power	1650W
Inlet / Outlet	DN100
Dimension(mm)	1660*159*349mm
Power supply	220V/50Hz, 110V/60Hz
Operating pressure	100PSI
Max. working pressure	125PSI
Operating temperature	Up to 45 deg C
Chamber material	304 stainless steel(316 or PVC optional)
Cleaning system	Optional Manual or auto- cleaning system
UV intensity monitor	optional
