3.4 6m cement concrete road paver special for High Speed Road

The technology of HTH3400B slipform is advanced PAV-SAVER imported from American Pro-Hoff Company, to build high speed railway and highway, using of this paver can greatly improve paving quality and speed, therefore, it is widely used to construct high speed railway,highway, plaza etc

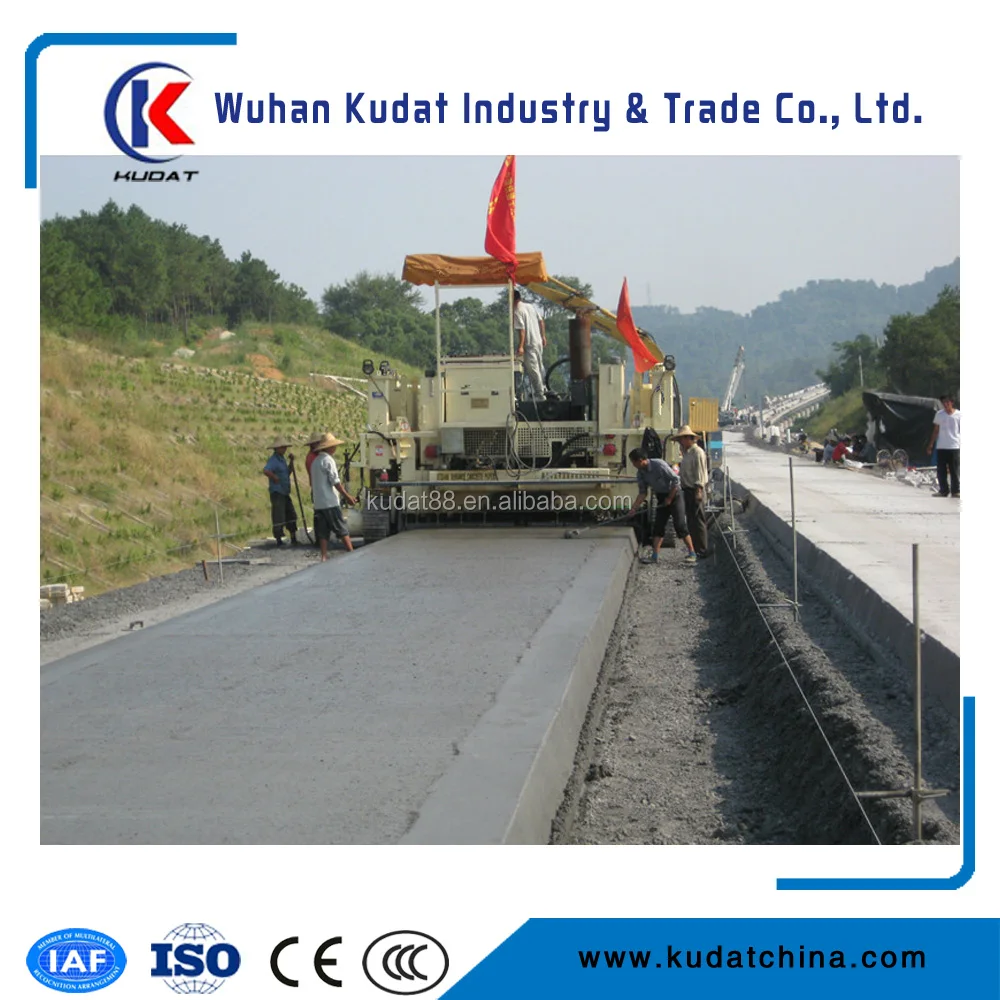

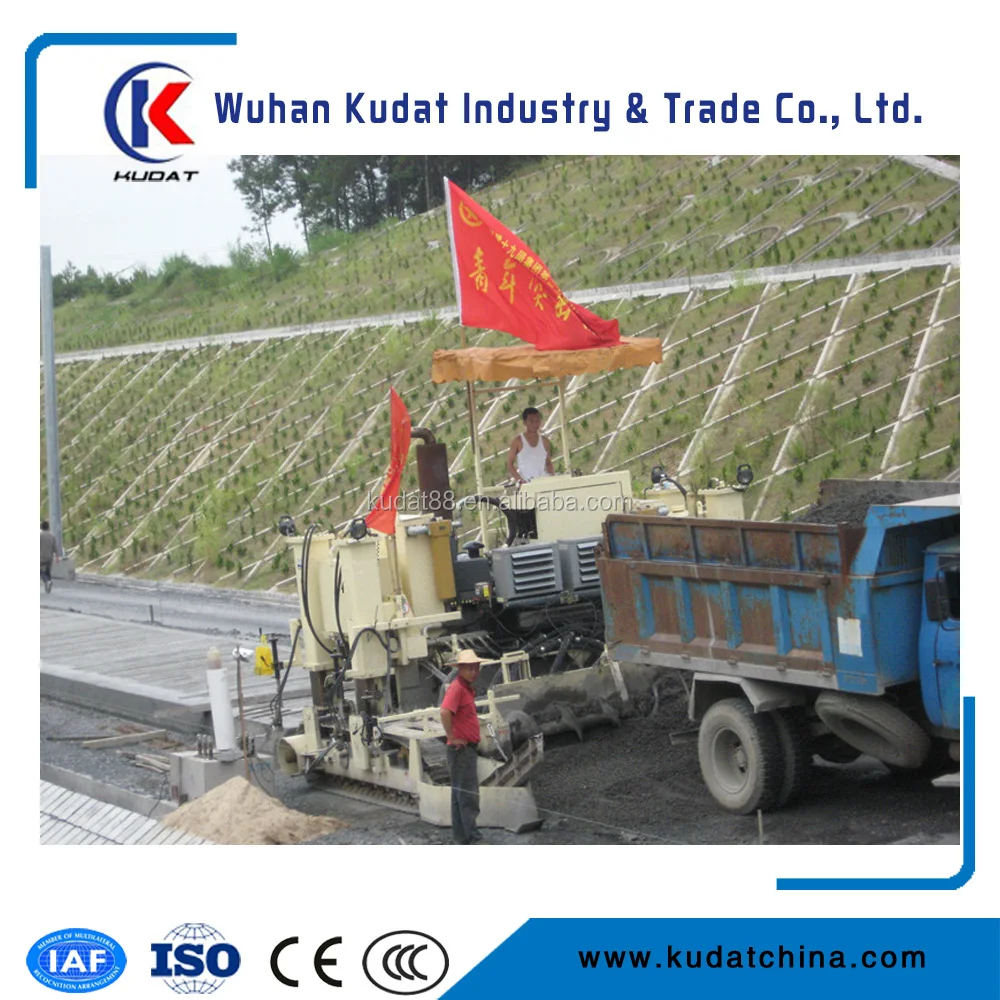

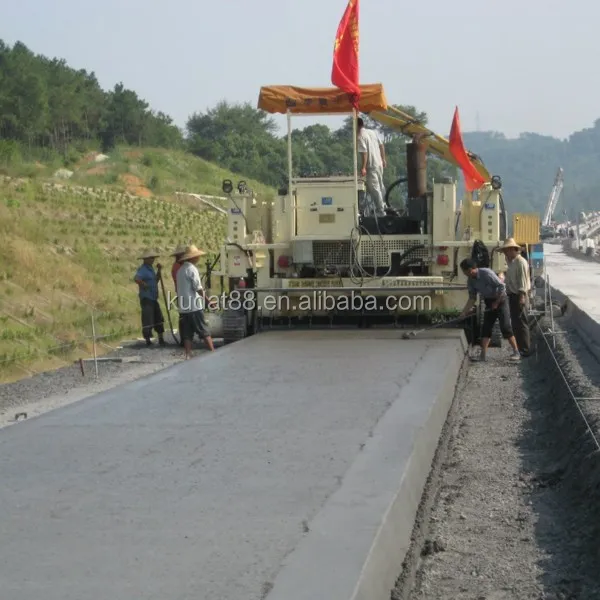

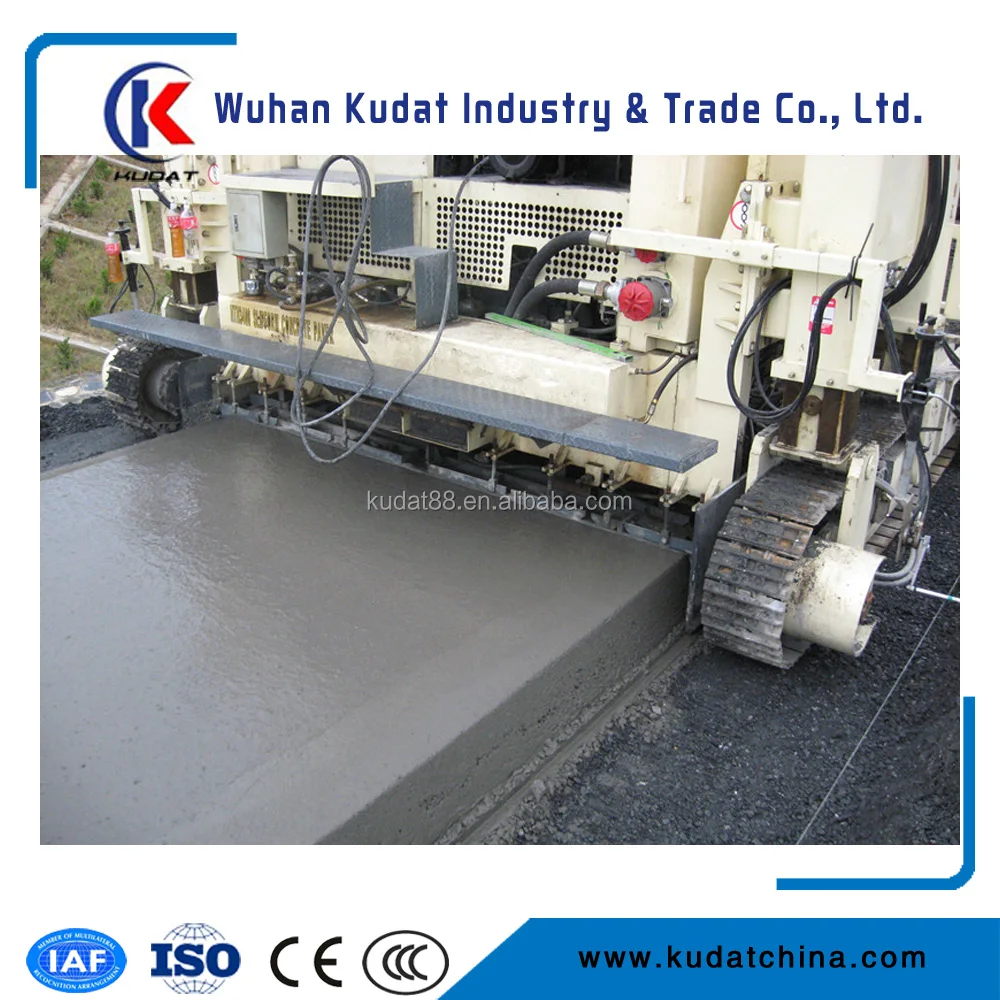

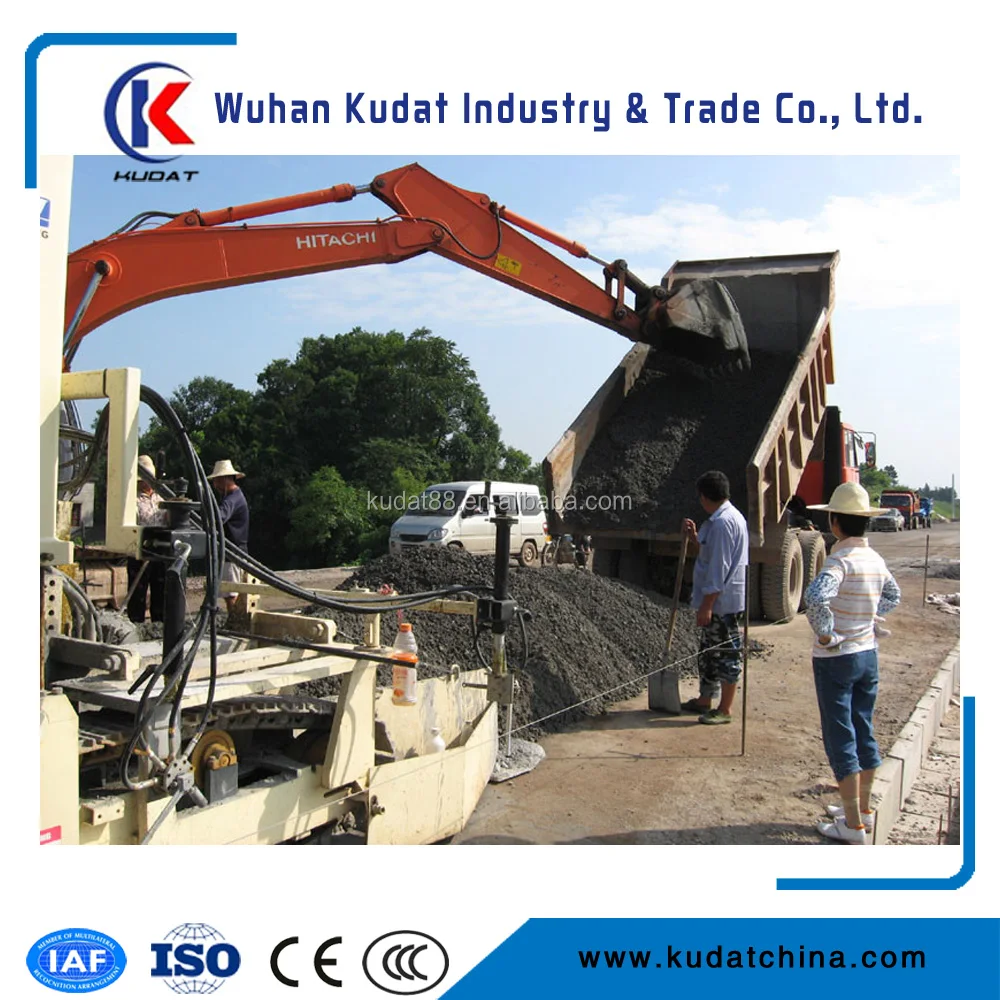

The paver is full hydraulic slipform, with big power, and the machine travels with two crawlers. The automatic driving and leveling control systems are equipped in this machine. When working, the paver can accomplish paving, scraping, vibrating, tamping, extruding, shaping at one time.

SPECIFICATION

Model:HTH3400B

Type:SLIPFORM

Main parameters:

Basic paving width                       3400 mm

Maximum paving width 6000 mm

Maximum paving thickness 350mm

Overall weight                           22T

Overall size :

Length         4020mm

Width          7290mm

Height                 2770mm

Performance :

Paving speed              0~10m/min

Travel speed                            0~1.5km/h

Flatness (surveyed by 3 meters ruler)           3mm/3m

Grade ability         At work:≥10%;

Engine:                               Volvo

Model        TAD620VE

Type          6 cylinders;water-cooling

Power        145kW/2300r/min

Driving system:

the whole machine is full hydraulic, the engine is connected with transfer and pumps, supplying power for many components as follows:

1.Crawler traveling devices

2.Feeding devices

3.Vibration

4.Tamper bar

5.Body lifting and dropping

6.Water cleaning system and all the executive cylinders

Traveling devices:

consist of a pump, motors and control system.

Bearing mode:

Two crawlers bear the weight of the whole machine, and the patch area of every crawler is 3000×320mm

Steering:

Control the rotate speed of travel motor by potentiometer and steering sensors, the purpose of steering and automatic steering can be achieved.

Control system:

controlled by centralized controllers, displayed by picture and words; with function of failure diagnose, condition display, alert alarms etc, voltage 24V.

Console platform:

wide view, buttons centralized located, easy to operate.

Automatic leveling unit:

With four leveling unit and one steering sensor to adjust   the body carriage and automatic steering automatically according to line transect.

Working devices:

1.Crown pan basic width……………………3.4-6m

2.Vibrators   frequency……………………5~167 Hz

3. Tamper bar       rotate speed……………………0~170 r/min

4. Screw     rotate speed……………………0~34 r/min

Main performance characteristics of the HTH3400B SLIPFORM

1.Original VOLVO water-cooling engine is used to supply driving and reliable powers.

2.Full hydraulic driven, with CAN communications management bus and distributed control structure, reduce failure rate.

3.With failure intellective diagnose function, alarm for potential failure.

4.The screw can be controlled from either side of the paver, so the effect of feeding is perfect

5.The operator has wide view, easy to observe.

6.The material of screws and crown pan is wearable and advanced in the world.

7.Because of the using of automatic leveling, the lengthwise flatness is not exceed 3mm/3m,the transverse grade :2/1000.

8.Crawlers with life-time lubricated thrust wheels and track shoes wear well and are difficult to skid.

9.It can accomplish the cement concrete paving at one time, and finish middle piling and side piling.
