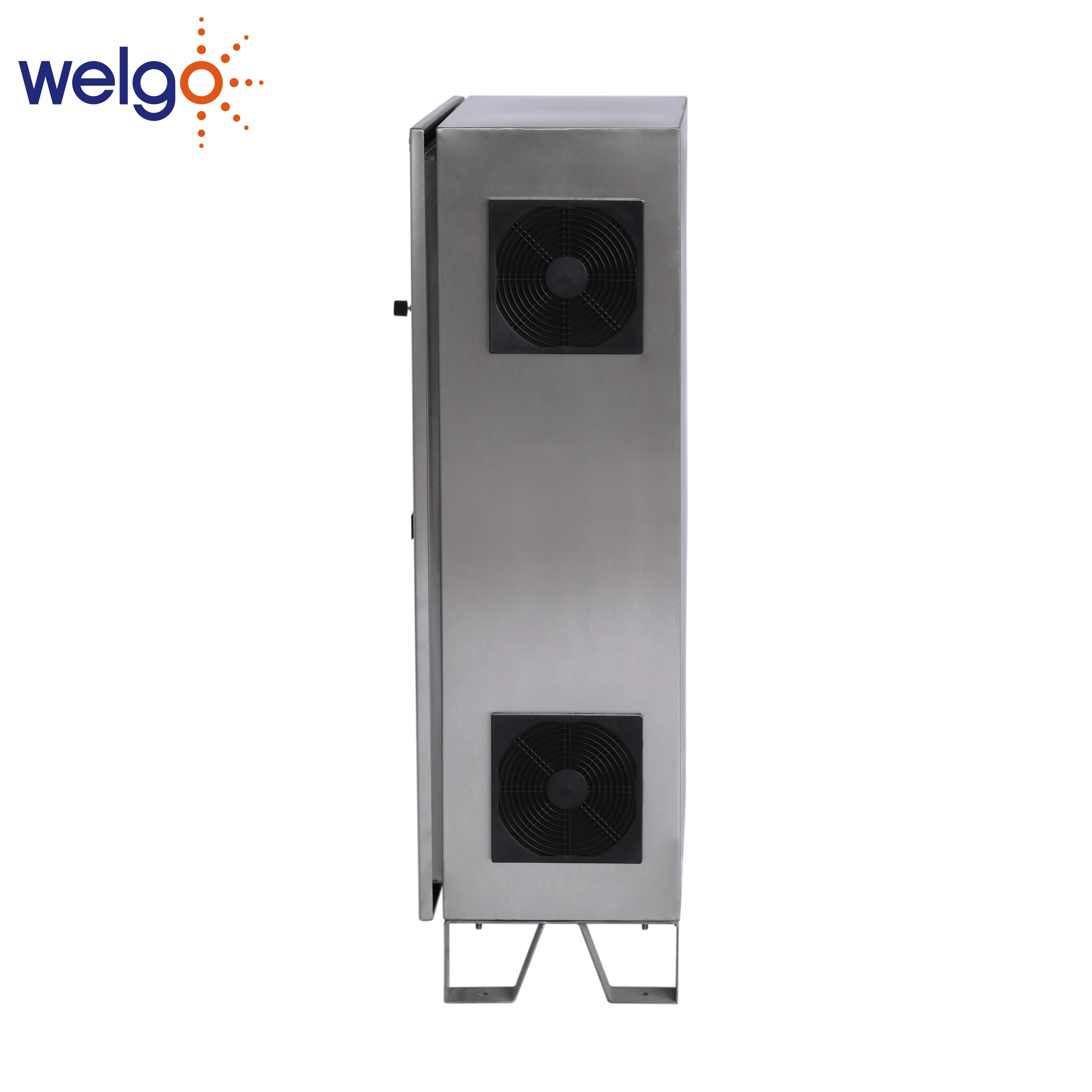

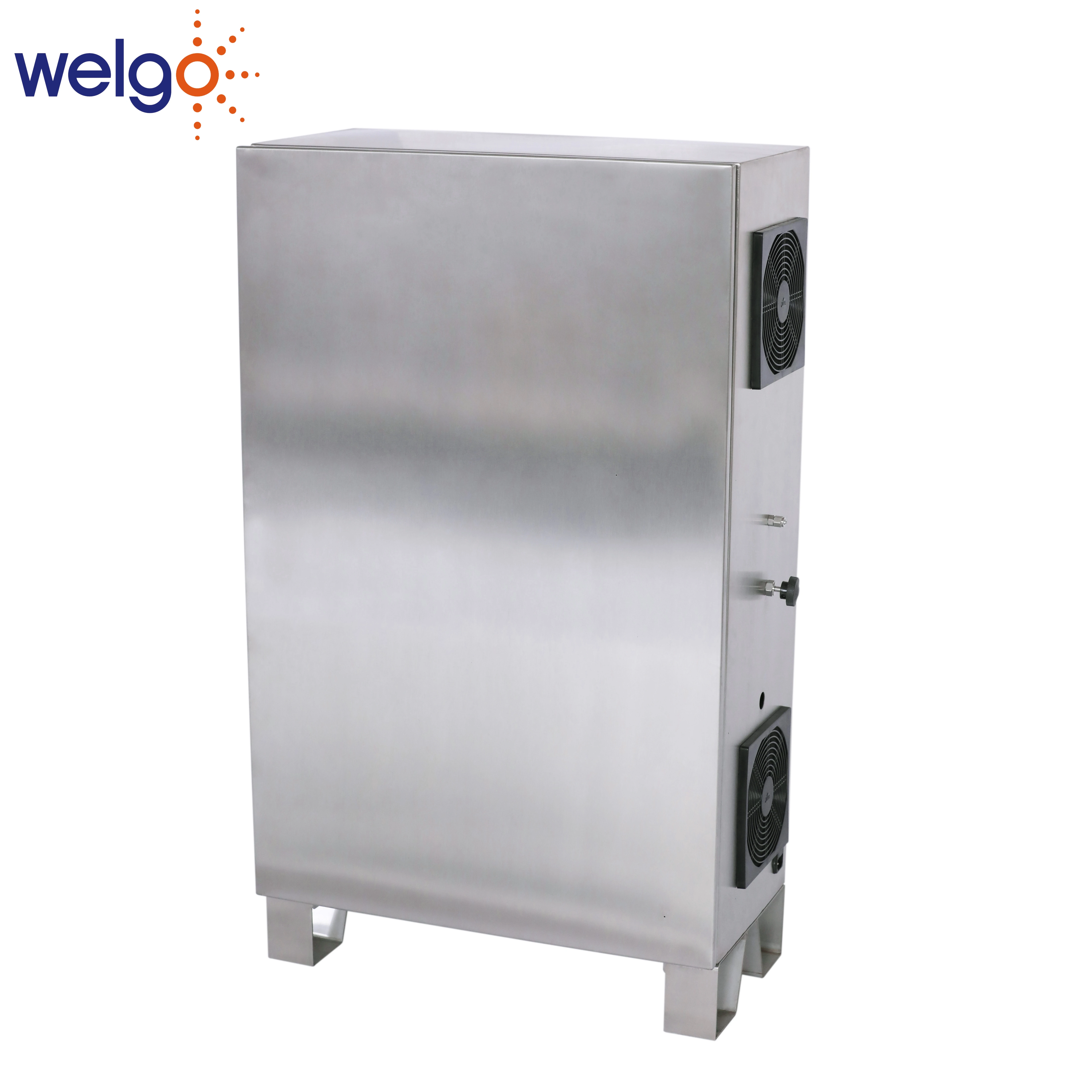

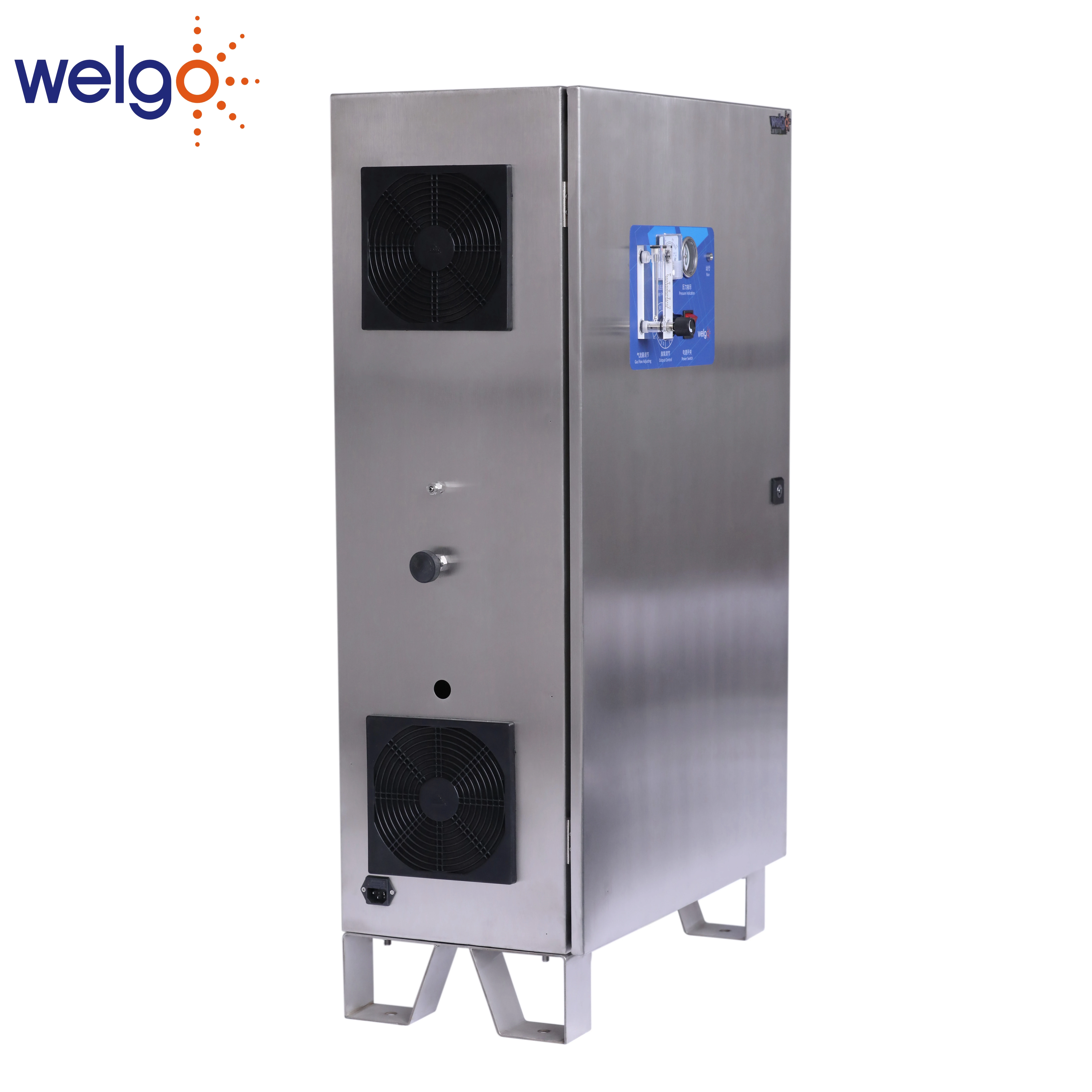

Oxygen source Ozone generator Insurstrical Wate Ozone Generator for Swimming pool Commerical Water Purification Systems
Oxygen source Ozone generator Insurstrical Wate Ozone Generator for Swimming pool Commerical Water Purification Systems
Oxygen source Ozone generator Insurstrical Wate Ozone Generator for Swimming pool Commerical Water Purification Systems
Oxygen source Ozone generator Insurstrical Wate Ozone Generator for Swimming pool Commerical Water Purification Systems
Oxygen source Ozone generator Insurstrical Wate Ozone Generator for Swimming pool Commerical Water Purification Systems

Oxygen source Ozone generator Insurstrical Wate Ozone Generator for Swimming pool Commerical Water Purification Systems

Share on (60147458094):


Price:RUB 81,759.81 - RUB 104,057.94

Quantity:


Product Overview

Description

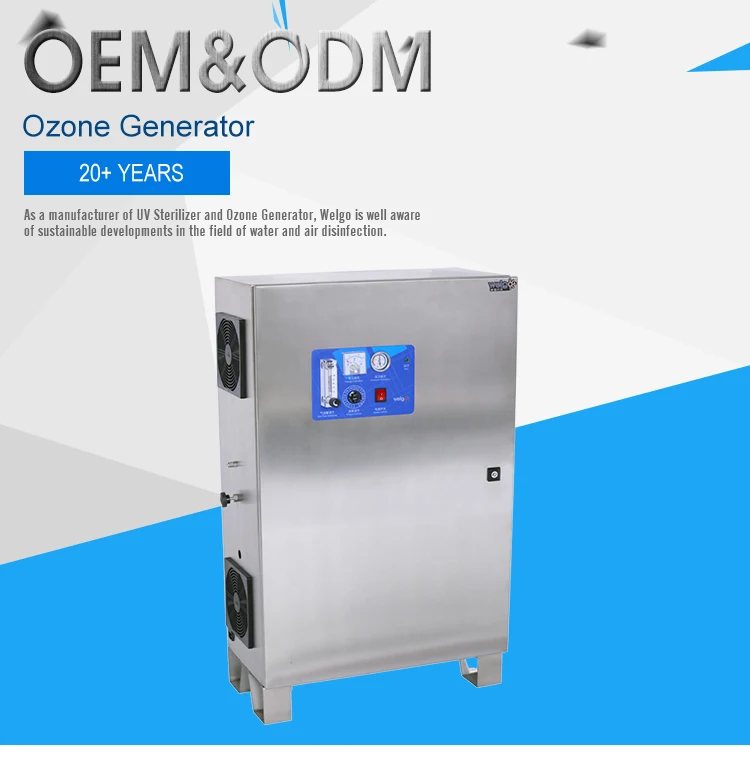

Venturi Injector Driven Ozonator for Commerical Water Purification Systems

All-in-one type which comes with PSA oxygen concentor and air compressor


Product Description



1. B series ozone generator is the advanced ozone happen technology and the development of domestic carefully product circuit of perfect combination of product.

2. Ozone production adjustable, ozone work instructions etc many humanized automatic protection function.

3. Has the overheating , flow and backwater without electricity to be automatic protection function.

4. Small volume, light weight, maintenance easy, installation convenient.



Main Features

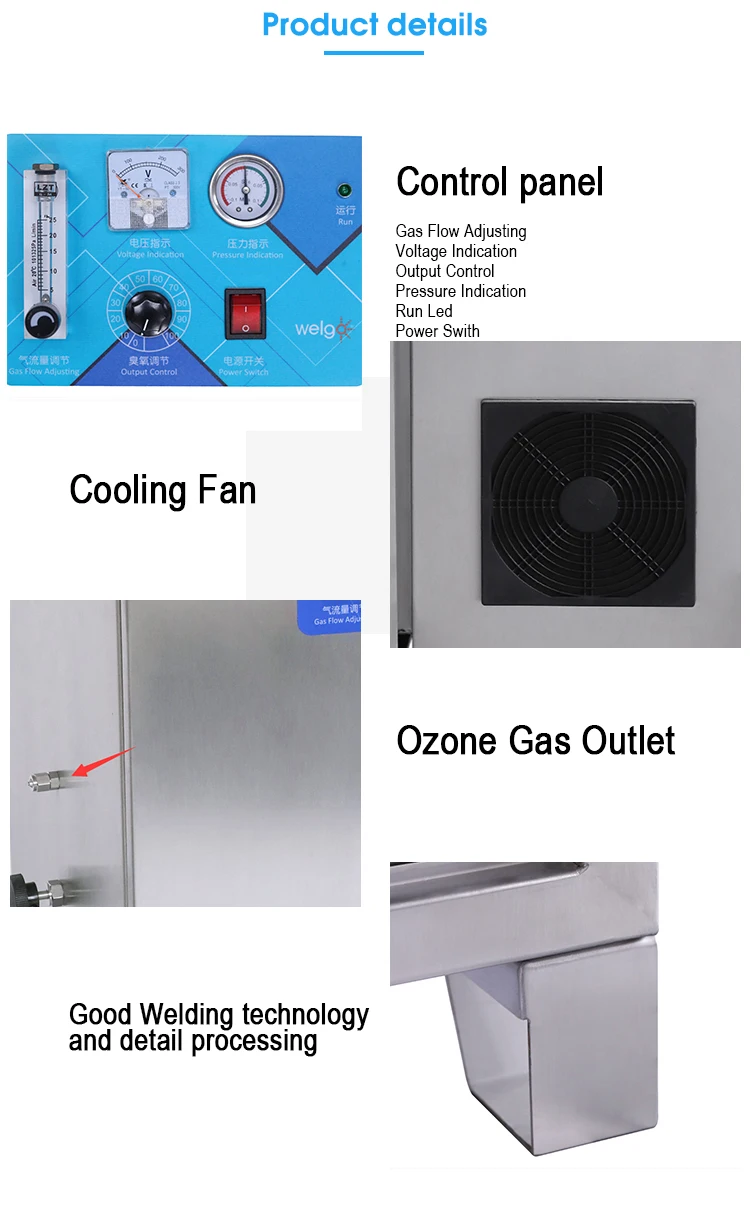

1.modular design makes operation and maintenance easier

2.ozone output adjustable from 0 to 100%

3.ozone reaction chamber uses high-purity quartz dielectric and titanium electrode

4.with over-temperature, over-flow and backwater power cut protection functions

5.ozone exposure pinpes all adopt corrosion-resistant (316 L) PTFE or stainless steel material of long life design

6. Titanium metal plates and ceramic plate along the surface discharge principle, ozone concentrations much higher than the pipe discharge

7. air-cooled



                                                Technical Parameters of B3 Series Ozone Generation
Model Ozone Output  (g/hr)   Ozone
Concentration
 (mg/L)		 Oxygen
flow rate
 (L/min)		 Power     Parameter  V/Hz(TN-S)
Power
(W)		 Inlet/Outlet
Dimension
(mm)
Dimension
(mm)
Weight
(Kg)
B3-5 5 0-50 1-2 220V/50hz
220V/60Hz		 550 φ6 600*300*1030 53
B3-10 10 0-50 2-4 650 φ6 600*300*1030 53
B3-15 15 0-80 3-5 700 φ6 600*300*1030 53
B3-20 20 0-100 3-6 850 φ6 600*300*1030 55
B3-30 30 0-105 4-7 950 φ6 600*300*1030 55
B3-45 45 0-105 8-12 1650 Φ8 600*500*1300 90
B3-50 50 0-105 8-12 1700 Φ8 600*500*1300 110
B3-60 60 0-105 8-12 1700 φ8 600*500*1300 110
B3-90 90 0-105 10-18 2700 φ8 700*700*1300 150
B3-120 120 0-105 15-24 3900 φ8 785*700*1300 190
B3-150 150 0-105 25-30 4450 φ10 780*700*1590 235
Main products


Company Information



FAQ


1. Q: Can I get your products with our logo and design?

    A: Customized service is available.



2. Q: What about Lead time ?

    A: About  15 work days normally. Your order will be arranged to production once the deposit be received.



3. Q: Do you accept sample order?

    A:  Yes,we can make your customized sample before mass order placed.



4  Q: What's the MOQ ?



    A: We can offer the quantity you required, as we do not have MOQ requirement.



5. How do you control the quality?

    A:  Strictly check the material and control the quality at every stage of production, from the incoming raw materials to the finished product.



6. What is the Packing material?

    A: Carton, Plywood case, Pallet. They are suitable for shipment.



7.What information we need to let you know before order?

   a. What is the raw water?

   b.What's the flow rate per hour?

   c.What is your industrial  voltage and frequency?



8.What's the payment terms?

   1) Small order:  T/T100% payment in advance

         Big order: T/T 30% deposit in advance, 70% paid before shipment.

   2)Western Union

   3)Alibaba Escrow.

   4)L/C at sight.



9.After sales service

  (1) 24 hours we are ready to explain question for you.

  (2) Professional engineers supported, along with strong technical service.

  (3) Welgo will send engineers to customers factory to Offer installation, debug and technology training to if you need.
