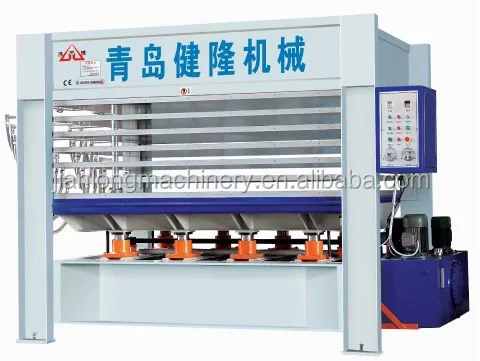

plywood rapid veneer press / hot press for wood door with CE certification
- Category: Woodworking Machinery >>>
- Supplier: Qingdao Jianlong Machinery Co. Ltd.
Share on (60150058279):
Product Overview
Description
| hot press for decoration board | hydraulic hot press | |||
| Model | BY214*8/60(8)H | Model | BY214*8/20(5)H | BY214*8/20(6)H |
| Normal pressure | 600T | Nominal pressure | 2 | 2 |
| Dimension of hot platen | 2600*1400mm | Dimension of hot platen | 1500*3000mm | 1400*4000mm |
| Service opening | 80mm | Number of layers | 10 | 6 |
| Power | 7kw | |||
| Number of layers | 6 | |||
| plywood hot press machines | ||||
| Model | BY214*8/50(5)H | BY214*8/50(5)H | BY214*8/50(10)H | BY214*8/50(7-10)H |
| Nominal pressure | 5 | 5 | 5 | 6.3 |
| Dimension of hot platen | 1400*2600 | 1400*2600 | 1400*2600 | 1400*2600 |
| Service opening | 80 | 80 | 80 | 80 |
| Size | 4*8 | 4*8 | 4*8 | 4*8 |
| Number of layers | 5 | 7 | 10 | 7-10 |
| plywood hot press machines | ||||
| Model | BY214*8/16(3)H | BY214*8/16(4)H | BY214*8/16(5)H | BY214*8/16(6)H |
| Nominal pressure | 1.6 | 1.6 | 1.6 | 1.6 |
| Dimension of hot platen | 1300*2500 | 1300*2500 | 1300*2500 | 1300*2500 |
| Service opening | 80-120 | 80-120 | 80-120 | 80-120 |
| Size | 4*8 | 4*8 | 4*8 | 4*8 |
| Number of layers | 3 | 4 | 5 | 6 |
| plywood hot press machines | ||||
| Model | BY213*7/31.5(10)H | BY213*7/31.5(7)H | BY213*7/31.5(7-10)H | |
| Nominal pressure | 3.15 | 3.15 | 5 | |
| Dimension of hot platen | 1100*2250 | 1100*2250 | 1100*2250 | |
| Service opening | 80 | 80 | 80 | |
| Size | 3*7 | 3*7 | 3*7 | |
| Number of layers | 10 | 7 | 7-10 | |
| plywood hot press machiens | plywood hot press machines | |||
| Model | BY214*8/12(1)H | BY214*8/12(3)H | Model | BY214*8/10(1)H |
| Nominal pressure | 1.2 | 1.2 | Nominal pressure | 1 |
| Dimension of hot platen | 1300*2500 | 1300*2500 | Dimension of hot platen | 1400*2600mm |
| Service opening | 80 | 80-120 | Heating power | 18kw |
| Size | 4*8 | 4*8 | Size | 4*8 |
