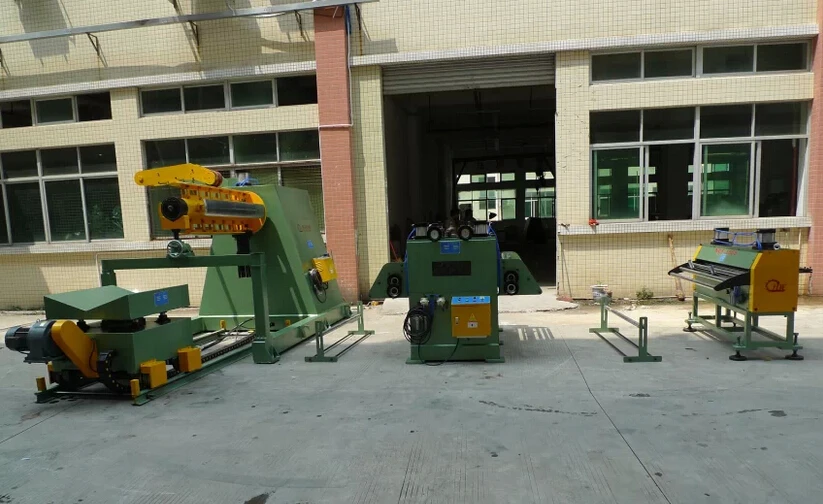

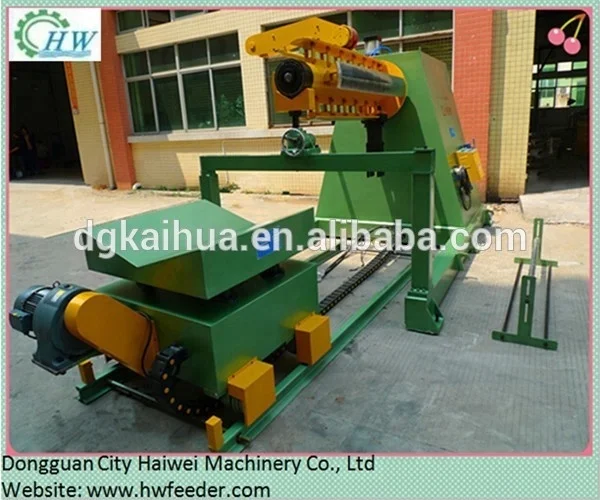

steel coil sheet open mandrel hydraulic uncoiler 10T made in China
Product Description
Machine main parameter
1. Material Max. width 1500mm
2. Material thickness range 0.2-6.0mm
3. Loading capacity 10T
4. Coil I.D. 530-600mm
5. Coil O.D. 1200/1500mm
6. Mandrel expansion term Hydraulic expansion
7. Inverter MISUBISHI, JAPAN
8. AC power Local voltage requirement
Machine main Feature

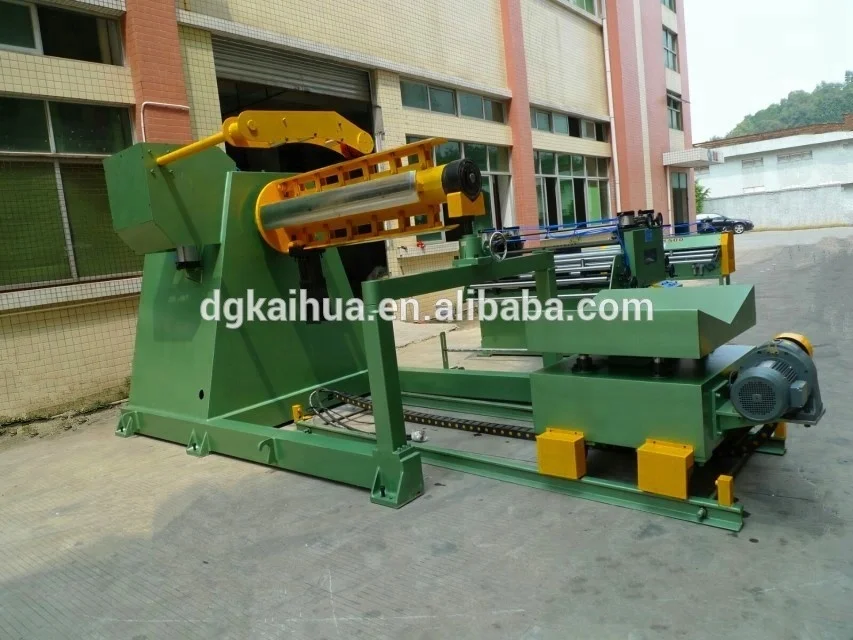

1. Open Mandrel Uncoiler with fabricated steel frame. Main shaft housed in heavy duty roller bearings. Further more, it equip with gantry type support arm device to hold one end of main shaft, enhancing machine have enough loading capacity and long life time.
2. Fully automatic uncoiler, synchronized easily with punching line,can run both directions, forward and reverse with loop sensors control, so the machine also can be used as coiler.
3. Motorized type decoiler machine and equipping with MITBUBISHI inverter, the machine runs smoothly and protected by inverter, having perfect performance.

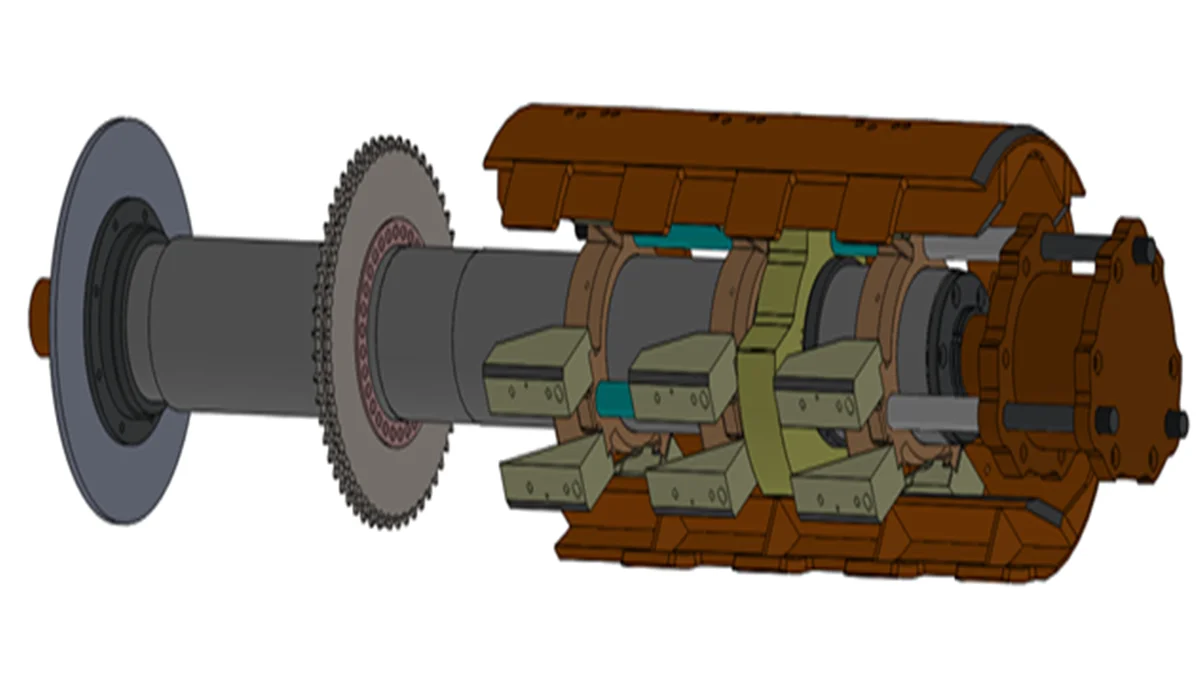

4. Hydralic expansion device. Mandrel expand & contract was drvien by hydraulic, it was comprised of hydraulic station, hydraulic cylinder etc.
5. It equips with disc brake device,enhance the sensitivity ,stop and restart immediately. The speed of coil is controlled by the system, it can adjust the speed according to the outer diameter of the coil matetial.That can lighten the load of the machine.

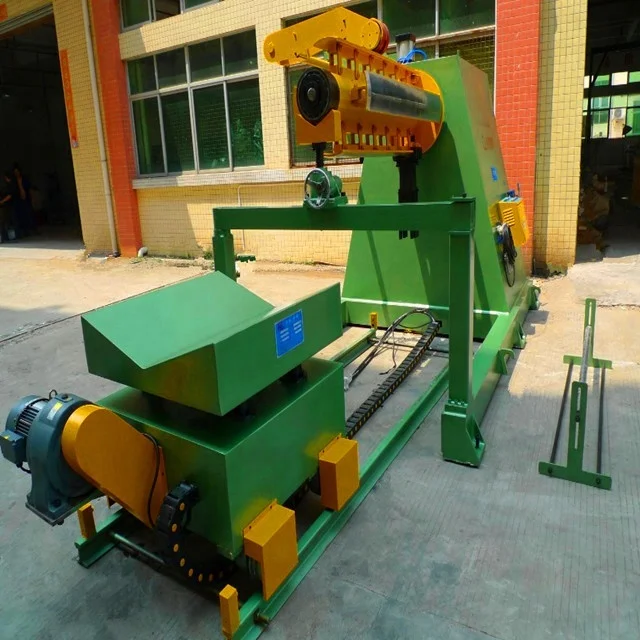

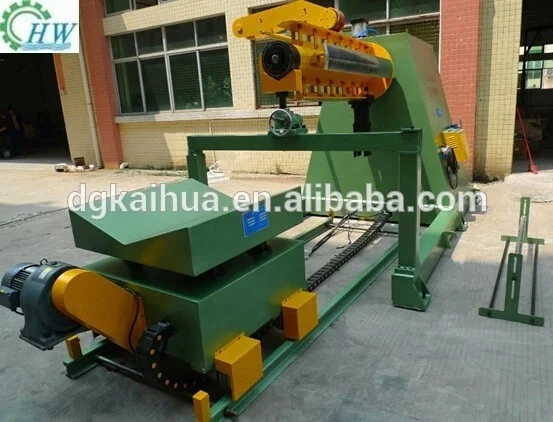

6.Auto. loading car 10T. It can load can lift coil to mandrel automatically.
OPTIONAL PART
1. Slide block expansion device. When coil weight is more than 8T, it’s better to adopt this expansion method add machine’s expansion capacity and machine’s reliability, use life time etc

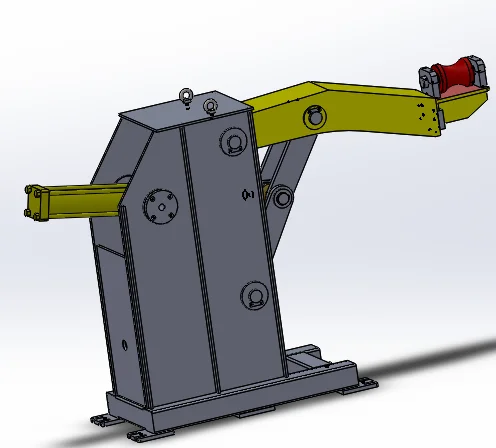

2. Hydraulic tailstock arm device.It was used to support one end of the spindle, enhancing the machine have large loading capacity. Driven by hydraulic cylinder, the arm hold one end of the main shaft firmly when coil was loaded on the mandrel.
Machine Main Specification
Machine Main Specification
Model
MTC-800
MTC-1000
MTC-1300
MTC-1600
Material width(mm)
800
1000
1300
1600
Material thickness(mm)
0.2-6.0
Coil I.D.(mm)
Φ450-530
Φ500-580
Φ530-600
Φ530-600
Coil O.D.(mm)
Φ1200-1500
Material weight(kg)
5000
8000
10000
12000
Speed(m/min)
15
Expansion method
Hydraulic expansion
Machine weight(kg)
2000
2500
3000
3500
Machine sizet(mg)
1.8×1.4×1.4
2.0×1.5×1.6
2.5×1.8×1.8
3.0×2.0×2.0
Power
AC380V 3Phase 60hz

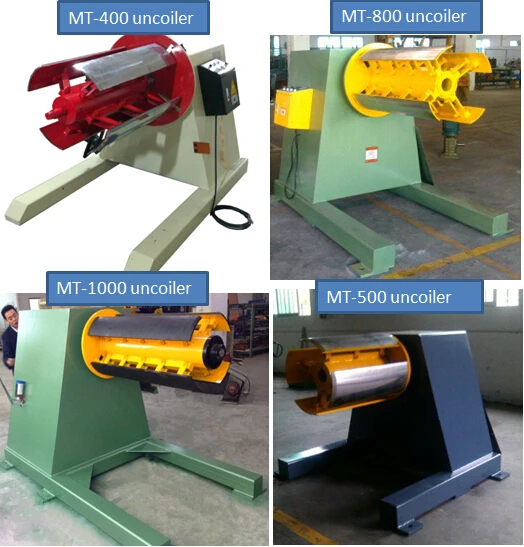

Other similar machine of our company
Machine package term
1. All our machines need to be delivered by plywood case will be painted rust preventing oil and then well wrapped by wrapping film and at last packed by fumigation free plywood case.
2. The case protect machines free of dampness, moisture, rust etc and strong enough to stand shock and rough handle.
Company Information

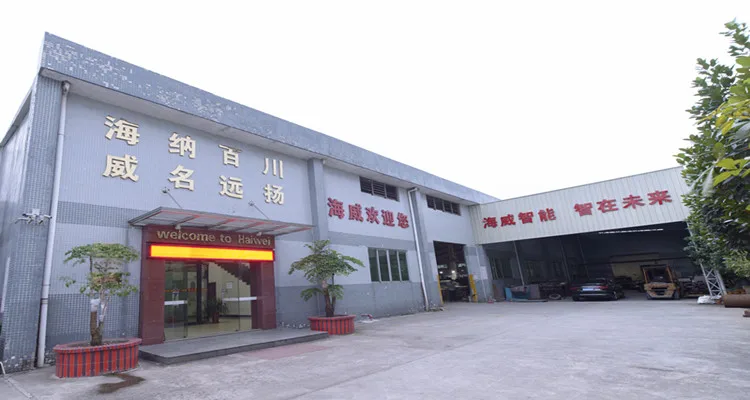

Compony Introduction
