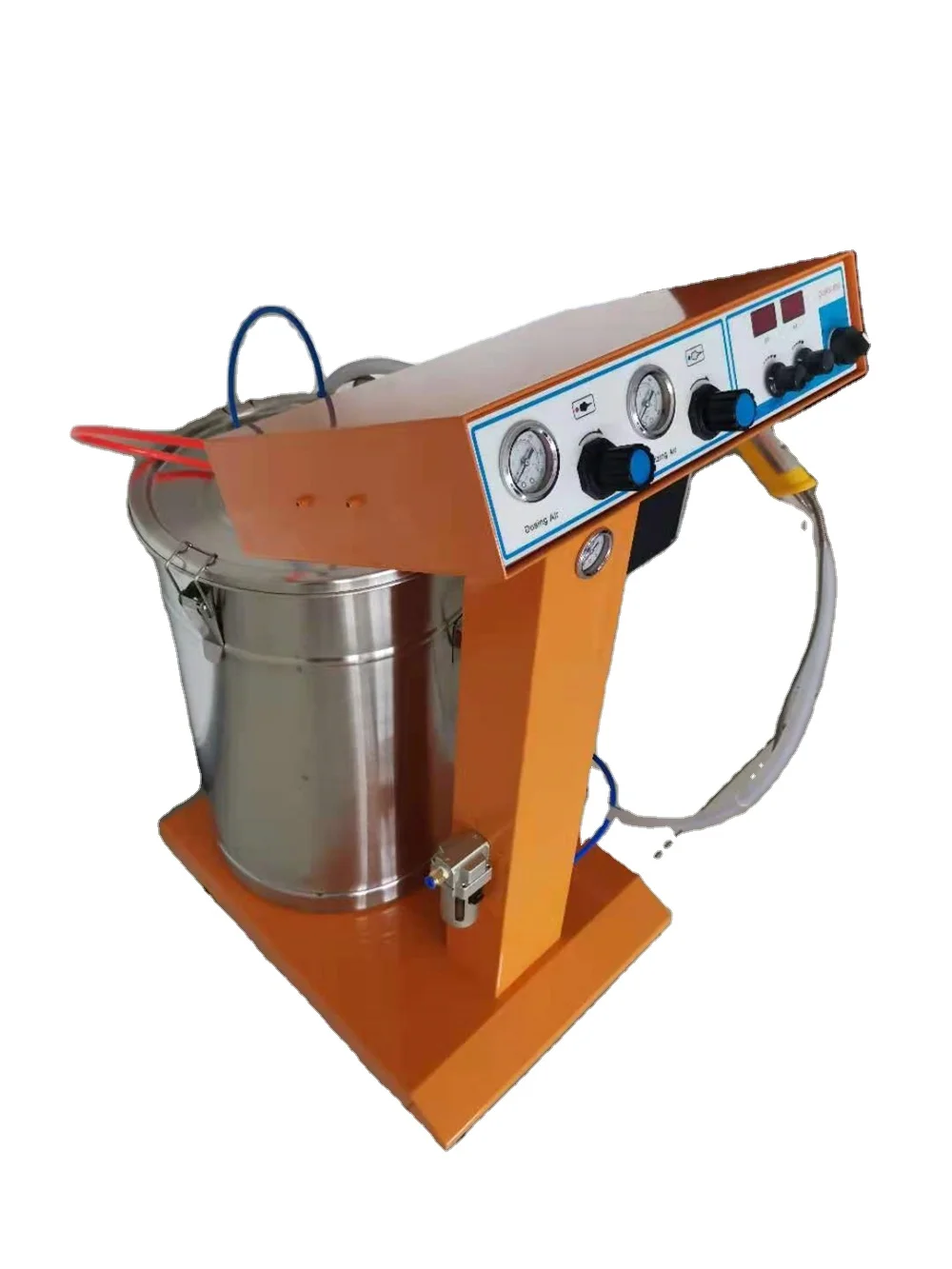

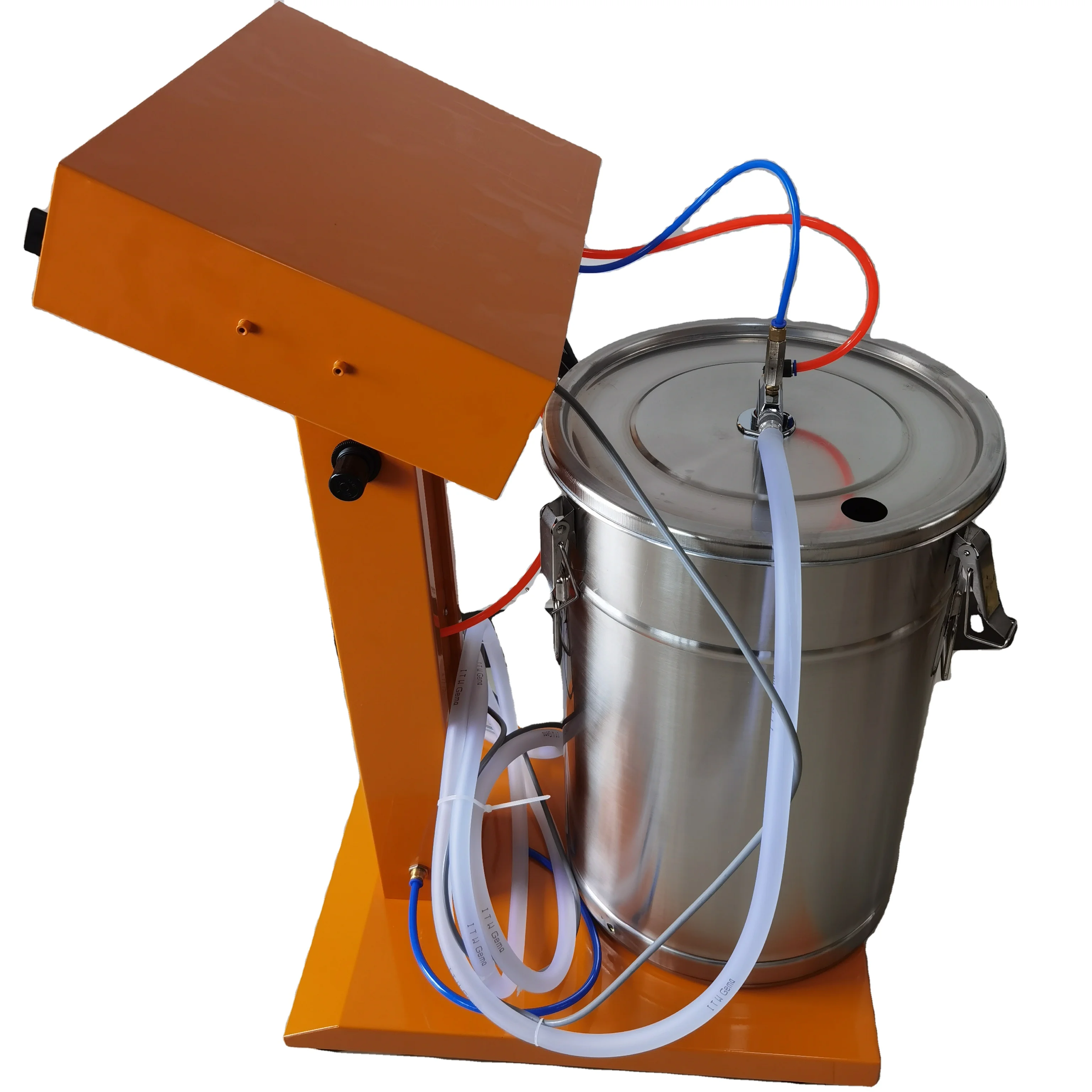

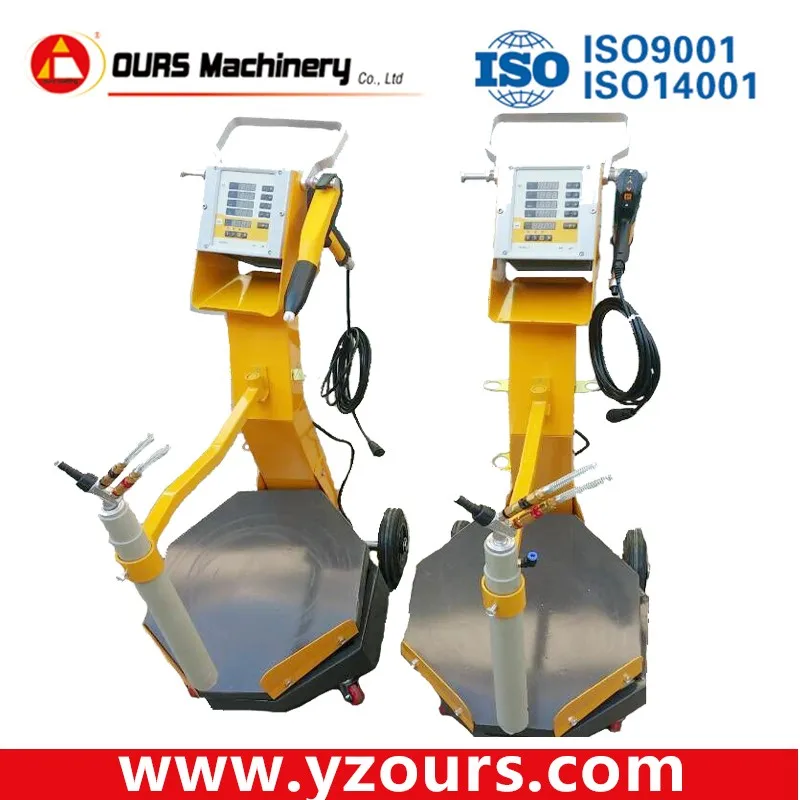

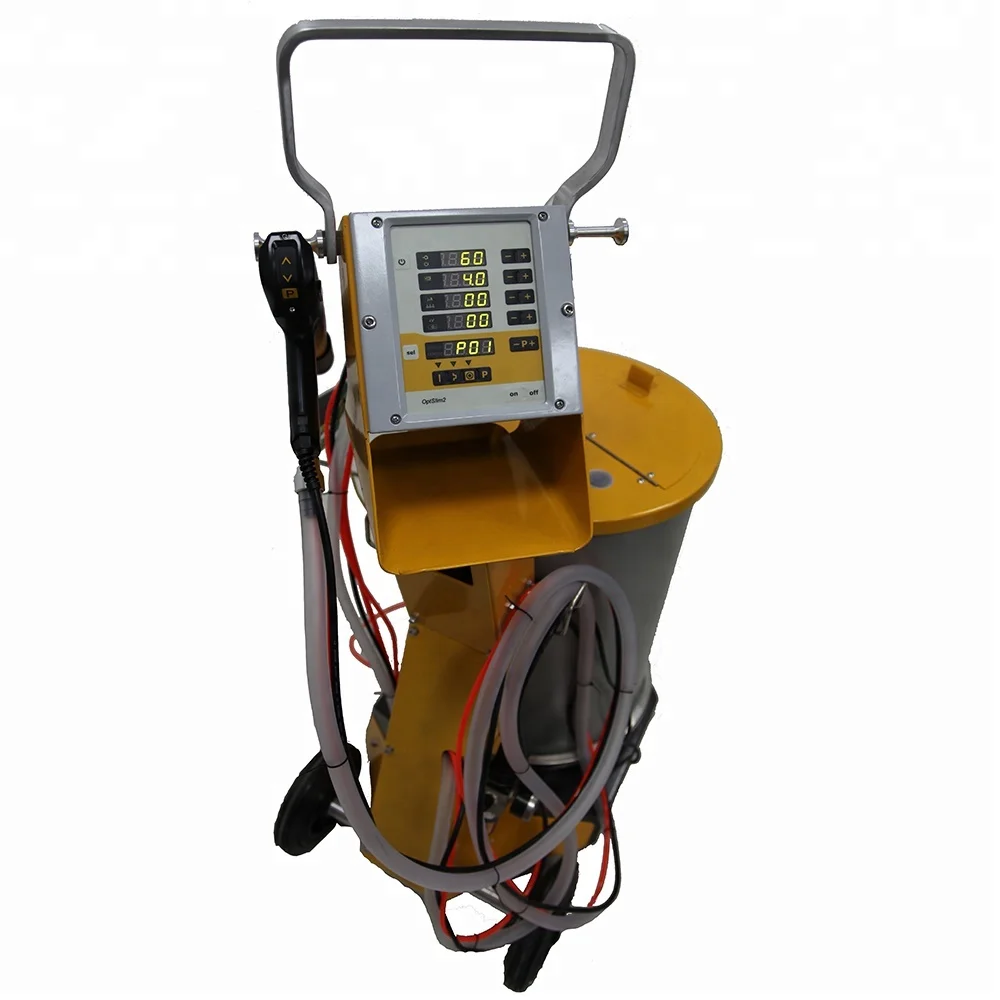

Metal Electrostatic Spray Painting Powder Coating Spraying Gun Equipment Machine
- Category: >>>
- Supplier: Yangzhou Ours Machinery Co. Ltd.
Share on (60158625836):
Product Overview
Description
Detailed description

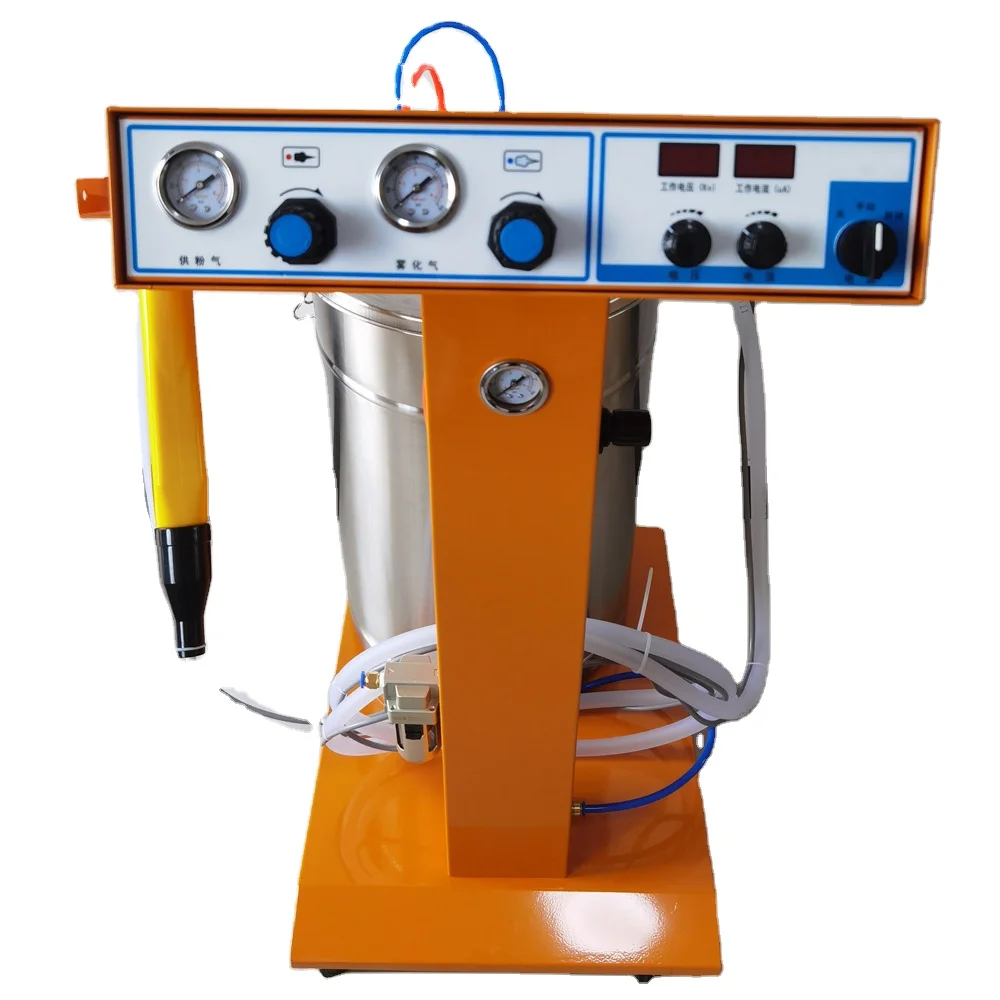

OUR800 manual powder coating machine has imported quality components for smooth use and long service life, uniform and stable powder delivery with high powder application rate(save 10%-30% powder vary to powder quality), quality surface finish left no dead corners.
Circuit (control unit) | ||||
1 | Input voltage: | AC220V/50HZ | ||
2 | Output frequency | 20 KHz | ||
3 | Input power | 50VA | ||
4 | Control Voltage of electromagnetic valve | DC220V | ||
5 | Protection class | IP54 | ||
6 | Transformer output voltage | 220V 16V | ||
7 | Fuse | 1.5-3A | ||
8 | Display mode | Digital display | ||
9 | Input pressure | 0-7bar | ||
Gun (gun with high pressure inside) | ||||
1 | Input voltage | 0-15VDC | ||
2 | Power frequency | 20 KHz | ||
3 | Output high voltage | 15-100KV cathode | ||
4 | Output maximum current | 15-100uA | ||
5 | Powder output | 350g/min | ||
6 | Length of powder pipe | 3.5m | ||
Intellectual Multifunction, easy to operate, easy to maintain, high efficiency

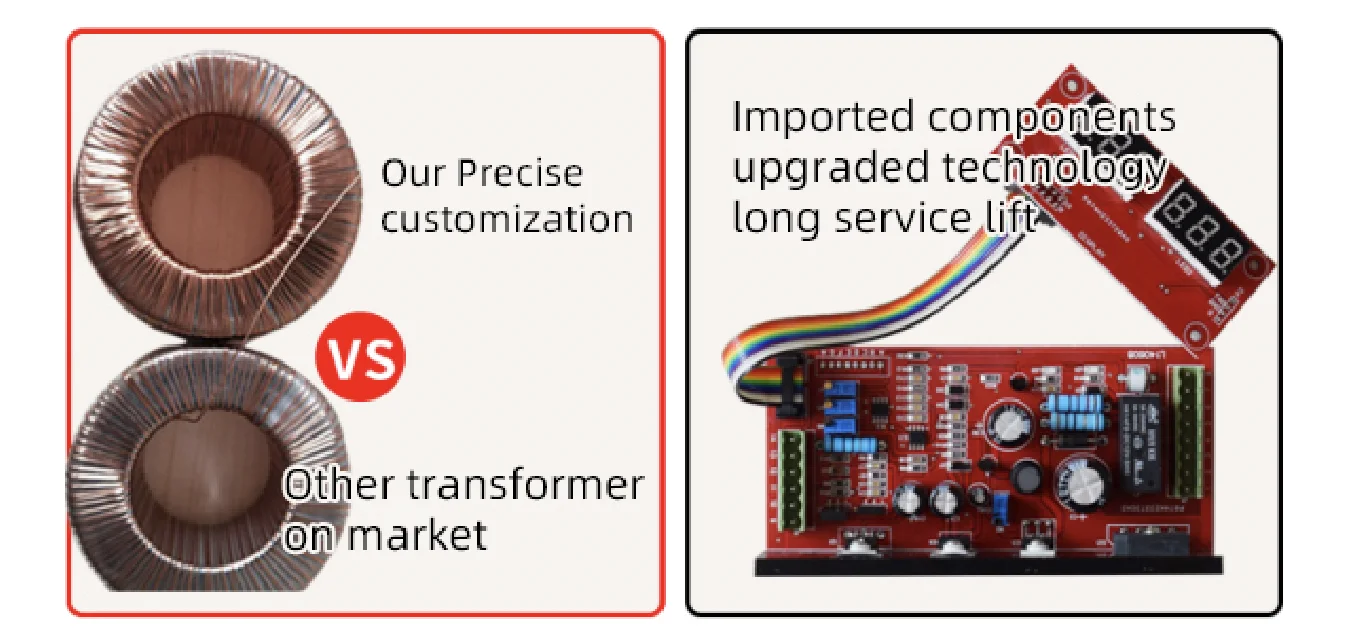

The working efficiency of the toroidal transformer is many times higher than the ordinary one. The precision-manufactured patch circuit has strong electrostatic radiation and more stable performance.
Quality Steel & wheels
The frame is made of thickened steel plate to make it more durable, and the trolley can rotate and move 360 degrees at will.

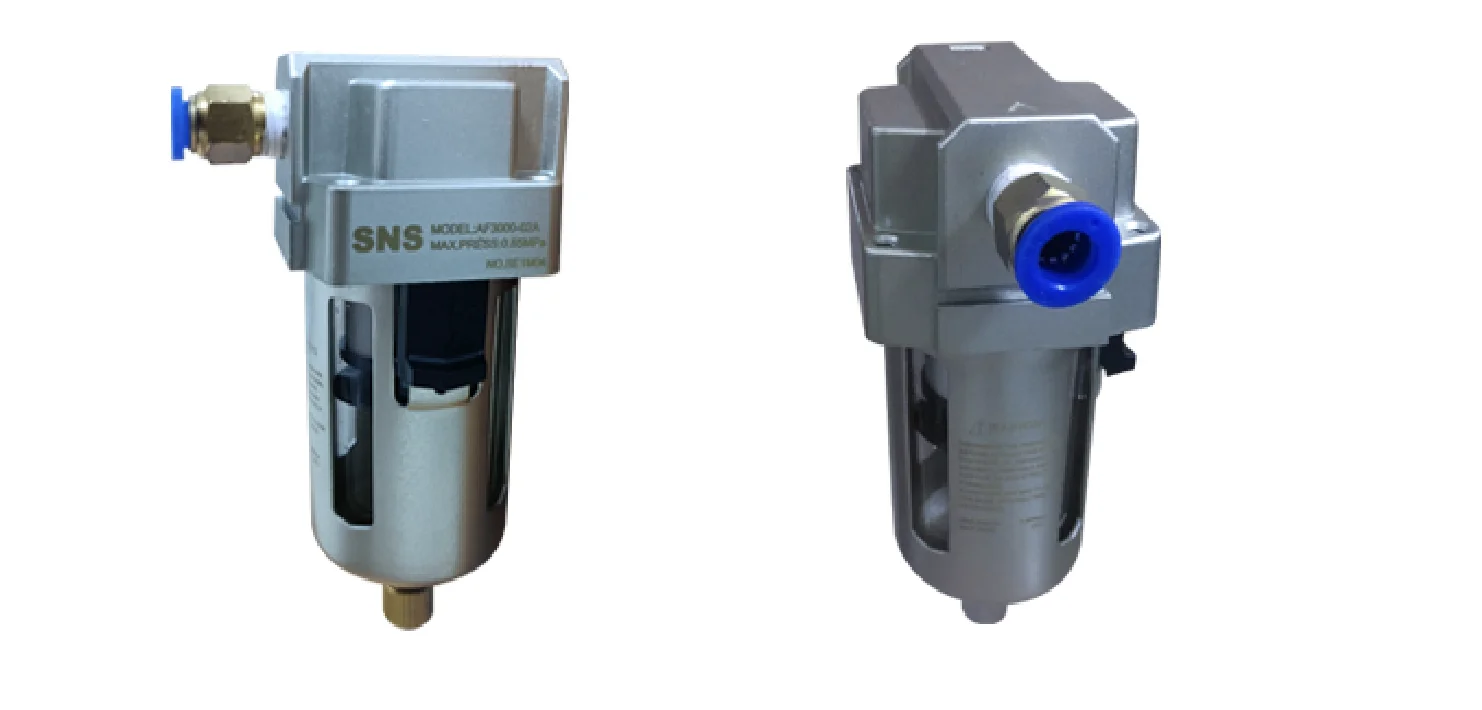

Oil-water separator
Filter water and oil in the compressor to ensure clean air.

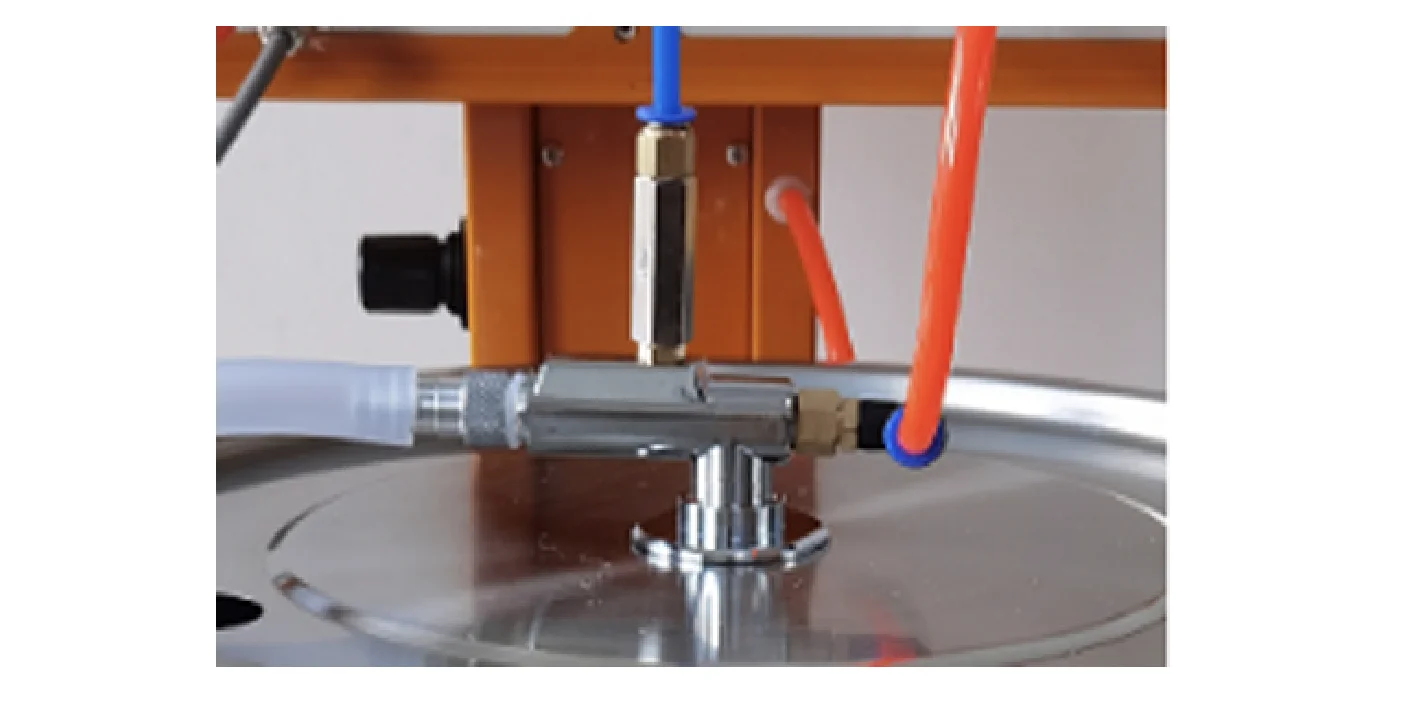

Powder pump
Tight sealing, advanced Venturi technology for big volume and smooth powder output.

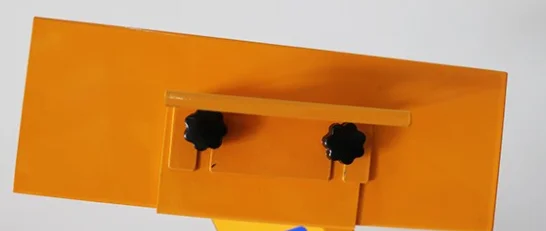

Spray gun seat
For tidy look and convenient operation

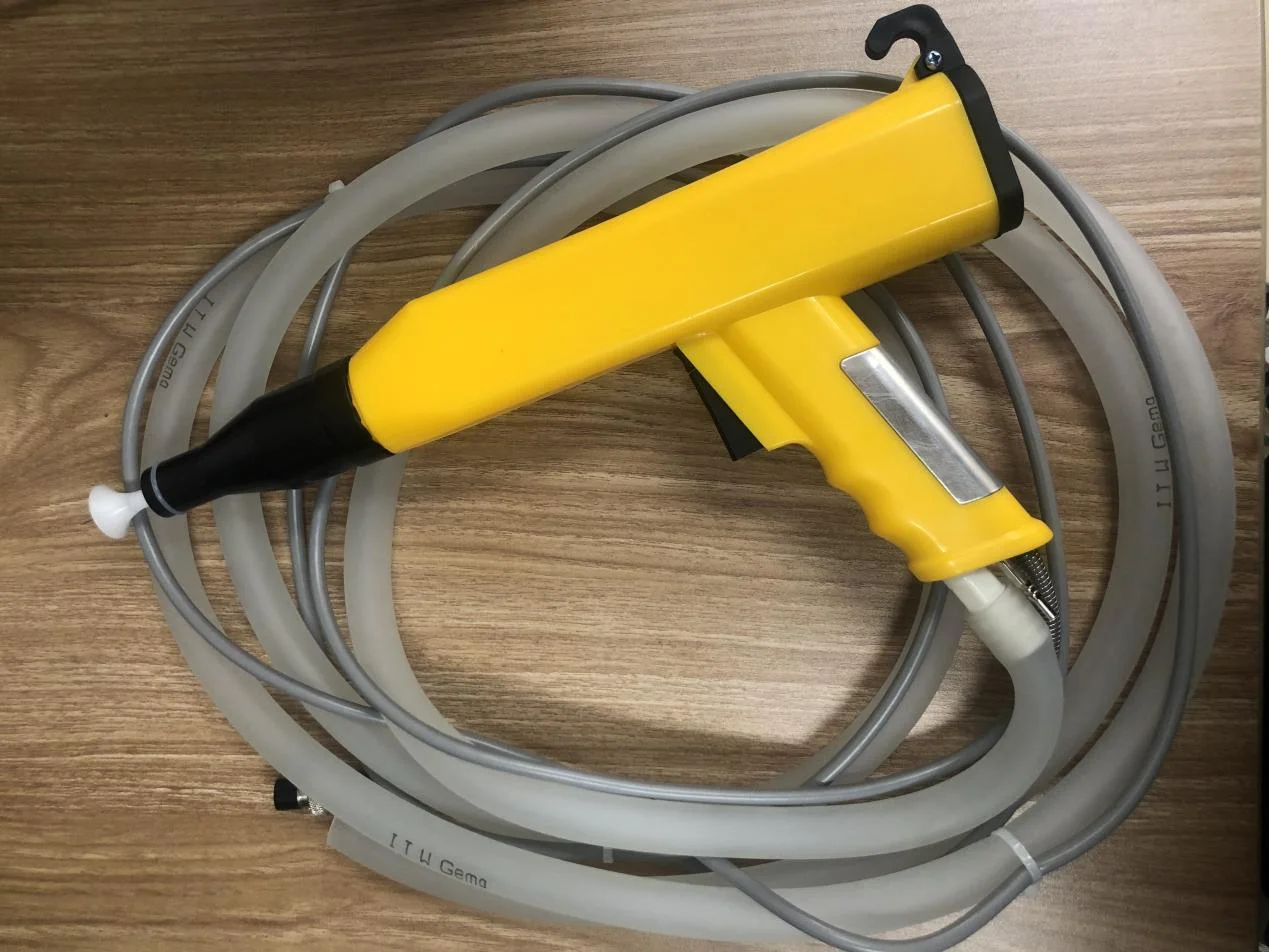

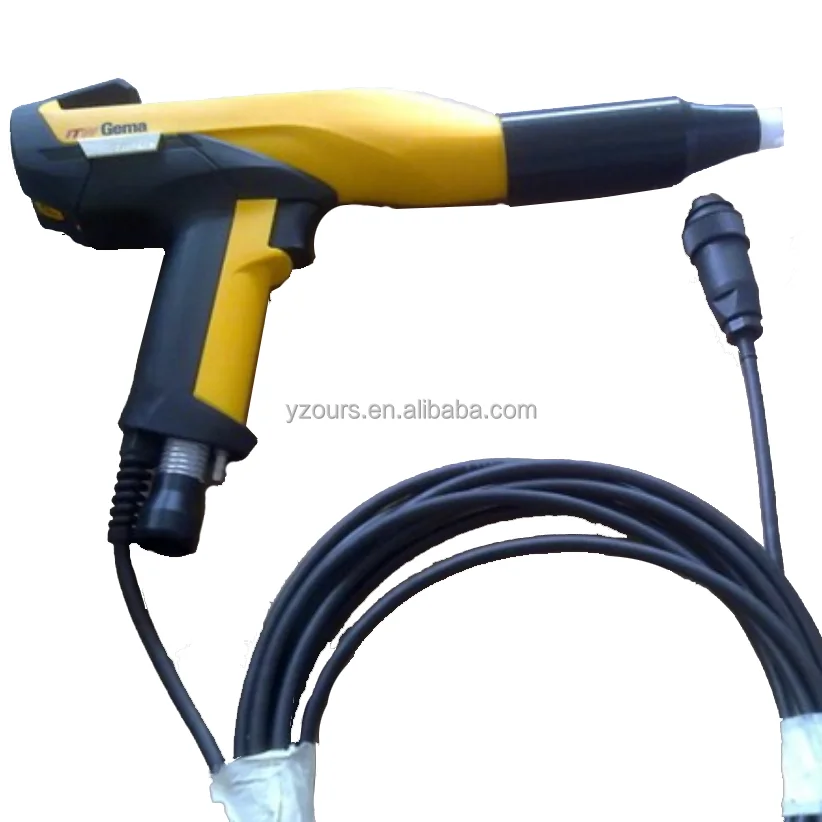

Robust Spray Gun
Built-in strong electrostatic module and cascade for high transfer efficiency, good for complicated shapes, re-coat and dead corners; High strength engineering plastic shell is wear-resistant and pressure-resistant, and ergonomically designed handle for ease of operation.

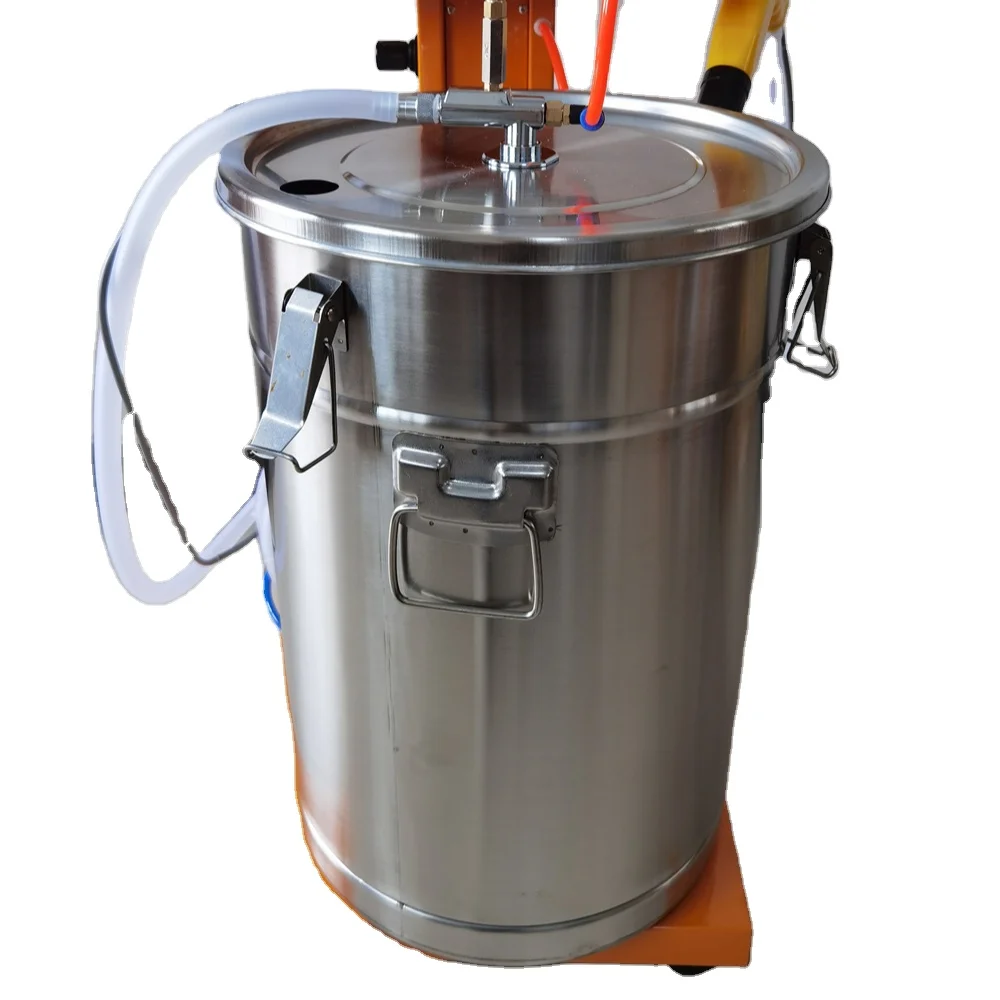

Powder tank
SUS304 tank with fluidization bed
Detailed Analysis

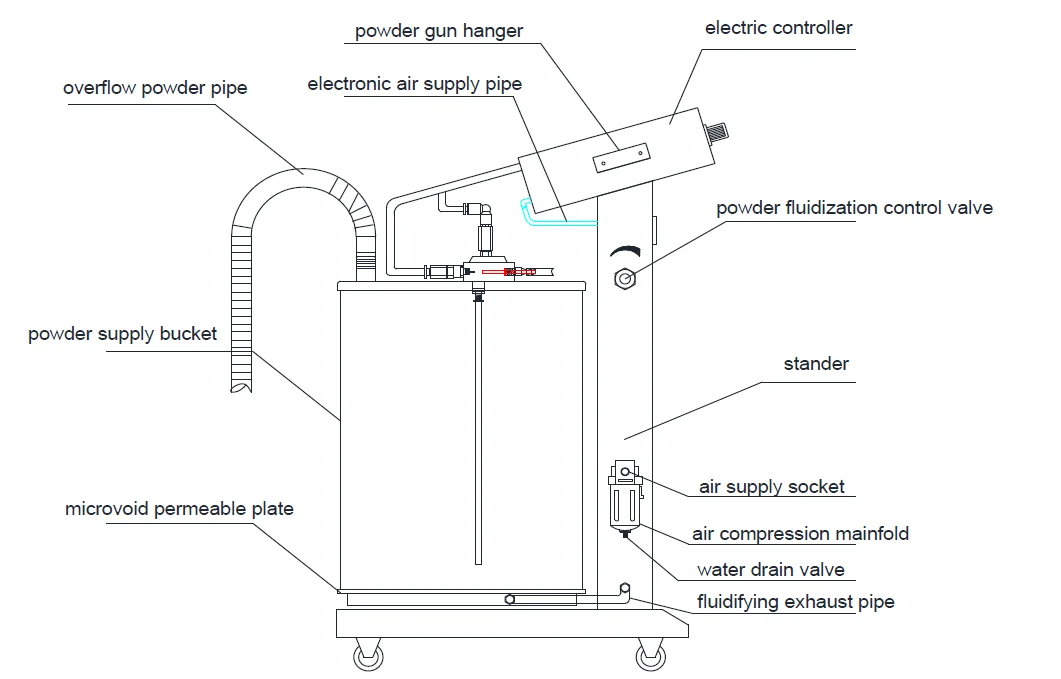

Each item

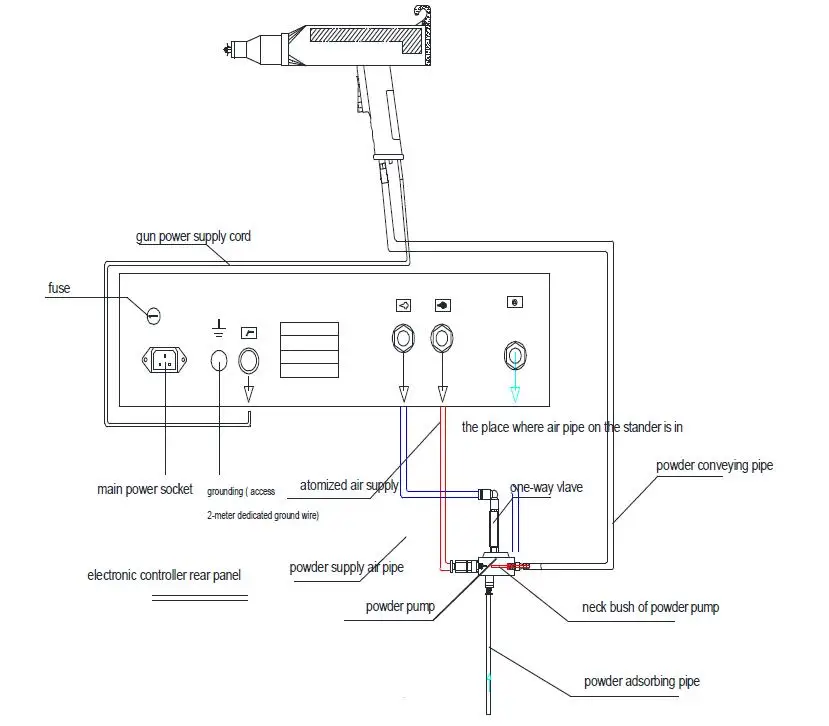

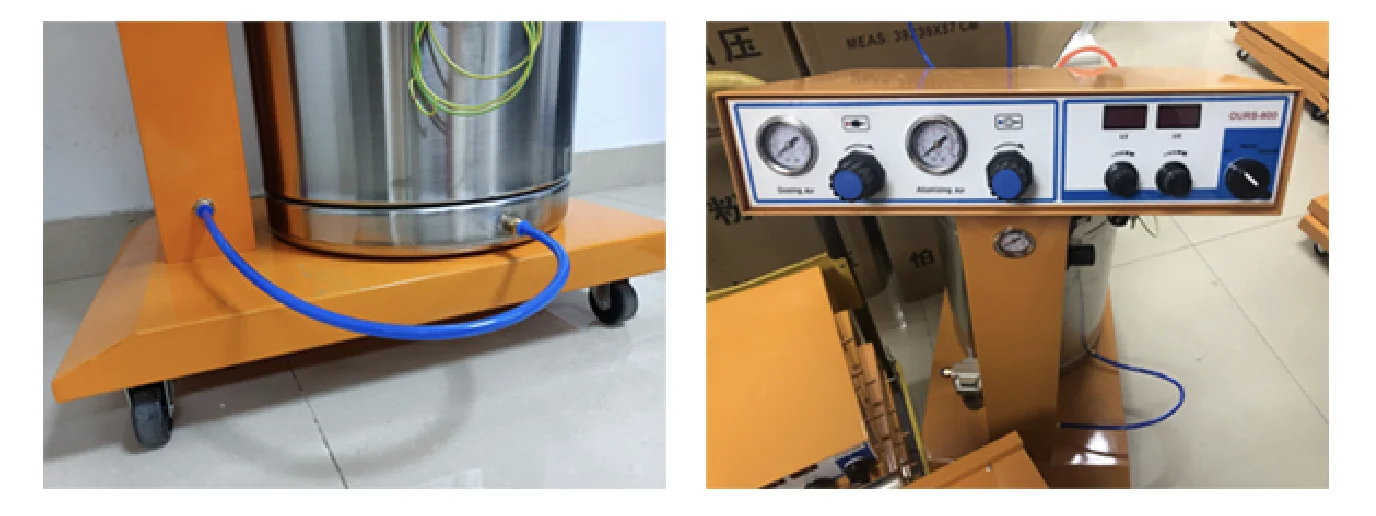

Connection

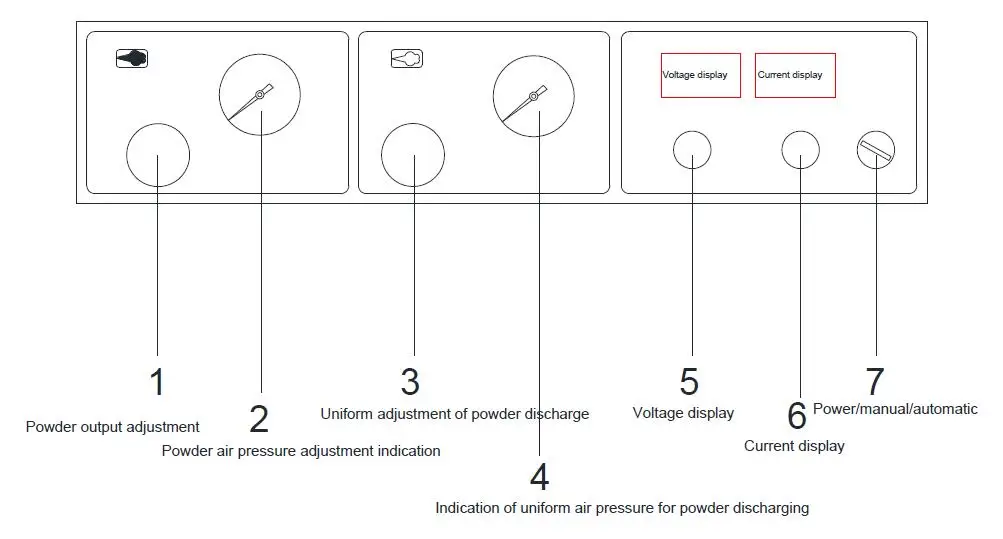

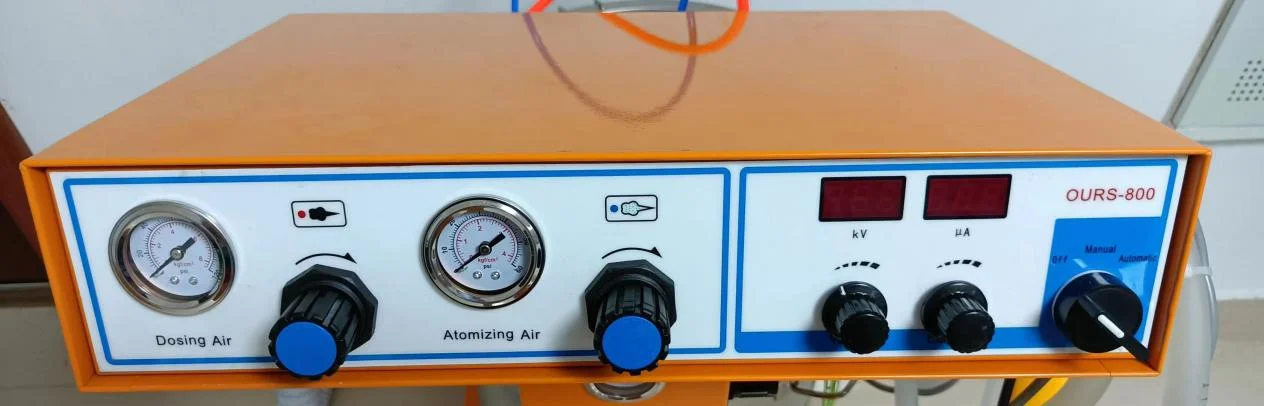

Control panel front

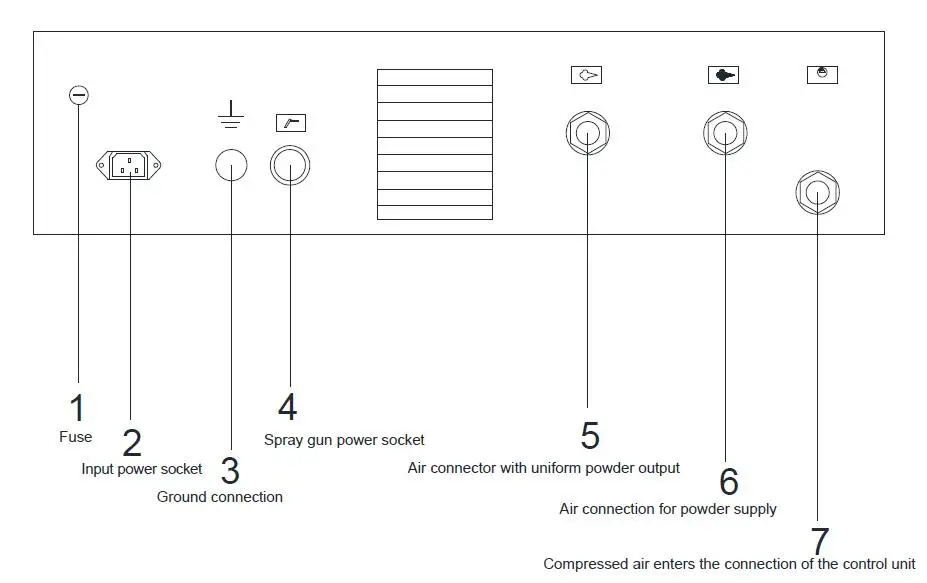

Control panel back

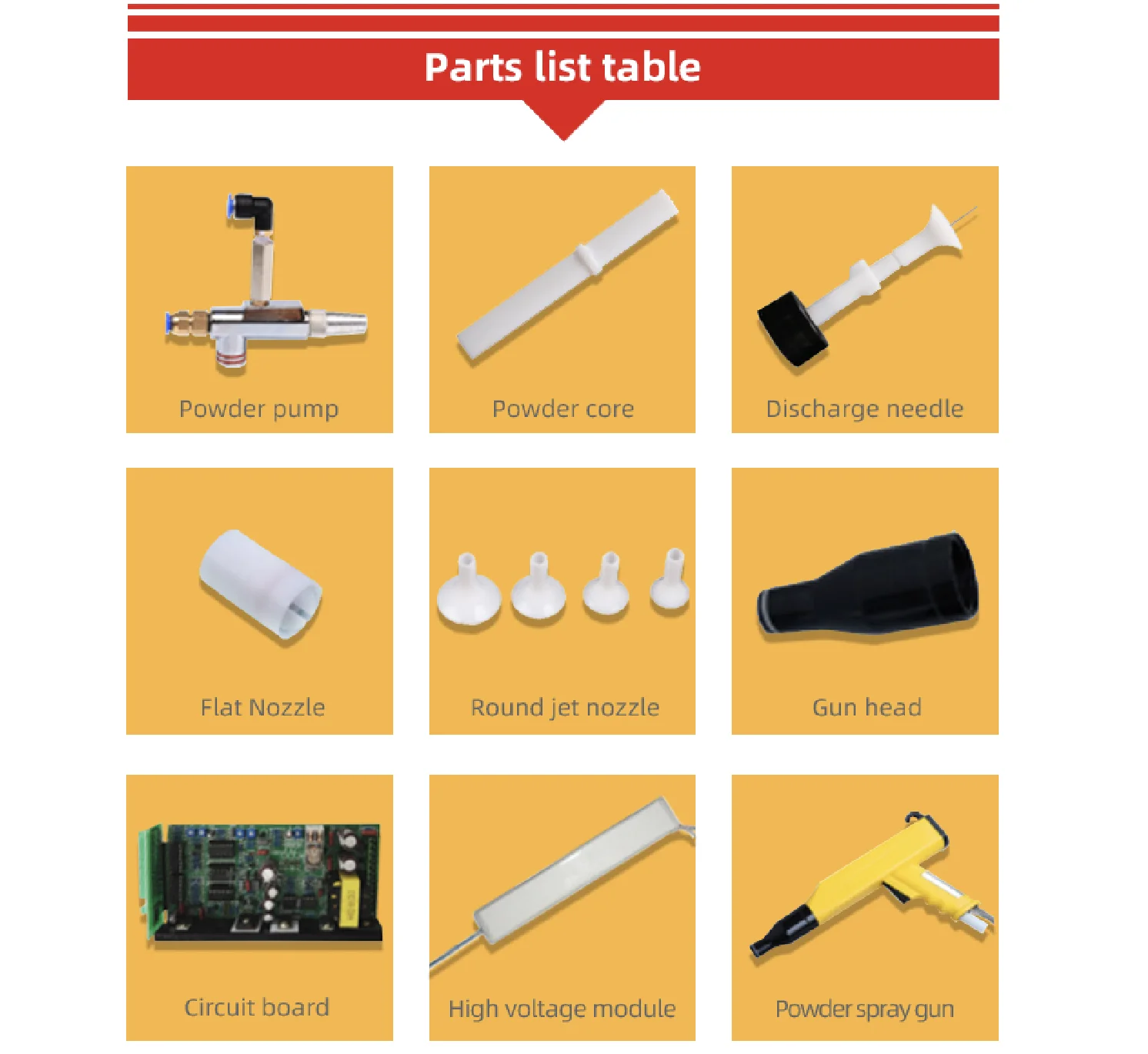

Parts list table
Scope of application
Product packaging
Packing size & weight
Size：
L55* W48*H85cm
Weight：
About 30kg
Please contact us for details if necessary.
Why Choose Us

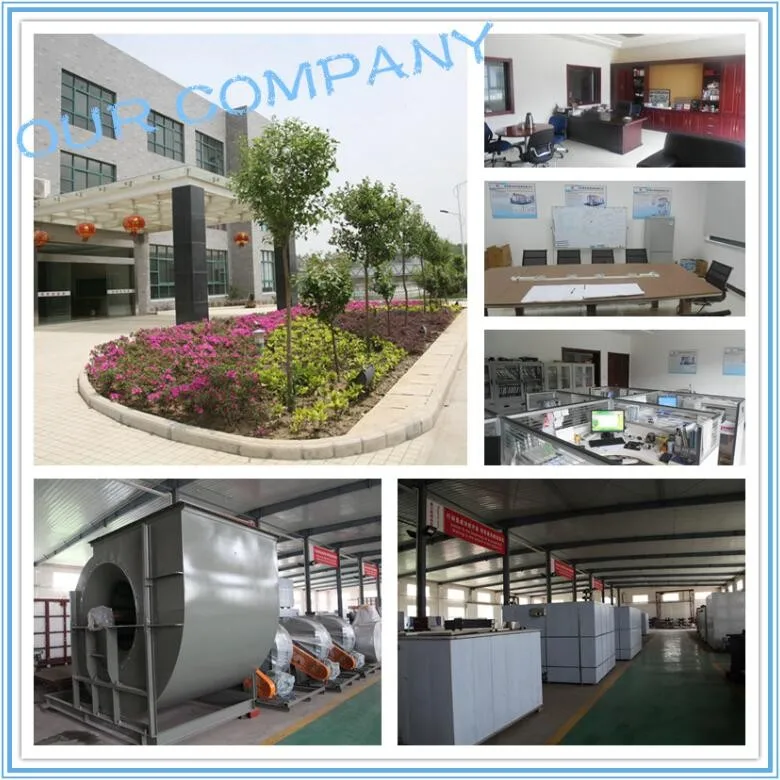

Our company
OURS COATING, specializing in the design, manufacture, installation, sale and service of metal surface treatment equipment, is a company focus on quality and credit in the coating industry. We cooperate with the European technicians with more than 40years;
adopt leading, more efficient and energy-saving new technology of powder coating line. Our products have very strong overall competitiveness in the international market, including pretreatment line, powder coating line, paint spraying line, electrophoresis painting line, electroplating line, have been sold across the country and exported to Asia, Europe, Africa, South America, Oceania, etc.

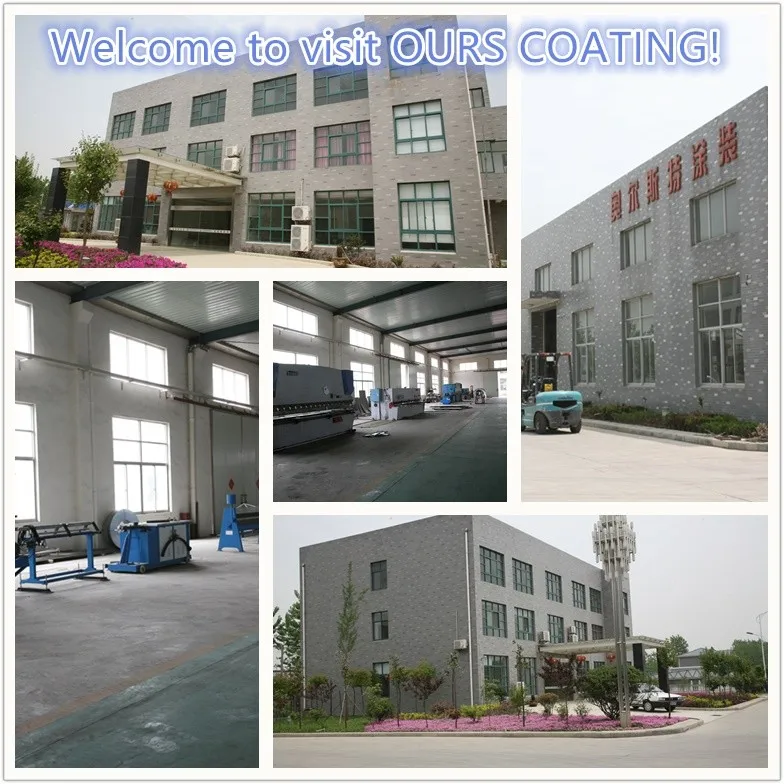

Our factory
The factory, covering an area of 22000㎡, has more than 200 employees, engineering and technical employees more than 70%, and has 18 patents. We also have CE, SGS, TUV and ATEX certification. As an ISO 9001 and ISO14001 Certified Company, we have confident that our products will meet industry standards and exceed customer expectations. hardware, fitness equipment, outdoor recreation machinery and motorcycle industries.
Our team
The company has successively provided turn-key projects for automotive, construction machinery, medical equipment, home appliances, security equipment, firefighting equipment, electrical equipment, metal furniture, logistics, building materials, hardware, fitness equipment, outdoor recreation machinery and motorcycle industries.
